oflibnumpy 1.1.1

Optical flow library using a custom flow class based on NumPy arrays

Oflibnumpy: a handy python optical flow library, based on NumPy arrays, that enables the manipulation and combination of flow fields while keeping track of valid areas (see “Usage”). It is mostly code written from scratch, but also contains useful wrappers for specific functions from libraries such as OpenCV’s remap, to integrate them with the custom flow field class introduced by oflibnumpy. Features:

• Provides a custom flow field class for both backwards and forwards (‘source’ / ‘target’ based) flow fields

• Provides a number of class methods to create flow fields from lists of affine transforms, or a transformation matrix

• Provides a number of functions to resize the flow field, visualise it, warp images, find necessary image padding

• Allows for three different types of flow field combination operations

• Keeps track of valid flow field areas through said operations

• Provides alternative functions to avoid the explicit use of the custom flow class, with slightly limited functionality

Note there is an equivalent flow library called Oflibpytorch, mostly based on PyTorch tensors. Its code is available on Github, and the documentation is accessible on ReadTheDocs.

Usage & Documentation

A user’s guide as well as full documentation of the library is available at ReadTheDocs. Some quick examples:

import oflibnumpy as of

shape = (300, 400)
transform = [['rotation', 200, 150, -30]]

# Make a flow field and display it
flow = of.Flow.from_transforms(transform, shape)
flow.show()

# Alternative option without using the custom flow class
flow = of.from_transforms(transform, shape, 't')
of.show_flow(flow)

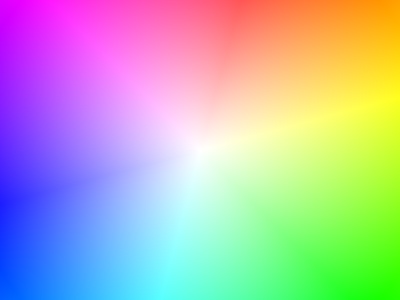

Above: Visualisation of optical flow representing a rotation

# Combine sequentially with another flow field, display the result
flow_2 = of.Flow.from_transforms([['translation', 40, 0]], shape)
result = flow.combine_with(flow_2, mode=3)
result.show(show_mask=True, show_mask_borders=True)

# Alternative option without using the custom flow class
flow_2 = of.from_transforms([['translation', 40, 0]], shape, 't')
result = of.combine_flows(flow, flow_2, mode=3, ref='t')
of.show_flow(result)  # Note: no way to show the valid flow area (see documentation)

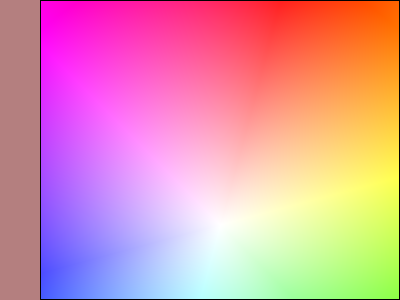

Above: Visualisation of optical flow representing a rotation, translated to the right, using the custom flow class

result.show_arrows(show_mask=True, show_mask_borders=True)

# Alternative option without using the custom flow class
of.show_flow_arrows(result, 't')  # Note: again no way to show the valid flow area

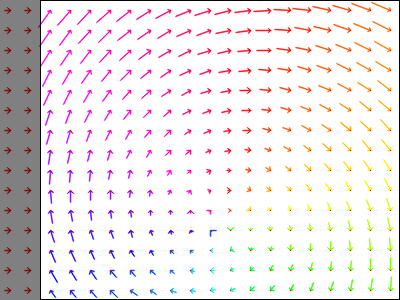

Above: Visualisation of optical flow representing a rotation, translated to the right, using the custom flow class

Installation

Oflibnumpy is based on Python>=3.7. Install it by running:

pip install oflibnumpy

Testing

Oflibnumpy contains a large number of tests to verify it is working as intended. Use the command line to navigate to oflibnumpy/tests and run the following code:

python -m unittest discover .

The tests will take several minutes to run. Successful completion will be marked with OK.

Contribution & Support

• Source Code: https://github.com/RViMLab/oflibnumpy

• Issue Tracker: https://github.com/RViMLab/oflibnumpy/issues
