Agrothon 1.3.2

A Farm Monitoring Bot

Agrothon

A Farm Monitoring Bot

Introduction

• This project has three parts

  • The Agrothon-Client Module which will be running in Raspberry Pi
  • API Server
  • Telegram Bot

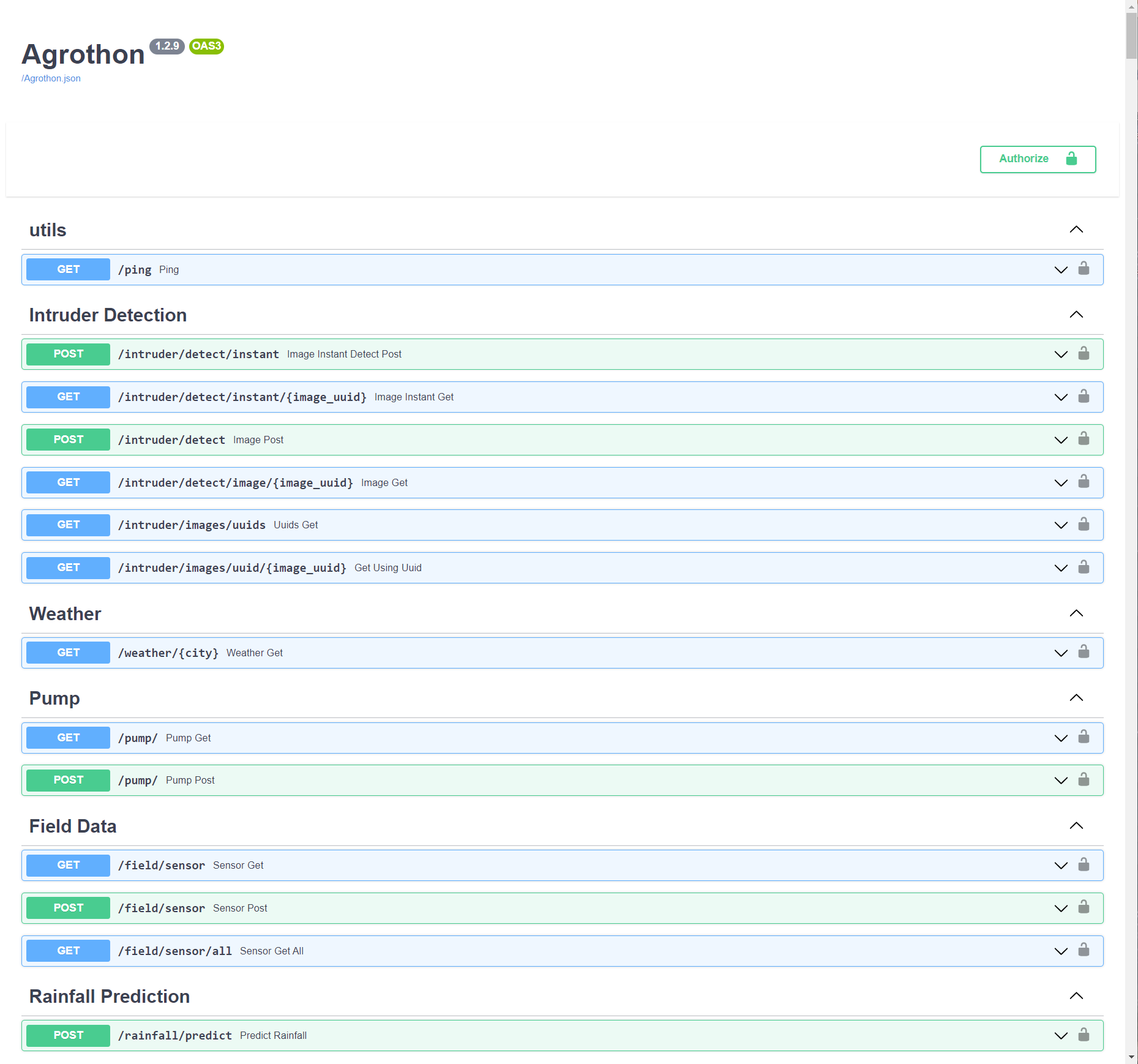

• API Server handles Everything, All the routes are shown below



• Telegram bot is just a frontend for the whole Project

• Agrothon-Client Sends Sensor data, Intruder images to the API Server which will be analysed there and Stored in the Database

Installation

• Via pip

  • Install Dependencies

    mkdir agrothon && cd agrothon
    sudo add-apt-repository ppa:deadsnakes/ppa
    sudo apt-get install python3.8 wget
    wget -q https://github.com/caddyserver/caddy/releases/download/v2.4.1/caddy_2.4.1_linux_amd64.tar.gz
    tar xzf caddy_2.4.1_linux_amd64.tar.gz
    rm -rf caddy_2.4.1_linux_amd64.tar.gz
    chmod a+x caddy
    mv caddy /usr/local/bin/caddy
    wget -q https://github.com/viswanathbalusu/Agrothon/raw/main/Caddyfile -O Caddyfile


  • First fill the variables in agrothon-sample.env and rename it to agrothon.env

    wget -q https://github.com/viswanathbalusu/Agrothon/raw/main/agrothon-sample.env -O agrothon.env


  • you can extend all tha variables from Base Config

  • Get the latest Release of data directory and untar in it the same directory where you placed agrothon.env

    wget -q https://github.com/viswanathbalusu/Agrothon/releases/latest/download/Agrothon-Data.tar.gz
    tar -xzf Agrothon-Data.tar.gz && rm -rf Agrothon-Data.tar.gz


  • Edit the $API_PORT in Caddyfile or Just Set $API_PORT in your Shell Environment.

  • Then Create a Virtual Environment (Optional but Recommended) and then install Agrothon with

    python3.8 -m virtualenv venv
    source venv/bin/activate
    pip install Agrothon


  • There are two commands in Agrothon

    • agroserver - Which actually starts the Uvicorn Server on a Unix Domain Socket at /usr/agrothon.sock, So you should use a Reverse proxy (Preferably Caddy)
    • agrobot - Which starts the telegram bot
    • agrothon - Starts Both agroserver and agrobot with caddy reverse proxy

• Via Docker

  • Download Docker compose and Map the ports according to your use
    • wget -q https://viswanathbalusu.github.io/Agrothon/docker-compose.yml
  • Download agrothon.env and Fill the Variables (can be extended from Base Config)
    • wget -q https://viswanathbalusu.github.io/Agrothon/agrothon-sample.env -O agrothon.env
  • Finally do docker-compose up it will pull the image from container registry and run the services

Variables in agrothon.env

Variable	Value	Example	Required	Description
-	-	Bot Configuration	-	-
TELEGRAM_APP_ID	Telegram API APP ID	1234567	True	Can be obtained from Telegram
TELEGRAM_API_HASH	Telegram API Hash	022d29afxxxxxxxxf825980a7974ec42	True	Can be obtained from Telegram
BOT_TOKEN	Telegram Bot Token	123456:abcdefghij	True	Can be obtained from Bot Father
API_BASE_URL	Api base Host URL	https://mysite.com/	True	Must be host Without port (i.e Port 80/443* only)
ALERT_CHANNEL_ID	Alert channel ID	-100123456789	True	Intruder Alerts will be posted to this channel
STATE	name of the state	Andhra Pradesh	True	Must be a state in India 🤔
DISTRICT	name of the district	East Godavari	True	name of your district
DEF_LANG	Default Language	english	False	Can be choosen from english, telugu, tamil, hindi (Default is english)
DEF_CITY	Default City	Vijayawada	True	City from which weather should be fetched
-	-	Server Configuration	-	-
OPEN_WEATHER_API	Open weather API Key	d6778a1acdd67c4xxxxxxe500e81987d	True	API to get the weather data of a particular region, Get this from OpenWeather
API_KEY	An API Key for your Server	Agrothon	True	This is like a Password for your API Server, So choose Wisely (Alphanumeric only)
DB_URL	MongoDB URL	mongodb+srv://xxx:[e-mail]	True	Database to Store All the data, get this from MongoDB
SENSOR_PRIORITY_INDEX	Moisture sensor priority	2	True	Which moisture sensor to use for predicting on/off the pump
AUTH_ID	Telegram user ID	12345678	False	If this is not provided, Bot access is given to all the telegram users ⚠️

* if there are Other ports too the Bot will Work but it may not be able to post images

Note

• We are using heavy modules like tensorflow and Yolov3, so make sure you have atleast 2.5GB RAM free to get this running
• Only Works in UNIX environments
• caddy,xz-utils, all OpenCV Dependencies must be installed if you are choosing non Docker method.
• Python3.8 is compulsory

Agrothon Telegram bot

Screenshots

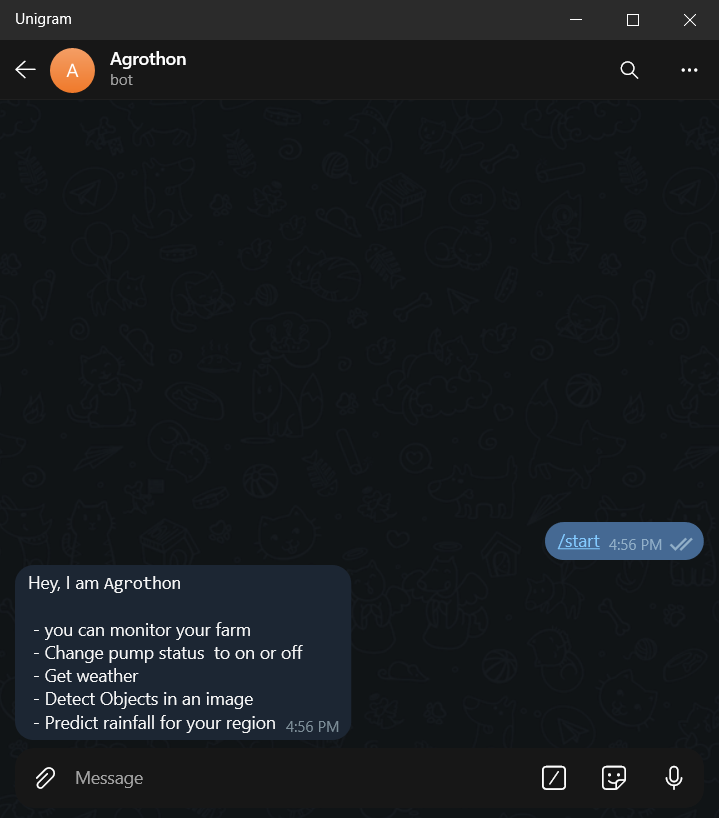

• Telegram Bot Start

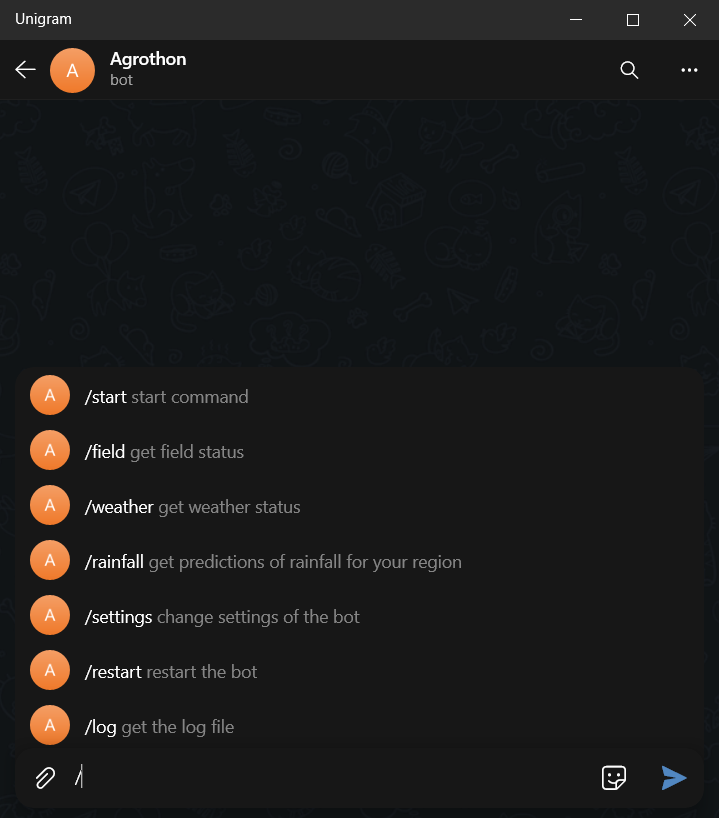

• Bot Commands

    start - start command
    field - get field status
    weather - get weather status
    rainfall - get predictions of rainfall for your region
    settings - change settings of the bot
    restart - restart the bot
    log - get the log files
    stats - get the server stats
    ping - check ping of server
    help - to get help message

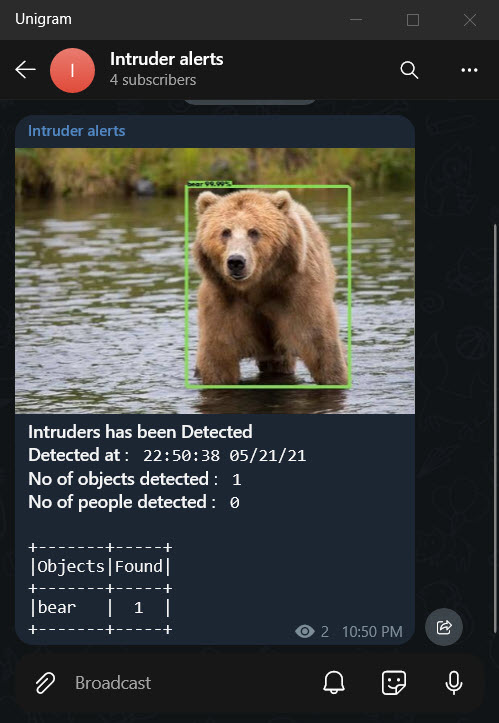

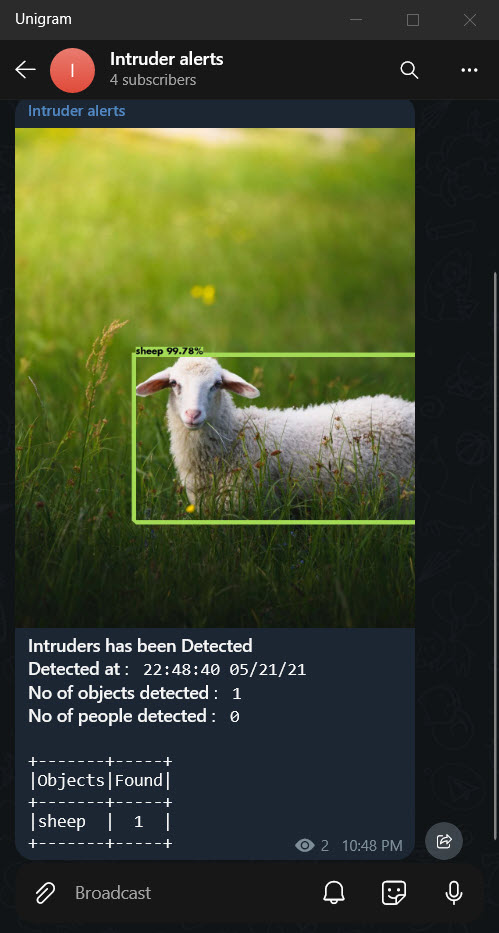

• Object Detection













• Bot Commands Usage

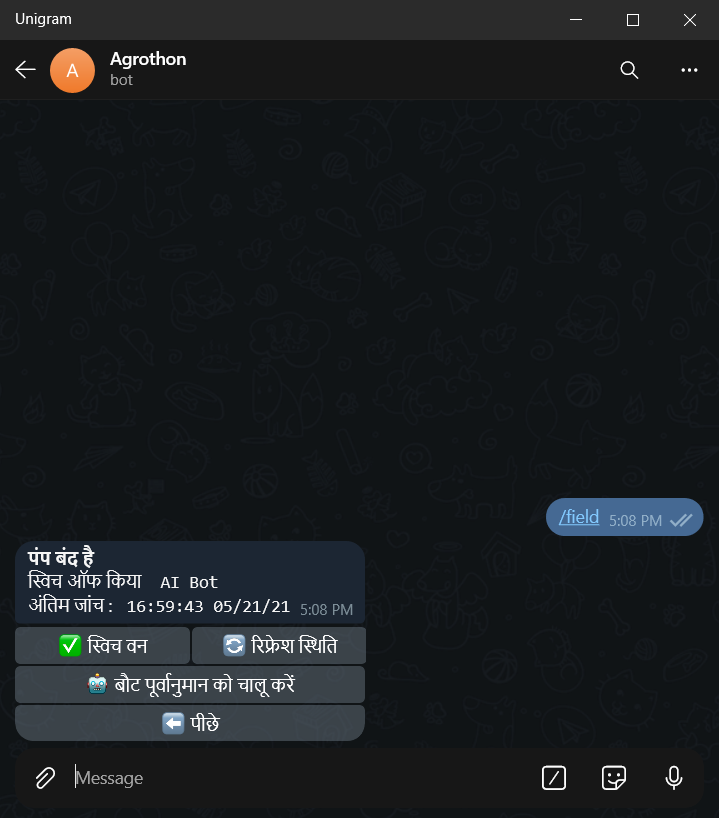

  • Pump Prediction

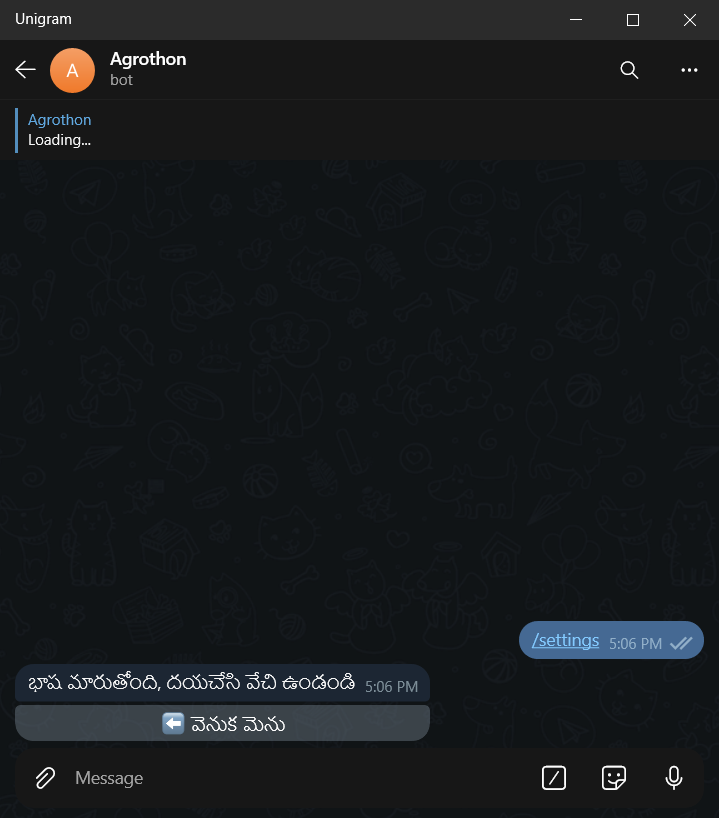

  • Language Change

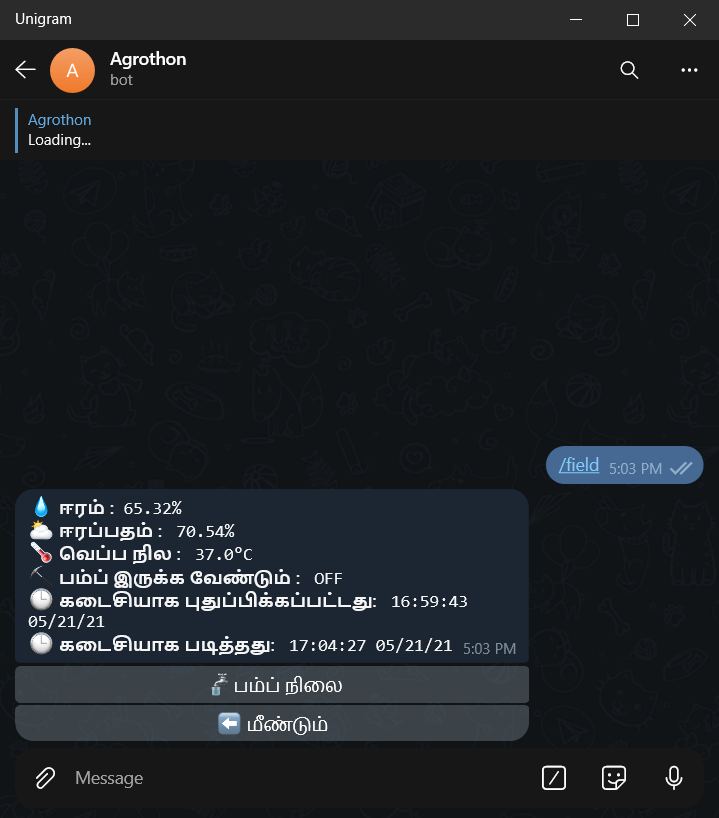

  • Complete info

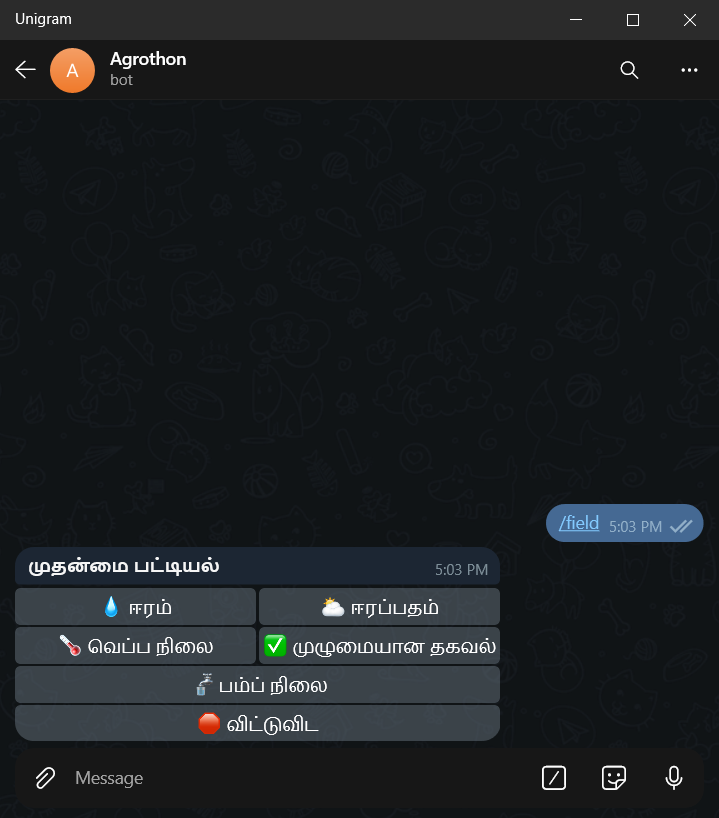

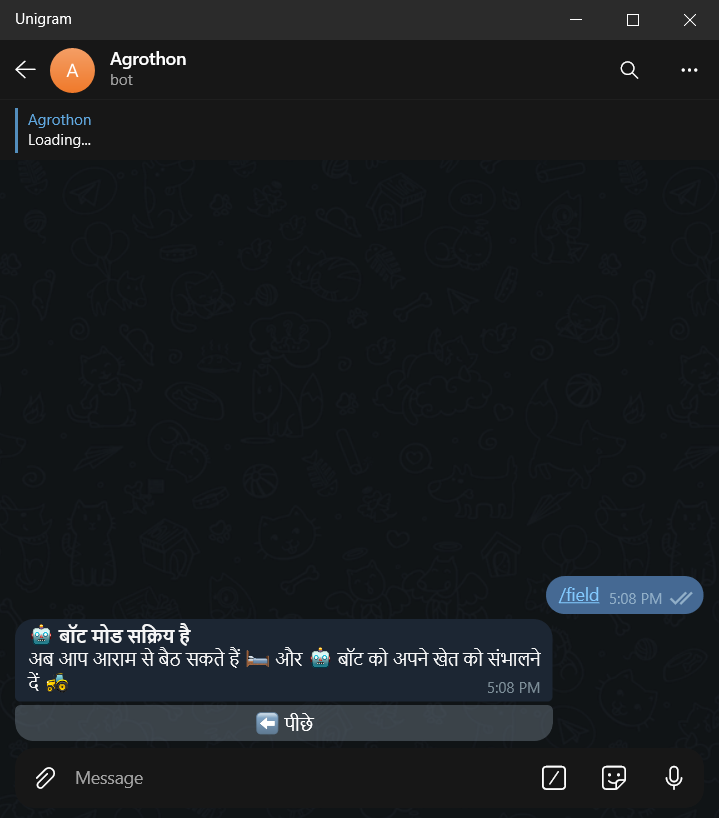

  • Field Command

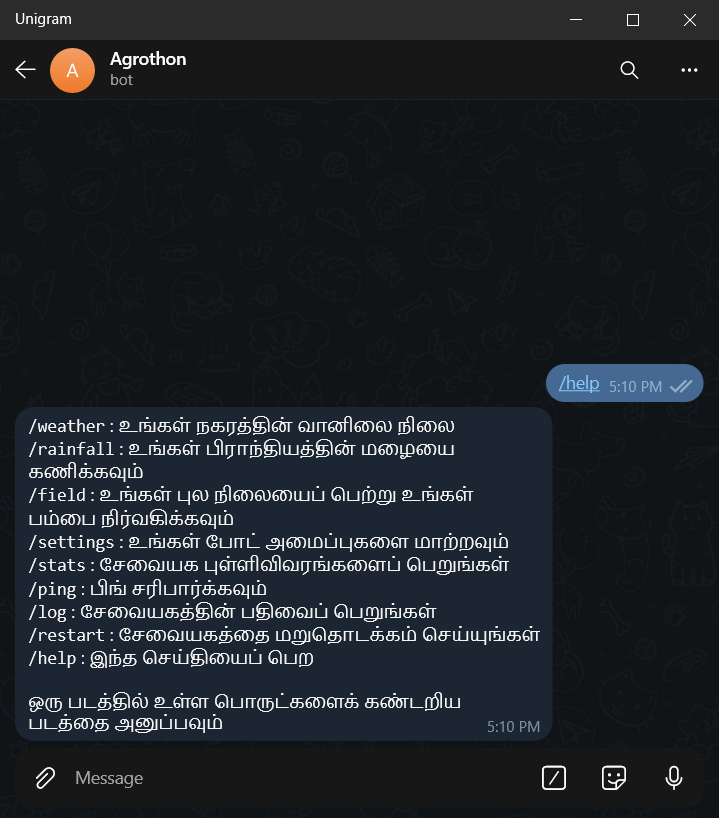

  • Help Command

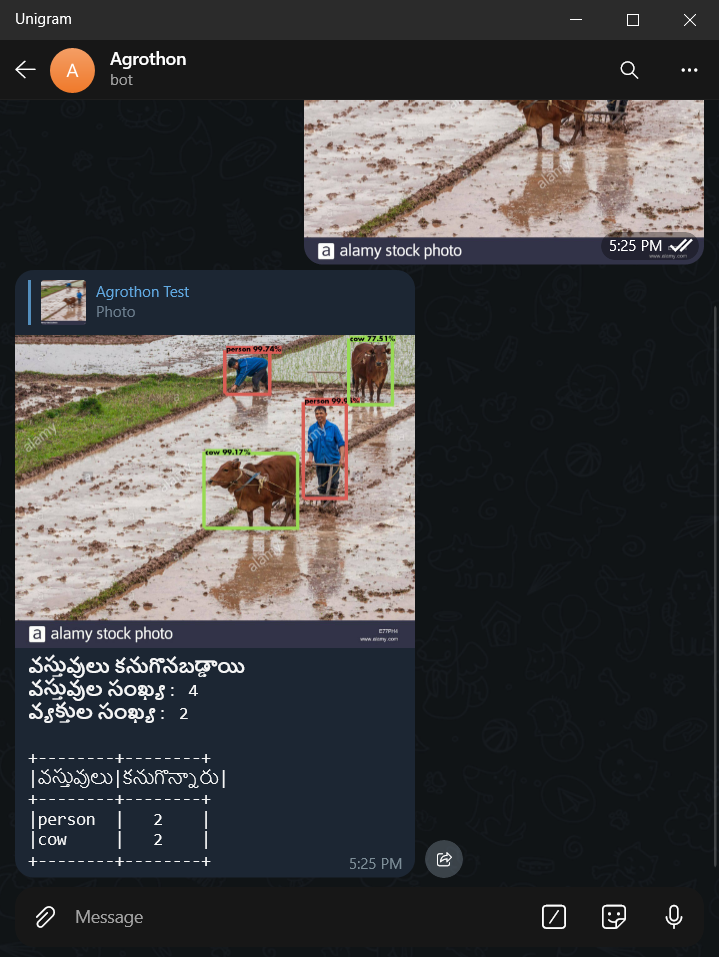

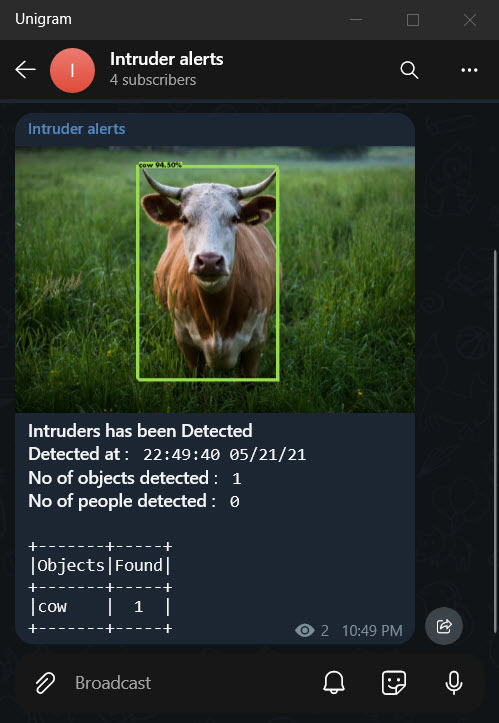

  • Object Detection by sending an Image to Bot



  • Language Menu



  • Pump Keyboard

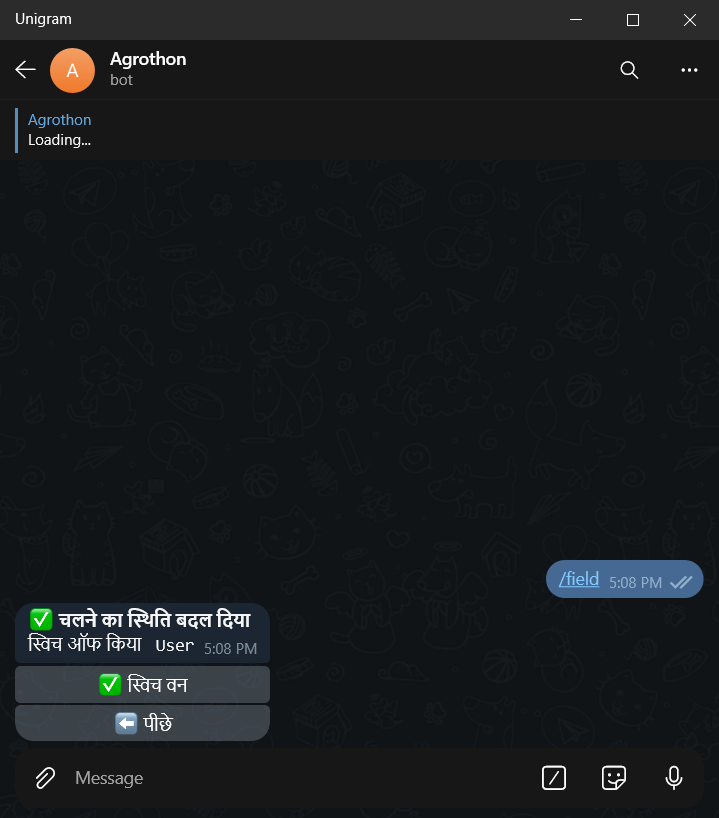

  • Pump on/off

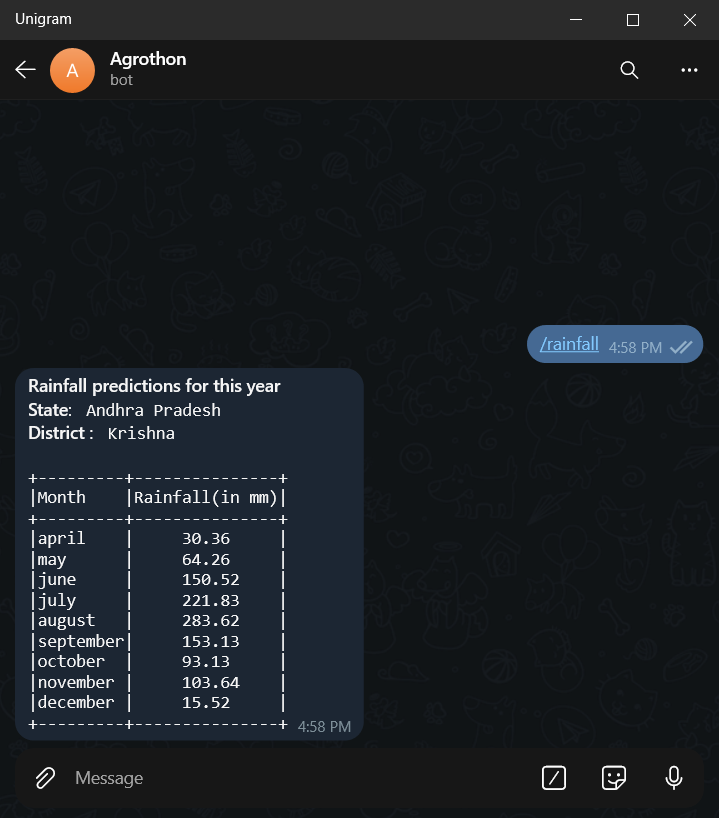

  • Rainfall Prediction

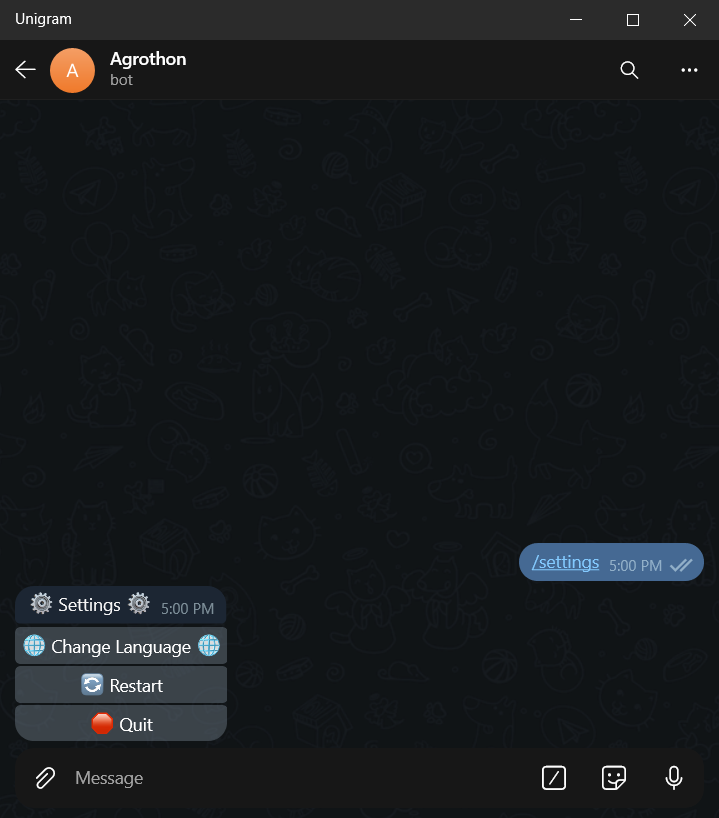

  • Settings Keyboard

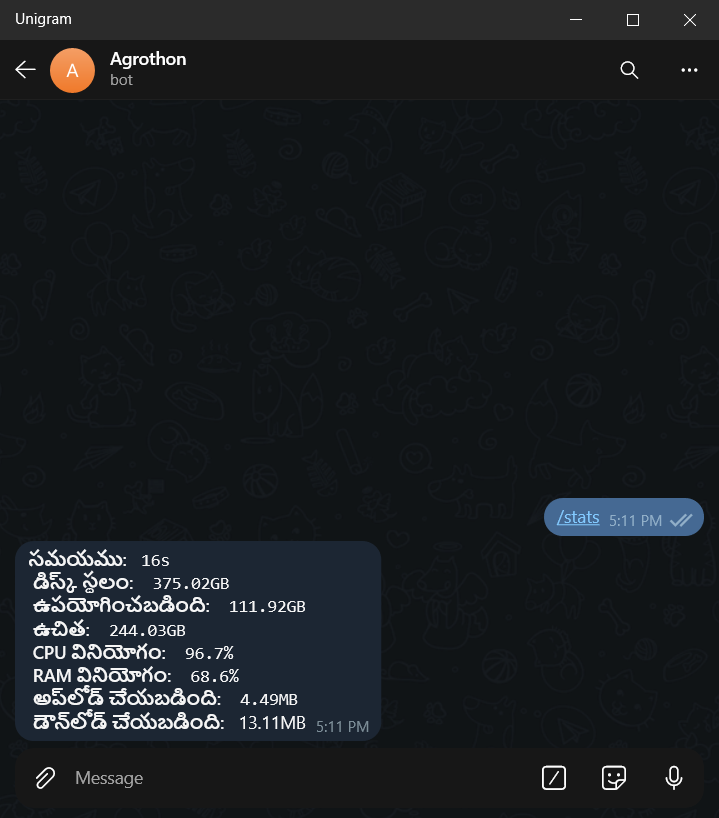

  • Server Stats

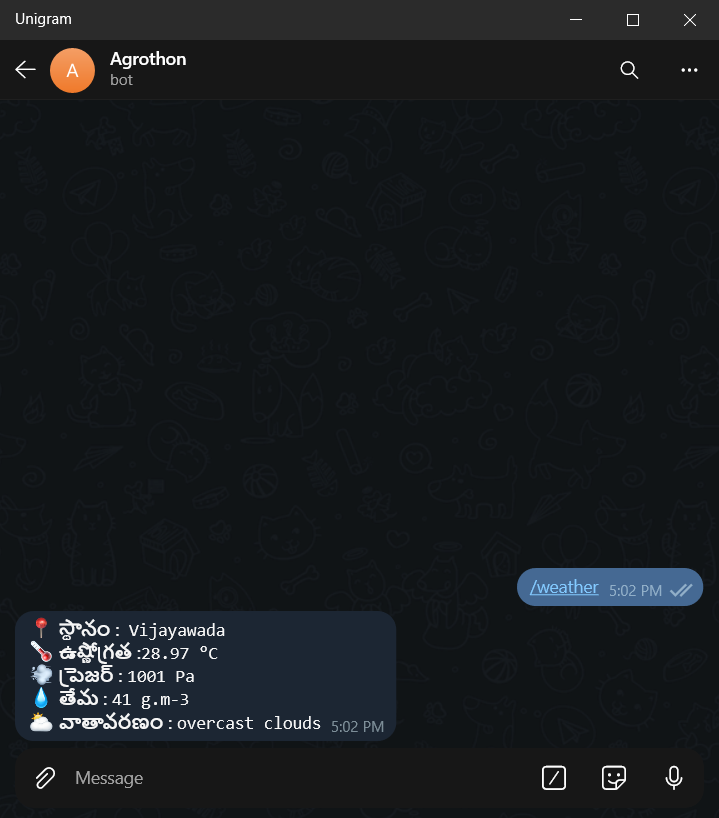

  • Weather Data
