Akuanduba 0.2.1

Akuanduba is a Python framework that eases manipulation of multiple running threads and shared resources. Its name was inspired by a god of the Brazilian mythology: Akuanduba, the god of order.

Akuanduba

Image source: link

Akuanduba is a Python framework that eases manipulation of multiple running threads and shared resources. Its name was inspired by a god of the Brazilian mythology: Akuanduba, the god of order.

This framework's been based on the Gaugi project, a framework that João, the author of Gaugi, presented to me.

Top 5 reasons for Akuanduba

This is really a TL;DR section:

• Flexible;
• Easy developing and debugging;
• Robust structure;
• Effortless threading and shared resources manipulation;
• Smooth attaching and removing features from your script.

First steps

• Clone this repository:

git clone https://github.com/gabriel-milan/Akuanduba

• Install this library:

pip3 install Akuanduba

• Go to the example script folder:

cd Akuanduba/examples/TimedCounterFileSaving

• Read the script, in order to understand what's supposed to happen when you run it:

vim SampleScript.py

• Run the example script:

python3 SampleScript.py

The paradigm

Base classes

Using Akuanduba, you'll have three base classes you can use to attend your needs, as they relate to one another through a common class called Context (this will be explained really soon). The three classes are:

• AkuandubaTool;
• AkuandubaService;
• AkuandubaDataframe.

AkuandubaDataframe is a base class for data models that will be attached to the Context. In other words, these data frames can store anything you desire and be accessible from any tool or service running on your main script. Example: Use data frames for storing data acquired with a service.

AkuandubaTool is a base class for methods that will run once on every call, processing data from any data frame attached to the Context and appending the results to another data frame (or even the same). Tools have one main method: the "execute", where all the calculations will occur every time they're called. Example: Use tools to process data acquired by a service and store it on a data frame.

AkuandubaService is a base class for parallel threads. These services have two main methods: "run", which is a loop that will be running parallel to the whole framework and "execute", that's executed once in every call. Example: Use services to acquire data.

Other main concepts

Besides these base classes, Akuanduba relies on few other main concepts:

• Context;
• DataframeManager;
• ToolManager;
• ServiceManager;
• AkuandubaTrigger.

The Context is an abstraction that holds every single thing attached to the framework: tools, services and data frames. This way, everything is accessible from any other component attached to Akuanduba. Every dataframe you get from the context is locked to your execute method and released only after its execution.

The Managers (DataframeManager, ToolManager and ServiceManager) are all based on the Manager class, the only difference among them is that they manage different things. You can manage data frames, tools and services, respectively. In other words, you can attach them with the __add__ operation and retrieve them with the retrieve method. The things you attach to these managers will run in the order you do it (execution will be better discussed later).

The AkuandubaTrigger is a class that inherits from AkuandubaTool. Its purpose is to build an object you can attach multiple hypothesis tests (that must inherit from TriggerCondition) and tools in order to trigger the execute method of all these tools. You can use three types of triggers: 'and', 'or' and 'xor', all of them self-explanatory.

Execution

Akuanduba itself has three main methods: initialize, execute and finalize.

The initialize method follows these steps:

• Insert the framework status into the Context;
• Insert all the data frames on the DataframeManager into the Context;
• Insert all the services on the ServiceManager into the Context, running them;
• Insert all the tools on the ToolManager into the Context, running them;
• Checks for error in the Context initialization.

The execute method is the main execution loop. Its tasks are:

• Loop through the services, calling their execute methods;
• Loop through the tools, calling their execute methods;

And finally, the finalize method just tries to kill every thread created by the Akuanduba framework.

Example

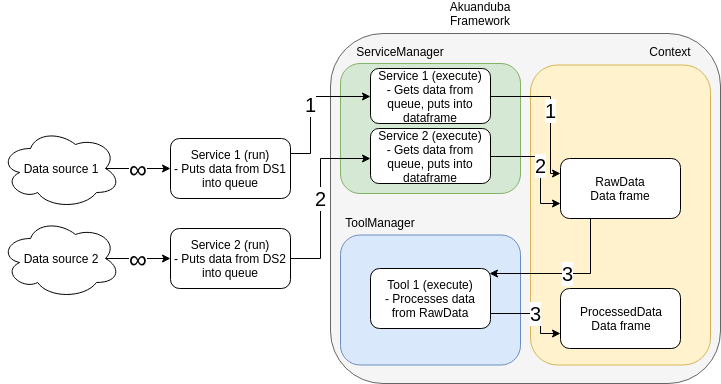

Let's say you have two services that acquire data from different sources and one single tool that process the whole data. You could build a script that attaches both services to the ServiceManager and the tool to the ToolManager. Let's say that, for this purpose, you've created two data frames, one for storing the raw data and one for the processed data. A diagram for your script's execution would be the following:

As you may see, the run method of the services acquire data in real time (∞) and append it to its own queue. On the main Akuanduba loop, the execute methods are called and the data is stored on the data frames (1 and 2). After that, the tools execute method will be called, where the data will be processed and stored on another data frame (3).

Changelog

• v0.1.1 - Initial release
• v0.1.2 - Improved the Logger module
• v0.1.3 - Implements Locks for AkuandubaDataframes handling
• v0.1.4 - Adds new implementation of triggers, now allowing AND, OR or XOR with TriggerConditions
• v0.1.5 - Implements automatic lock releasing for AkuandubaDataframes
• v0.1.6 - Fixes v0.1.5 bugs with lock releasing
• v0.2.0 - Implements Linux Watchdog integration, fix minor linter complainings, removes legacy implementation of trigger, changes timer implementation and implements NTP synchronization
• v0.2.1 - Fixes minor KeyError on Watchdog implementation
