⚡ Embed data payloads inside of ordinary images or video, through high performance 2-D matrix codes.
(10/29/19) GUI development starting in new repository! Work on transforming BitGlitter from a Python library to an executable with a GUI has begun. It's been said for a long time on my Discord server that making it accessible to much larger group of people beyond Python devs would help a lot with exposure and getting more momentum, so its a no brainer to make this our next priority. All future development work will continue there. The Python library will continue to get all core architecture/performance/protocol updates. The GUI will be made using PyQt5. There are also a few planned performance updates to BitGlitter prior to the release of the program. If you're following this project, be sure to follow this new link as well. And as always, come check out our Discord server!
Click here for a demo video of a real stream.
BitGlitter is an easy to use library that allows you to embed data inside of ordinary pictures or video. Store and host files wherever images or videos can be hosted.
From physical barcodes to digital data transfer
Whether it's barcodes at the store or QR codes you can scan with your phone- they both work on the same principle. Data is encoded into the black and white. You can think of each color as an abstraction for a binary value, so then when those colors are read in sequence, you can pull meaningful data from the image. I wondered how this concept could be improved upon, and I wanted a cool first project as an introduction to programming. BitGlitter was born.
Conventional barcodes are severely limited in application, in terms of their data density. When you maximize the
concept and configure it for digital-digital transmission, a lot of capability is gained.
BitGlitter is in a class of it's own in several ways:

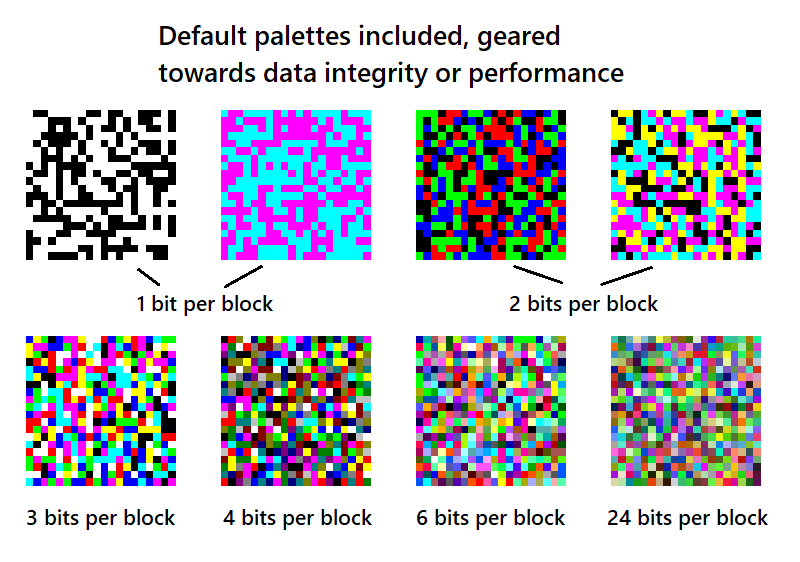

- Multiple Color Palettes: By removing the constraint of only using black and white, the amount of data you can
hold in a given "block" (each square) on the frame skyrockets. The regular two color setup holds one bit per block.
Four colors holds two bits (2x), sixty four colors holds six bits (6x), and lossless ~16.7M color palette holds 24 bits (24x improvement over black & white). You choose what color palette you'd like to use according to your application.
Smaller sets are far resistant to compression and corruption, while larger sets have higher data densities. You can create your own custom palettes as well with whatever colors you'd like to use. More about that below.
- Multi-Frame Videos: BitGlitter automatically breaks up larger files into multiple frames, with several headers
built into them. These include several layers of protection against corruption, as well as metadata about the frame
as well as the stream itself so the reader can intelligently decide how to handle it. By stitching these frames
together and turning them into a video, you can embed files and folders of arbitrary size into videos and images.
You're only limited by your hard drive.
- Variable block size: Each of the blocks in the frame can be set to any size, including one pixel. Larger block sizes give your stream protection in lossy environments, while smaller blocks allow for greater densities.
Currently, BitGlitter is configured to transport files and folders on a computer. But with minimal modification you can use videos or images as a carrier for virtually any kind of binary data.
What this means in practical terms
Here's some real data that gives you an idea of what is possible with this:
|Number of Colors||Bits Per Block||Screen Resolution||Block Size in Pixels||Block Dimensions||Framerate||Throughput||Lossless Application|
|2||1||640 x 480 (480p)||20||32 x 24||30||2.88 KB/s||No|
|4||2||1280 × 720 (720p)||20||64 x 36||30||17.28 KB/s||No|
|8||3||1280 × 720 (720p)||20||64 x 36||30||25.92 KB/s||No|
|16||4||1920 x 1080 (1080p)||20||96 x 54||30||77.76 KB/s||No|
|64||6||1920 x 1080 (1080p)||20||96 x 54||30||116.64 KB/s||No|
|64||6||1920 x 1080 (1080p)||20||96 x 54||60||233.28 KB/s||No|
|16,777,216||24||1920 x 1080 (1080p)||5||384 x 216||30||7.47 MB/s||Yes|
|16,777,216||24||3840 x 2160 (4k)||5||768 x 432||60||59.7 MB/s||Yes|
Put simply, you can now make videos that can hold large amounts of data inside of them. There may be some pretty interesting applications that can come out of this.
- Supports streams up to ~1 EB in size, or ~4.3B frames: In other words, there is no practical limit to the stream's size.
- Compression added: This is done automatically, so don't worry about putting your files in a rar or zip prior to sending.
- Encryption added: Optional AES-256 encryption to protect your files. Passwords are hashed with
scrypt, parameters can be customized for your needs.
- File masking: Optional ability to mask what files are included in the stream. Only those who successfully grab the stream (and decrypt it if applicable) will know of its contents.
You can choose between either outputting all of your frames as a series of images (.png), or as a single .mp4.
- Customizable resolution: You have complete control of the size of the outputted frames, whether they are 480p or 8K.
- Customizable framerate: Currently supports 30 and 60 FPS, custom values are coming soon.

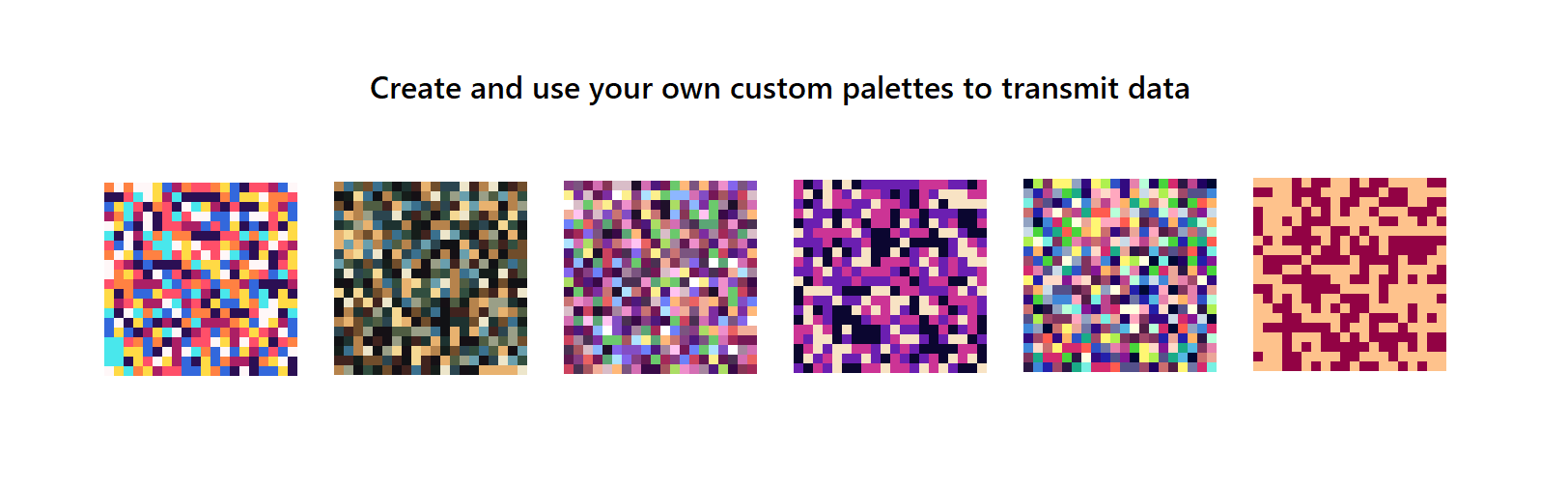

- Custom Color Palettes: The included default palettes are just a starting point. Make any color palette that you want to match the aesthetic where it's being used. Anyone reading the stream will have the palette automatically saved to their machine, so then they can use it as well! Functionality is included to output a text file outlining all of the color palettes you have available to use, both default and custom.
Error correction against compression or corruption: BitGlitter protects your file against corruption and artifacts on the image or video. After loading the correct palette, whenever it detects an incorrect color, it will "snap" it to the nearest color in the palette. This gives your file resistance against format changes, codecs, or file size reduction. This allows BitGlitter streams to still be read in environments that would otherwise render all existing steganography methods unreadable.
Complete file integrity: When the stream is created, a hash (SHA-256) is taken of the entire stream, as well as each frame. The data must match what is expected to be accepted. Damaged or corrupt files will not be blindly passed on to you.
Streamlined frame bypassing: If a frame cannot or doesn't need to be read (ie, a duplicate already read), the reader determines this from an initial frame header
No metadata saved in the file: Compress the stream, change formats, upload it somewhere. All data is encoded in the blocks, so you don't have to worry (as much) about rendering the stream unreadable.
Easy to understand: Whether you're learning about Python and want to understand how it works, or you're looking to contribute, docstrings and notes are throughout the library.
Built in future-proofing: As of now, BitGlitter has a single protocol (Protocol 1), which is a specific set of procedures around how data is handled, and the components of a frame, as well as their layout. Each protocol has its own unique ID to identify it with. This ID is added in the header during the write process, and is picked up at
read(). As new protocols get created, older versions of BitGlitter that don't have these included will notify the user to update their version in order for it to be read. All older protocol versions are saved in future library iterations, so no matter how old the protocol version is used on the stream, it will always be able to be read.
Fully modular design: Do you have a specialized use case? Adapting this library to your own needs is quite easy. I've built BitGlitter to be easy to modify and expand upon. Rather than worrying about the lower-level functionality, achieve your goal with the modular components I've created.
Temporary warning- Due to issues uploading to PyPI, these features are only available on Github for now. The PyPI version of BitGlitter still performs everything else fine. This will be removed when the problem is fixed.
Write from command line:
python3 -m bitglitter write
`-file` - The absolute path to the file `-mode` - Either 'image' or 'video'. Default: video `-o` - Output path
Read from commnad line:
python3 -m bitglitter read
`-file` - The absolute path to the file `-o` - Output path
To be determined. This will be updated as time progresses!
How to use
All of the functions to run this library are explained below. I'm also working on several Wikipedia pages, explaining BitGlitter in greater detail (how it works, etc) with some included illustrations. These are not yet complete, but here is the link to the project's Wiki if you'd like to see it!
In addition to downloading the code from Github, you can also grab it directly from PyPI:
pip install bitglitter
IMPORTANT: The only part you will need to grab manually is a copy of ffmpeg.exe . Place it in the same folder the code will be running, and you'll be set. This will be done automatically in the near future. Get the package here on the left side of the screen:
ffmpeg.exe is all that is needed.
Required Third Party Libraries
bitstring- Bit manipulation.
cryptography- Cryptographic functions.
ffmpeg-python- Video rendering and output.
opencv-python- Video loading and frame manipulation.
Pillow- Frame creation and output, as well as loading images and reading pixel values.
Thanks to Tanmay Mishra for giving me a pre-release version of his upcoming library
filepackager. It has been heavily
modified and stripped down to suit this library. The code is included with BitGlitter; there is no need to download it.
BitGlitter in 60 seconds
Even though it comes shipped with a lot of functionality, all you need to use it is
write() (creates the streams) and
read() (which reads them and extracts the data encoded in it). The only required argument for both is the file you
wish to input in string format.
write(), converting files into BitGlitter streams
We'll go a bit more in depth now.
write() is the function that inputs files and turns them into a BitGlitter stream. There are quite a few arguments
to customize the stream, but there is only one required argument. Everything else has defaults.
Not surprisingly, that required argument defines what files or folders you wish to embed in the stream. If and only if
you're sending a single file or folder path, argument
fileList takes a string of the path. BitGlitter also supports
sending multiple files and folder together, of which there is no limit! This would require using a tuple or list item
filled with strings of the file or folder paths. File or folder paths that don't exist are automatically ignored.
stream_name='' is what you can use to optionally title your stream, which will be printed out on the screen of whoever
reads the file, along with other stream data.
stream_description='' serves as a text field to optionally put a description for the stream.
output_path=False is where you can optionally define the path of where the created media is outputted. By
default, media is saved where the python file is ran. The folder path must already exist if used.
output_mode='video' is where you define how you wish the stream to output, whether as an .mp4 video, or a series of
.png images. The only two valid arguments are
output_name='' is how you can customize the output name of the file that is created. Videos, for instance, will be
named 'custom_name.mp4', while images will be named 'custom_name.png - 1', 'custom_name.png - 2', etc, the number being
each frame number. If left blank, it will use the current date and time of the
write() function starting as the file
compression_enabled=True enables or disables compression of your data, prior to rendering into frames. This is enabled
file_mask_enabled=False is where you can omit the listing of files/folders from the stream header. This effectively
hides the contents of the stream, unless it is fully read. By default, this is disabled. What this means is when
someone reads your stream, in the first several frames it will automatically display the contents of the stream (files
as well as their size) on the screen.
encryption_key='' optionally encrypts your data with AES-256. By default, this is disabled. The stream will not be
able to be read unless the reader successfully inputs this.
scrypt_P=1 allow you to customize the parameters of the
scrypt key derivation
function. If you're a casual user, you'll never need to touch these (and shouldn't). Only change these settings if
you're comfortable with cryptography and you know what you're doing! It's worth noting
scrypt_N uses it's argument as
2^n. Finally, if you're changing these numbers, they MUST be manually inputted during
read() otherwise decryption
will fail! Custom values are deliberately not transmitted in the stream for security reasons. Your end users of the
stream must know these custom parameters.
header_palette_id='6' sets the palette used in the 'setup' frames in the beginning. It is strongly recommended you use
a default palette here if you don't know what you're doing, because this is where important information regarding the
stream is read, and by using a custom palette, it will be impossible for anyone to read it who hasn't already 'learned'
stream_palette_id='6' sets the palette used for the payload. By default, the 4 bit default color set is used. I'll
explain all about palettes below.
pixel_width=24 sets how many pixels wide each block is when rendered. By default it's 20 pixels. This is a very
important value regarding readability. Having them overly large will make reading them easier, but will result in less
efficient frames and require substantially longer streams. Making them very small will greatly increase their
efficiency, but at the same time a lot more susceptible to read failures if the files are shrunk, or otherwise
block_height=45 sets how many blocks tall the frame will be, by default this is set to 45 (which along with
block_width, creates a perfect 1080p sized frame).
block_width=80 sets how many blocks wide the frame will be. By default this is set to 96.
frames_per_second=30 sets how many frames per second the video will play at, assuming argument
output_mode = "video".
Currently, 30fps and 60fps are accepted.
Finally we have several arguments to control logging.
logging_level='info' determines what level logging messages get outputted. It accepts three arguments-
default and only shows core status data during
'debug' shows INFO level messages as well as
lower level messages from the various processes. Boolean
False disables logging altogether.
logging_screen_output=True sets whether logging messages are displayed on the screen or not. Only accepts type
Enabled by default.
logging_save_output=False determines whether logging messages are saved as text files or not. Only accepts type
Disabled by default. If set to
True, a log folder will be created, and text files will be automatically saved there.
These default values have an 81KB/s transmission rate. This is only a starting point that should be pretty resistant to corruption.
read(), converting streams back into data
read() is what you use to input BitGlitter streams (whether images or video), and will output the files.
write(), the only argument required is the BitGlitter-encoded file, whether that's an image or a video.
file_to_input is the only required argument. We'll go over the other ones.
output_path=None Is where you can set where this stream will be saved once all frames have been successfully loaded.
It's 'set and forget', so if you are loading images this argument only has to be used once, and the folder path will
stick with that stream. This argument requires a strong of a folder path that already exists.
bad_frame_strikes=10 This sets how many corrupted frames the reader is to detect before it aborts out of a video. This
allows you to break out of a stream relatively quickly if the video is substantially corrupted, without needing to
iterate over each frame. If this is set to 0, it will disable strikes altogether, and attempt to read each frame
regardless of the level of corruption.
block_width_override=False allow you to manually input the stream's block height and
block width. Normally you'll never need to use this, as these values are automatically obtained as the frame is locked
onto. But for a badly corrupted or compressed frame, this may not be the case. By using the override, the reader will
attempt to lock onto the screen given these parameters. Both must be filled in order for the override to work.
encryption_key=None is where you add the encryption key to decrypt the stream. Like argument
output_path, you only
need this argument once, and it will bind to that save.
logging_level = 'info',
logging_screen_output = True,
logging_save_output = False - Please see the full explanation at
If you wish to make your own custom color palettes, BitGlitter gives you the ability to do that with these functions.
add_custom_palette(palette_name, palette_description, color_set, optional_nickname = "") This function adds custom palettes
palette_name takes a string and is the name of the palette that gets displayed and transmitted.
palette_description takes a string as well, and is the description of the palette, if you wish to add it.
color_set takes a tuple of RGB tuples, these will be the actual colors used in the BitGlitter stream. Here's
a simple example of what it would look like using two colors:
color_set=((0, 255, 0), (0, 0, 255)). There are a few
requirements to these tuples:
- No two identical values can be added. For instance, the color black with the same RGB values twice. Each color used must be unique! The more 'different' the colors are, the better.
- You must have a minimum of two colors.
- It must be 2^n colors used, so 2, 4, 8, 16, etc.
optional_nickname="" allows you to use an easy to input nickname for your custom palette. This nickname is
how you select this palette to specifically run on your stream. Internally, custom palettes have a 64 character ID
code which you can use (more on this below). This allows you to give it a string of your choosing to designate it as
well. This field is optional. If you do decide to use it though, both the internal ID AND the nickname will work.
edit_nickname_to_custom_palette(id_or_nick, new_name) This function allows you to edit the nickname of your custom palette
to something else. Both arguments require strings. You can use it's nickname you assigned it, or it's internal ID.
print_full_palette_list(path) This function outputs a text file to the folder path outlining the palettes available, both
default palettes and custom. It shows information such as their name, description, date created, color set, nickname,
and more. The required argument is a string of a folder path, which must already exist. Here's an example of how to
clear_all_custom_palettes() This removes all custom palettes from your config. Please note that the default palettes
will not be removed.
remove_custom_palette(id_or_nick) This function removes the custom palette from your config. It takes a string argument
of either it's internal ID, or a nickname you've previously given it.
remove_custom_palette_nickname(id_or_nick) This function strips any nickname associated with a custom palette. It takes a
string argument of either the internal ID or a previous nickname.
clear_custom_palette_nicknames() This removes all nicknames from all custom palettes.
Partial Save Control
Once the first frame of a stream is read, a PartialSave object is created. This is essentially what manages the binary strings, and holds various information on it's state. These functions help better interface with them.
update_partial_save(stream_sha, reattempt_assembly = True, password_update = None, scrypt_n = None, scrypt_r = None, scrypt_p = None, change_output_path = None) This function allows you to update various parameters of the save. Requires
a string input for
streamSHA which is the ID number of the string.
reattempt_assembly makes the assembler
attempt to reassemble the frames, as well as output the embedded files and folders. This would be used in the case of
an incorrect password or scrypt parameters, and you'd like to try again.
password_update takes a string argument, and will add (or replace) the encryption key tied to this stream.
scrypt_n, scrypt_r and scrypt_p change the scrypt parameters used to derive the key used for decryption. If
the scrypt parameters were left at default during
write() of the stream, these can be left as is. Otherwise, the
custom values will need to be inputted whether here or in the optional arguments of
begin_assembly(stream_sha) This function exists to initiate assembly of a package at a later time, rather than doing so
immediately for whatever reason.
print_full_save_list(path, debug_data=False) This function outputs a text file to the folder path outlining all (if any)
partial saves you have on your system. You can check their status, as well as the state of the PartialSave object
False by default, but enabling it to
True outputs various debug information
pertaining to the object as well, which wouldn't serve much utility seeing for someone such as a casual end user.
remove_partial_save(stream_sha) Using a string argument for the stream's ID (or stream SHA, as commonly used), this will
remove the object from your config, as well as remove all temporary data associated with it.
remove_all_partial_saves() All saves are removed from the config object, clearing all temporary data.
outputStats(path) This function gives you a neat bird's eye view of your BitGlitter usage. During all
write() cycles, the total amount of data transferred, as well as total frames transferred and individual blocks
scanned gets added to a running total. Argument
path requires a string argument of a folder path that already exists.
A small text file will be written to this location.
clear_stats() All statistics will be reset to zero.
clear_session() This wipes all inputted data. Custom colors, statistics, and partial save objects will all be erased,
as well as any temporary data for the partially read streams. This is in essence a hard reset.
Whether you're a seasoned programmer or brand new, there's plenty of things you can do to help this project succeed. Join our discord server, and check out all of the information I posted in the "Information" category. Thank you for your interest!
Also, be sure to check out the contributing master page. It contains a lot of information.
It's worth stating the constraints you may face while using this. While the images and video BitGlitter exports are lossless (no compression applied), the "real world" on the internet is much different. For instance, multimedia uploaded to popular social media sites is regularly compressed in order to save space (and ultimately cut down on expenses). You are protected to an extent with BitGlitter from this. Write parameters are fully customizable primarily for this reason.
While you can have greater throughput with larger colorsets, smaller blocks, and faster framerates, there may be a practical limit to whether it will work depending on the degree their compression reduces quality. At the expense of throughput, larger blocks, slower framerates, and fewer colors used will make the stream far more resistant to possible corruption. Approaching the extreme limits of these parameters (tiny block sizes, very fast framerates, very large colorsets), in terms of reading it and converting it back into data, requires very precise measurements of position and color value; a codec's purpose is to blur those precise values to reduce it's bitrate, and in turn it's file size. While BitGlitter will detect corruption and perform an "emergency stop," I know you don't want to deal with that, and neither do the people you're sharing with.
In closing, know the environment the video will be used in to ensure success in reading it.
© 2019 - ∞ Mark Michon
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
Download the file for your platform. If you're not sure which to choose, learn more about installing packages.
|Filename, size||File type||Python version||Upload date||Hashes|
|Filename, size BitGlitter-1.0.3-py3-none-any.whl (77.9 kB)||File type Wheel||Python version py3||Upload date||Hashes View|
|Filename, size BitGlitter-1.0.3.tar.gz (73.5 kB)||File type Source||Python version None||Upload date||Hashes View|
Hashes for BitGlitter-1.0.3-py3-none-any.whl
