BloomEffect 1.0.2

Pygame bloom effect (shader effect)

BloomEffect

Bloom artefact

This library contains Gaussian blur kernel 5x5 algoritms, bright pass filters and bloom methods designed to work with Pygame and python.

It provides fast algorithms to create 2D bloom effect for pygame.Surface (SDL suface) or images (PNG, JPG etc), see pygame image format compatibility for more information. These algorithms can be used offline or in real time processing for Indy Game such as pygame or Arcade game as long as the game resolution do not exceed 1280x1024. A modern CPU with at least 8 logical processor is required to keep the game running between 30-60 fps.

For minimum hardware specifications, the library can be used for post-processing (surface transformation such as blur and bloom effect) before your game main loop e.g : Texturing effect, Sprite or SpriteSheet additional effect.

The algorithms are written using cython with OPENMP capability (multi- processing). This library is build by default with the flag OPENMP, providing the best performance for real time processing. You can also turn off the multi-processing to balance evenly the CPU load between your game and the real time bloom processing. Please refer to the section OPENMP for more details on how to turn the multi-processing on/off.

The bloom effect can also be used for different applications such as : image processing, 2D light effect, spritesheet, demos and text enhancement, neon effect etc

The project is under the MIT license

Bloom effect definition (from wikipedia) :

Bloom (sometimes referred to as light bloom or glow) is a computer graphics effect used in video games, demos, and high dynamic range rendering (HDRR) to reproduce an imaging artifact of real-world cameras. The effect produces fringes (or feathers) of light extending from the borders of bright areas in an image, contributing to the illusion of an extremely bright light overwhelming the camera or eye capturing the scene. It became widely used in video games after an article on the technique was published by the authors of Tron 2.0 in 2004. REF https://en.wikipedia.org/wiki/Bloom_(shader_effect)

• Right image with bloom effect

Installation

check the link for newest version https://pypi.org/project/BloomEffect/

pip install BloomEffect
# or version 1.0.2
pip install BloomEffect==1.0.2

• version installed
• Imported module is case sensitive

>>>from BloomEffect.bloom import __version__
>>>__version__

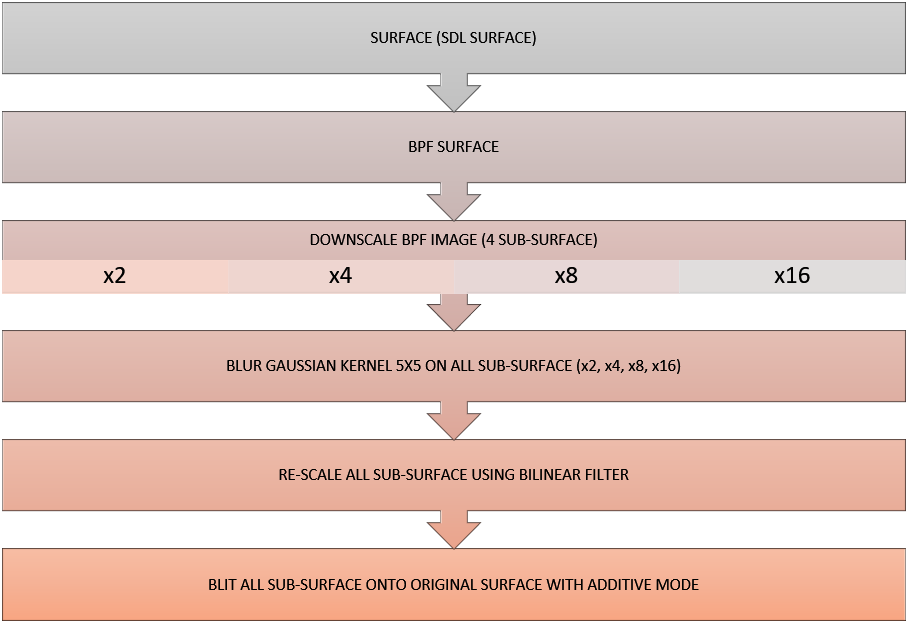

Bloom technique

Acronyme : bpf (bright pass filter)

1) First we apply a bright pass filter to the pygame surface(SDL surface) using one
   of the following method:
   bpf24_c for 24-32bit surface with or without alpha transparency channel or
   bpf32_c compatible with 32-bit image format containing alpha transparency (per-pixel alpha)
   These two methods have a threshold argument that can be adjust in order to filter bright
   pixels and control the overall image luminence.

2) The bpf image is then downscale into sub-surface x2, x4, x8, x16 using
   pygame transform.scale method. No need to use smoothscale (bilinear filtering method).

3) A Gaussian blur 5x5 filter is apply on each of the downsized bpf images (the variable smmooth
   define the number of passes).

4) The blurred sub-surface images are up-scale using a bilinear filtering method (pygame
   smoothscale method. Note : Using an un-filtered rescaling method will pixelate the final
   output image.

5) To create the final bloom effect, all the sub-surfaces are blit to the original surface
   with the special flag BLEND_RGB_ADD (additive blend mode effect).

Blur method details

• The mask is set be default to None (this feature is not available yet) for the blur algorithms

blur5x5_array24(rgb_array_,  mask=None)
blur5x5_array32(rgba_array_, mask=None)

blur5x5_array24_inplace(rgb_array_,  mask=None)
blur5x5_array32_inplace(rgba_array_, mask=None)

Bloom method details

• The mask argument is working for bloom_effect24, bloom_effect32

bloom_effect24(surface_, threshold_, smooth_ = 1, mask_ = None, fast_ = False)
bloom_effect32(surface_, threshold_, smooth_ = 1, mask_ = None, fast_ = False)

bloom_effect24_inplace(surface_, threshold_, fast_ = False)
bloom_effect32_inplace(surface_, threshold_, fast_ = False)

Quick example

import pygame
from BloomEffect.bloom import *
import time

width, height = 512 + 128, 128
screen = pygame.display.set_mode((width, height))
pygame.display.set_caption("Bloom effect")

image = pygame.image.load('BloomEffect/Assets/Aliens.jpg').convert()
image = pygame.transform.smoothscale(image, (128, 128))

bloom_image_128 = bloom_effect24(image, 128)
bloom_image_100 = bloom_effect24(image, 100)
bloom_image_80 = bloom_effect24(image, 80)
bloom_image_20 = bloom_effect24(image, 20)

timer = time.time()
while 1:
  pygame.event.pump()

  screen.blit(image, (0, 0))
  screen.blit(bloom_image_128, (128, 0))
  screen.blit(bloom_image_100, (256, 0))
  screen.blit(bloom_image_80, (384, 0))
  screen.blit(bloom_image_20, (512, 0))
  if time.time() - timer > 5:
    break

  pygame.display.flip()

- Smooth factor

The smooth option allows to create realistic bloom effect by smoothing the sub-surface with a define number of blur passes. With multiple blur passes, the light source will spread evenly accross the image without altering the image quality.

• Left image with smooth = 1 and right with smooth 5, 8, 10

The smooth effect (right image) produce a less intense bloom effect on the planet surface and on the first moon (light refraction). With blur>1 the image looks more sharp and the light source appear to be more evenly spread

- Fast flag

The fast flag will boost the overall performance of the bloom algorithm. When fast is True, only the smallest sub-surface (x16) is used for the bloom effect providing a good compromise between speed and effect quality.

- Still not fast enough ?

If you are still looking for better performance, you can also downscale the image time 2 and rescale it to its original size after processing. However this technique has a limit, as downscaling / upscaling the image will alter the image quality and provide a lower resolution to a texure/image, e.g Jagged lines or pixalated aspect when the downsacle factor is too high). To minimize the image quality degradation, use pygame smoothscale (bilineare filtering) instead of the method scale

Building cython code

When do you need to compile the cython code ?

Each time you are modifying any of the following files
bloom.pyx, bloom.pxd, __init__.pxd or any external C code if applicable

1) open a terminal window
2) Go in the main project directory where (bloom.pyx &
   bloom.pxd files are located)
3) run : python setup_bloom.py build_ext --inplace --force

If you have to compile the code with a specific python
version, make sure to reference the right python version
in (python38 setup_bloom.py build_ext --inplace)

If the compilation fail, refers to the requirement section and
make sure cython and a C-compiler are correctly install on your
 system.
- A compiler such visual studio, MSVC, CGYWIN setup correctly on
  your system.
  - a C compiler for windows (Visual Studio, MinGW etc) install
  on your system and linked to your windows environment.
  Note that some adjustment might be needed once a compiler is
  install on your system, refer to external documentation or
  tutorial in order to setup this process.e.g https://devblogs.
  microsoft.com/python/unable-to-find-vcvarsall-bat/

OPENMP

In the main project directory, locate the file setup_bloom.py. The compilation flag /openmp is used by default. To override the OPENMP feature and disable the multi-processing remove the flag /openmp

setup_bloom.py

ext_modules=cythonize([
        Extension("bloom", ["BloomEffect/bloom.pyx"],
                  extra_compile_args=["/openmp", "/Qpar", "/fp:fast", "/O2", "/Oy", "/Ot"], language="c")]),

Save the change and build the cython code with the following instruction:

python setup_bloom.py build_ext --inplace --force

If the project build successfully, the compilation will end up with the following lines

Generating code
Finished generating code

If you have any compilation error refer to the section Building cython code and make sure your system has the following program & libraries installed. Check also that the code is not running in a different thread.

• Pygame version >3
• numpy >= 1.18
• cython >=0.29.21 (C extension for python)
• A C compiler for windows (Visual Studio, MinGW etc)

Credit

Yoann Berenguer

Dependencies :

numpy >= 1.18
pygame >=2.0.0
cython >=0.29.21

License :

MIT License

Copyright (c) 2019 Yoann Berenguer

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Testing:

>>> import BloomEffect
>>> from BloomEffect import *
>>> run_testsuite()

Timing :

In the directory tests under the main project path

C:...tests\python profiling.py

TESTING WITH IMAGE 1280x1024

Performance testing blur5x5_array24                 per call 0.01726947 overall time 0.17269 for 10
Performance testing blur5x5_array32                 per call 0.01853967 overall time 0.1854 for 10
Performance testing blur5x5_array32_inplace         per call 0.01757621 overall time 0.17576 for 10
Performance testing blur5x5_array24_inplace         per call 0.01774338 overall time 0.17743 for 10
Performance testing bloom_effect_array24            per call 0.01998457 overall time 0.19985 for 10
Performance testing bloom_effect_array32            per call 0.06955424 overall time 0.69554 for 10
Performance testing bloom_effect_array24_inplace    per call 0.01692769 overall time 0.16928 for 10
Performance testing bloom_effect_array32_inplace    per call 0.01692682 overall time 0.16927 for 10

Performance testing test_bpf24_c                    per call 0.00290582 overall time 0.02906 for 10
Performance testing test_bpf32_c                    per call 0.00561693 overall time 0.05617 for 10
Performance testing test_bpf24_inplace              per call 0.00192679 overall time 0.01927 for 10
Performance testing test_bpf32_inplace              per call 0.00187691 overall time 0.01877 for 10
Performance testing build_mask_from_surface         per call 0.00380404 overall time 0.03804 for 10
Performance testing filtering24                     per call 0.00337253 overall time 0.03373 for 10
Performance testing filtering32                     per call 0.00324777 overall time 0.03248 for 10
Performance testing test_array32_rescale            per call 0.00543668 overall time 0.05437 for 10
