Drumpler 2.2.10

Framework for rapidly developing a restful API that requires post processing

Drumpler

Drumpler is an advanced framework engineered to streamline the development of secure RESTful APIs that facilitate custom post-processing of incoming HTTP requests. Built on the robust foundations of Flask and SQLAlchemy, Drumpler not only captures and stores HTTP requests but also seamlessly integrates with PostgreSQL to ensure scalable data management. With Drumpler, you can focus on solely crafting the logic of your desired workflow while it handles the intricacies of API management and job orchestration through its companion component, Mammoth. Mammoth leverages the structure established by Drumpler to process queued jobs, allowing developers to specify custom workflow(s) that respond dynamically to incoming data.

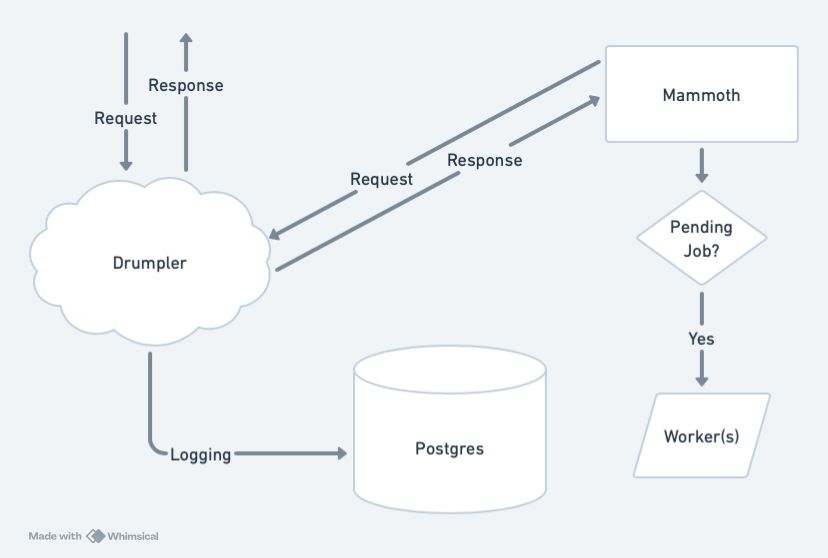

High Level Overview

The framework consists of two main components:

1. drumpler.py that manages RESTful API requests and facilitates database transactions.
2. drumpler-mammoth.py: Handles querying the API and processing jobs asynchronously based on some payload.

Features

• RESTful API Endpoints: Secure and scalable endpoints for handling HTTP requests including POST, GET, PUT, and DELETE operations.
• Database Integration: Uses SQLAlchemy for ORM-based interactions, specifically designed for PostgreSQL.
• Job Processing: Supports multithreading and multiprocessing for efficient job handling.
• Dynamic Event Logging: Implements detailed logging for all interactions, which facilitates monitoring and debugging.

Prerequisites

Before you begin, ensure you have the following installed:

• Python 3.6 or later
• PostgreSQL

Installation

Install Drumpler via pip: pip install Drumpler

Configuration

Although Drumpler will work out of the box with default configuration for localhost it is not recommended to use default values. Instead you should create a .env file in the root directory of the application and replace the placeholder values:

AUTHORIZATION_KEY=AUTH_KEY_HERE	# expected Bearer Token value
DRUMPLER_HOST=IP_HERE	    #i.e. localhost
DRUMPLER_PORT=PORT_HERE	    #i.e. 5000
DRUMPLER_DEBUG=BOOL_FLAG	# True/False
DB_NAME=DB_NAME_HERE	    #i.e. drumpler
DB_HOST=DB_HOST_HERE	    #i.e. localhost
DB_USER=DB_USER_HERE	    #i.e. myuser
DB_PASS=DB_PASS_HERE	    #i.e. mypassword
DATABASE_URI=postgresql://DB_USER_HERE:DB_PASS_HERE@DB_HOST_HERE/DB_NAME_HERE

API Endpoints

The following is an exhaustive list of endpoints exposed by Drumpler for interacting with its system - these could be used for development-debugging purposes. Please note that the framework is designed such that Mammoth will be facilitaing all the required HTTP requests for you, there should be no need to make manual requests:

API Endpoints

1. Root Endpoint (Hello World)
   • GET /: Returns a simple "Hello Drumpler {version}!" message.
2. Request Handling Endpoints
   • POST /request: Submit a new request for processing.
   • GET /request/<int:request_id>: Retrieve a specific request by its ID.
   • PUT /request/<int:request_id>: Update an existing request.
   • DELETE /request/<int:request_id>: Delete a specific request.
3. Job Processing Endpoints
   • GET /jobs/next-pending: Fetch the next pending job that hasn't been handled.
   • PUT /jobs/<int:job_id>: Update an existing job.
   • PUT /jobs/<int:job_id>/update-status: Update the status of a job (e.g., from "Pending" to "Completed").
   • PUT /jobs/<int:job_id>/mark-handled: Mark a request as handled, indicating that no further action is needed.
4. Event Creation Endpoint
   • POST /events: Create a new event associated with a job, useful for logging and tracking purposes.

These endpoints collectively support a robust system for handling requests, managing jobs, and logging events within the Drumpler framework. They allow for a versatile set of operations from simple retrieval and submission of requests to detailed job management and event logging, making it suitable for a wide range of applications in workflow automation and data processing.

Using the framework - Drumpler

To create a Drumpler RESTful server, the following is a sample implementation:

import os
import drumpler		# requires pip install Drumpler

# Configuration values can be hardcoded, loaded from an environment variable, or loaded from a .env file manually

# Uncomment these two lines if you are using .env file
#from dotenv import load_dotenv	# requires pip install python-dotenv
#load_dotenv('.env')  # Optional but highly recommended

authorization_key = os.getenv('AUTHORIZATION_KEY', 'default_key')
host = os.getenv('DRUMPLER_HOST', 'http://127.0.0.1')
port = int(os.getenv('DRUMPLER_PORT', 5000))
debug = os.getenv('DRUMPLER_DEBUG', 'True').lower() in ['true', '1', 't']
database_uri = os.getenv('DATABASE_URI', 'sqlite:///myproject.db')

# Create an instance of Drumpler with the specified configuration
drumpler_instance = drumpler.Drumpler(authorization_key, host, port, debug, database_uri)
app = drumpler_instance.app

if __name__ == "__main__":
	app.run()

Request and Job Handling

Authorization and Request Logging

• Unauthorized Requests: Requests that are missing the required Authorization key are not captured in the requests table, ensuring that only authenticated interactions are logged and processed.
• Request Logging: All requests that include the required header(s) and payload are recorded in the requests table, irrespective of their content.
• Job Creation: Only requests that include a custom_value parameter will spawn a new job record. This parameter is indicative of a need for additional processing by the Mammoth component, which handles asynchronous tasks.

Database Schemas

Requests Table

Field	Type	Description
id	Integer	Primary key
timestamp	DateTime	Timestamp when the request was received
source_ip	String(128)	IP address of the requester
user_agent	String(256)	User agent of the requester's device
method	String(8)	HTTP method used
request_url	String(256)	URL of the request
request_raw	Text	Raw data of the request
custom_value	String(256)	Custom data for triggering additional jobs
is_handled	Integer	Flag indicating if the request has been handled

Jobs Table

Field	Type	Description
id	Integer	Primary key
request_id	Integer	Foreign key linking to the Requests table
created_date	DateTime	Creation timestamp
modified_date	DateTime	Timestamp of last modification
finished_date	DateTime	Completion timestamp (if any)
status	String	Current status of the job
events	Relationship	Link to associated events

Events Table

Field	Type	Description
id	Integer	Primary key
job_id	Integer	Foreign key linking to the Jobs table
timestamp	DateTime	Timestamp when the event was recorded
message	Text	Description or message of the event

TLDR

• Drumpler is a framework for rapidly developing secure RESTful APIs using flask-postgres
  • Drumpler records incoming HTTP requests and requires three variables from the end end user
    • Bearer Token: authorization key - requests without this key will be ignored
    • request_raw - put your desired payload here. This can be utilized by Mammoth(s) to do something meaningful or you can just simply store some data.
    • custom_value - this will be utilized by Mammoth(s) to request specific jobs.
  • Mammoth fetches pending jobs from Drumpler and exposes a method for some developer to implement their desired workflow(s)
    • Mammoth is designed to automatically handle all communications with Drumpler so the end user can simply focus on processing the desired payload.

Sample Mammoth implementation

To create a Mammoth (job-processor), the following is a sample implementation:

import  os
from  drumpler_mammoth  import  Mammoth

# comment 3 lines below if not using .env file
from dotenv import load_dotenv #pip install python-dotenv
dotenv_path = os.path.join(os.path.dirname(__file__), '.env')
load_dotenv(dotenv_path)

# Optional: Offline-logging mechanism is also shipped with Mammoth, feel free to use it
#mammoth  =  None  # This global variable can be shared among all scopes

def  custom_process_function(request) -> bool:
  # I shall write my custom job-processing logic here

  # offline logging
  #mammoth.logger.info(f"I could utilize mammoth's logger for <info> messages") #optional
  #mammoth.logger.error(f"I could utilize mammoth's logger for <error> messages") #optional

  # online logging
  #mammoth.insert_event(request.job_id, "My event message goes here")

  # I shall return True in a success-scenario or 	# => job.status = 'Completed'
  # I shall return False in a failure-scenario	# => job.status = 'Error'

  pass

if  __name__  ==  "__main__":
  # the constructor parameters are MANDATORY
  drumpler_host  =  os.environ.get("DRUMPLER_HOST", "localhost")
  authorization_key  =  os.environ.get("AUTHORIZATION_KEY", "AUTH_KEY_HERE")
  custom_value  =  "ApplicationName"
  num_workers  =  None  # None implies os.cpu_count(), otherwise you can manually specify

  # initialize mammoth
  mammoth  =  Mammoth(drumpler_url=drumpler_host, authorization_key=authorization_key, custom_value=custom_value,   process_request_data=custom_process_function, num_workers=num_workers)

  print("Starting Mammoth... Press CTRL+C to stop.")

  try:
      mammoth.run()
  except  KeyboardInterrupt:
      print("Shutdown signal received")
      mammoth.stop()
      print("Mammoth application stopped gracefully")

Please visit Mammoth's repository to learn more about it.

Contributing

Contributions to Drumpler are welcome! Please follow the standard fork-branch-PR workflow.

License

This project is licensed under the MIT License - see the LICENSE file for details.
