GDEFReader 0.0.1a41

Tool to read/process *.gdf AFM measurement files

GDEFReader

Tool to read *.gdf files (DME AFM)

Features

• import measurements from *.gdf file into python

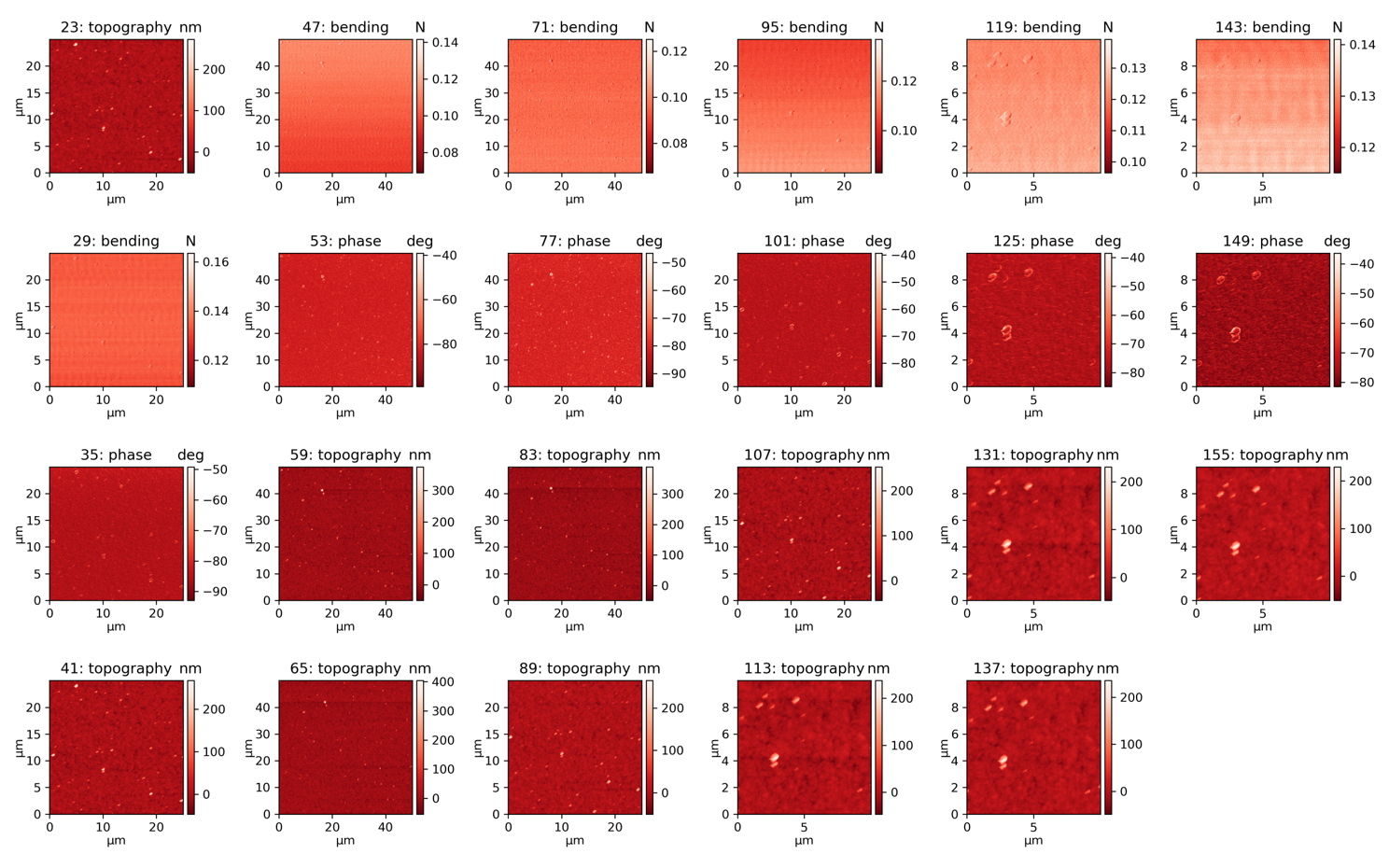

• create maps using matplotlib

• analyze nanoindents

• stich measurements

• create customizable output (e.g. *.png or power point presentations)

Table of Contents

• GDEFReader

  • Features

• API documentation

  • Module gdef_reader.gdef_importer

  • Module afm_tools.gdef_indent_analyzer

  • Module gdef_reader.gdef_measurement

    • class GDEFMeasurement

    • class GDEFSettings

  • Module afm_tools.gdef_sticher

  • Module afm_tools.background_correction

    • class BGCorrectionType

  • Module gdef_reporter.plotter_utils

API documentation

Module gdef_reader.gdef_importer

class GDEFImporter

This class is used to read data from a *.gdf file (DME AFM) into python. This can be done like:

from gdef_reader.gdef_importer import GDEFImporter
impported_data = GDEFImporter(gdf_path)  # gdf_path should be a pathlib.Path to a *.gdf file

Methods:

• __init__

  __init__(self, filename: Optional[pathlib.Path] = None)

  filename:

  Path to *.gdf file. If it is None (default), a file has to be loaded via GDEFImporter.load().

• export_measurements

  export_measurements(self, path: pathlib.Path = None, create_images: bool = False) -> List[gdef_reader.gdef_measurement.GDEFMeasurement]

  Create a list of GDEFMeasurement-Objects from imported data. The optional parameter create_images can be used to show a matplotlib Figure for each GDEFMeasurement (default value is False).

  path:

  Save path for GDEFMeasurement-objects (and png’s if create_images). No saved files, if None.

  create_images:

  Show a matplotlib Figure for each GDEFMeasurement; used for debugging (default: False)

  return:

  list of GDEFMeasurement-Objects

• load

  load(self, filename: Union[str, pathlib.Path]) -> None

  Import data from a *.gdf file.

  filename:

  Path to *.gdf file.

  return:

  None

Instance Attributes:

• basename: Path.stem of the imported *.gdf file.

• bg_correction_type: BGCorrectionType for loaded measurements.

• keep_z_offset: If False (default), z-values for each imported measurement are corrected so that mean(z) == 0.

Module afm_tools.gdef_indent_analyzer

class GDEFIndentAnalyzer

Class to analyze a GDEFMeasurment with an indent.

Class Attributes:

• max_pixel_radius_value

• pixel_radius_distance_matrix

Methods:

• __init__

  __init__(self, measurement: gdef_reader.gdef_measurement.GDEFMeasurement)

  measurement:

  GDEFMeasurement with the indent to analyze.

• add_map_with_indent_pile_up_mask_to_axes

  add_map_with_indent_pile_up_mask_to_axes(self, ax: matplotlib.axes._axes.Axes, roughness_part=0.05) -> matplotlib.axes._axes.Axes

  Add a topography map with a color mask for pile-up to the given ax. Pile-up is determined as all pixels with z>0 + roughness_part * z_max

  ax:

  Axes object, to whitch the masked map should be added

  roughness_part:

  return:

  Axes

• get_summary_table_data

  get_summary_table_data(self) -> List[list]

  Returns a table (list of lists) with data of the indent. The result can be used directly to fill a pptx-table with python-ppxt-interface.

  return:

Module gdef_reader.gdef_measurement

class GDEFMeasurement

Class containing data of a single measurement from *.gdf file.

Methods:

• __init__

  __init__(self)

  Initialize self. See help(type(self)) for accurate signature.

• correct_background

  correct_background(self, correction_type: afm_tools.background_correction.BGCorrectionType = <BGCorrectionType.legendre_1: 3>, keep_offset: bool = False)

  Corrects background using the given correction_type on values_original and save the result in values. If keep_z_offset is True, the mean value of dataset is preserved. Otherwise the average value is set to zero. Right now only changes topographical data. Also, the original data can be obtained again via GDEFMeasurement.values_original.

  correction_type:

  select type of background correction

  keep_offset:

  If True (default) keeps average offset, otherwise average offset is reduced to 0.

  return:

  None

• create_plot

  create_plot(self, max_figure_size=(4, 4), dpi=96, add_id: bool = False, trim: bool = True) -> matplotlib.figure.Figure

  Returns a matplotlib figure of measurment data. If GDEFMeasurement.comment is not empty, the comment is used as title. Otherwise a default title with the type of measurement data is created.

  max_figure_size:

  Max. figure size. The actual figure size might be smaller.

  dpi:

  dpi value for Figure

  add_id:

  trim:

  return:

  Figure

• get_summary_table_data

  get_summary_table_data(self) -> List[list]

  Create table data (list of list) summary of the measurement. The result can be used directly to fill a pptx-table with python-ppxt-interface.

• load_from_pickle

  load_from_pickle(filename: pathlib.Path) -> 'GDEFMeasurement'

  Static method to load and return a measurement object using pickle. Take note, that pickle is not a save module to load data. Make sure to only use files from trustworthy sources.

  filename:

  return:

  GDEFMeasurement

• save_as_pickle

  save_as_pickle(self, filename)

  Save the measurement object using pickle. This is useful for example, if the corresponding *.gdf file contains a lot of measurements, but only a few of them are needed. Take note, that pickle is not a save module to load data. Make sure to only use files from trustworthy sources.

  filename:

  return:

  None

• save_png

  save_png(self, filename, max_figure_size=(4, 4), dpi: int = 300, transparent: bool = False)

  Save a matplotlib.Figure of the measurement as a *.png.

  filename:

  max_figure_size:

  Max size of the Figure. The final size might be smaller in x or y.

  dpi:

  (default 300)

  transparent:

  Set background transparent (default False).

  return:

• set_topography_to_axes

  set_topography_to_axes(self, ax: matplotlib.axes._axes.Axes, add_id: bool = False)

  Sets the measurement data as diagram to a matplotlib Axes. If GDEFMeasurement.comment is not empty, the comment is used as title. Otherwise a default title with the type of measurement data is created.

  ax:

  Axes object to witch the topography is written.

  add_id:

  Adds block_id before title text (default False)

  return:

  None

Instance Attributes:

• background_correction_type

• comment: Comment text given for the measurement.

• gdf_basename: Path.stem of the imported *.gdf file.

• gdf_block_id: Block ID in original *.gdf file. Might be used to filter measurements.

• name: Returns a name of the measurement created from original *.gdf filename and the gdf_block_id

• pixel_width

• preview

• pygdf_filename

• settings: GDEFSettings object

• values_original: Original measurement data (read-only property)

• values_original: Original measurement data (read-only property)

class GDEFSettings

Stores all the settings used during measurement.

Methods:

• __init__

  __init__(self)

  Initialize self. See help(type(self)) for accurate signature.

• pixel_area

  pixel_area(self) -> float

  Return pixel-area [m^2]

• shape

  shape(self) -> Tuple[int, int]

  Returns the shape of the scanned area (columns, lines). In case of aborted measurements, lines is reduced by the number of missing lines.

• size_in_um_for_plot

  size_in_um_for_plot(self) -> Tuple[float, float, float, float]

  Returns the size of the scanned area as a tuple for use with matplotlib.

Instance Attributes:

• aux_gain

• bias_voltage

• calculated

• columns

• digital_loop

• direct_ac

• fft_type

• fixed_max

• fixed_min

• fixed_palette

• frequency_offset

• id

• invert_line_mean

• invert_plane_corr

• line_mean_order

• line_mean_order

• lines: total number of scan lines (including missing lines)

• loop_filter

• loop_gain

• loop_int

• max_height: scan area height [m]

• max_width: scan area width [m]

• measured_amplitude

• missing_lines: number of missing lines (e.g. due to aborted measurement)

• offset_pos

• offset_x

• offset_y

• phase_shift

• pixel_blend

• pixel_height: Pixel-height [m] (read-only property)

• pixel_width: Pixel-width [m] (read-only property)

• q_boost

• q_factor

• retrace_type

• retrace_type

• scan_direction

• scan_mode

• scan_speed: [µm/s]

• scanner_range

• set_point

• source_channel

• x_calib

• xy_linearized

• y_calib

• z_calib

• z_linearized

• z_unit

• zero_scan

Module afm_tools.gdef_sticher

class GDEFSticher

GDEFSticher combines/stiches several AFM area-measurements using cross-corelation to find the best fit. To reduce calculation time, the best overlap position is only searched in a fraction of the measurement area (defined by parameter initial_x_offset_fraction), and each measutrement is added to the right side. Make sure the given list of measurements is ordered from left to right, otherwise wrong results are to be expected. To evaluate the stiching, show_control_figures can be set to True. This creates a summary image for each stiching step (using matplotlib plt.show()).

Methods:

• __init__

  __init__(self, measurements: List[gdef_reader.gdef_measurement.GDEFMeasurement], initial_x_offset_fraction: float = 0.35, show_control_figures: bool = False)

  measurements:

  initial_x_offset_fraction:

  used to specify max. overlap area, thus increasing speed and reducing risk of wrong stiching

  show_control_figures:

• stich

  stich(self, initial_x_offset_fraction: float = 0.35, show_control_figures: bool = False) -> numpy.ndarray

  Stiches a list of GDEFMeasurement.values using cross-correlation.

  initial_x_offset_fraction:

  used to specify max. overlap area, thus increasing speed and reducing risk of wrong stiching

  return:

  stiched np.ndarray

Module afm_tools.background_correction

Functions:

• correct_background

  correct_background(array2d: numpy.ndarray, correction_type: afm_tools.background_correction.BGCorrectionType, keep_offset: bool = False) -> Optional[numpy.ndarray]

  Returns a numpy.ndarray with corrections given by parameters. Input array2d is not changed.

  array2d:

  correction_type:

  keep_offset:

  return:

  ndarray

• subtract_legendre_fit

  subtract_legendre_fit(array2d: numpy.ndarray, keep_offset: bool = False, deg: int = 1) -> Optional[numpy.ndarray]

  Use a legendre polynomial fit of degree legendre_deg in X and Y direction to correct background. legendre_deg = 0 … subtract mean value legendre_deg = 1 … subtract mean plane legendre_deg = 2 … subtract simple curved mean surface legendre_deg = 3 … also corrects “s-shaped” distortion …

• subtract_mean_gradient_plane

  subtract_mean_gradient_plane(array2d: numpy.ndarray, keep_offset: bool = False) -> Optional[numpy.ndarray]

  Returns 2d numpy.ndarray with subtracted mean gradient plane from given array2d. Using the gradient might give

  better results, when the measurement has asymmetric structures like large objects on a surface.

• subtract_mean_level

  subtract_mean_level(array2d: numpy.ndarray) -> numpy.ndarray

  Correct an offset in the array2d by subtracting the mean level.

  array2d:

  return:

  ndarray

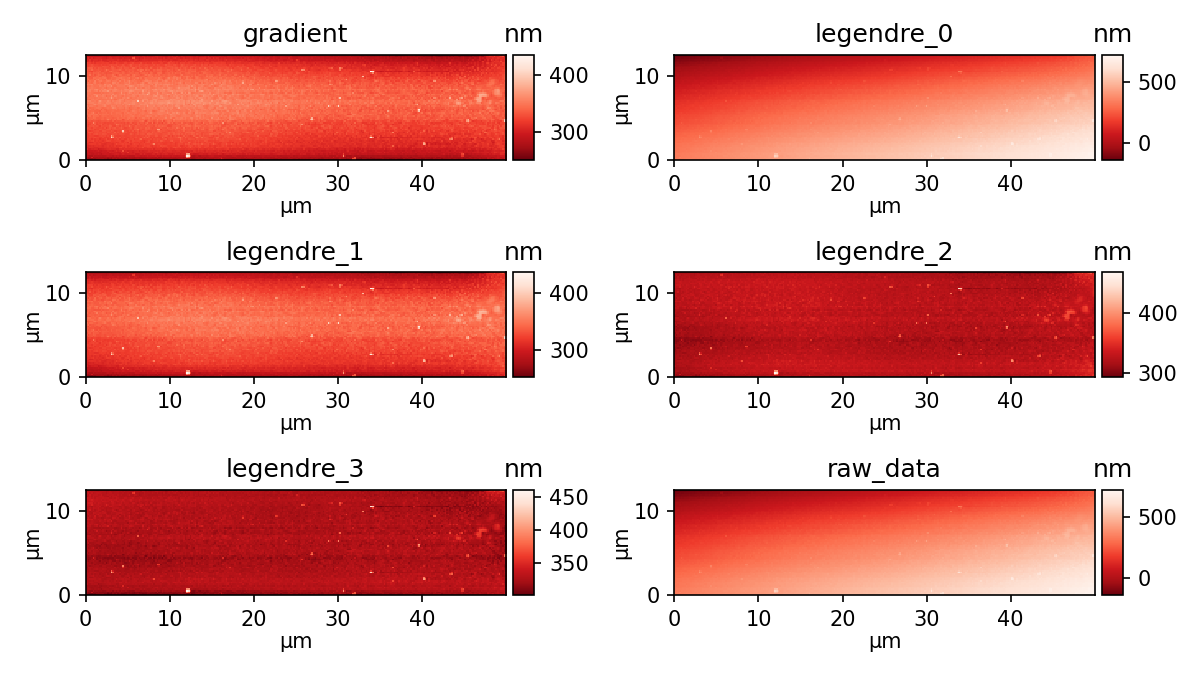

class BGCorrectionType

Class Attributes:

• gradient

• legendre_0

• legendre_1

• legendre_2

• legendre_3

• raw_data

Module gdef_reporter.plotter_utils

Functions:

• best_ratio_fit

  best_ratio_fit(total_size: 'tuple[float, float]', single_size: 'tuple[float, float]', n: 'int') -> 'tuple[int, int]'

  Find best ratio of rows and cols to show n axes of ax_size on Figure with total_size.

  total_size:

  total size available for n axes

  single_size:

  size of one axes

  n:

  number of axes to plot on total size

  return:

  best ratio (rows and cols)

• create_plot

  create_plot(data_object: 'DataObject', pixel_width: 'float' = None, title: 'str' = '', max_figure_size: 'tuple[float, float]' = (4, 4), dpi: 'int' = 96, cropped: 'bool' = True) -> 'Figure'

  Creates a matplotlib Figure using given data_object. If cropped is True, the returned Figure has a smaller size than specified in max_figure_size.

  data_object:

  DataObject with surface data

  pixel_width:

  Pixel width/height in [m] (only used, if data_object has no pixel_width attribute)

  title:

  optional title (implemented as Figure suptitle)

  max_figure_size:

  Max. figure size of returned Figure (actual size might be smaller if cropped).

  dpi:

  dpi value of returned Figure

  cropped:

  Crop the result Figure (default is True). Useful if aspect ratio of Figure and plot differ.

  return:

  Figure

• create_rms_plot

  create_rms_plot(data_object_list: 'DataObjectList', pixel_width=None, label_list: 'Union[str, list[str]]' = None, title: 'str' = '', moving_average_n: 'int' = 200, x_offset=0, x_units: "Literal['µm', 'nm']" = 'µm', subtract_average=True, plotter_style: 'PlotterStyle' = None) -> 'Figure'

  Creates a matplotlib figure, showing a graph of the root mean square roughness per column.

  data_object_list:

  DataObjectList

  pixel_width:

  has to be set, if data_object_list contains 1 or more np.ndarry (for varying values, use a list)

  label_list:

  List with labels (str) for legend entries. If data_object_list is a dict, the keys are used.

  title:

  Optional Figure title

  moving_average_n:

  Number of columns to average over

  x_offset:

  move data along x-axis

  x_units:

  unit for x-axis (µm or nm)

  subtract_average:

  Subtract average for each average_window (it might be better to subtract a global average)

  plotter_style:

  PlotterStyle to format Figure-object (default: None -> use default format)

  return:

  Figure

• create_rms_with_error_plot

  create_rms_with_error_plot(data_object_list: 'DataObjectList', pixel_width=None, label_list: 'Union[str, list[str]]' = None, title: 'Optional[str]' = '', average_n: 'int' = 8, x_units: "Literal['px', 'µm', 'nm']" = 'µm', y_units: "Literal['µm', 'nm']" = 'µm', plotter_style: 'PlotterStyle' = None) -> 'Figure'

  Create a diagram, showing the root mean square roughness per column in for data in data_object_list. The error-bars are calculated as standard deviation of columns (average_n) used per data point.

  data_object_list:

  DataObjectList

  pixel_width:

  Pixel width/height in [m] (only used, if data_object has no pixel_width attribute)

  label_list:

  List with labels (str) for legend entries. If data_object_list is a dict, the keys are used.

  title:

  Optional Figure title

  average_n:

  Number of columns to average over

  x_units:

  unit for x-axis (µm or nm)

  y_units:

  plotter_style:

  PlotterStyle to format Figure-object (default: None -> use default format)

  return:

  None

• create_summary_plot

  create_summary_plot(data_object_list: 'DataObjectList', pixel_width: 'Optional[float]' = None, ax_title_list: 'Union[str, list[str]]' = None, title: 'Optional[str]' = '', figure_size: 'tuple[float, float]' = (16, 10), dpi: 'int' = 96) -> 'Figure'

  Creates a Figure with area-plots for each DataObject in data_object_list. Automatically determines best number of rows and cols. Works best, if all area-plots have the same aspect ratio.

  data_object_list:

  DataObjectList

  pixel_width:

  Pixel width/height in [m] (only used, if data_object has no pixel_width attribute)

  ax_title_list:

  Optional tiles for subplots

  title:

  Figure title

  figure_size:

  dpi:

  return:

  Figure

• create_z_histogram_plot

  create_z_histogram_plot(data_object_list: 'DataObjectList', pixel_width=None, labels: 'Union[str, list[str]]' = None, title: 'Optional[str]' = '', n_bins: 'int' = 200, units: "Literal['µm', 'nm']" = 'µm', add_norm: 'bool' = False, plotter_style: 'PlotterStyle' = None) -> 'Figure'

  Also accepts a list of np.ndarray data (for plotting several histograms stacked)

  data_object_list:

  DataObjectList

  labels:

  labels for plotted data from values2d

  title:

  Figure title; if empty, mu and sigma will be shown as axes subtitle(use title=None to prevent this)

  n_bins:

  number of equally spaced bins for histogram

  units:

  Can be set to µm or nm (default is µm).

  add_norm:

  if True (default), show normal/gaussian probability density function for each distribution

  plotter_style:

  PlotterStyle to format Figure-object (default: None -> use default format)

  return:

  Figure

• plot_rms_to_ax

  plot_rms_to_ax(ax: 'Axes', data_object_list: 'DataObjectList', pixel_width=None, label_list: 'Union[str, list[str]]' = None, title: 'Optional[str]' = '', moving_average_n: 'int' = 200, x_offset=0, x_units: "Literal['µm', 'nm']" = 'µm', subtract_average=True, plotter_style=None) -> 'None'

  Plot a diagram to ax, showing a the root mean square roughness per column in for data in data_object_list.

  ax:

  Axes object to which the surface should be written

  data_object_list:

  DataObjectList

  pixel_width:

  Pixel width/height in [m] (only used, if data_object has no pixel_width attribute)

  label_list:

  List with labels (str) for legend entries. If data_object_list is a dict, the keys are used.

  title:

  Optional axes title

  moving_average_n:

  Number of columns to average over

  x_offset:

  move data along x-axis

  x_units:

  unit for x-axis (µm or nm)

  subtract_average:

  Subtract average for each average_window (it might be better to subtract a global average)

  plotter_style:

  PlotterStyle to format Figure-object (default: None -> use default format)

  return:

  None

• plot_rms_with_error_to_ax

  plot_rms_with_error_to_ax(ax: 'Axes', data_object_list: 'DataObjectList', pixel_width=None, label_list: 'Union[str, list[str]]' = None, title: 'Optional[str]' = '', average_n: 'int' = 8, x_units: "Literal['px', 'µm', 'nm']" = 'µm', y_units: "Literal['µm', 'nm']" = 'µm', plotter_style: 'PlotterStyle' = None)

  Plot a diagram to ax, showing the root mean square roughness per column in for data in data_object_list. The error-bars are calculated as standard deviation of columns (average_n) used per data point.

  ax:

  Axes object to which the surface should be written

  data_object_list:

  DataObjectList

  pixel_width:

  Pixel width/height in [m] (only used, if data_object has no pixel_width attribute)

  label_list:

  List with labels (str) for legend entries. If data_object_list is a dict, the keys are used.

  average_n:

  Number of columns to average over

  x_units:

  unit for x-axis (µm or nm)

  y_units:

  plotter_style:

  PlotterStyle to format Figure-object (default: None -> use default format)

  return:

  None

• plot_to_ax

  plot_to_ax(ax: 'Axes', data_object: 'DataObject', pixel_width: 'float' = None, title: 'str' = '', z_unit: "Literal['nm', 'µm']" = 'nm') -> 'None'

  Plot values in data_object to given ax.

  ax:

  Axes object to which the surface should be written

  data_object:

  DataObject with surface data

  pixel_width:

  Pixel width/height in [m] (only used, if data_object has no pixel_width attribute)

  title:

  Axes title (if ‘’ -> shows mu and sigma (default); for no title set None)

  z_unit:

  Units for z-Axis (color coded)

  return:

  None

• plot_z_histogram_to_ax

  plot_z_histogram_to_ax(ax: 'Axes', data_object_list: 'DataObjectList', pixel_width: 'Optional[Union[float, list[float]]]' = None, label_list: 'Union[str, list[str]]' = None, title: 'Optional[str]' = '', n_bins: 'int' = 200, units: "Literal['µm', 'nm']" = 'µm', add_norm: 'bool' = False, plotter_style=None) -> 'None'

  Also accepts a list of np.ndarray data (for plotting several histograms stacked)

  ax:

  Axes object to which the surface should be written

  data_object_list:

  DataObject or list[DataObject] with surface data

  pixel_width:

  Pixel width/height in [m] (only used, if data_object has no pixel_width attribute)

  label_list:

  labels for plotted data from values2d

  title:

  Axes title; if empty, mu and sigma will be shown; to prevent any subtitle, set title=None

  n_bins:

  number of equally spaced bins for histogram

  units:

  Can be set to µm or nm (default is µm).

  add_norm:

  if True (default), show normal/gaussian probability density function for each distribution

  plotter_style:

  PlotterStyle to format Axes-object (default: None -> use default format)

  return:

  None

• save_figure

  save_figure(figure: 'Figure', output_path: 'Path', filename: 'str', png: 'bool' = True, pdf: 'bool' = False) -> 'None'

  Helper function to save a matplotlib figure as png and or pdf. Automatically creates output_path, if necessary. Does nothing if given output_path is None.

• split_dict_in_data_and_label_list

  split_dict_in_data_and_label_list(data_dict_list: 'dict[str:DataObject]')

  deprecated
