A multiplet removal tool for processing cell hashing data

Project description


A Gaussian Mixture Model based software for processing cell hashing data.

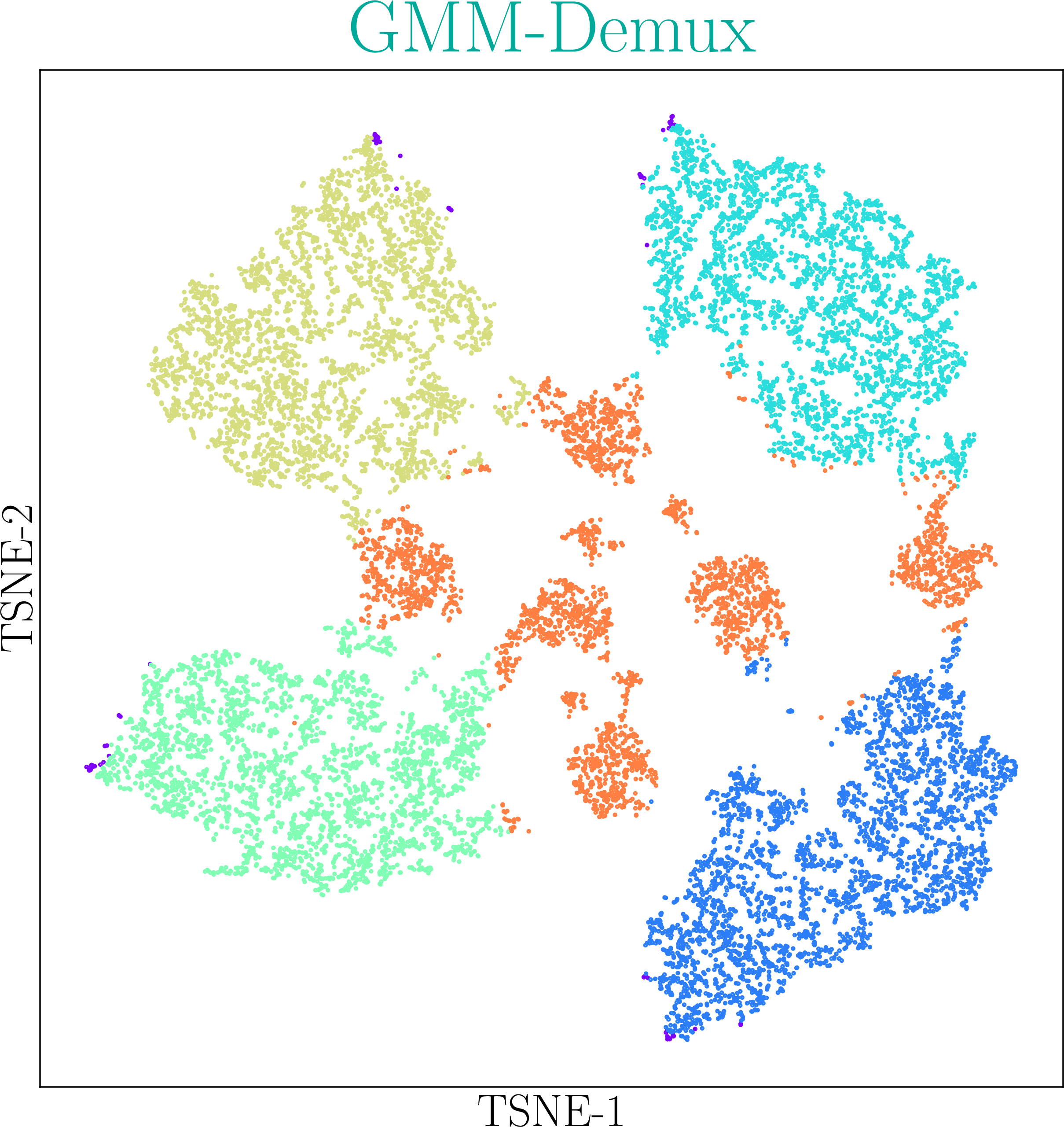

Below shows an example classification result. Orange dots are multi-sample multiplets.

GMM-Demux example

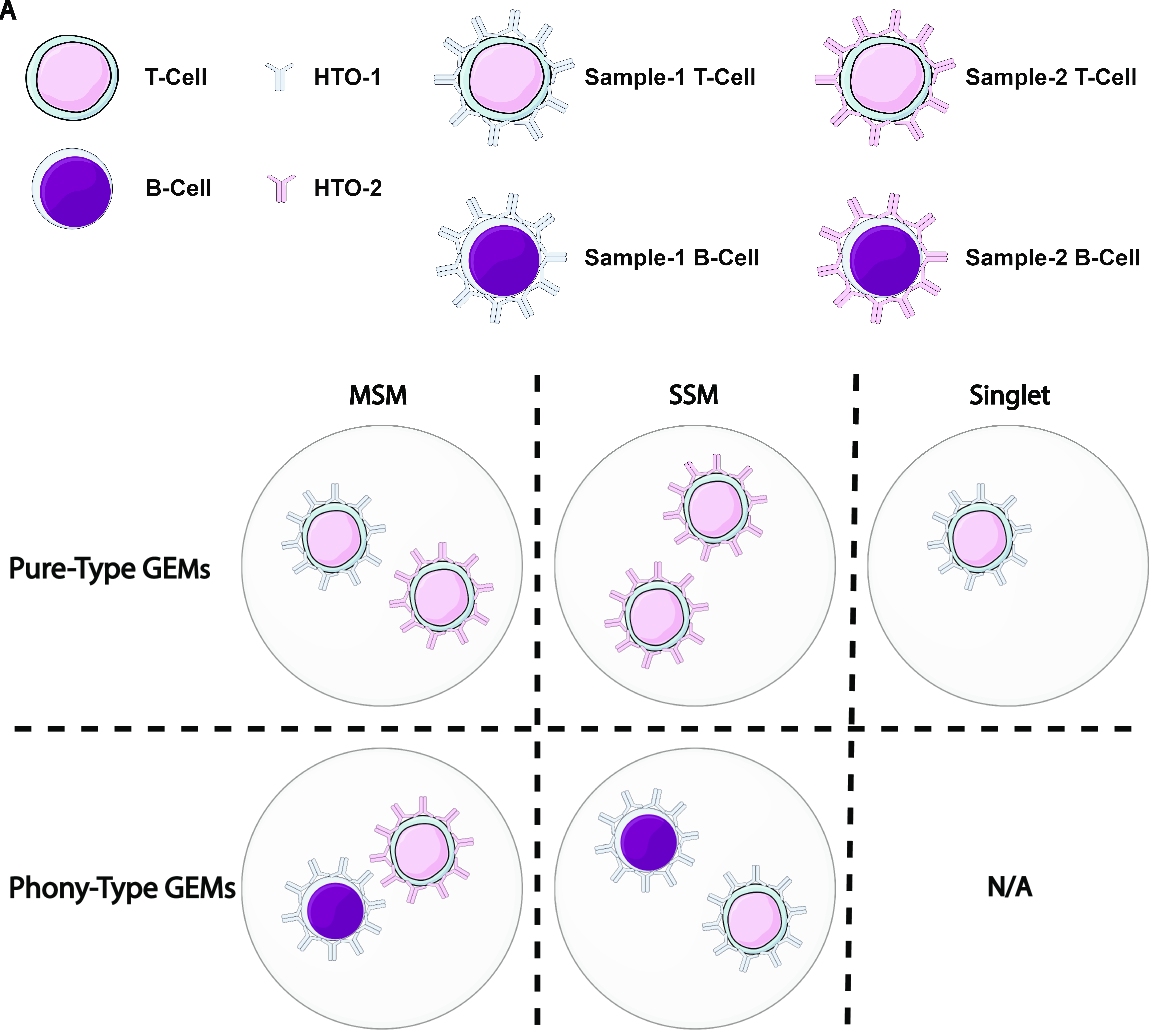

GMM-Demux removes Multi-Sample-Multiplets (MSMs) in a cell hashing dataset and estimates the fraction of Same-Sample-Multiplets (SSMs) and singlets in the remaining dataset.


  • Remove cell-hashing-identifiable multiplets from the dataset.
  • Estimate the fraction of cell-hashing-unidentifiable multiplets in the remaining dataset (the RSSM value).

Example Dataset

  • An example cell hashing data is provided in the example_input folder. It contains the per drop HTO count matrix of a 4-sample cell hashing library prep.


Hongyi Xin, Qi Yan, Yale Jiang, Jiadi Luo, Carla Erb, Richard Duerr, Kong Chen* and Wei Chen*


Hongyi Xin


GMM-Demux requires python3 (>3.5).


GMM-Demux can be directly installed from PyPi. Or it can be built and installed locally.

  • Install GMM-Demux from PyPi.
pip3 install --user GMM_Demux

If choose to install from PyPi, it is unnecessary to download GMM-Demux from github. However, we still recommend downloading the example dataset to try out GMM-Demux.

  • Install GMM-Demux locally using setuptools and pip3.
cd <GMM-Demux dir>
python3 sdist bdist_wheel
pip3 install --user .

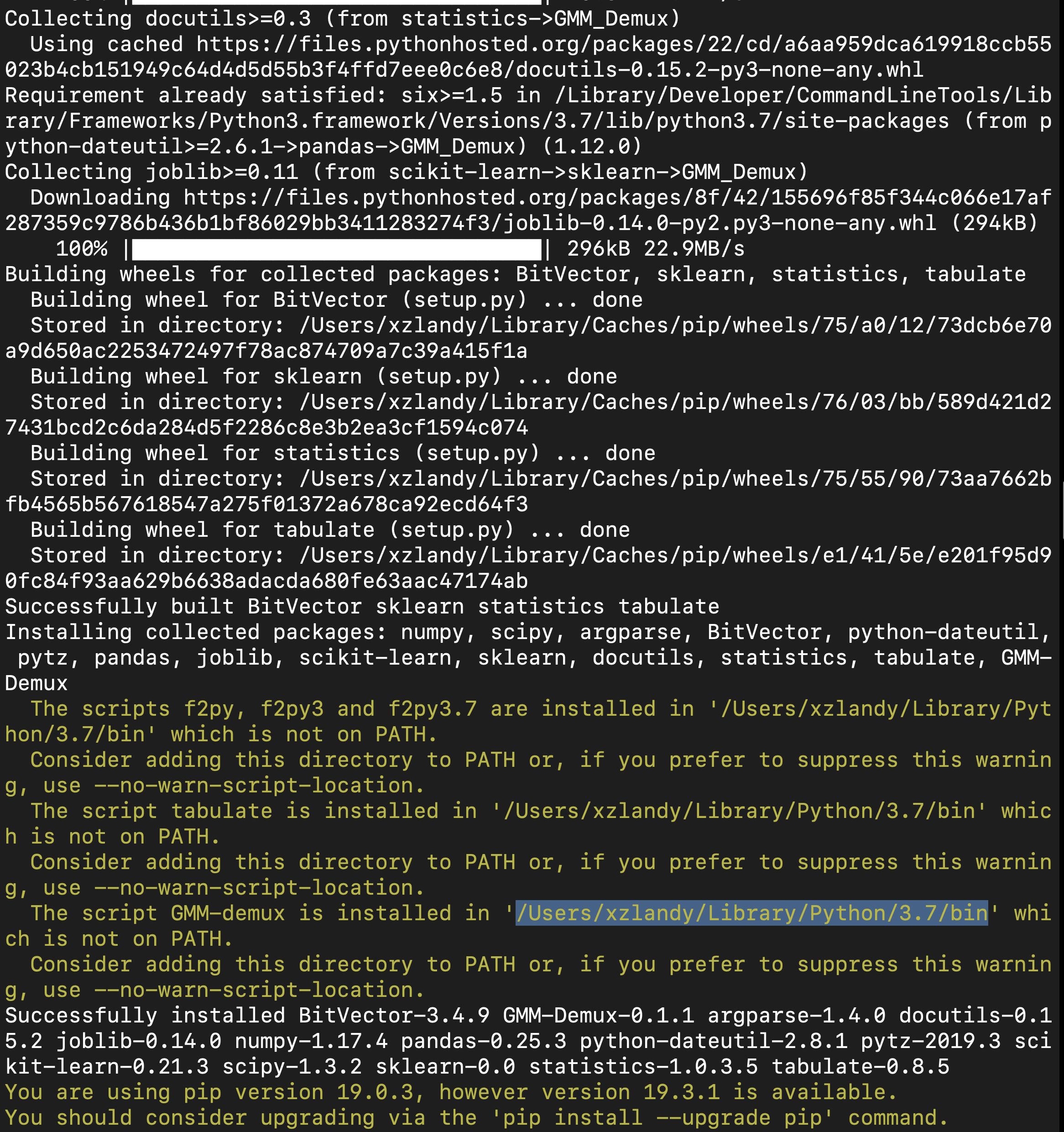

  • Post installation processes

If this is the first time you install a python3 software through pip, make sure you add the pip binary folder to your PATH variable. Typically, the pip binary folder is located at ~/.local/bin.

To temporarily add the pip binary folder, run the following command:

export PATH=~/.local/bin:$PATH

To permenantly add the pip library folder to your PATH variable, append the following line to your .bashrc file.



The source code of GMM-Demux is supplied in the GMM_Demux folder.

An example cell hashing dataset is also provided, located in the example_input/outs/filtered_feature_bc_matrix folder.


Once installed, the github folder is no longer needed. Instead, GMM-Demux is directly accessible with the GMM-demux command.

GMM-demux <cell_hashing_path> <HTO_names> <estimated_cell_num>

<HTO_names> is a list of strings separated by ',' without whitespace. For example, there are four HTO tags in the example cell hashing dataset supplied in this repository. They are HTO_1, HTO_2, HTO_3, HTO_4. The <HTO_names> variable therefore is HTO_1,HTO_2,_HTO_3,HTO_4.

MSM-free droplets are stored in folder GMM_Demux_mtx under the current directory by default. The output path can also be specified through the -o flag.

Example Usage

An example cell hashing data is provided in example_input. <HTO_names> can be obtained from the features.tsv file.

GMM-demux example_input/outs/filtered_feature_bc_matrix HTO_1,HTO_2,HTO_3,HTO_4 35685

<HTO_names> are obtained from the features.tsv file. The feature.tsv file of the example cell hashing dataset is shown below.

HTO names example

Optional Arguments

  • -h: show help information.
  • -f FULL, --full FULL Generate the full classification report. Require a path argument.
  • -s SIMPLIFIED, --simplified SIMPLIFIED Generate the simplified classification report. Require a path argument.
  • -o OUTPUT, --output OUTPUT Specify the folder to store the result. Require a path argument.
  • -r REPORT, --report REPORT Specify the file to store summary report. Require a file argument.

Output Values

  • CellRanger MSM-free drops, in MTX format. Compatible with CellRanger 3.0.

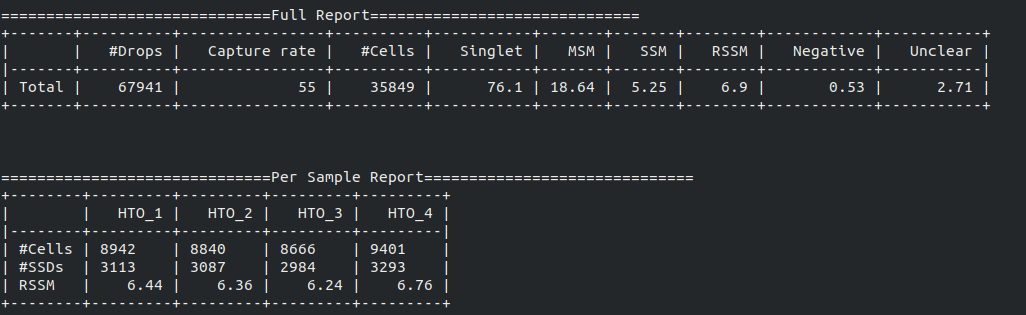

  • Dataset summary. An example summary is shown below. Summary example

Output Explanation

  • MSM denotes the percentage of identified and removed multiplets among all droplets.
  • SSM denotes the percentage of unidentifiable multiplets among all droplets.
  • RSSM denotes the percentage of multiplets among the output droplets (after removing identifiable multiplets). RSSM measures the quality of the cell hashing dataset.

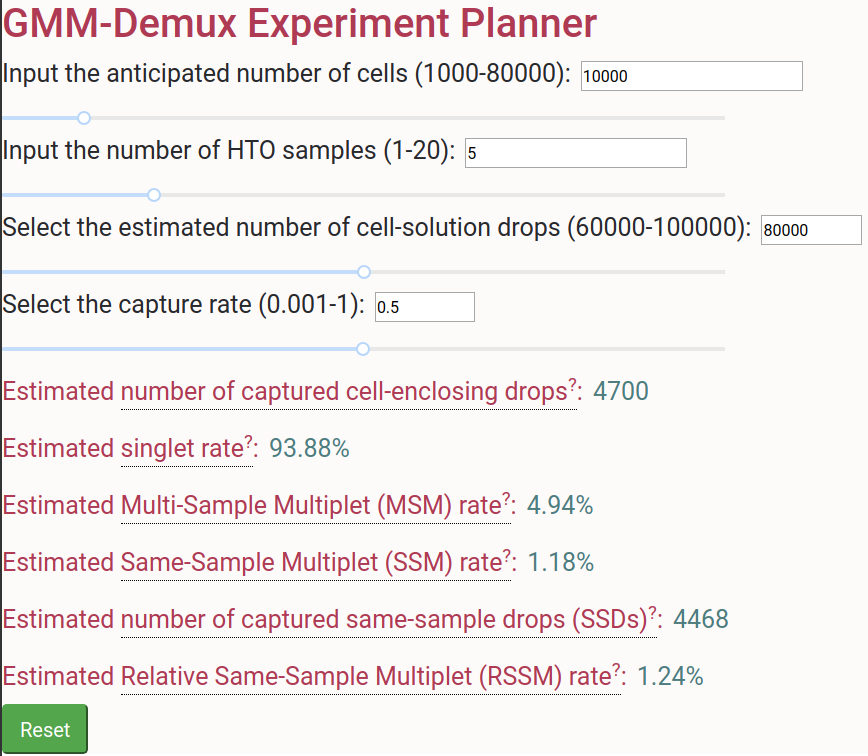

Online Cell Hashing Experiment Planner

A GMM-Demux based online cell hashing experiment planner is publically accessible at here.

Online explanner example
