GridPath 2024.2.0

A versatile simulation and optimization platform for power-system planning and operations.

Welcome to GridPath

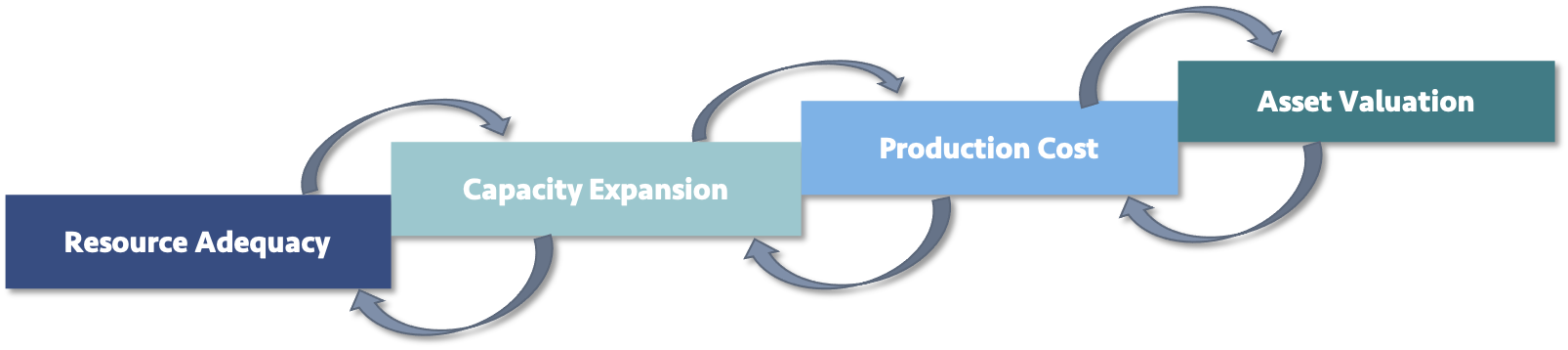

GridPath is a versatile power-system planning platform capable of a range of planning approaches including production-cost, capacity-expansion, asset-valuation, and reliability modeling.

Documentation

GridPath's documentation is hosted on Read the Docs.

Installation

Python

GridPath is tested on Python 3.9, 3.10, and 3.11. Get one of those Python versions here.

GridPath Python environment

You should create a Python environment for your GridPath installation, e.g. via venv, a lightweight environment manager that is part of the standard Python distribution. Make sure to create activate the environment before installing GridPath.

Install GridPath from PyPi

Once you have created and activated the GridPath Python environment, you can install the latest version of GridPath from PyPi with:

pip install GridPath

Install GridPath from source

You can alternatively download the GridPath source code and install from source.

pip install .[all]

NOTE: If you plan to edit the GridPath code, you should install with the -e flag.

Solver

You will need a solver to use this platform. GridPath assumes you will be using Cbc (Coin-or branch and cut) by default, but you can specify a different solver.

Usage

The gridpath_run and gridpath_run_e2e commands

If you install GridPath via the setup script following the instructions above, you can use the command gridpath_run to run a scenario from any directory -- as long as your GridPath Python environment is enabled -- as follows:

gridpath_run --scenario SCENARIO_NAME --scenario_location
/PATH/TO/SCENARIO

If you are using the database, you can use the command gridpath_run_e2e to run GridPath end-to-end, i.e. get inputs for the scenario from the database, solve the scenario problem, import the results into the database, and process them. Refer to the documentation for how to build the database.

gridpath_run_e2e --scenario SCENARIO_NAME --scenario_location
/PATH/TO/SCENARIO

To see usage and other optional arguments, e.g. how to specify a solver, check the help menu, e.g.:

gridpath_run --help
