IPython-Dashboard 0.1.4

An stand alone, light-weight web server for building, sharing graphs in created in ipython. Let ipython do what it focus, let this do what everyone needs for building a interactive, collaborated and real-time streaming dashboards.

*Inspired by `IPython <http://ipython.org/>`__, built with love*

IPython-Dashboard

A stand alone, light-weight web server for building, sharing graphs created in IPython. Build for data science, data analysis guys. Aiming at building an interactive visualization, collaborated dashboard, and real-time streaming graph.

Usage

• Install prerequisite

  • install the latest stable IPython-Dashboard: pip install ipython-dashboard --upgrade

  • install redis 2.6+ : install guide

  • install IPython-Dashboard requirements [unneeded sometimes]:

    • cd ~/your python package path/IPython-Dashboard

    • pip install -r requirements.txt

• Config IPython-Dashboard server : ``IPython-Dashboard/dashboard/config.py``

  • app_host='ip_address:port'

• Start redis and IPython-Dashboard server

chenshan@mac007:~/Desktop/github/IPython-Dashboard$redis-server &

chenshan@mac007:~/Desktop/github/IPython-Dashboard$dash-server --help
usage: dash-server [-h] [-H HOST] [-p PORT] [-d DEBUG]

Start your IPython-Dashboard server ...

optional arguments:
  -h, --help            show this help message and exit
  -H HOST, --host HOST  server host, default localhost
  -p PORT, --port PORT  server port, default 9090
  -d DEBUG, --debug DEBUG
                        server port, default true

chenshan@mac007:~/Desktop/github/IPython-Dashboard$dash-server
Namespace(debug=True, host='0.0.0.0', port=9090)
 * Running on http://0.0.0.0:9090/
 * Restarting with reloader
Namespace(debug=True, host='0.0.0.0', port=9090)

• Do your exploring

  • *IPython-Dashboard-Tutorial.ipynb* : On nbviewer or On github

Goal

• support raw html visualization

• support python object visualization

• Editable

• Real-time fresh when rendering a variable python object

• Can be shared, both public and private [ need password ]

• In the notebook, can share an object to a dashboard [ that’s visualize that object in that dashboard ]

Use Case

• exploring in notebook, share/send the result/summary to people, without the details.

• share some data in a private notebook.

• disappointed with the complicated code when drawing a graceful/staic graph using matplotlib/seaborn/mpld3 etc.

• want an interactive graph, allow people to zoom in/out, resize, get hover tips, change graph type easily.

• want a real-time graph.

• want an collaborated graph/dashboard.

wise-choice

Screenshot and Demo

Demo on Youtube

Demo on Youku

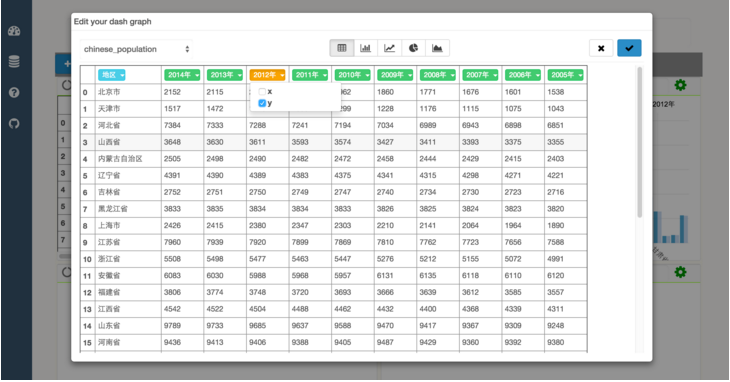

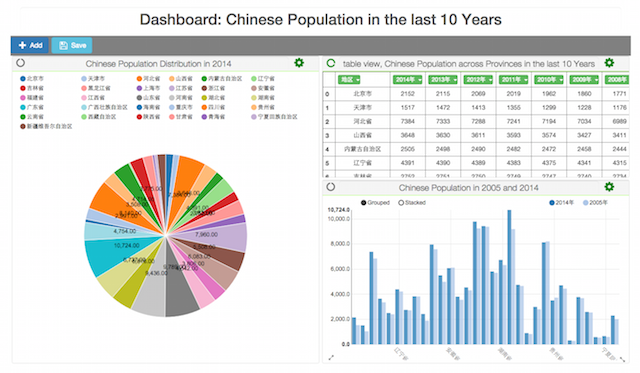

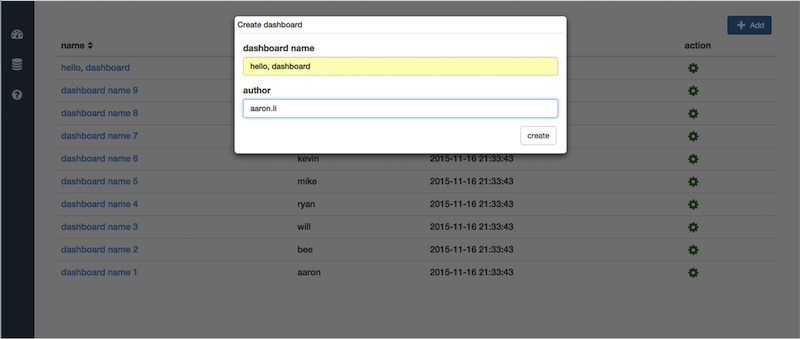

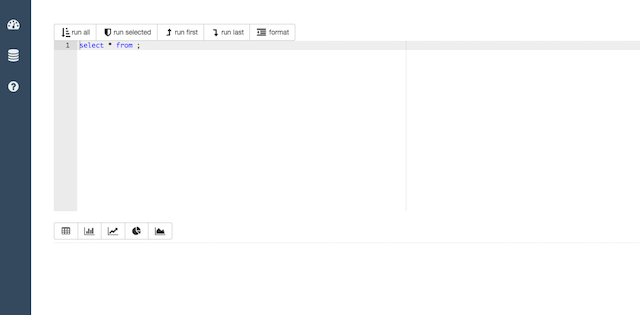

screenshot

screenshot

screenshot

screenshot

Run tests

just run sudo nosetests --with-coverage --cover-package=dashboard under this repo

aaron@aarons-MacBook-Pro:~/Desktop/github/IPython-Dashboard$sudo nosetests --with-coverage --cover-package=dahboard
....
Name                                    Stmts   Miss  Cover   Missing
---------------------------------------------------------------------
dashboard.py                               11      0   100%
dashboard/client.py                         1      0   100%
dashboard/client/sender.py                 11      3    73%   26-27, 33
dashboard/config.py                        11      0   100%
dashboard/server.py                         1      0   100%
dashboard/server/resources.py               0      0   100%
dashboard/server/resources/dash.py         35     10    71%   55-56, 67-69, 82-89
dashboard/server/resources/home.py         40     12    70%   25, 28-30, 83-91
dashboard/server/resources/status.py        8      1    88%   19
dashboard/server/resources/storage.py      15      5    67%   28, 43-47
dashboard/server/utils.py                  31      6    81%   18-22, 29, 43
dashboard/server/views.py                  12      0   100%
---------------------------------------------------------------------
TOTAL                                     176     37    79%
----------------------------------------------------------------------
Ran 4 tests in 3.120s

OK

Change Log

• future

  • front side, databricks style

  • pep 8, code clean up & restructure

  • hover tips

  • edit modal can be resized

  • Share one graph

  • Share one dashboard

  • Presentation mode

  • footer

  • unified message display center

  • SQL Editor

  • login management

  • unified logger and exception report

  • server side log

  • client side log

  • support python3

  • create examples

• *V 0.1.5 : sql-server-log [ current develop version ]*

  • Dashboard

    • create 1 example

    • server side log

    • support x-axis as date format

    • research on real-time updated dataframe

  • SQL Editor

    • sql server develop : render sql result as table view

• *V 0.1.4 : sql-ui-optimize : [ current stable release ]*

  • Dashboard

    • create 1 example

    • hover tips

    • unified message display

    • make the redis-server/dash-server configurable

  • SQL Editor

    • sql editor web UI.
