Procpath is a process tree analysis workbench

Project description

Procpath is a process tree analysis command-line workbench. Its goal is to provide natural interface to the tree structure of processes running on a Linux system for inspection and later analysis.

Installation

pip install Procpath

Quickstart

Get comma-separated PIDs of the process subtree (including the parent process pid=2610).

procpath query -d , '$..children[?(@.stat.pid == 2610)]..pid'

Get JSON document of said process subtree.

procpath query -i 2 '$..children[?(@.stat.pid == 2610)]'

Get total RSS in MiB of said process subtree (this is an example that query produces JSON that can be further processed outside of procpath, and below is a much easier way to calculate aggregates).

procpath query '$..children[?(@.stat.pid == 2610)]' \
  | jq '[.. | .stat? | objects | .rss] | add / 1024 * 4'

Get total RSS in MiB of said process subtree the easy way.

procpath record -d out.sqlite -r 1 '$..children[?(@.stat.pid == 2610)]'
sqlite3 out.sqlite 'SELECT SUM(stat_rss) / 1024.0 * 4 FROM record'

Record process trees of two Docker containers once a second, re-evaluating the containers’ root process PIDs once per 30 recordings. Then visualise RSS of each process (which is also just an example, that output SQLite database can be visualised in different ways, including exporting CSV, sqlite3 -csv ..., and doing it the old way, to using proper UI described in Visualisation section below).

procpath record \
  -e C1='docker inspect -f "{{.State.Pid}}" project_db_1' \
  -e C2='docker inspect -f "{{.State.Pid}}" project_app_1' \
  -i 1 -v 30 -d out.sqlite '$..children[?(@.stat.pid in [$C1, $C2])]'
# press Ctrl + C
sqlite3 out.sqlite \
  "SELECT stat_pid, group_concat(stat_rss / 1024.0 * 4) \
   FROM record \
   GROUP BY stat_pid" \
  | sed -z 's/\n/\n\n\n/g' | sed 's/|/\n/' | sed 's/,/\n/g' > special_fmt
gnuplot -p -e \
  "plot for [i=0:*] 'special_fmt' index i with lines title columnheader(1)"

Visualisation

This section describes GUI-driven ad-hoc visualisation in Plotly Falcon [11]. Instead of official raw Electron build, you can use this script to build AppImage [10].

Ad-hoc visualisation in Falcon is straightforward.

  1. Choose the SQLite database file
  2. Enter the query (see examples in the section below) and run it
  3. Switch to CHART tab
  4. Click + TRACE, select Line chart
  5. Choose X = ts
  6. Choose Y to the the expression to plot, for instance, rss
  7. Switch to Transforms, + Transform to add Split and choose stat_pid

It should look like this.

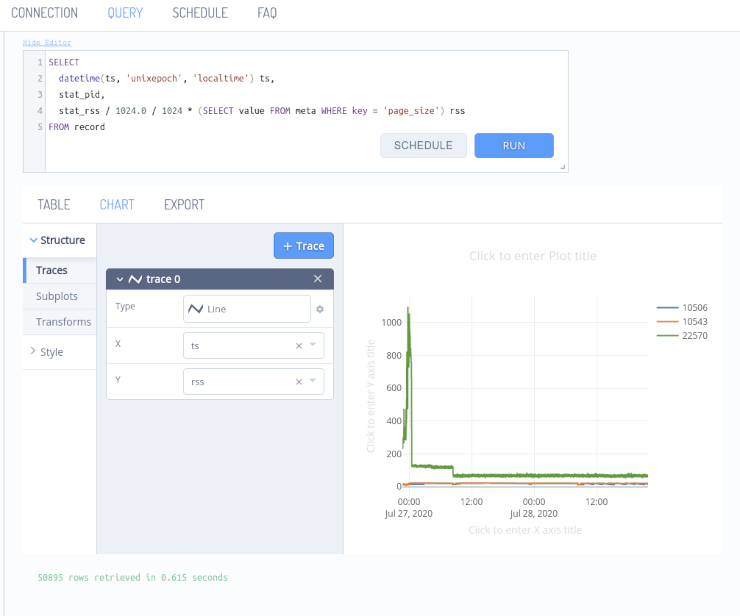

Plotly Falcon screenshot

SQL query

This section lists SQL queries to back the most basic temporal process analysis tasks.

  1. RSS in MiB per process.

    SELECT
      datetime(ts, 'unixepoch', 'localtime') ts,
      stat_pid,
      stat_rss / 1024.0 / 1024 * (SELECT value FROM meta WHERE key = 'page_size') rss
    FROM record

  2. CPU usage percent per process.

    WITH diff AS (
      SELECT
        ts,
        stat_pid,
        stat_utime + stat_stime - LAG(stat_utime + stat_stime) OVER (
          PARTITION BY stat_pid
          ORDER BY ts
        ) tick_diff,
        ts - LAG(ts) OVER (
          PARTITION BY stat_pid
          ORDER BY ts
        ) ts_diff
      FROM record
    )
    SELECT
      datetime(ts, 'unixepoch', 'localtime') ts,
      stat_pid,
      100.0 * tick_diff / (SELECT value FROM meta WHERE key = 'clock_ticks') / ts_diff cpu_load
    FROM diff


    Note

    1. Window function support was first added to SQLite with release version 3.25.0 (2018-09-15)
    2. The above only accounts for user and system time

Design

This section describes the problem and the solution in general. What preceded Procpath and why it didn’t solve the problem.

Problem statement

On servers and desktops processes have become treelike long ago. For instance, this is a process tree of Chromium browser with few opened tabs:

chromium-browser ...
├─ chromium-browser --type=utility ...
├─ chromium-browser --type=gpu-process ...
│  └─ chromium-browser --type=broker
└─ chromium-browser --type=zygote
   └─ chromium-browser --type=zygote
      ├─ chromium-browser --type=renderer ...
      ├─ chromium-browser --type=renderer ...
      ├─ chromium-browser --type=renderer ...
      ├─ chromium-browser --type=renderer ...
      └─ chromium-browser --type=utility ...

On a server environment it can be substituted with a dozen of task queue worker process trees, processes of the connection pool of a database, several web-server process trees or anything-goes in a bunch of Docker containers.

This environment begs some operational questions, point-in-time and temporal. When I have several trees like above, how do I know the (sub)tree’s current resource profile, like total main memory consumption, CPU time and so on? How do I track these profiles in time when, for instance, I suspect a memory leak? How to point other process analysis and introspection tools to these trees?

Existing approaches for outputting a tree’s PIDs include applying bash-fu on pstree output [1] or nested pgrep for shallower cases. procps (providing top and ps) is inadequate for any of above from embracing process hierarchy to collecting temporal metrics. psmisc (providing pstree) is only good for displaying the hierarchy, and doesn’t cover any programmatic interaction. htop is great for interactive inspection of process trees with its filter and search, but for programmatic interaction is also useless. glances has the JSON output feature, but it doesn’t have process-level granularity…

For process metrics collection alone (given you know the PIDs), sysstat (providing pidstat) is likely the only simple solution, which still requires some ad-hoc scripting [2].

Solution

The solution lies in applying the right tool to the job principle.

  1. Represent procfs [4] process tree as a tree structure.
  2. Expose this structure to queries in a compact tree query language.
  3. Flatten and store a query result in a ubiquitous format allowing for easy transmission and transformation.

A major non-functional requirement here is ease of installation, preferably in the form of pure-python package. That’s because an ad-hoc investigation may not allow installing compiler toolchain on the target machine, which discards psutil and discourages XML as the tree representation format, as it would require lxml for XPath.

Representation is relatively simple. Read all /proc/N/stat, build the tree and serialise it as JSON. The ubiquitous form is even simpler. SQLite!

The step in between is much less obvious. Discarding special graph query languages and focusing on ones targeting JSON the list goes like this. But it’s unfortunately, taking into account the Python implementations, is not about choosing the best requirement match, but about choosing the lesser evil.

  1. JSONPath [5] and its Python port. Informal, regex-based (obscure error messages and edge-cases), what-if-XPath-worked-on-JSON prototype. Most popular non-regex Python implementation are a sequence of forks, none of which supports recursive descent. One grammar-based package would work [6], but its filter expressions are just Python eval.
  2. JSON Pointer [7]. No recursive descent supported.
  3. JMESPath (AWS boto dependency). No recursive descent supported [8].
  4. jq and its Python bindings [9]. jq is a programming language in disguise of JSON transformation CLI tool. Even though there’s lengthy documentation, on occasional use jq feels very counter-intuitive and requires lot of googling and trial-and-error.

Pondering and playing with these, item 1 and JSONPyth [6] was the choice. Filter Python expression syntax can be “jsonified” by the AttrDict idiom, and the security concern of eval is justified by the CLI use cases.

Data model

procpath query outputs the pid=1 process node with all its descendants into stdout.

{
  "stat": {"pid": 1, "ppid": 0, ...}
  "cmdline": "root node",
  "other_stat_file": ...,
  "children": [
    {
      "cmdline": "cmdline of some process",
      "stat": {"pid": 1, "ppid": 323, ...},
      "other_stat_file": ...
    },
    {
      "cmdline": "cmdline of another process with children",
      "stat": {"pid": 1, "ppid": 324, ...},
      "other_stat_file": ...,
      "children": [...]
    },
    ...
  ]
}

When JSONPath query is provided to the command, the output is a list of process nodes. See more examples in the test suite.

When recorded into a SQLite database, schema is inferred from used procfs files. The root node or the node list is flattened and recorded into the record table having the DDL like the following.

CREATE TABLE record (
    record_id        INTEGER PRIMARY KEY AUTOINCREMENT NOT NULL,
    ts               REAL    NOT NULL,
    cmdline          TEXT,
    stat_pid         INTEGER,
    stat_comm        TEXT,
    ...
)

Procpath doesn’t pre-processes procfs data. For instance, rss is expressed in pages, utime in clock ticks and so on. To properly interpret data in record table, there’s also meta table containing the following key-value records.

platform_node platform.node()
platform_platform platform.platform()
page_size resource.getpagesize() typically 4096
clock_ticks os.sysconf('SC_CLK_TCK') typically 100

Procpath supports stat, cmdline and io procfs files. stat and cmdline are the default ones. Each procfs file field is described in procpath.procfile module [3].

Command-line interface

$ procpath query --help
usage: procpath query [-h] [-f PROCFILE_LIST] [-d DELIMITER] [-i INDENT]
                      [query]

positional arguments:
  query                 JSONPath expression, for example this query returns
                        PIDs for process subtree including the given root's:
                        $..children[?(@.stat.pid == 2610)]..pid

optional arguments:
  -h, --help            show this help message and exit
  -f PROCFILE_LIST, --procfile-list PROCFILE_LIST
                        PID proc files to read. By default: stat,cmdline.
                        Available: stat,cmdline,io.
  -d DELIMITER, --delimiter DELIMITER
                        Join query result using given delimiter
  -i INDENT, --indent INDENT
                        Format result JSON using given indent number
$ procpath record --help
usage: procpath record [-h] [-f PROCFILE_LIST] [-e ENVIRONMENT]
                       [-i INTERVAL] [-r RECNUM] [-v REEVALNUM] -d
                       DATABASE_FILE
                       [query]

positional arguments:
  query                 JSONPath expression, for example this query returns a
                        node including its subtree for given PID:
                        $..children[?(@.stat.pid == 2610)]

optional arguments:
  -h, --help            show this help message and exit
  -f PROCFILE_LIST, --procfile-list PROCFILE_LIST
                        PID proc files to read. By default: stat,cmdline.
                        Available: stat,cmdline,io.
  -e ENVIRONMENT, --environment ENVIRONMENT
                        Commands to evaluate in the shell and template the
                        query, like VAR=date
  -i INTERVAL, --interval INTERVAL
                        Interval in second between each recording, 10 by
                        default.
  -r RECNUM, --recnum RECNUM
                        Number of recordings to take at --interval seconds
                        apart. If not specified, recordings will be taken
                        indefinitely.
  -v REEVALNUM, --reevalnum REEVALNUM
                        Number of recordings after which environment must be
                        re-evaluate. It's useful when you expect it to change
                        in while recordings are taken.
  -d DATABASE_FILE, --database-file DATABASE_FILE
                        Path to the recording database file

[1]https://unix.stackexchange.com/q/67668/124219
[2]https://stackoverflow.com/a/59182595/2072035
[3]https://heptapod.host/saajns/procpath/-/blob/branch/default/procpath/procfile.py
[4]https://en.wikipedia.org/wiki/Procfs
[5]https://goessner.net/articles/JsonPath/
[6](1, 2) https://pypi.org/project/JSONPyth/
[7]https://tools.ietf.org/html/rfc6901
[8]https://github.com/jmespath/jmespath.py/issues/110
[9]https://pypi.org/project/jq/
[10]https://heptapod.host/saajns/procpath/snippets/4
[11]https://github.com/plotly/falcon
