A Raspberry Pi LCD library for the widely used Hitachi HD44780 controller.
A Python 2/3 Raspberry PI Character LCD library for the Hitachi HD44780 controller.
Also tested with a 16x2 LCD from mikroshop.ch.
No external dependencies (except the RPi.GPIO library, which comes preinstalled on Raspbian) are needed to use this library.
- Simple to use API
- Support for both 4 bit and 8 bit modes
- Python 2/3 compatible
- Caching: Only write characters if they changed
- No external dependencies
These things may get implemented in the future, depending on my free time and motivation:
- I²C support
- Functions for creating custom characters
Writing To Display

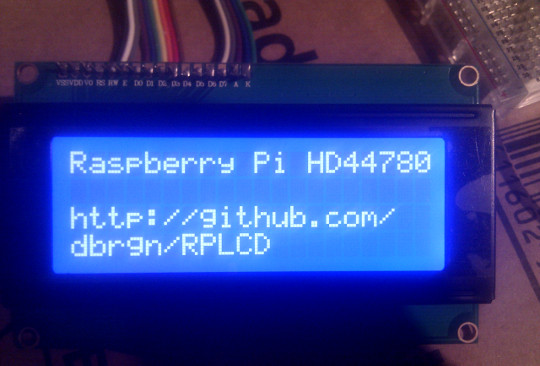

Basic text output with multiline control.
>>> from RPLCD import CharLCD >>> lcd = CharLCD() >>> lcd.write_string(u'Raspberry Pi HD44780') >>> lcd.cursor_pos = (2, 0) >>> lcd.write_string(u'http://github.com/\n\rdbrgn/RPLCD')
Unlike other uses of context managers, these implementations prepare the configuration before writing to the display, but don’t reset it after the block ends.
>>> from RPLCD import CharLCD, cleared, cursor >>> lcd = CharLCD() >>> >>> with cleared(lcd): >>> lcd.write_string(u'LCD is cleared.') >>> >>> with cursor(lcd, 2, 0): >>> lcd.write_string(u'This is he 3rd line.')
I wrote a blogpost on how to implement scrolling text: https://blog.dbrgn.ch/2014/4/20/scrolling-text-with-rplcd/
To see the result, go to https://www.youtube.com/watch?v=49RkQeiVTGU.
You can install RPLCD directly from PyPI using pip:
$ sudo pip install RPLCD
You can also install the library manually without pip. Either just copy the scripts to your working directory and import them, or download the repository and run python setup.py install to install it into your Python package directory.
The standard wiring configuration uses the following pins (BOARD numbering scheme rev 2):
- RS: 15
- RW: 18
- E: 16
- Data 4-7: 21, 22, 23, 24
Init, Setup, Teardown
import RPi.GPIO as GPIO from RPLCD import CharLCD # Initialize display. All values have default values and are therefore # optional. lcd = CharLCD(pin_rs=15, pin_rw=18, pin_e=16, pins_data=[21, 22, 23, 24], numbering_mode=GPIO.BOARD, cols=20, rows=4, dotsize=8) ... # If desired, reset the GPIO configuration and optionally clear the screen. # Note that this can lead to undesired effects on the LCD, because the GPIO # pins are not configured as input or output anymore. lcd.close(clear=True)
- display_enabled -> True / False
- cursor_pos -> (row, col)
- text_align_mode -> Alignment.left / Alignment.right
- write_shift_mode -> ShiftMode.cursor / ShiftMode.display
- cursor_mode -> CursorMode.hide / CursorMode.line / CursorMode.blink
High Level Functions
- write_string(value): Write the specified unicode string to the display. You can use newline (\n) and carriage return (\r) characters to control line breaks.
- clear(): Overwrite display with blank characters and reset cursor position.
- home(): Set cursor to initial position and reset any shifting.
- shift_display(amount): Shift the display. Use negative amounts to shift left and positive amounts to shift right.
Mid Level Functions
- command(value): Send a raw command to the LCD.
- write(value): Write a raw byte to the LCD.
- cursor(lcd, row, col): Control the cursor position before entering the block.
- cleared(lcd): Clear the display before entering the block.
Writing Special Characters
You might find that some characters like umlauts aren’t written correctly to the display. This is because the LCDs usually don’t use ASCII, ISO-8859-1 or any other standard encoding.
There is a script in this project though that writes the entire character map between 0 and 255 to the display. Simply run it as root (so you have permissions to access /dev/mem) and pass it the number of rows and cols in your LCD:
$ sudo python show_charmap.py 2 16
Confirm each page with the enter key. Try to find the position of your desired character using the console output. On my display for example, the “ü” character is at position 129 (in contrast to ISO-8859-1 or UTF-8, which use 252).
Now you can simply create a unicode character from the bit value and write it to the LCD. On Python 2:
>>> u'Z%srich is a city in Switzerland.' % unichr(129) u'Z\x81rich is a city in Switzerland.'
And on Python 3, where strings are unicode by default:
>>> 'Z%srich is a city in Switzerland.' % chr(129) 'Z\x81rich is a city in Switzerland.'
In case you need a character that is not included in the default device character map, there is a possibility to create custom characters and write them into the HD44780 CGRAM. Unfortunately, this is not supported in RPLCD with high level functions yet. But you can always use the write() and command() methods to write raw commands to the LCD. Please refer to the datasheet for more information on the character creation commands.
To test your 20x4 display, please run the test_20x4.py script and confirm/verify each step with the enter key. If you don’t use the standard wiring, make sure to add your pin numbers to the CharLCD constructor in test_20x4.py.
To test a 16x2 display, procede as explained above, but use the test_16x2.py script instead.
