SQLDataModel is a lightweight dataframe library designed for efficient data extraction, transformation, and loading (ETL) across various sources and destinations, providing an efficient alternative to common setups like pandas, numpy, and sqlalchemy while also providing additional features without the overhead of external dependencies.

Project description

SQLDataModel Logo

SQLDataModel: fast & lightweight source agnostic data model

SQLDataModel Home PyPI License PyPI Version Docs Status Downloads

SQLDataModel is a fast & lightweight data model with no additional dependencies for quickly fetching and storing your tabular data to and from the most commonly used databases & data sources in a couple lines of code. It's as easy as ETL:

from SQLDataModel import SQLDataModel

# Extract your data:
sdm = SQLDataModel.from_html('https://antet.github.io/planets')

# Transform it:
sdm['Flyable?'] = sdm['Gravity'].apply(lambda x: str(x < 1.0))

# Filter it
sdm = sdm[sdm['Flyable?']=='True']

# Load it wherever you need! Let's make a Markdown file
sdm.to_markdown('Planets.MD')

Now we have a planetary bucket list in Planets.MD:

| Planet  | Gravity | Moons | Flyable? |
|:--------|--------:|------:|:---------|
| Mercury |    0.38 |     0 | True     |
| Venus   |    0.91 |     0 | True     |
| Mars    |    0.38 |     2 | True     |
| Saturn  |    0.92 |   146 | True     |
| Uranus  |    0.89 |    27 | True     |

Made for those times when you just want to use raw SQL on your dataframe, or need to move data around but the full Pandas, Numpy, SQLAlchemy installation is just overkill. SQLDataModel includes all the most commonly used features, including additional ones like using plain SQL on your DataFrame and pretty printing your table, at 1/1000 the size, 0.03MB vs 30MB


Installation

Use the package manager pip to install SQLDataModel.

$ pip install SQLDataModel

Then import the main class SQLDataModel into your local project, see usage below or go straight to the project docs.


Quick Example

A SQLDataModel can be created from any number of sources, as a quick demo lets create one using a Wikipedia page:

>>> from SQLDataModel import SQLDataModel
>>>
>>> url = 'https://en.wikipedia.org/wiki/1998_FIFA_World_Cup'
>>>
>>> sdm = SQLDataModel.from_html(url, table_identifier=95)
>>>
>>> sdm[:4, ['R', 'Team', 'W', 'Pts.']]
┌──────┬─────────────┬──────┬──────┐
 R     Team         W     Pts.
├──────┼─────────────┼──────┼──────┤
 1     France       6     19
 2     Brazil       4     13
 3     Croatia      5     15
 4     Netherlands  3     12
└──────┴─────────────┴──────┴──────┘
[4 rows x 4 columns]

SQLDataModel provides a quick and easy way to import, view, transform and export your data in multiple formats and sources, providing the full power of executing raw SQL against your model in the process.


Usage

SQLDataModel is a versatile data model leveraging the mighty power of in-memory sqlite3 to perform fast and light-weight transformations allowing you to easily move and manipulate data from source to destination regardless of where, or in what format, the data is. If you need to extract, transform, or simply transfer data across various formats, SQLDataModel can make your life easier. Here's a few examples how:

  1. From Website to Markdown
  2. SQL on your Pandas DataFrame
  3. From SQL to HTML Table
  4. Pretty PyTorch Training Results to JSON
  5. From PostgreSQL to SQLite
  6. Embed Tables Anywhere!

From Website to Markdown

Say we find some cool data online, perhaps some planetary data, and we want to go and get it for our own purposes:

from SQLDataModel import SQLDataModel

# Target url with some planetary data we can extract
url = 'https://antet.github.io/sdm-planets'

# Create a model from the first table element found on the web page
sdm = SQLDataModel.from_html(url, table_identifier=1)

# Add some color to it
sdm.set_display_color('#A6D7E8')

# Lets see!
print(sdm)

SQLDataModel's default output is pretty printed and formatted to fit within the current terminal's width and height, since we added some color here's the result:

sdm_planets

Now that we have our data as a SQLDataModel, we can do any number of things with it using the provided methods or using your own SQL and returning the query results as a new model! Lets find out, all extreme temperatures and pressure aside, if it would be easier to fly given the planet's gravity relative to Earth:

# Extract: Slice by rows and columns
sdm = sdm[:,['Planet','Gravity']] # or sdm[:,:2]

# Transform: Create a new column based on existing values
sdm['Flyable?'] = sdm['Gravity'].apply(lambda x: str(x < 1.0))

# Filter: Keep only the 'Flyable' planets
sdm = sdm[sdm['Flyable?'] == 'True']

# Load: Let's turn our data into markdown!
sdm.to_markdown('Planet-Flying.MD')

Here's the raw markdown of the new file we created Planet-Flying.MD:

| Planet  | Gravity | Flyable? |
|:--------|--------:|:---------|
| Mercury |    0.38 | True     |
| Venus   |    0.91 | True     |
| Mars    |    0.38 | True     |
| Saturn  |    0.92 | True     |
| Uranus  |    0.89 | True     |

Notice that the output from the to_markdown() method also aligned our columns based on the data type, and padded the values so that even the raw markdown is pretty printed! While we used the from_html() and to_markdown() methods for this demo, we could just as easily have created the same table in any number of formats. Once we have our data as a SQLDataModel, it would've been just as easy to have the data in LaTeX:

# Let's convert it to a LaTeX table instead
sdm_latex = sdm.to_latex()

# Here's the output
print(sdm_latex)

As with our markdown output, the columns are correctly aligned and pretty printed:

\begin{tabular}{|l|r|l|}
\hline
    Planet  & Gravity & Flyable? \\
\hline
    Mercury &    0.38 & True     \\
    Venus   &    0.91 & True     \\
    Mars    &    0.38 & True     \\
    Saturn  &    0.92 & True     \\
    Uranus  &    0.89 & True     \\
\hline
\end{tabular}

In fact, using the to_html() method is how the table from the beginning of this demo was created! Click here for an example of how the styling and formatting applied to SQLDataModel gets exported along with it when using to_html().


SQL on your Pandas DataFrame

I can't tell you how many times I've found myself searching for information on how to do this or that operation in pandas and wished I could just quickly do it in SQL instead. Enter SQLDataModel:

import pandas as pd
from SQLDataModel import SQLDataModel

# Titanic dataset
df = pd.read_csv('titanic.csv')

# Transformations you don't want to do in pandas if you already know SQL
sql_query = """
select
    Pclass, Sex, count(*) as 'Survived'
from sdm where
    Survived = 1
group by
    Pclass, Sex
order by
    count(*) desc
"""

# Extract: Create SQLDataModel from the df
sdm = SQLDataModel.from_pandas(df)

# Transform: Do them in SQLDataModel
sdm = sdm.execute_fetch(sql_query)

# Load: Then hand it back to pandas!
df = sdm.to_pandas()

Here we're using SQLDataModel to avoid performing the complex pandas operations required for aggregation if we already know SQL. Here's the output of the sdm we used to do the operations in and the df:

SQLDataModel:                         pandas:
┌───┬────────┬────────┬──────────┐
│   │ Pclass │ Sex    │ Survived │       Pclass     Sex  Survived
├───┼────────┼────────┼──────────┤    0       1  female        91
│ 0 │      1 │ female │       91 │    1       3  female        72
│ 1 │      3 │ female │       72 │    2       2  female        70
│ 2 │      2 │ female │       70 │    3       3    male        47
│ 3 │      3 │ male   │       47 │    4       1    male        45
│ 4 │      1 │ male   │       45 │    5       2    male        17
│ 5 │      2 │ male   │       17 │
└───┴────────┴────────┴──────────┘
[6 rows x 3 columns]

In this example our source and destination formats were both pd.DataFrame objects, however pandas is not required to use, nor is it a dependency of, SQLDataModel. It is only required if you're using the from_pandas() or to_pandas() methods.


From SQL to HTML Table

Say we have a table located on a remote PostgreSQL server that we want to put on our website, normally we could pip install SQLAlchemy, psycopg2, pandas including whatever dependencies they come with, like numpy. This time all we need is psycopg2 for the PostgreSQL driver:

import psycopg2
import datetime
from SQLDataModel import SQLDataModel

# Setup the connection
psql_conn = psycopg2.connect(...)

# Grab a table with missions to Saturn
sdm = SQLDataModel.from_sql('saturn_missions', psql_conn) # or SQL statement

# Filter to only 'Future' missions
sdm = sdm[sdm['Status'] == 'Future']

# Create new column with today's date so it ages better!
sdm['Updated'] = datetime.date.today()

# Create a new html file with our table
sdm.to_html('Future-Saturn.html', index=False)

Here's a snippet from the Future-Saturn.html file generated by the to_html() method:

<!-- Metadata Removed -->
<table>
    <tr>
        <th>Mission</th>
        <th>Status</th>
        <th>Launch</th>
        <th>Destination</th>
        <th>Updated</th>
    </tr>
    <tr>
        <td>New Frontiers 4</td>
        <td>Future</td>
        <td>2028</td>
        <td>Surface of Titan</td>
        <td>2024-03-21</td>
    </tr>
    <tr>
        <td>Enceladus Orbilander</td>
        <td>Future</td>
        <td>2038</td>
        <td>Surface of Enceladus</td>
        <td>2024-03-21</td>
    </tr>
</table>
<!-- SQLDataModel css styles removed -->

The Surface of Titan in 2028, how cool is that!


Pretty PyTorch Training Results to JSON

Let's say we're training a pytorch model and we want to keep the results from training. If you've ever trained one or followed a tutorial, I'm sure you'll be familiar with this pattern:

# Training loop
num_epochs = 10

for epoch in range(num_epochs):
    # Train the model and get the metrics
    train_loss, train_acc = train(model, criterion, optimizer, train_loader, device)
    val_loss, val_acc = validate(model, criterion, val_loader, device)

    # Print training results to terminal
    print(f'Epoch [{epoch+1}/{num_epochs}], '
          f'Train Loss: {train_loss:.4f}, Train Acc: {train_acc:.2f}%, '
          f'Val Loss: {val_loss:.4f}, Val Acc: {val_acc:.2f}%')

This ubiquitous setup, where results from each epoch are output to the terminal, has become the Hello, World! of ML training loops. While this is great for monitoring the progress of training, it's miserable for actually keeping and analyzing the data afterwards. Here's how we can use SQLDataModel to help:

from SQLDataModel import SQLDataModel

# Initialize an empty model with headers for the data we want to store
sdm = SQLDataModel(headers=['Epoch', 'Train Loss', 'Train Acc', 'Val Loss', 'Val Acc'])

# ... Training code ...

We create an empty SQLDataModel that we can use with headers corresponding to the metrics we want to store. Now in our training loop we can fill it with our results:

# Initialize an empty model for training
sdm = SQLDataModel(headers=['Epoch', 'Train Loss', 'Train Acc', 'Val Loss', 'Val Acc'])

# Training loop
num_epochs = 10
for epoch in range(num_epochs):
    # Train the model and get the metrics
    train_loss, train_acc = train(model, criterion, optimizer, train_loader, device)
    val_loss, val_acc = validate(model, criterion, val_loader, device)

    # Let's store the results first
    sdm.append_row([epoch+1, train_loss, train_acc, val_loss, val_acc])

    # Print training results to terminal
    print(f'Epoch [{epoch+1}/{num_epochs}], '
          f'Train Loss: {train_loss:.4f}, Train Acc: {train_acc:.2f}%, '
          f'Val Loss: {val_loss:.4f}, Val Acc: {val_acc:.2f}%')

We use the append_row() method to store the results from training, inserting a new row for each epoch. Now that we're storing the data instead of just printing it to the terminal, we can track our results and easily export them into whichever format we need. For this example, let's store them as a .json file. All we need is to add one more line at the end of our training loop:

# ... Training loop ...
sdm.to_json('Training-Metrics.json')

This will export all the training data stored in our model to a new JSON file Training-Metrics.json, trimmed for brevity:

[
    {
      "Epoch": 1,
      "Train Loss": 0.6504,
      "Train Acc": 0.6576,
      "Val Loss": 0.6126,
      "Val Acc": 0.6608
    },
    {
      "Epoch": 2,
      "Train Loss": 0.5733,
      "Train Acc": 0.6989,
      "Val Loss": 0.5484,
      "Val Acc": 0.7268
    },
    {
      "Epoch": 3,
      "Train Loss": 0.5222,
      "Train Acc": 0.7239,
      "Val Loss": 0.5294,
      "Val Acc": 0.7332
    }
  ]

In this example we kept the original print statements intact during training, but we could've removed them altogether and done something like this instead:

# Initialize an empty model for training
sdm = SQLDataModel(headers=['Epoch', 'Train Loss', 'Train Acc', 'Val Loss', 'Val Acc'])

# Training loop
num_epochs = 10
for epoch in range(num_epochs):
    # Train the model and get the metrics
    train_loss, train_acc = train(model, criterion, optimizer, train_loader, device)
    val_loss, val_acc = validate(model, criterion, val_loader, device)

    # Let's store the results first
    sdm.append_row([epoch+1, train_loss, train_acc, val_loss, val_acc])

    # Pretty print last row of training results to terminal
    print(sdm[-1])

# Print all results when training finishes
print(sdm)

# Export them as a json file
sdm.to_json('Training-Metrics.json')

Here we've removed the previous and rather verbose print statement and replaced it with a simple print(sdm[-1]), this will print the last row of data in the model. This results in the following terminal output for each epoch during training:

┌───────┬────────────┬───────────┬──────────┬─────────┐
│ Epoch  Train Loss  Train Acc  Val Loss  Val Acc │
├───────┼────────────┼───────────┼──────────┼─────────┤
│    10      0.2586     0.8063    0.5391   0.7728 │
└───────┴────────────┴───────────┴──────────┴─────────┘

Which, besides having the added benefit of storing our data, is far less code than the prior print statement, and is in my humble opinion much nicer to look at while we wait for training to complete. We've also added one more line, a final print(sdm) to output all the training results before saving them to Training-Metrics.json. That way, for those of us who still like to see them all in one place, we can have our saved json cake and pretty print it too:

┌───────┬────────────┬───────────┬──────────┬─────────┐
│ Epoch  Train Loss  Train Acc  Val Loss  Val Acc │
├───────┼────────────┼───────────┼──────────┼─────────┤
│     1      0.6504     0.6576    0.6126   0.6608 │
│     2      0.5733     0.6989    0.5484   0.7268 │
│     3      0.5222     0.7239    0.5294   0.7332 │
│     4      0.4749     0.7288    0.5461   0.7238 │
│     5      0.4417     0.7301    0.5862   0.7148 │
│     6      0.4065     0.7544    0.4882   0.7674 │
│     7      0.3635     0.7679    0.4793   0.7690 │
│     8      0.3229     0.7884    0.4833   0.7732 │
│     9      0.2860     0.7921    0.5041   0.7746 │
│    10      0.2586     0.8063    0.5391   0.7728 │
└───────┴────────────┴───────────┴──────────┴─────────┘
[10 rows x 5 columns]

Whelp, clearly it's overfitting...


From PostgreSQL to SQLite

This example will showcase one of the original motivations of this package, moving data from one SQL database to another. It'll be a short one, just as SQLDataModel was designed to be! Let's say we need to move data from a PostgreSQL server into a local SQLite connection:

import sqlite3
import psycopg2
from SQLDataModel import SQLDataModel

# Setup our postgresql connection
pg_conn = psycopg2.connect(...)

# Setup our local sqlite3 connection
sqlite_conn = sqlite3.connect(...)

# Create our model from a query on our postgresql connection
sdm = SQLDataModel.from_sql("SELECT * FROM pg_table", pg_conn)

# Import it into our sqlite3 connection, appending to existing data
sdm.to_sql("local_table", sqlite_conn, if_exists='append')

Thats it! What once required installing packages like pandas, numpy, and SQLAlchemy, plus all of their dependencies, just to able to use a nice DataFrame API when interacting with SQL data, is now just a single package, SQLDataModel. While I love all three of those packages, 99% of what I consistently use them for can be done with far less "package baggage".


Embed Tables Anywhere!

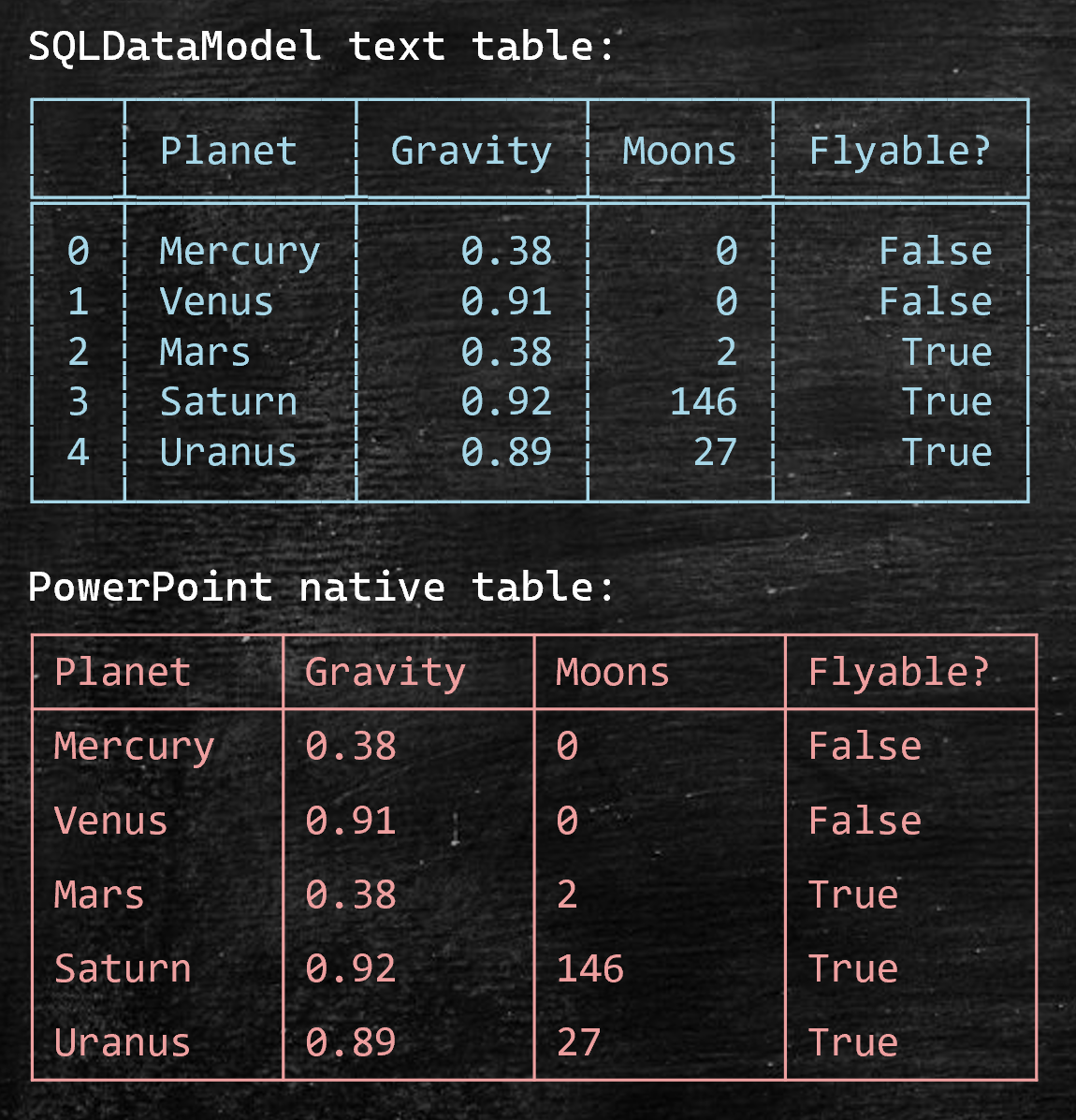

Perhaps one of the most novel use-cases I've come across for SQLDataModel is the ability to embed a table just about anywhere you can type. For example, let's say you want to include a table in a slide show but are struggling with the disparate and confusing application specific rules and constraints, which has been my personal experience for every table formatting interface put out by Microsoft, especially Outlook and PowerPoint. Instead of settling for the application specific sandbox you've been forced into, try SQLDataModel instead!

from SQLDataModel import SQLDataModel

# Using the Markdown file created in the very first example
sdm = SQLDataModel.from_markdown('Planets.MD')

# Mercury and Venus are too hot, let's change their 'Flyable?' status
sdm[:2, 'Flyable?'] = 'False'

# Lets use a different table styling, like the one used by polars
sdm.set_table_style('polars')

# Send the table to a text file to copy it from
sdm.to_text('Planets.txt')

This will write the table and any styling we applied to Planets.txt where we can copy it from. We could just as easily copy it right from the terminal as well. Now that we have the table in our clipboard, we can paste and embed it anywhere we can input text! For example, here's the result of pasting it into a PowerPoint slide, along with a comparison using PowerPoint's native table feature:

sdm_ppt

While its true you'll have more control using the application-specific table feature, you'll have to first figure out how to do it in their sandbox. It takes me an embarrassingly long time to create a table in PowerPoint, not to mention styling it and how to import data without typing it in cell by cell. On the other hand, it only took a second to copy & paste the table from Planets.txt that we generated from SQLDataModel. This applies to anywhere you can input text and use a monospace font! To view a detailed summary of available styles, jump to the table styles portion of the docs.


The Workflow

For all the SQLDataModel examples, the same basic workflow and pattern is present:

from SQLDataModel import SQLDataModel

# Extract: Create the model from a source
sdm = SQLDataModel.from_data(...)

# Transform: Manipulate the data if needed
sdm['New Column'] = sdm['Column A'].apply(func)

# Load: Move it to a destination format
sdm.to_text('table.txt') # to_csv, to_json, to_latex, to_markdown, to_html, ..., etc.

We can take a step back and illustrate the broader source, transform, destination flow with SQLDataModel like this:

sdm_graph

Regardless of where the data originated or where it ends up, SQLDataModel's best use-case is to be the light-weight intermediary that's agnostic to the original source, or the final destination, of the data.


Data Formats

SQLDataModel seamlessly interacts with a wide range of data formats providing a versatile platform for data extraction, conversion, and writing. Supported formats include:

  • Arrow: Convert to and from Apache Arrow format, pyarrow required.
  • CSV: Extract from and write to comma separated value, .csv, files.
  • Excel: Extract from and write to Excel .xlsx files, openpyxl required.
  • HTML: Extract from web and write to and from .html files including formatted string literals.
  • JSON: Extract from and write to .json files, JSON-like objects, or JSON formatted sring literals.
  • LaTeX: Extract from and write to .tex files, LaTeX formatted string literals.
  • Markdown: Extract from and write to .MD files, Markdown formatted string literals.
  • Numpy: Convert to and from numpy.ndarray objects, numpy required.
  • Pandas: Convert to and from pandas.DataFrame objects, pandas required.
  • Parquet: Extract from and write to .parquet files, pyarrow required.
  • Pickle: Extract from and write to .pkl files, package uses .sdm extension when pickling for SQLDataModel metadata.
  • Polars: Convert to and from polars.DataFrame objects, polars required.
  • SQL: Extract from and write to the following popular SQL databases:
    • SQLite: Using the built-in sqlite3 module.
    • PostgreSQL: Using the psycopg2 package.
    • SQL Server: Using the pyodbc package.
    • Oracle: Using the cx_Oracle package.
    • Teradata: Using the teradatasql package.
  • Text: Write to and from .txt files including other SQLDataModel string representations.
  • TSV or delimited: Write to and from files delimited by:
    • \t: Tab separated values or .tsv files.
    • \s: Single space or whitespace separated values.
    • ;: Semicolon separated values.
    • |: Pipe separated values.
    • :: Colon separated values.
    • ,: Comma separated values or .csv files.
  • Python objects:
    • dictionaries: Convert to and from collections of python dict objects.
    • lists: Convert to and from collections of python list objects.
    • tuples: Convert to and from collections of python tuple objects.
    • namedtuples: Convert to and from collections of namedtuples objects.

Note that SQLDataModel does not install any additional dependencies by default. This is done to keep the package as light-weight and small as possible. This means that to use package dependent methods like to_parquet() or the inverse from_parquet() the pyarrow package is required. The same goes for other package dependent methods like those converting to and from pandas and numpy objects.


Documentation

SQLDataModel's documentation can be found at https://sqldatamodel.readthedocs.io containing detailed descriptions for the key modules in the package. These are listed below as links to their respective sections in the docs:

However, to skip over the less relevant modules and jump straight to the meat of the package, the SQLDataModel module, click here.


Motivation

While there are packages/dependencies out there that can accomplish some of the same tasks as SQLDataModel, they're either missing key features or end up being overkill for common tasks like grabbing and converting tables from source A to destination B, or they don't quite handle the full process and require additional dependencies to make it all work. When you find yourself doing the same thing over and over again, eventually you sit down and write a package to do it for you.


Contributing

Pull requests are welcome. For major changes, please open an issue first to discuss what you would like to change.

Please make sure to update tests as appropriate.


License

MIT

Thank you!
Ante Tonkovic-Capin

Project details


Release history Release notifications | RSS feed

Download files

Download the file for your platform. If you're not sure which to choose, learn more about installing packages.

Source Distribution

sqldatamodel-1.1.0.tar.gz (221.7 kB view details)

Uploaded Source

Built Distribution

SQLDataModel-1.1.0-py3-none-any.whl (295.1 kB view details)

Uploaded Python 3

File details

Details for the file sqldatamodel-1.1.0.tar.gz.

File metadata

  • Download URL: sqldatamodel-1.1.0.tar.gz
  • Upload date:
  • Size: 221.7 kB
  • Tags: Source
  • Uploaded using Trusted Publishing? No
  • Uploaded via: twine/4.0.2 CPython/3.12.4

File hashes

Hashes for sqldatamodel-1.1.0.tar.gz
Algorithm Hash digest
SHA256 71c6f688d081f345d602759d16a62760500f3f63ca907e0416bd7bb10a2e2716
MD5 0db3deae7feb6bf55af18827d2e035d8
BLAKE2b-256 c02987e799131c535eda27bb81c910d03691b5f00989dbe223d96802f39e6b4c

See more details on using hashes here.

File details

Details for the file SQLDataModel-1.1.0-py3-none-any.whl.

File metadata

  • Download URL: SQLDataModel-1.1.0-py3-none-any.whl
  • Upload date:
  • Size: 295.1 kB
  • Tags: Python 3
  • Uploaded using Trusted Publishing? No
  • Uploaded via: twine/4.0.2 CPython/3.12.4

File hashes

Hashes for SQLDataModel-1.1.0-py3-none-any.whl
Algorithm Hash digest
SHA256 a31ecc44c5fdf64107c0039aebffc47044e947a2bfb30c508aa47320c8b083f0
MD5 7c4c976b6def0c858b2822c552291d68
BLAKE2b-256 d1b2a2a67a2f48c97cbb6a3dc7ddc088851ca49242f4967d993867dfe437ca65

See more details on using hashes here.

Supported by

AWS AWS Cloud computing and Security Sponsor Datadog Datadog Monitoring Fastly Fastly CDN Google Google Download Analytics Microsoft Microsoft PSF Sponsor Pingdom Pingdom Monitoring Sentry Sentry Error logging StatusPage StatusPage Status page
