TopoEmbedX 0.0.2.dev131

Representation Learning on Topological Domains

Representation Learning on Topological Domains

Main Features • Installing TopoEmbedX • Getting Started • References

Many natural systems as diverse as social networks and proteins are characterized by relational structure. This is the structure of interactions between components in the system, such as social interactions between individuals or electrostatic interactions between atoms.

How can we conveniently represent data defined on such relational systems?

TopoEmbedX (TEX) is a package for representation learning on topological domains, the mathematical structures of relational systems.

🛠️ Main Features

Support of higher order representation learning algorithms such as:

• DeepCell,
• Cell2Vec,
• Higher Order Laplacian Eigenmaps, and
• Higher Order Geometric Laplacian Eigenmaps

for the topological domains supported in TopoNetX.

🤖 Installing TopoEmbedX

TopoEmbedX is available on PyPI and can be installed using pip.

pip install "pygsp @ git+https://github.com/epfl-lts2/pygsp@a3412ce7696c02c8a55439e89d0c9ab8ae863269"
pip install "karateclub @ git+https://github.com/benedekrozemberczki/karateclub@cb46a91df8dcbeb2570debcf6a9d0c518107a2de"
pip install topoembedx

The library depends on pygsp and karateclub, which did not receive updates on PyPI for a long time. You have to manually install the latest versions from GitHub for up-to-date Python and NetworkX compatibility.

🦾 Getting Started

import topoembedx as tex
import toponetx as tnx

# create a cell complex object with a few cells
cc = tnx.CellComplex([[1, 2, 3, 4], [3, 4, 5, 6, 7, 8]], ranks=2)

# create a model
model = tex.Cell2Vec()

# fit the model
model.fit(cc, neighborhood_type="adj", neighborhood_dim={"rank": 1, "via_rank": -1})
# here neighborhood_dim={"rank": 1, "via_rank": -1} specifies the dimension for
# which the cell embeddings are going to be computed.
# rank=1 means that the embeddings will be computed for the first dimension.
# The integer 'via_rank' is ignored and only considered
# when the input complex is a combinatorial complex or colored hypergraph.


# get the embeddings:
embeddings = model.get_embedding()

🧑‍💻 Install from source

To install the latest version from source, follow these steps:

1. Clone a copy of TopoEmbedX from source:

git clone https://github.com/pyt-team/TopoEmbedX
cd TopoEmbedX

2. If you have already cloned TopoEmbedX from source, update it:

git pull

3. Install a recent version of pygsp and karateclub:

pip install "pygsp @ git+https://github.com/epfl-lts2/pygsp@a3412ce7696c02c8a55439e89d0c9ab8ae863269"
pip install "karateclub @ git+https://github.com/benedekrozemberczki/karateclub@cb46a91df8dcbeb2570debcf6a9d0c518107a2de"

4. Install TopoEmbedX in editable mode:

pip install -e '.[all]'

5. Install pre-commit hooks:

pre-commit install

🔍 References

To learn more about topological representation learning.

• Mustafa Hajij, Ghada Zamzmi, Theodore Papamarkou, Nina Miolane, Aldo Guzmán-Sáenz, Karthikeyan Natesan Ramamurthy, Tolga Birdal, Tamal K. Dey, Soham Mukherjee, Shreyas N. Samaga, Neal Livesay, Robin Walters, Paul Rosen, Michael T. Schaub. Topological Deep Learning: Going Beyond Graph Data.

@misc{hajij2023topological,
      title={Topological Deep Learning: Going Beyond Graph Data},
      author={Mustafa Hajij and Ghada Zamzmi and Theodore Papamarkou and Nina Miolane and Aldo Guzmán-Sáenz and Karthikeyan Natesan Ramamurthy and Tolga Birdal and Tamal K. Dey and Soham Mukherjee and Shreyas N. Samaga and Neal Livesay and Robin Walters and Paul Rosen and Michael T. Schaub},
      year={2023},
      eprint={2206.00606},
      archivePrefix={arXiv},
      primaryClass={cs.LG}
}

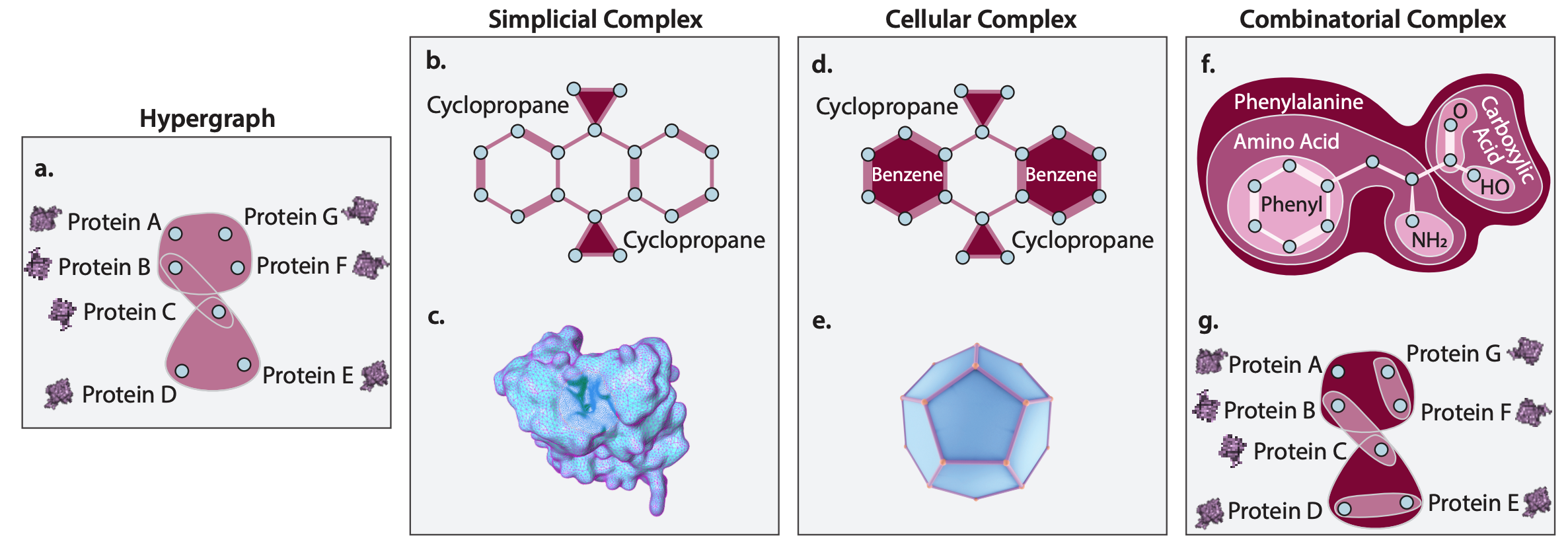

Figure from:

• Mathilde Papillon, Sophia Sanborn, Mustafa Hajij, Nina Miolane. Architectures of Topological Deep Learning: A Survey on Topological Neural Networks.

@misc{papillon2023architectures,
      title={Architectures of Topological Deep Learning: A Survey on Topological Neural Networks},
      author={Mathilde Papillon and Sophia Sanborn and Mustafa Hajij and Nina Miolane},
      year={2023},
      eprint={2304.10031},
      archivePrefix={arXiv},
      primaryClass={cs.LG}
}

Funding

Partially funded by the European Union (ERC, HIGH-HOPeS, 101039827). Views and opinions expressed are however those of the author(s) only and do not necessarily reflect those of the European Union or the European Research Council Executive Agency. Neither the European Union nor the granting authority can be held responsible for them.

Partially funded by the National Science Foundation (DMS-2134231, DMS-2134241).
