adrubix 0.1.66

RubixHeatmap class for plotting complex, highly customizable heatmaps with metadata as HTML and PNG

Status

Compatibilities

Contact

AdRubix

Package allowing to create RubixHeatmap objects for plotting complex, highly customizable heatmaps with metadata.

The interest of such a visualization is to highlight clusters in data and to track any patterns vis-à-vis metadata.

► You can easily test AdRubix tool on your data with this friendly Streamlit GUI before integrating it into your projects code-wise.

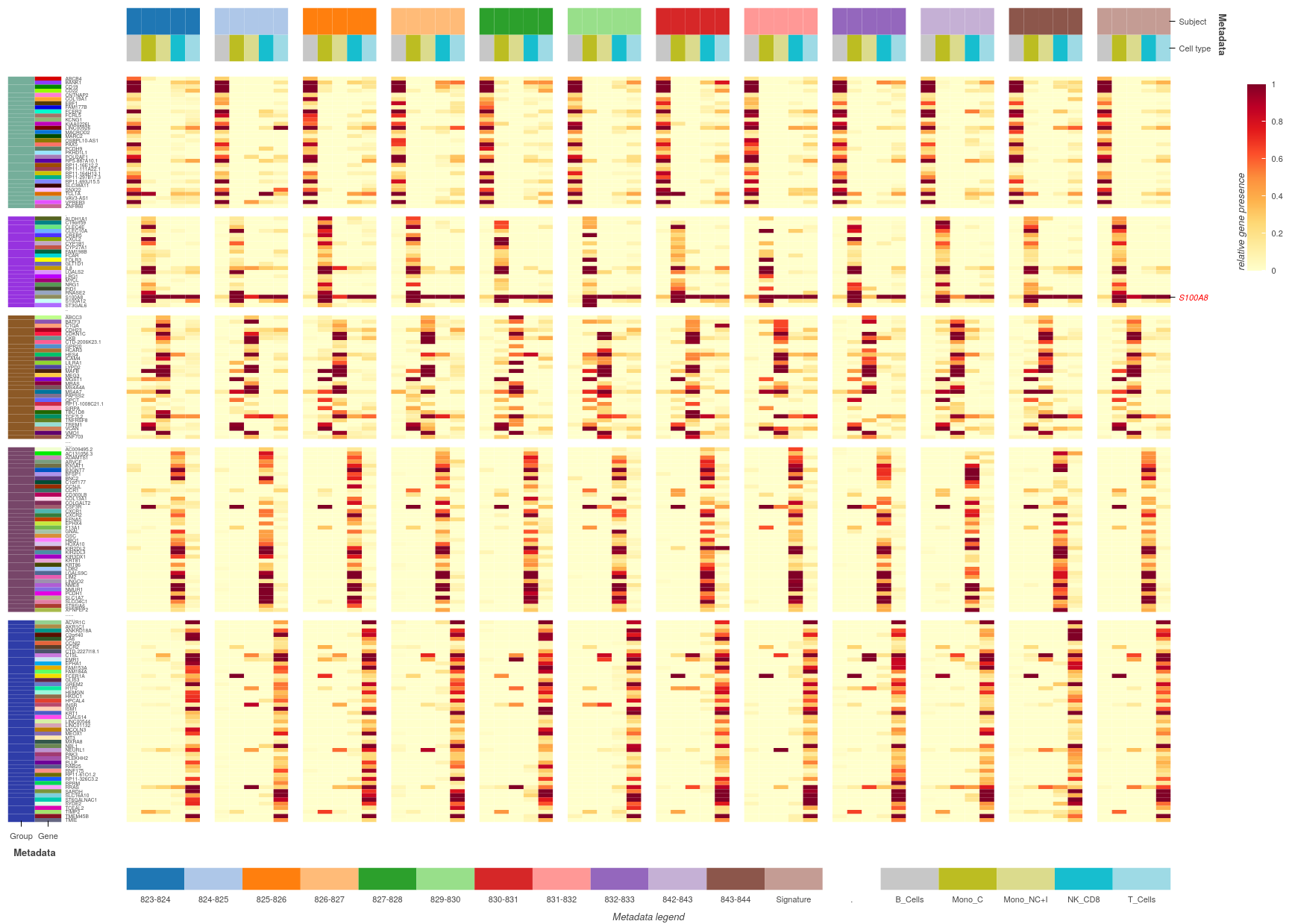

Example of a heatmap created using AdRubix:

Input

Three input files (CSV) or pandas DataFrames (in any combination) are expected:

• Main data

  Generally comes clusterized: for example, by applying AdNMTF to raw data.

  • Example A (see figure above) : rows = genes, columns = cell groups for each patient
  • Example B : rows = biomarkers at different timepoints, columns = patients

• Metadata for rows

  Index of these metadata should correspond to the index of main data (at least partially, in which case the plot will only keep the matching rows).

  • Example A : column 1 = gene group, column 2 = gene
  • Example B : column 1 = timepoint, column 2 = biomarker

• Metadata for columns

  Index of these metadata should correspond to the columns of main data (at least partially, in which case the plot will only keep the matching columns).

  • Example A : column 1 = patient, column 2 = cell type
  • Example B : column 1 = score (Y/N), column 2 = treatment, column 3 = cluster

The resulting plot layout is composed of the following elements, all rendered using holoviews.HeatMap() and fine-tuned via Bokeh plot parameters :

####  [CA]  ####

[RA]  [MP]  [RL]

####  [CL]  ####

• [MP] main plot (with colorbar on the right)
• [RA] row annotations (from metadata for rows)
• [CA] column annotations (from metadata for columns) : can be duplicated under the main plot for long DFs
• [RL] row legend (RA explained) : optional
• [CL] column legend (CA explained) : optional
• #### white space filler

Output

plot() method of the class will save :

• HTML plot with an interactive toolbar enabling zooming into main heatmap and metadata
• PNG image corresponding to the HTML plot (without toolbar) : if save_png evaluates to True

With plot_save_path specified, HTML and PNG are saved according to it, otherwise, HTML only is saved in current working directory to be able to show the plot.

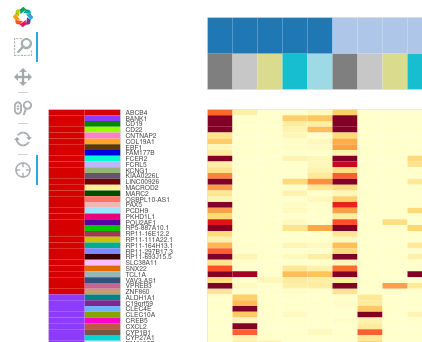

HTML toolbar

The image above gives an example of toolbar for AdRubix HTML plot. It comprises the following Bokeh tools, top to bottom:

• Box Zoom (activated by default) : drag & drop to select a rectangular area for zooming in
• Pan : drag to move a zoomed-in image around
• Wheel Zoom : zoom in or out with your mouse wheel
• Reset to the initial view (after any combination of zoom and pan)
• Crosshairs from mouse location (activated by default)

You can activate/deactivate any zoom, pan or crosshairs tool by clicking on it.

WARNING. When using row_labels_for_highlighting parameter, zoom can only work linked between main data and column annotations. With row_labels_for_highlighting=None, zoom is always linked between main data and both row and column annotations.

Requirements for saving PNG

To be able to save plots as PNG files, ideally you should have :

• Firefox web browser and geckodriver installed on your machine
• Folders with the executables of Firefox and geckodriver added to your system PATH environment variable
  • Adding new locations to system PATH on a Windows machine
  • Adding new locations to system PATH on a Linux machine

Main parameters

Default values are bolded, where applicable.

1. Data input and plot output

   • data (DF) or data_file (CSV file name)
   • metadata_rows (DF) or metadata_rows_file (CSV file name)
   • metadata_cols (DF) or metadata_cols_file (CSV file name)
   • data_path required if any of [...]_file parameters are used. Do not forget a slash at the end of the path. Also, if you work on a Windows machine, be sure to use double backslashes \\ instead of single slashes.
   • [ optional ] plot_save_path = path to HTML file to be saved, including its name. If None is provided, HTML is saved in current working directory under the name <your_python_script_name>.html and automatically opened in a web browser.
   • [ optional ] save_png = True/False or 1/0. PNG image will be saved in the same folder as HTML under the same name except for the extension .png

2. Data scaling and normalization + Dataprep

   NB. It is still preferred that you do data scaling and/or normalization externally before using RubixHeatmap in order to have more control and transparency over your data.

   NB. If you go for it, for one axis you must choose between scale_along and normalize_along. You cannot use both simultaneously along the same axis.

   • [ optional ] color_scaling_quantile = quantile for getting rid of outliers (in %), default 95, accepted 80...100. Applied both to scale_along and normalize_along options.
     • When applied to scale_along, color_scaling_quantile=95 will cap top (> 95% quantile) values.
     • When applied to normalize_along, color_scaling_quantile=95 will cap both top (> 97.5% quantile) and bottom (<2.5% quantile) values before normalizing data (see below).
   • [ optional ] scale_along = "columns"/"rows" or 0/1 for scaling and capping data along the specified axis. Default : None = do nothing.
   • [ optional ] normalize_along = "columns"/"rows" or 0/1 for scaling and capping + normalizing data along the specified axis : (x - median(x) by column or row) / MAD(x) by column or row, where MAD is median average deviation. Default : None = do nothing.
   • [ optional ] data_rows_to_drop, data_cols_to_drop = lists of the names of rows/columns in main data not intended to be plotted. Nonexistent names will be skipped without raising an error.

3. Colorbar

   • [ optional ] colorbar_title (no title by default)
   • [ optional ] colorbar_height, colorbar_location = "top"/"center"/"bottom" (always to the right of the main plot)
   • [ optional ] show_colorbar = True/False

4. Metadata

   • [ optional ] show_metadata_rows = True/False
   • [ optional ] show_metadata_rows_labels = True/False (font size is adapted to main dataframe length and to heatmap height, between 5pt and 10pt)
   • [ optional ] show_metadata_cols = True/False
   • [ optional ] duplicate_metadata_cols = True/False/None (if None, set automatically to True for DFs longer that 70 rows)

5. Legends

   • [ optional ] show_rows_legend = True/False
   • [ optional ] show_cols_legend = True/False

6. Plot dimensions (in terms of the main heatmap)

   • [ optional ] heatmap_width, heatmap_height : either sizes in pixels, or one size and the other "proportional". If neither is specified, plot dimensions will be proportional to the DF size (6 screen pixels per row or column).

7. Colormaps (must be known by holoviews)

   NB. A separator is a row or column or a group of rows or columns (depending on the DF size and heatmap size) inserted in the main dataframe to be plotted in a specified color in order to visually separate meaningful blocks of data.

   • [ optional ] colormap_main (default "coolwarm" / "YlOrRd" for non-negative data)
   • [ optional ] colormap_metarows (default "Glasbey")
   • [ optional ] colormap_metacols (default "Category20")
   • [ optional ] nan_color (default "black") = hex color string "#xxxxxx" or named HTML color for filling NaN values in the main heatmap
   • [ optional ] sep_color (default "white") = hex color string "#xxxxxx" or named HTML color for filling separators in the main heatmap
   • [ optional ] sep_value = None / "min" / "median" / "adapt" = plot separators filled with sep_color / with color corresponding to the mininum value of the DF / with color corresponding to the median value of the DF, respectively. "adapt" will try to choose between "min" and "median", depending on data range and normalization.

8. Plot enhancement

   • [ optional ] metadata_rows_sep = insert row separators in the main DF and the metadata-rows DF before plotting, according to the specified column (between groups of labels with identical values).
   • [ optional ] metadata_cols_sep = insert column separators in the main DF and the metadata-cols DF before plotting, according to the specified rows (between groups of labels with identical values).
   • [ optional ] row_labels_for_highlighting = list of keywords for identifying row labels to be highlighted (in red and italic to the right of the heatmap). See WARNING in Toolbar section.

Example of usage

from adrubix import RubixHeatmap
import pandas as pd

main_data = pd.DataFrame(index=[...], columns=[...], data=[...])

hm = RubixHeatmap(
    data_path="/home/user/myproject/data/",
    data=main_data,
    metadata_rows_file="meta_rows.csv",
    metadata_cols_file="meta_cols.csv",
    plot_save_path="/home/user/myproject/output/plot.html",
    save_png=True,
    scale_along="columns",
    colorbar_title="my colorbar",
    colorbar_location="top",
    show_metadata_rows_labels=True,
    show_rows_legend=False,
    # duplicate_metadata_cols=False,
    colormap_main="fire",
    heatmap_width=1500,
    heatmap_height="proportional",
    data_rows_to_drop=["useless_row_1", "useless_row_2"],
    row_labels_for_highlighting=["row_keyword_A", "row_keyword_B"],
    metadata_rows_sep="Group",
    metadata_cols_sep="Subject",
    nan_color="orange",
    sep_color="green",
    # sep_value="median"
)
hm.plot()
