airflow-code-editor 5.1.6

Apache Airflow code editor and file manager

Airflow Code Editor Plugin

A plugin for Apache Airflow that allows you to edit DAGs in browser. It provides a file managing interface within specified directories and it can be used to edit, upload, and download your files. If git support is enabled, the DAGs are stored in a Git repository. You may use it to view Git history, review local changes and commit.

System Requirements

• Airflow Versions
  • 1.10.3 or newer
• git Versions (git is not required if git support is disabled)
  • 2.0 or newer

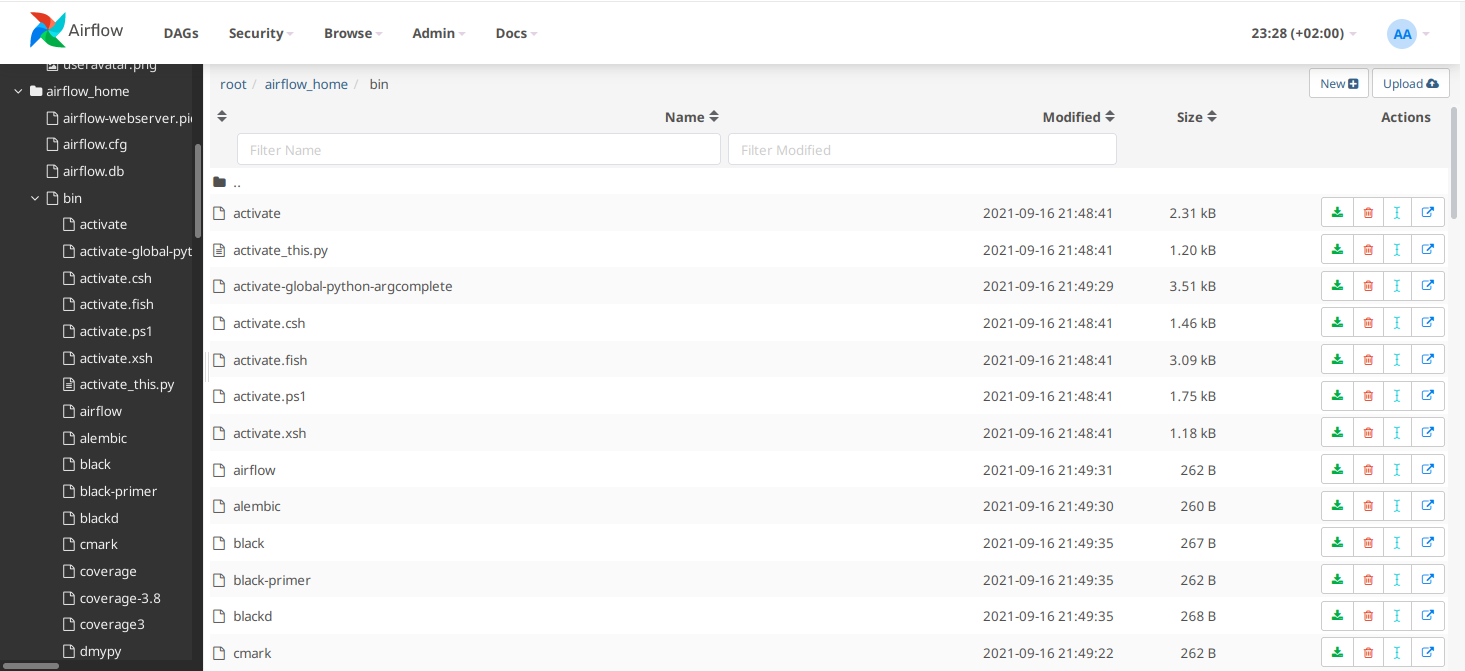

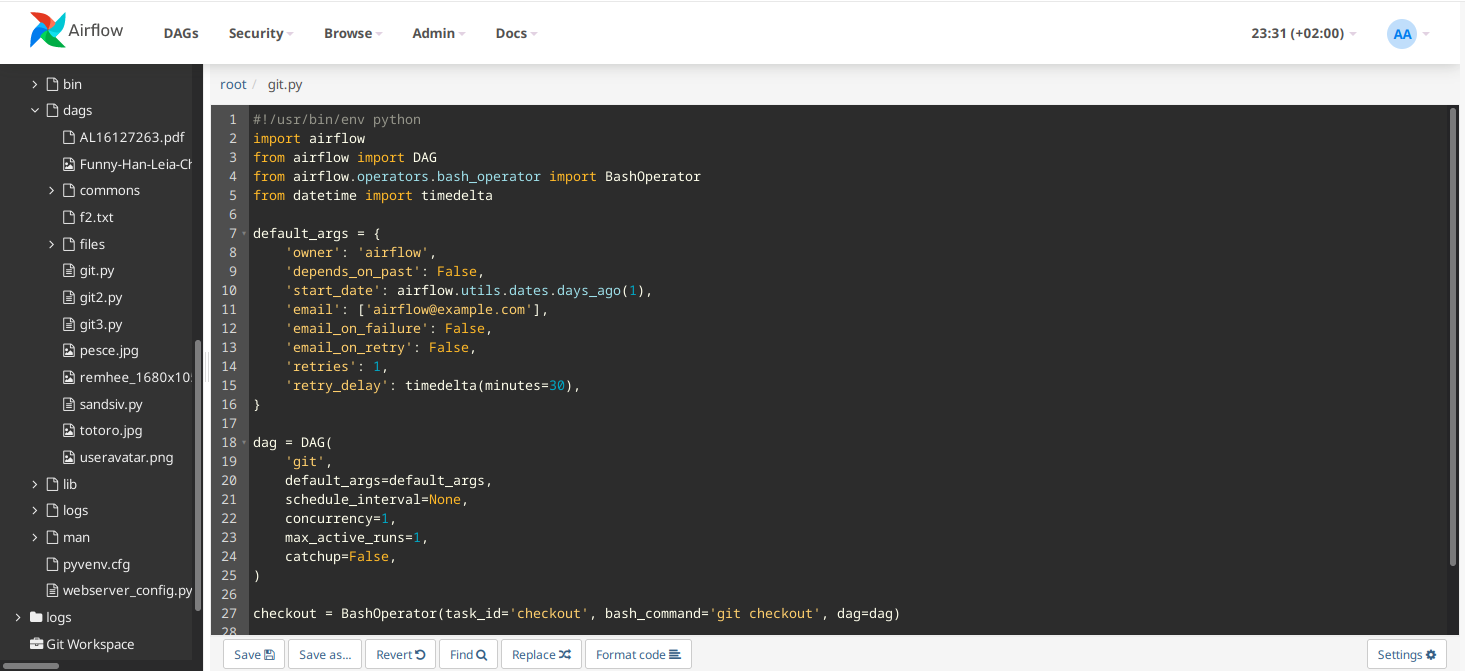

Screenshots

Install Instructions

1. Install the plugin

  pip install airflow-code-editor

2. (Optional) Install Black Python code formatter.

  pip install black

3. Restart the Airflow Web Server

4. Open Admin - DAGs Code Editor

Config Options

You can set options editing the Airflow's configuration file or setting environment variables. You can edit your airflow.cfg adding any of the following settings in the [code_editor] section. All the settings are optional.

• git_enabled enable git support (default: True). If git is not installed, disable this option.
• git_cmd git command (path)
• git_default_args git arguments added to each call (default: -c color.ui=true)
• git_author_name human-readable name in the author/committer (default logged user first and last names)
• git_author_email email for the author/committer (default: logged user email)
• git_init_repo initialize a git repo in DAGs folder (default: True)
• root_directory root folder (default: Airflow DAGs folder)
• mount_name, mount1_name, ... configure additional file folder name (mount point)
• mount_path, mount1_path, ... configure additional file path
• line_length Python code formatter - max line length (default: 88)
• string_normalization Python code formatter - if true normalize string quotes and prefixes (default: False)

Example:

   [code_editor]
   git_enabled = True
   git_cmd = /usr/bin/git
   git_default_args = -c color.ui=true
   git_init_repo = False
   root_directory = /home/airflow/dags
   line_length = 88
   string_normalization = False
   mount_name = data
   mount_path = /home/airflow/data
   mount1_name = logs
   mount1_path = /home/airflow/logs

You can also set options with the following environment variables:

• AIRFLOW__CODE_EDITOR__GIT_ENABLED
• AIRFLOW__CODE_EDITOR__GIT_CMD
• AIRFLOW__CODE_EDITOR__GIT_DEFAULT_ARGS
• AIRFLOW__CODE_EDITOR__GIT_AUTHOR_NAME
• AIRFLOW__CODE_EDITOR__GIT_AUTHOR_EMAIL
• AIRFLOW__CODE_EDITOR__GIT_INIT_REPO
• AIRFLOW__CODE_EDITOR__ROOT_DIRECTORY
• AIRFLOW__CODE_EDITOR__LINE_LENGTH
• AIRFLOW__CODE_EDITOR__STRING_NORMALIZATION
• AIRFLOW__CODE_EDITOR__MOUNT_NAME
• AIRFLOW__CODE_EDITOR__MOUNT_PATH
• AIRFLOW__CODE_EDITOR__MOUNT1_NAME, AIRFLOW__CODE_EDITOR__MOUNT2_NAME, ...
• AIRFLOW__CODE_EDITOR__MOUNT1_PATH, AIRFLOW__CODE_EDITOR__MOUNT2_PATH, ...

Example:

   export AIRFLOW__CODE_EDITOR__STRING_NORMALIZATION=True
   export AIRFLOW__CODE_EDITOR__MOUNT_NAME='data'
   export AIRFLOW__CODE_EDITOR__MOUNT_PATH=/home/airflow/data
   export AIRFLOW__CODE_EDITOR__MOUNT1_NAME='logs'
   export AIRFLOW__CODE_EDITOR__MOUNT1_PATH=/home/airflow/logs
   export AIRFLOW__CODE_EDITOR__MOUNT2_NAME='tmp'
   export AIRFLOW__CODE_EDITOR__MOUNT2_PATH='/tmp

Development Instructions

1. Fork the repo

2. Clone it on the local machine

  git clone https://github.com/andreax79/airflow-code-editor.git
  cd airflow-code-editor

3. Create and activate virtualenv

  source ./scripts/activate.sh

4. Make changes you need. Build npm package with:

  make npm-build

5. You can start Airflow webserver or scheduler with these commands:

  make webserver
  make scheduler

6. Run tests

  make test

7. Commit and push changes

  git add .
  git commit
  git push

7. Create pull request to the original repo

Links

• Apache Airflow - https://github.com/apache/airflow
• Codemirror, In-browser code editor - https://github.com/codemirror/codemirror
• Git WebUI, A standalone local web based user interface for git repositories - https://github.com/alberthier/git-webui
• Black, The Uncompromising Code Formatter - https://github.com/psf/black
• Vue.js - https://github.com/vuejs/vue
• Vue-good-table, data table for VueJS - https://github.com/xaksis/vue-good-table
• Vue-tree, TreeView control for VueJS - https://github.com/grapoza/vue-tree
• Splitpanes - https://github.com/antoniandre/splitpanes
• Axios, Promise based HTTP client for the browser and node.js - https://github.com/axios/axios
