Tools for learning about algorithms and data structures

# algoaid

A collection of useful tools for students taking an introductory course in algorithms and data structures.

# Installation

pip install algoaid


# Features

• Time complexity analysis of functions
• Graphs
• Represent: [weighted] [un]directed, disjoint-set/union find
• Easy to input a graph
• Run basic graph algorithms (DFS, BFS, MST, Dijkstra's and more)
• Visualise results
• Versatile Min/Max-heap with decrease/increase key functionality

# Modules

• Time complexity: analyse
• Graph class: Graph
• Priority queues: MinHeap, MaxHeap

# Usage: Time Complexity Analysis

Analyse time complexity of a function with a single parameter:

#### 1. Import

from algoaid import analyse


#### 2. Define a Function

def f(n):
j = 1
while j * j < n:
j += 1

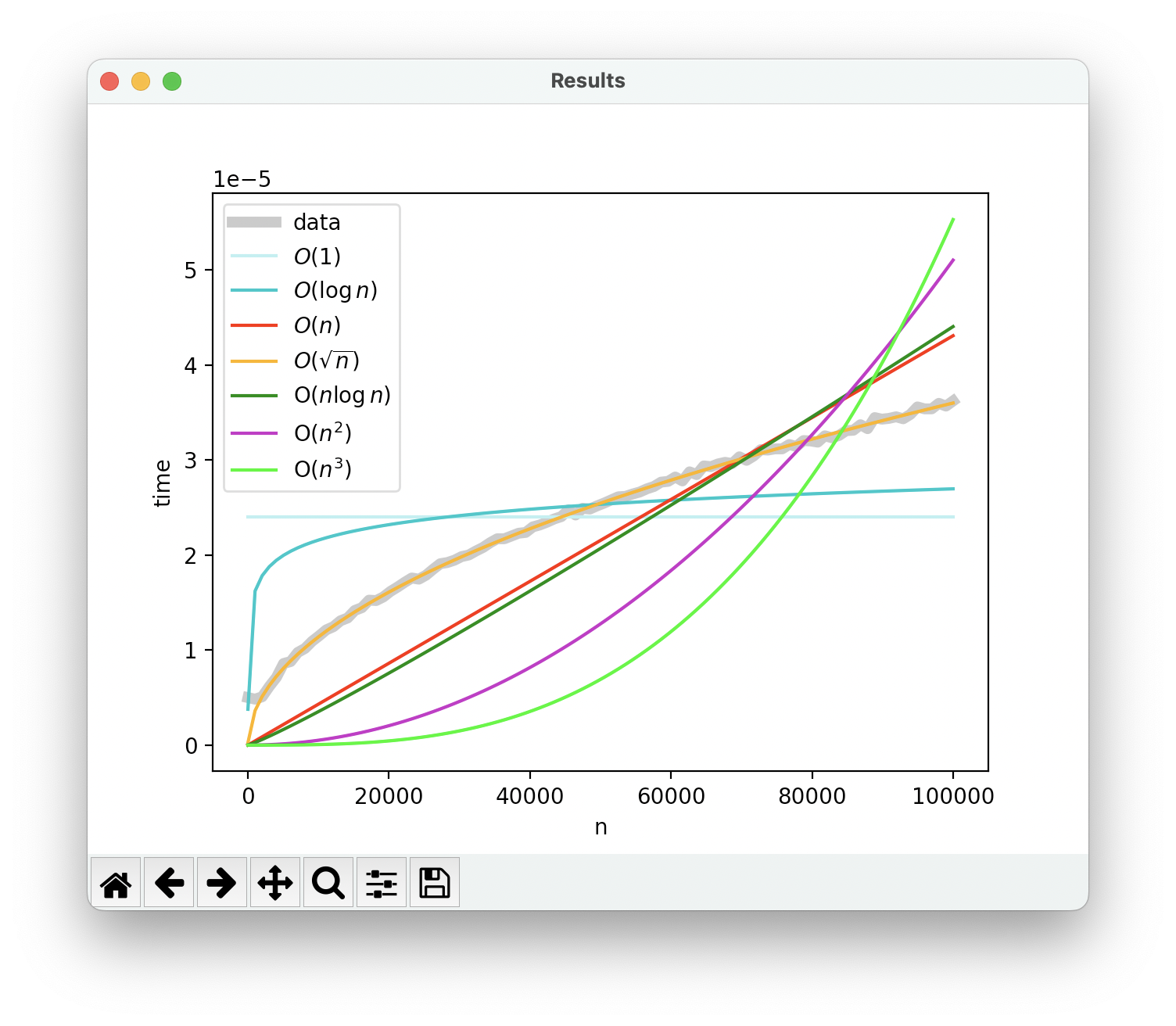

#### 3. Analyse

analyse(f)


### Example Result # Usage: Graphs

Construct various types of graphs and run a selection of popular graph algorithms:

#### 1. Import

from algoaid import Graph


#### 2. Declare the Graph (each line represents an edge)

edges = """
0..2 6
0..1 1
0..5 2
.
.
.
2..5 4
"""


Syntax:

• Undirected: [node1]..[node2] [weight (optional)]
• Directed: [from]..[to] [weight (optional)]
• Disjoint-set: [parent]..[child]

#### 3. Construct the Graph

# construct undirected graph
g = Graph(edges, type=Graph.GraphType.GRAPH)

# construct directed graph
g = Graph(edges, type=Graph.GraphType.DI_GRAPH)

# construct disjoint set
g = Graph(edges, type=Graph.GraphType.DISJOINT_SET)


#### 4. Display the Graph

g.display("My Graph")


#### 5. Run Algorithms

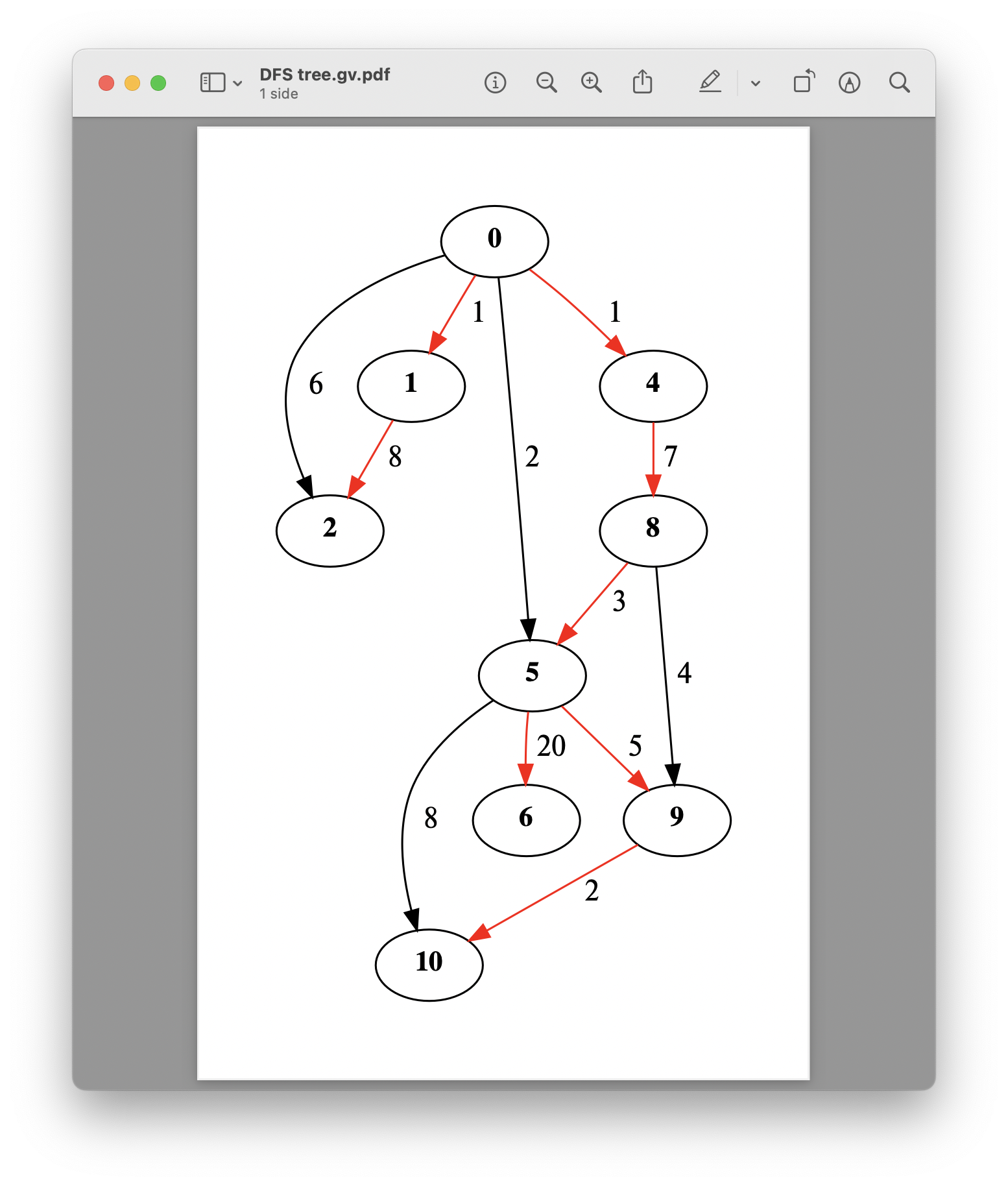

# Run DFS from node 0
g.dfs_tree("0")

# Run BFS from node 0
g.bfs_tree("0")

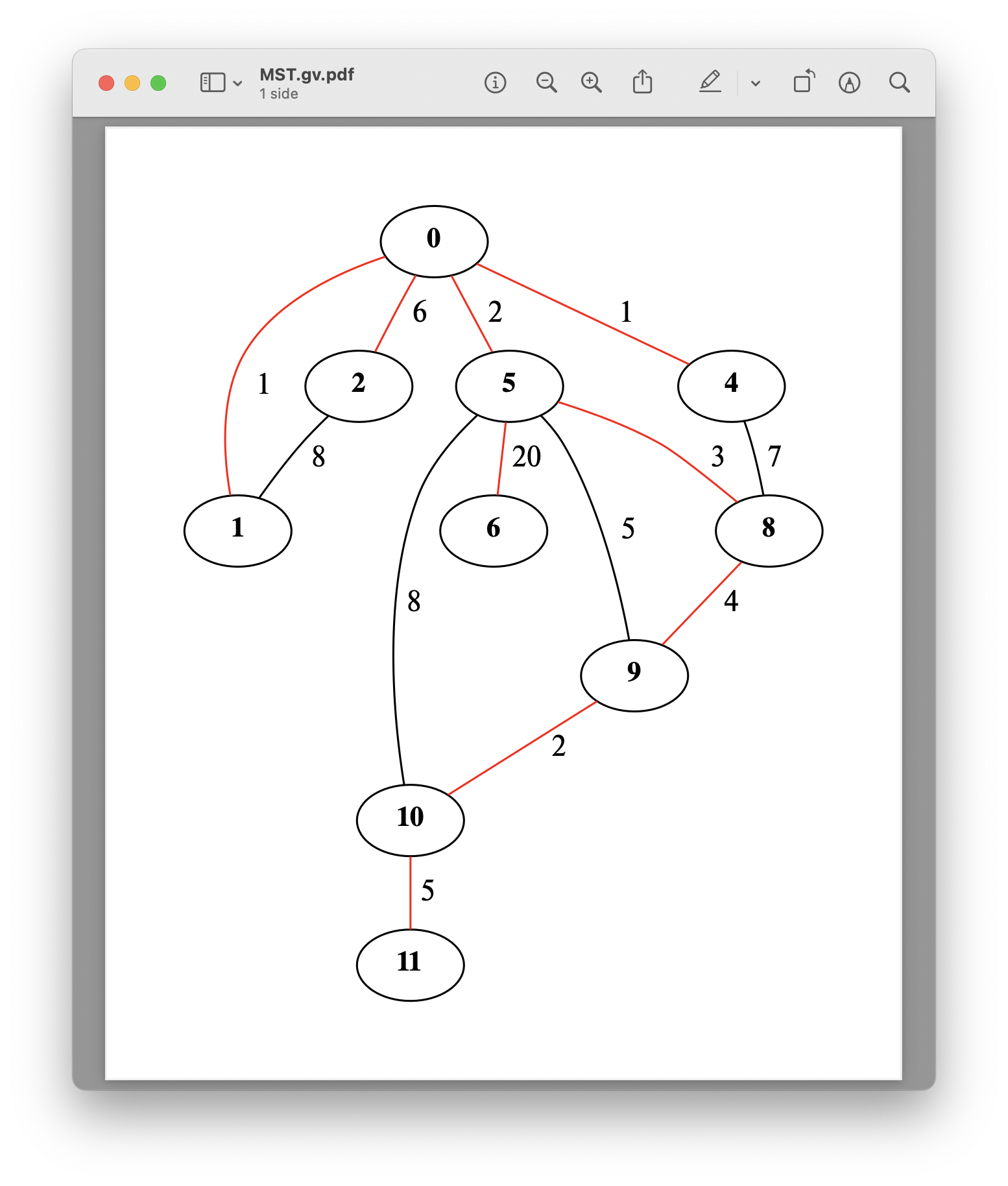

# Compute MST (requires a weighted undirected graph)
g.mst_tree()

# Run Dijkstra's algorithm from node 0 (requires a weighted graph)
g.dijkstra_tree("0")

# Topological sorting (requires a directed graph)
g.topological_sort()

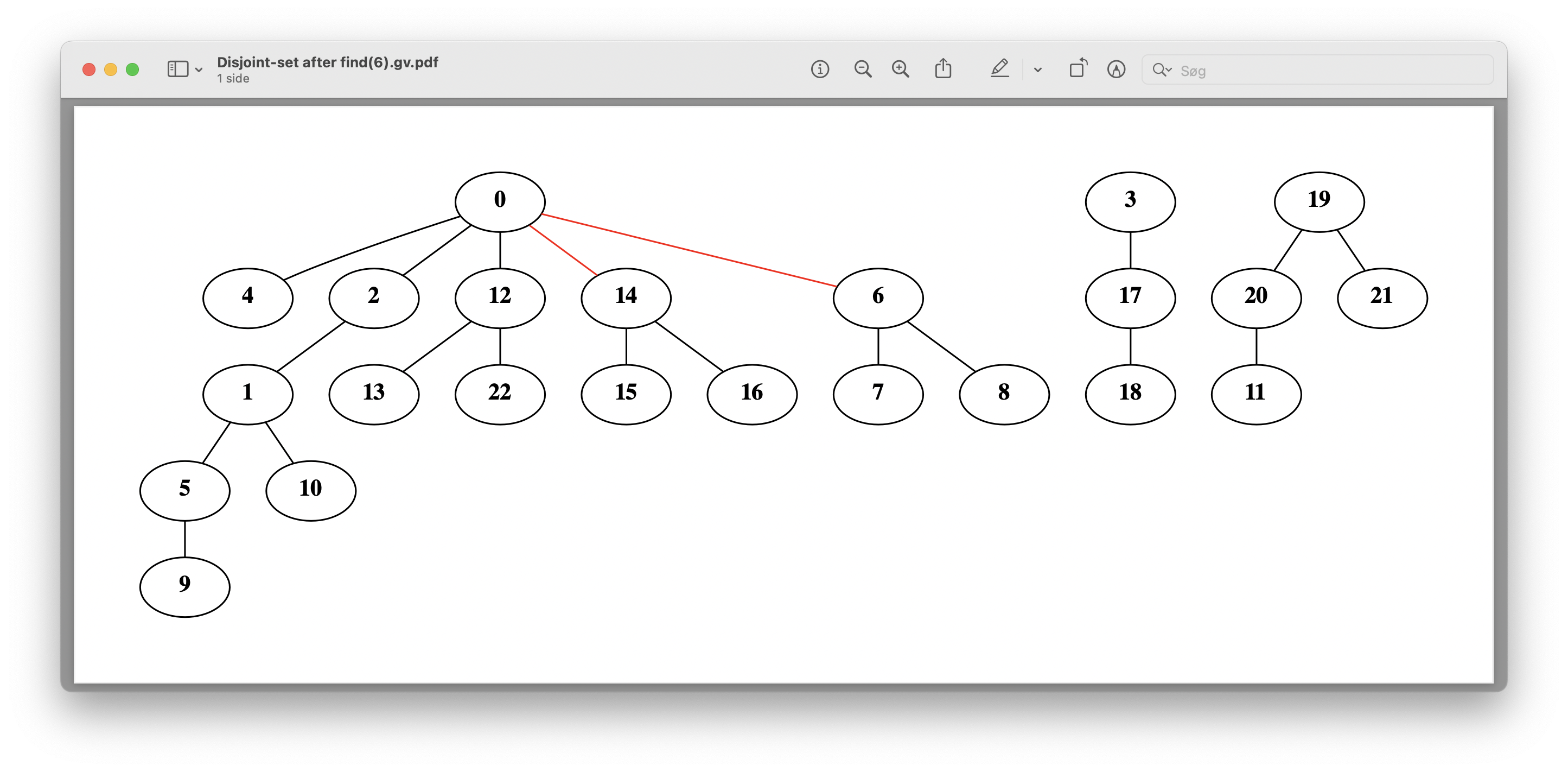

# Find with path compression (requires disjoint-set)
g.show_find("6")

# Union (requires disjoint-set)
g.show_union("9", "11")


### Example Results   ## Project details
