animplotlib 0.2.4

A thin wrapper around the matplotlib FuncAnimation class

animplotlib

This package acts as a thin wrapper around the matplotlib.animation.FuncAnimation class to simplify animating matplotlib plots.

Installation

pip install animplotlib

User manual

There are two classes which can be called: AnimPlot, for 2-D plots, and AnimPlot3D, for 3-D plots.

AnimPlot

As an example, below is a demonstration of the steps required to make a basic plot of an Euler spiral. An Euler spiral can be obtained by plotting the Fresnel integrals, which can be generated using scipy.special.

Import the necessary libraries and create a matplotlib figure and axes:

import animplotlib as anim
import numpy as np
import matplotlib.pyplot as plt
import scipy.special as sc

fig = plt.figure()
ax = fig.add_subplot(111)

Generate the points being plotted:

x = np.linspace(-10, 10, 2500)
y, z = sc.fresnel(x)

Create two empty matplotlib plots: one to plot the points up to the current most point (i.e. the 'line') and one to plot the current most point:

line, = ax.plot([], [], lw=1)
point, = ax.plot([], [], 'o')

ax.set_xlim(-1, 1)
ax.set_ylim(-1, 1)

Call the AnimPlot class and show the plot:

animation = anim.AnimPlot(fig, line, point, y, z, l_num=len(x),
                          plot_speed=5)
plt.show()

l_num is the number of points before the current most point being plotted to line. The default value is set to 10, however in this example it makes sense to set it to the same length as x (i.e. all the points before the current most point are plotted). Similarly, an argument p_num can be passed to determine the number of points being plotted to point. This is set to 1 by default.

Optional arguments:

• plot_speed (int) : set to 10 by default.
• l_num (int) : The number of points being plotted to line each frame. By default this is set to 10.

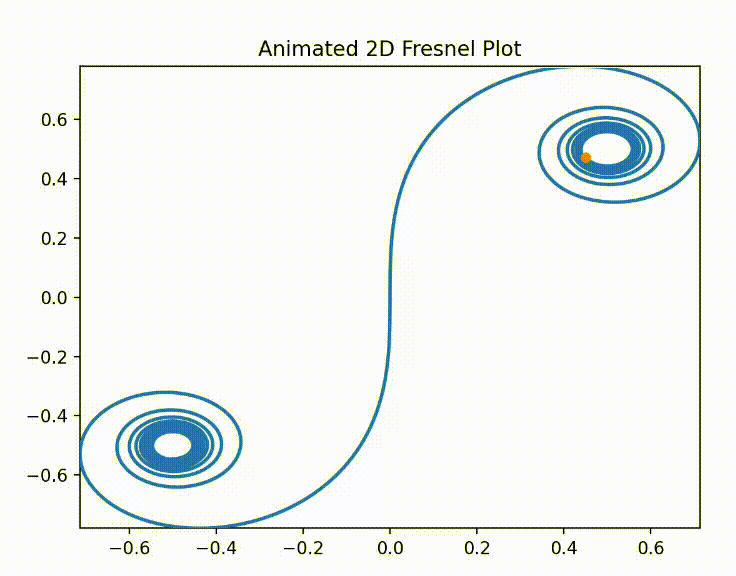

• p_num (int) : The number of points being plotted to point each frame. By default, this is set to 1, i.e. only the current most point is plotted each frame (the orange point in the gif).
• save_as (str) : file name to save the animation as a gif in the current working directory.
• **kwargs : other arguments passable into matplotlib.animation.FuncAnimation (see the docs for more info).

AnimPlot3D

Creating a 3-D animated plot is similar to creating a 2-D plot but with a few additional steps.

import animplotlib as anim
import numpy as np
import matplotlib.pyplot as plt
import scipy.special as sc

fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')

x = np.linspace(-10, 10, 3000)
y, z = sc.fresnel(x)

For 3-D plots, two empty matplotlib plots must be created:

lines, = [ax.plot([], [], [])]
points, = [ax.plot([], [], [], 'o')]

The second plot, points, by default plots the 'ith' point each frame. After that set the x, y and z limits and call the AnimPlot3D class.

ax.set_xlim(-10, 10)
ax.set_ylim(-1, 1)
ax.set_zlim(-1, 1)

animation = anim.AnimPlot3D(fig, ax, [lines], [points], x, y, z, plot_speed=5)
plt.show()

Optional arguments:

• plot_speed (int) : set to 10 by default.
• rotation_speed (int) : proportional to plot_speed. Off by default, enabled by setting a value.
• l_num (int) : The number of points being plotted to lines each frame. By default, all the points up until the current point get plotted.
• p_num (int) : The number of points being plotted to points each frame. By default, this is set to 1, i.e. only the current most point is plotted each frame (the orange point in the gif).
• save_as (str) : file name to save the animation as a gif in the current working directory.
• **kwargs : other arguments passable into matplotlib.animation.FuncAnimation (see the docs for more info).

Both the 2-D and 3-D plots can be customised visually the same way you would a normal matplotlib plot.
