anytree 2.9.2

Powerful and Lightweight Python Tree Data Structure with various plugins

Links

• Documentation

• PyPI

• GitHub

• Changelog

• Issues

• Contributors

• If you enjoy anytree

Getting started

Usage is simple.

Construction

>>> from anytree import Node, RenderTree
>>> udo = Node("Udo")
>>> marc = Node("Marc", parent=udo)
>>> lian = Node("Lian", parent=marc)
>>> dan = Node("Dan", parent=udo)
>>> jet = Node("Jet", parent=dan)
>>> jan = Node("Jan", parent=dan)
>>> joe = Node("Joe", parent=dan)

Node

>>> print(udo)
Node('/Udo')
>>> print(joe)
Node('/Udo/Dan/Joe')

Tree

>>> for pre, fill, node in RenderTree(udo):
...     print("%s%s" % (pre, node.name))
Udo
├── Marc
│   └── Lian
└── Dan
    ├── Jet
    ├── Jan
    └── Joe

For details see Node and RenderTree.

Visualization

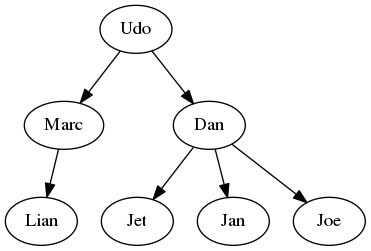

>>> from anytree.exporter import UniqueDotExporter
>>> # graphviz needs to be installed for the next line!
>>> UniqueDotExporter(udo).to_picture("udo.png")

The UniqueDotExporter can be started at any node and has various formatting hookups:

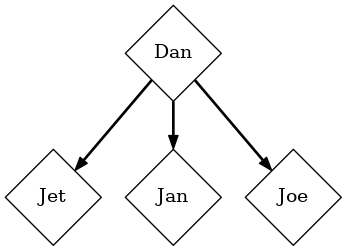

>>> UniqueDotExporter(dan,
...                   nodeattrfunc=lambda node: "fixedsize=true, width=1, height=1, shape=diamond",
...                   edgeattrfunc=lambda parent, child: "style=bold"
... ).to_picture("dan.png")

There are various other Importers and Exporters.

Manipulation

A second tree:

>>> mary = Node("Mary")
>>> urs = Node("Urs", parent=mary)
>>> chris = Node("Chris", parent=mary)
>>> marta = Node("Marta", parent=mary)
>>> print(RenderTree(mary))
Node('/Mary')
├── Node('/Mary/Urs')
├── Node('/Mary/Chris')
└── Node('/Mary/Marta')

Append:

>>> udo.parent = mary
>>> print(RenderTree(mary))
Node('/Mary')
├── Node('/Mary/Urs')
├── Node('/Mary/Chris')
├── Node('/Mary/Marta')
└── Node('/Mary/Udo')
    ├── Node('/Mary/Udo/Marc')
    │   └── Node('/Mary/Udo/Marc/Lian')
    └── Node('/Mary/Udo/Dan')
        ├── Node('/Mary/Udo/Dan/Jet')
        ├── Node('/Mary/Udo/Dan/Jan')
        └── Node('/Mary/Udo/Dan/Joe')

Subtree rendering:

>>> print(RenderTree(marc))
Node('/Mary/Udo/Marc')
└── Node('/Mary/Udo/Marc/Lian')

Cut:

>>> dan.parent = None
>>> print(RenderTree(dan))
Node('/Dan')
├── Node('/Dan/Jet')
├── Node('/Dan/Jan')
└── Node('/Dan/Joe')

Extending any python class to become a tree node

The entire tree magic is encapsulated by NodeMixin add it as base class and the class becomes a tree node:

>>> from anytree import NodeMixin, RenderTree
>>> class MyBaseClass(object):  # Just an example of a base class
...     foo = 4
>>> class MyClass(MyBaseClass, NodeMixin):  # Add Node feature
...     def __init__(self, name, length, width, parent=None, children=None):
...         super(MyClass, self).__init__()
...         self.name = name
...         self.length = length
...         self.width = width
...         self.parent = parent
...         if children:
...             self.children = children

Just set the parent attribute to reflect the tree relation:

>>> my0 = MyClass('my0', 0, 0)
>>> my1 = MyClass('my1', 1, 0, parent=my0)
>>> my2 = MyClass('my2', 0, 2, parent=my0)

>>> for pre, fill, node in RenderTree(my0):
...     treestr = u"%s%s" % (pre, node.name)
...     print(treestr.ljust(8), node.length, node.width)
my0      0 0
├── my1  1 0
└── my2  0 2

The children can be used likewise:

>>> my0 = MyClass('my0', 0, 0, children=[
...     MyClass('my1', 1, 0),
...     MyClass('my2', 0, 2),
... ])

>>> for pre, fill, node in RenderTree(my0):
...     treestr = u"%s%s" % (pre, node.name)
...     print(treestr.ljust(8), node.length, node.width)
my0      0 0
├── my1  1 0
└── my2  0 2

Documentation

Please see the Documentation for all details.

Installation

To install the anytree module run:

pip install anytree

If you do not have write-permissions to the python installation, try:

pip install anytree --user
