appmesh 2.1.13

Client SDK for App Mesh

Advanced Application Management Platform

App Mesh is a secure platform for executing and managing user-defined process behaviors as managed services, providing control and integration via CLI and RESTful APIs.

App Mesh = systemd + scheduler + remote exec + API

1. Application Management

Manages user-defined processes in a way similar to systemd services or Docker-managed processes, while providing more advanced capabilities for control, security, and integration.

# List registered applications
$ appc ls
ID  NAME    OWNER  STATUS    HEALTH  PID  USER  MEMORY    %CPU  RETURN  AGE  DURATION  STARTS  COMMAND
1   pyexec  mesh   disabled  -       -    -     -         -     -       37s  -         0       "python3 ../../bin/py_exec.py"
2   ping    mesh   enabled   OK      747  root  5.9 MiB   0     -       37s  37s       1       "ping cloudflare.com"
3   pytask  mesh   enabled   OK      748  root  29.7 MiB  0     -       37s  37s       1       "python3 ../../bin/py_task.py"
# Add app
$ appc add -a myapp -c "ping www.baidu.com"
# View app
$ appc ls -a myapp -o
PING www.baidu.com (183.2.172.17) 56(84) bytes of data.
64 bytes from 183.2.172.17 (183.2.172.17): icmp_seq=1 ttl=52 time=34.9 ms
64 bytes from 183.2.172.17 (183.2.172.17): icmp_seq=2 ttl=52 time=35.1 ms
64 bytes from 183.2.172.17 (183.2.172.17): icmp_seq=3 ttl=52 time=35.3 ms
# appc -h for more usage

Supports not only long-running services, but also scheduled and policy-driven executions, with remote control and execution status tracking.

2. Sending Tasks to a Running Application

Interact with a running application by sending tasks or data to it and receiving responses through the SDK.

from appmesh import AppMeshClient
client = AppMeshClient()
client.login("USER-NAME", "USER-PWD")

result_from_server = "0"
for i in range(10):
    task_data = f"print({result_from_server} + {i}, end='')"
    result_from_server = client.run_task(app_name="pytask", data=task_data)
    print(result_from_server)

🚀 Features

Feature	Description
App Management	🧩 App CURD with Full Remote Control – including cgroup, OS user, environment variables, Docker, stdin, and stdout – along with comprehensive monitoring (start counts, exit codes, error messages, health checks). 🧩 Fine-Grained Behavior Control & Scheduling – supports long- and short-running tasks, periodic jobs, cron schedules, custom timings, and robust error handling. 🧩 Multi-Tenancy – built-in user ownership model and access controls. 🧩 Unified Access Interface – interact via CLI, REST, SDK or WebGUI.
Computing	🚀 High-performance in-memory computing ▶️ Remote execution
Security	🔐 Authentication: OAuth, 2FA, YAML-based storage (local or Consul for clustering) 🔐 Authorization: JWT, RBAC, multi-tenant isolation 🔐 Protection: SSL/TLS for TCP/HTTP/WebSocket, CSRF tokens, HMAC with PSK for non-token verification
Cloud Native	🌩️ Prometheus Exporter (build-in) 🌩️ Grafana SimpleJson datasource 🌩️ Grafana Loki 🌩️ Dockerfile 🧱 Consul micro-service cluster management
Extra Features	Collect host/app resource usage Remote shell command execution File upload/download API Hot-update support systemctl reload appmesh Bash completion Request Forwarding 🌐Web GUI
Echosystem	LLM: Model Context Protocol (MCP) AI: Claude Code Plugin IoT: MQTT
Platform support	X86, ARM
SDK	C++, Rust, Python, Golang, JavaScript, Java, Swagger OpenAPI Specification

📦 Install

Refer to the Installation doc, this covers:

• Docker Compose setup
• Native installation
• Cluster initialization

📚 Documentation

• Read the Docs
• REST API
• Command lines
• Security

🆚 Comparison

Standalone mode

Feature	App Mesh	Supervisor	crontab
Accuracy	Seconds	Seconds	Minutes
Language	C++11	Python	C
Web GUI	√	√
Command lines	√	√	√
SDK	√
Cron schedule expression	√		√
Manage docker app	√
Session login	√
Manage stdout/stderr	√	√
Health check	√
Authentication	√	√
Multi-tenant	√		√

---

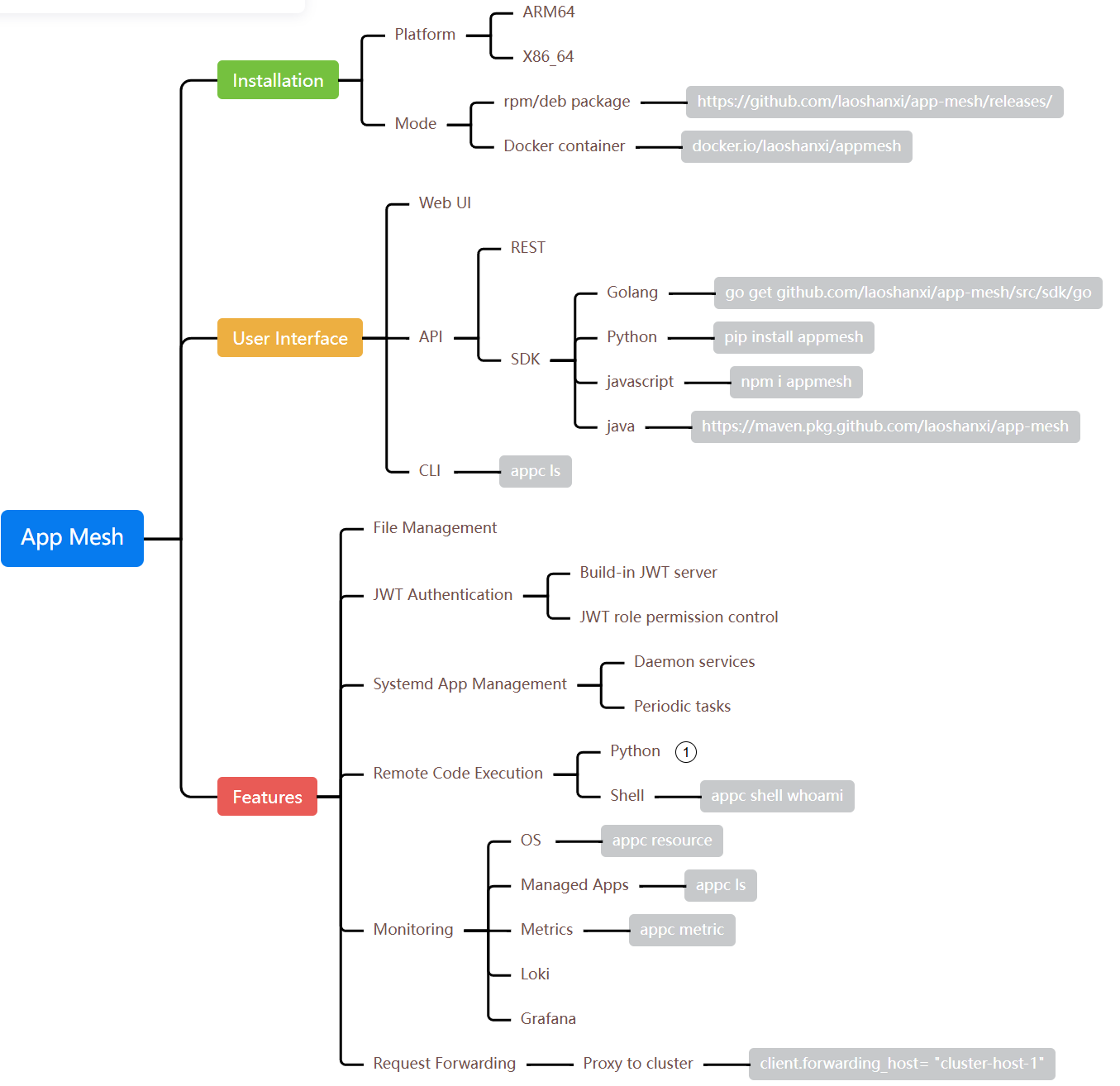

Mind diagram

---

💡 Success

• In-memory remote task execute
• Build a powerful monitor system with Grafana/Prometheus/Loki
• Customize application start behavior
• Open service broker support local PV for Kubernetes
• Promote native application to microservice application
• Secure REST file server
• Standalone JWT server
• Kubernetes run none-container applications
• Remote execute
• Python parallel run
• Secure consul cluster
• JWT service with REST and UI

---

🔗 Library dependency

• MessagePack
• boostorg/boost
• ACE_TAO/ACE
• Thalhammer/jwt-cpp
• nlohmann/json
• yaml-cpp
• nfpm
• jupp0r/prometheus-cpp
• zemasoft/wildcards
• mariusbancila/croncpp
• spdlog
• Crypto++
• concurrentqueue
• libwebsockets
• uWebSockets
