archABM 0.4.1

Agent based simulation for architectural spaces

Agent-based model simulation for air quality and pandemic risk assessment in architectural spaces.

User Guide

archABM is a fast and open source agent-based modelling framework that simulates complex human-building-interaction patterns and estimates indoor air quality across an entire building, while taking into account potential airborne virus concentrations.

---

Disclaimer: archABM is an evolving research tool designed to familiarize the interested user with factors influencing the potential indoor airborne transmission of viruses (such as SARS-CoV-2) and the generation of carbon-dioxide (CO2) indoors. Calculations of virus and CO2 levels within ArchABM are based on recently published aerosol models [1,2], which however have not been validated in the context of agent-based modeling (ABM) yet. We note that uncertainty in and intrinsic variability of model parameters as well as underlying assumptions concerning model parameters may lead to errors regarding the simulated results. Use of archABM is the sole responsibility of the user. It is being made available without guarantee or warranty of any kind. The authors do not accept any liability from its use.

[1] Peng, Zhe, and Jose L. Jimenez. "Exhaled CO2 as a COVID-19 infection risk proxy for different indoor environments and activities." Environmental Science & Technology Letters 8.5 (2021): 392-397.

[2] Lelieveld, Jos, et al. "Model calculations of aerosol transmission and infection risk of COVID-19 in indoor environments." International journal of environmental research and public health 17.21 (2020): 8114.

---

Installation

As the compiled archABM package is hosted on the Python Package Index (PyPI) you can easily install it with pip. To install archABM, run this command in your terminal of choice:

$ pip install archABM

or, alternatively:

$ python -m pip install archABM

If you want to get archABM's latest version, you can refer to the repository hosted at github:

python -m pip install https://github.com/Vicomtech/ArchABM/archive/main.zip

---

Getting Started

Use the following template to run a simulation with archABM:

# Import modules
import json
import pandas as pd
from archABM.engine import Engine

# Read configuration example
from archABM.config import config
# Alternatively, get configuration from "config.json" example

# Create ArchABM simulation engine
simulation = Engine(config)

# Run simulation
results = simulation.run()

# Create dataframes based on the results
df_people = pd.DataFrame(results["results"]["people"])
df_places = pd.DataFrame(results["results"]["places"])

This example uses the default configuration file built-in the library. Alternatively, you can download and modify the config.json file found at the data directory of archABM repository.

---

Developers can also use the command-line interface with the main.py file from the source code repository.

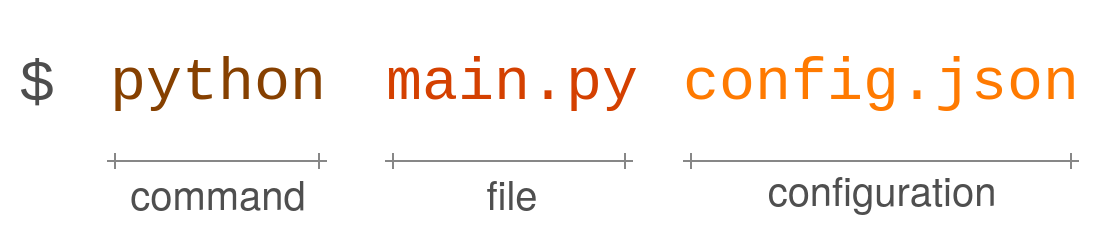

$ python main.py config.json

Check the --help option to get more information about the optional parameters:

$ python main.py --help
Usage: main.py [OPTIONS] CONFIG_FILE

  ArchABM simulation helper

Arguments:
  CONFIG_FILE  The name of the configuration file  [required]

Options:
  -i, --interactive     Interactive CLI mode  [default: False]
  -l, --save-log        Save events logs  [default: False]
  -c, --save-config     Save configuration file  [default: True]
  -t, --save-csv        Export results to csv format  [default: True]
  -j, --save-json       Export results to json format  [default: False]
  -o, --return-output   Return results dictionary  [default: False]
  --install-completion  Install completion for the current shell.
  --show-completion     Show completion for the current shell, to copy it or
                        customize the installation.

  --help                Show this message and exit.

To run an example with the CLI, download the config.json file found at the data directory of archABM repository.

---

Inputs

In order to run a simulation, information about the event types, people, places, and the aerosol model must be provided to the ArchABM framework.

Events

Attribute	Description	Type
name	Event name	string
schedule	When an event is permitted to happen, in minutes	list of tuples
duration	Event duration lower and upper bounds, in minutes	integer,integer
number of repetitions	Number of repetitions lower and upper bounds	integer,integer
mask efficiency	Mask efficiency during an event [0-1]	float
collective	Event is invoked by one person but involves many	boolean
allow	Whether such event is allowed in the simulation	boolean

Places

Attribute	Description	Type
name	Place name	string
activity	Activity or event occurring at that place	string
department	Department name	string
building	Building name	string
area	Room floor area in square meters	float
height	Room height in meters.	float
capacity	Room people capacity.	integer
height	Room height in meters.	float
ventilation	Passive ventilation in hours-1	float
recirculated_flow_rate	Active ventilation in cubic meters per hour	float
allow	Whether such place is allowed in the simulation	boolean

People

Attribute	Description	Type
department	Department name	string
building	Building name	string
num_people	Number of people	integer

Aerosol Model

Attribute	Description	Type
pressure	Ambient pressure in atm	float
temperature	Ambient temperature in Celsius degrees	float
CO2_background	Background CO2 concentration in ppm	float
decay_rate	Decay rate of virus in hours-1	float
deposition_rate	Deposition to surfaces in hours-1	float
hepa_flow_rate	Hepa filter flow rate in cubic meters per hour	float
filter_efficiency	Air conditioning filter efficiency	float
ducts_removal	Air ducts removal loss	float
other_removal	Extraordinary air removal	float
fraction_immune	Fraction of people immune to the virus	float
breathing_rate	Mean breathing flow rate in cubic meters per hour	float
CO2_emission_person	CO2 emission rate at 273K and 1atm	float
quanta_exhalation	Quanta exhalation rate in quanta per hour	float
quanta_enhancement	Quanta enhancement due to variants	float
people_with_masks	Fraction of people using mask	float

Options

Attribute	Description	Type
movement_buildings	Allow people enter to other buildings	boolean
movement_department	Allow people enter to other departments	boolean
number_runs	Number of simulations runs to execute	integer
save_log	Save events logs	boolean
save_config	Save configuration file	boolean
save_csv	Export the results to csv format	boolean
save_json	Export the results to json format	boolean
return_output	Return a dictionary with the results	boolean
directory	Directory name to save results	string
ratio_infected	Ratio of infected to total number of people	float
model	Aerosol model to be used in the simulation	string

Example config.json

config.json

{
    "events": [{
            "activity": "home",
            "schedule": [
                [0, 480],
                [1020, 1440]
            ],
            "repeat_min": 0,
            "repeat_max": null,
            "duration_min": 300,
            "duration_max": 360,
            "mask_efficiency": null,
            "collective": false,
            "shared": false,
            "allow": true
        },
        {
            "activity": "work",
            "schedule": [
                [480, 1020]
            ],
            "repeat_min": 0,
            "repeat_max": null,
            "duration_min": 30,
            "duration_max": 60,
            "mask_efficiency": 0.0,
            "collective": false,
            "shared": true,
            "allow": true
        },
        {
            "activity": "meeting",
            "schedule": [
                [540, 960]
            ],
            "repeat_min": 0,
            "repeat_max": 5,
            "duration_min": 20,
            "duration_max": 90,
            "mask_efficiency": 0.0,
            "collective": true,
            "shared": true,
            "allow": true
        },
        {
            "activity": "lunch",
            "schedule": [
                [780, 900]
            ],
            "repeat_min": 1,
            "repeat_max": 1,
            "duration_min": 20,
            "duration_max": 45,
            "mask_efficiency": 0.0,
            "collective": true,
            "shared": true,
            "allow": true
        },
        {
            "activity": "coffee",
            "schedule": [
                [600, 660],
                [900, 960]
            ],
            "repeat_min": 0,
            "repeat_max": 2,
            "duration_min": 5,
            "duration_max": 15,
            "mask_efficiency": 0.0,
            "collective": true,
            "shared": true,
            "allow": true
        },
        {
            "activity": "restroom",
            "schedule": [
                [480, 1020]
            ],
            "repeat_min": 0,
            "repeat_max": 4,
            "duration_min": 3,
            "duration_max": 6,
            "mask_efficiency": 0.0,
            "collective": false,
            "shared": true,
            "allow": true
        }
    ],
    "places": [{
            "name": "home",
            "activity": "home",
            "building": null,
            "department": null,
            "area": null,
            "height": null,
            "capacity": null,
            "ventilation": null,
            "recirculated_flow_rate": null,
            "allow": true
        },
        {
            "name": "open_office",
            "activity": "work",
            "building": "building1",
            "department": ["department1", "department2", "department3", "department4"],
            "area": 330.0,
            "height": 2.7,
            "capacity": 60,
            "ventilation": 1.5,
            "recirculated_flow_rate": 0,
            "allow": true
        },
        {
            "name": "it_office",
            "activity": "work",
            "building": "building1",
            "department": ["department4"],
            "area": 52.0,
            "height": 2.7,
            "capacity": 10,
            "ventilation": 1.5,
            "recirculated_flow_rate": 0,
            "allow": true
        },
        {
            "name": "chief_office_A",
            "activity": "work",
            "building": "building1",
            "department": ["department5", "department6", "department7"],
            "area": 21.0,
            "height": 2.7,
            "capacity": 5,
            "ventilation": 1.5,
            "recirculated_flow_rate": 0,
            "allow": true
        },
        {
            "name": "chief_office_B",
            "activity": "work",
            "building": "building1",
            "department": ["department5", "department6", "department7"],
            "area": 21.0,
            "height": 2.7,
            "capacity": 5,
            "ventilation": 1.5,
            "recirculated_flow_rate": 0,
            "allow": true
        },
        {
            "name": "chief_office_C",
            "activity": "work",
            "building": "building1",
            "department": ["department5", "department6", "department7"],
            "area": 24.0,
            "height": 2.7,
            "capacity": 5,
            "ventilation": 1.5,
            "recirculated_flow_rate": 0,
            "allow": true
        },
        {
            "name": "meeting_A",
            "activity": "meeting",
            "building": "building1",
            "department": ["department1", "department2", "department3", "department5", "department6", "department7"],
            "area": 16.0,
            "height": 2.7,
            "capacity": 6,
            "ventilation": 1.0,
            "recirculated_flow_rate": 0,
            "allow": true
        },
        {
            "name": "meeting_B",
            "activity": "meeting",
            "building": "building1",
            "department": ["department1", "department2", "department3", "department5", "department6", "department7"],
            "area": 16.0,
            "height": 2.7,
            "capacity": 6,
            "ventilation": 1.0,
            "recirculated_flow_rate": 0,
            "allow": true
        },
        {
            "name": "meeting_C",
            "activity": "meeting",
            "building": "building1",
            "department": ["department1", "department2", "department3", "department5", "department6", "department7"],
            "area": 11.0,
            "height": 2.7,
            "capacity": 4,
            "ventilation": 1.0,
            "recirculated_flow_rate": 0,
            "allow": true
        },
        {
            "name": "meeting_D",
            "activity": "meeting",
            "building": "building1",
            "department": null,
            "area": 66.0,
            "height": 2.7,
            "capacity": 24,
            "ventilation": 1.5,
            "recirculated_flow_rate": 0,
            "allow": true
        },
        {
            "name": "coffee_A",
            "activity": "coffee",
            "building": "building1",
            "department": null,
            "area": 25.0,
            "height": 2.7,
            "capacity": 10,
            "ventilation": 1.5,
            "recirculated_flow_rate": 0,
            "allow": true
        },
        {
            "name": "coffee_B",
            "activity": "coffee",
            "building": "building1",
            "department": null,
            "area": 55.0,
            "height": 2.7,
            "capacity": 20,
            "ventilation": 1.5,
            "recirculated_flow_rate": 0,
            "allow": true
        },
        {
            "name": "restroom_A",
            "activity": "restroom",
            "building": "building1",
            "department": null,
            "area": 20.0,
            "height": 2.7,
            "capacity": 4,
            "ventilation": 1.0,
            "recirculated_flow_rate": 0,
            "allow": true
        },
        {
            "name": "restroom_B",
            "activity": "restroom",
            "building": "building1",
            "department": ["department1", "department2", "department3", "department4", "department5", "department6"],
            "area": 20.0,
            "height": 2.7,
            "capacity": 4,
            "ventilation": 1.0,
            "recirculated_flow_rate": 0,
            "allow": true
        },
        {
            "name": "lunch",
            "activity": "lunch",
            "building": "building1",
            "department": null,
            "area": 150.0,
            "height": 2.7,
            "capacity": 60,
            "ventilation": 1.5,
            "recirculated_flow_rate": 0,
            "allow": true
        }
    ],
    "people": [{
            "department": "department1",
            "building": "building1",
            "num_people": 16
        },
        {
            "department": "department2",
            "building": "building1",
            "num_people": 16
        },
        {
            "department": "department3",
            "building": "building1",
            "num_people": 16
        },
        {
            "department": "department4",
            "building": "building1",
            "num_people": 7
        },
        {
            "department": "department5",
            "building": "building1",
            "num_people": 2
        },
        {
            "department": "department6",
            "building": "building1",
            "num_people": 2
        },
        {
            "department": "department7",
            "building": "building1",
            "num_people": 1
        }
    ],
    "options": {
        "movement_buildings": true,
        "movement_department": false,
        "number_runs": 1,
        "save_log": true,
        "save_config": true,
        "save_csv": false,
        "save_json": false,
        "return_output": false,
        "directory": null,
        "ratio_infected": 0.05,
        "model": "Colorado",
        "model_parameters": {
            "Colorado": {
                "pressure": 0.95,
                "temperature": 20,
                "CO2_background": 415,
                "decay_rate": 0.62,
                "deposition_rate": 0.3,
                "hepa_flow_rate": 0.0,
                "recirculated_flow_rate": 300,
                "filter_efficiency": 0.20,
                "ducts_removal": 0.10,
                "other_removal": 0.00,
                "fraction_immune": 0,
                "breathing_rate": 0.52,
                "CO2_emission_person": 0.005,
                "quanta_exhalation": 25,
                "quanta_enhancement": 1,
                "people_with_masks": 1.00
            }
        }
    }
}

---

Outputs

Simulation outputs are stored by default in the results directory. The subfolder with the results of an specific simulation have the date and time of the moment when it was launched as a name in %Y-%m-%d_%H-%M-%S-%f format.

By default, three files are saved after a simulation:

• config.json stores a copy of the input configuration.
• people.csv stores every person's state along time.
• places.csv stores every places's state along time.

archABM offers the possibility of exporting the results in JSON and CSV format. To export in JSON format, use the --save-json parameter when running archABM. By default, the --save-csv parameter is set to true.

Alternatively, archABM can also be configured to yield more detailed information. The app.log file saves the log of the actions and events occurred during the simulation. To export this file, use the --save-log parameter when running archABM.

---

Citing archABM

If you use ArchABM in your work or project, please cite the following article, published in the Building and Environment journal. (https://doi.org/10.1016/j.buildenv.2021.108495):

Bibtex entry:

@article{MARTINEZ2021108495,
    title = {ArchABM: An agent-based simulator of human interaction with the built environment. CO2 and viral load analysis for indoor air quality},
    journal = {Building and Environment},
    pages = {108495},
    year = {2021},
    issn = {0360-1323},
    doi = {https://doi.org/10.1016/j.buildenv.2021.108495},
    url = {https://www.sciencedirect.com/science/article/pii/S036013232100891X},
    author = {Iñigo Martinez and Jan L. Bruse and Ane M. Florez-Tapia and Elisabeth Viles and Igor G. Olaizola},
    keywords = {Agent-based modeling, Indoor air quality, Building ventilation, Aerosol model, Building design, Simulation}
}
