argofloats 0.0.7

Simple CLI for ArgoVis & Argofloats

argofloats: Simple CLI for ArgoVis and Argofloats

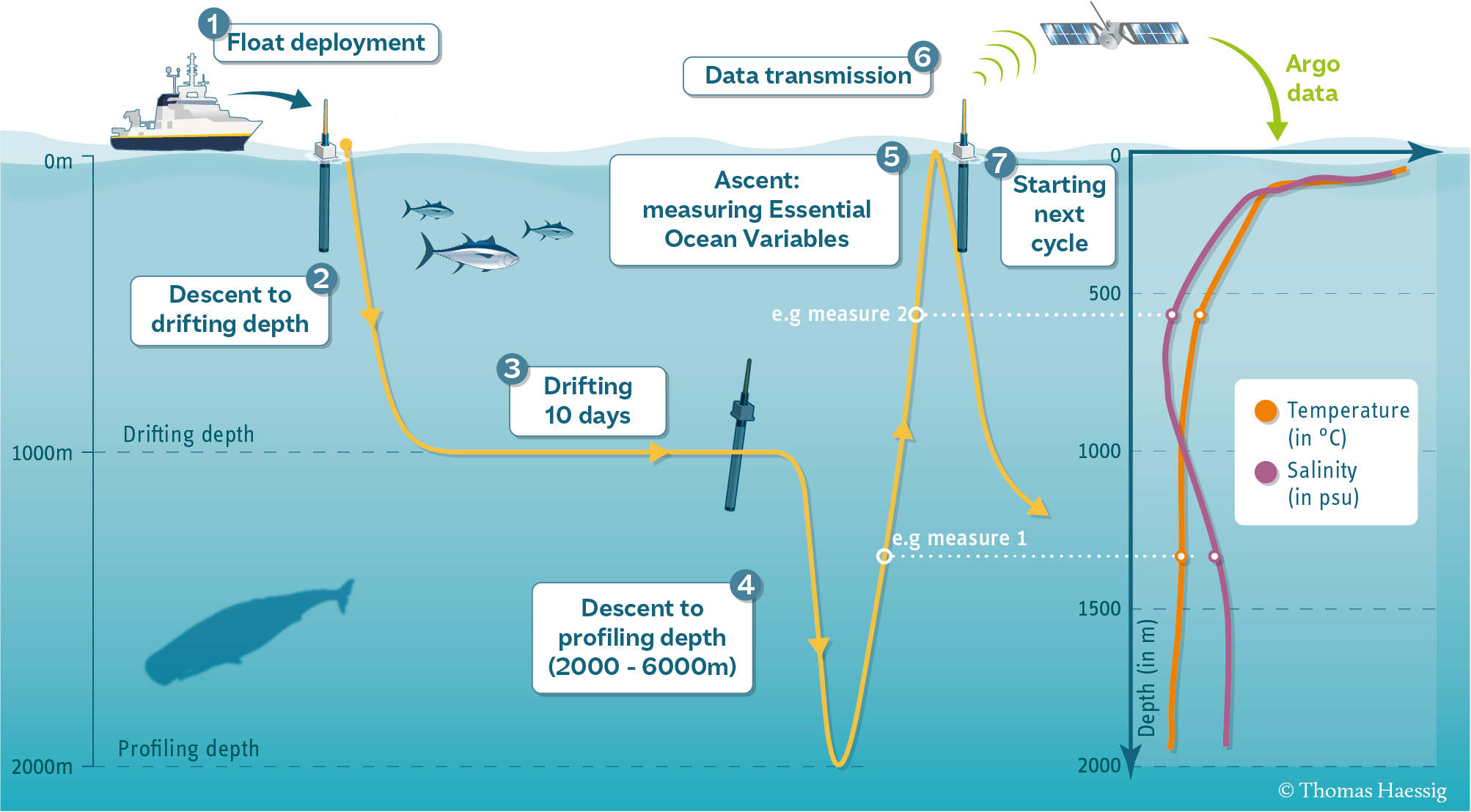

Argo is an international program that collects information from inside the ocean using a fleet of robotic instruments that drift with the ocean currents and move up and down between the surface and a mid-water level. Each instrument (float) spends almost all its life below the surface. The name Argo was chosen because the array of floats works in partnership with the Jason earth observing satellites that measure the shape of the ocean surface. (In Greek mythology Jason sailed on his ship the Argo in search of the golden fleece). To learn more about Argo, how it works, its data and technology, and its scientific and environmental impact, click here.

The argofloats tool builds on the argovis API and allows the user to perform basic operations like search for and export platform and profile data, parse metadata and so on and more functionality will be added to this tool in the future.

Disclaimer: This is an unofficial tool. It is created and maintained by Samapriya Roy.

Tool Citation

Samapriya Roy. (2022). samapriya/argofloats: Simple CLI for ArgoVis and Argofloats (0.0.7).
Zenodo. https://doi.org/10.5281/zenodo.6187858

Citation

These data were collected and made freely available by the International Argo Program and the national programs that contribute to it. (https://argo.ucsd.edu, https://www.ocean-ops.org). The Argo Program is part of the Global Ocean Observing System.

The general Argo DOI is below.

Argo (2000). Argo float data and metadata from Global Data Assembly Centre (Argo GDAC). SEANOE. https://doi.org/10.17882/42182

If you used data from a particular month, please add the month key to the end of the DOI url to make it reproducible. The key is comprised of the hashtag symbol (#) and then numbers. For example, the key for August 2020 is 76230. The citation would look like:

Argo (2020). Argo float data and metadata from Global Data Assembly Centre (Argo GDAC) – Snapshot of Argo GDAC of August 2020. SEANOE. https://doi.org/10.17882/42182#76230

ArgoVis citation

Argovis API was used to parse through and get to the datasets, you can cite argovis using the following

Tucker, T., D. Giglio, M. Scanderbeg, and S.S. Shen, 2020: Argovis: A Web Application for Fast Delivery,
Visualization, and Analysis of Argo Data. J. Atmos. Oceanic Technol., 37 (3), 401-416
https://doi.org/10.1175/JTECH-D-19-0041.1

Readme Docs available online

Table of contents

• Installation
• Getting started
• Simple CLI for ArgoVis and Argofloats
  • overview
  • Platform Metadata
  • Profile Metadata
  • Global Search
  • Platform Profiles
  • Profile Export

Installation

This assumes that you have native python & pip installed in your system, you can test this by going to the terminal (or windows command prompt) and trying

python and then pip list

argofloats only supports Python v3.4 or higher

This command line tool is dependent on functionality from GDAL For installing GDAL in Ubuntu

sudo add-apt-repository ppa:ubuntugis/ppa && sudo apt-get update
sudo apt-get install gdal-bin
sudo apt-get install python-gdal

Windows Setup

Shapely and a few other libraries are notoriously difficult to install on windows machines so follow the steps mentioned here before installing argofloats. You can download and install shapely and other libraries from the Unofficial Wheel files from here download depending on the python version you have. Do this only once you have install GDAL. I would recommend the steps mentioned above to get the GDAL properly installed. However I am including instructions to using a precompiled version of GDAL similar to the other libraries on windows. You can test to see if you have gdal by simply running

gdalinfo

in your command prompt. If you get a read out and not an error message you are good to go. If you don't have gdal try Option 1,2 or 3 in that order and that will install gdal along with the other libraries

Option 1:

Simply run argofloats -h after installation. This should go fetch the extra libraries you need and install them. Once installation is complete, the porder help page will show up. This should save you from the few steps below.

Option 2:

If this does not work or you get an unexpected error try the following commands. You can also use these commands if you simply want to update these libraries.

pipwin refresh
pipwin install gdal

Option 3

For Windows I also found this guide from UCLA

Also for Ubuntu Linux I saw that this is necessary before the install

sudo apt install libcurl4-openssl-dev libssl-dev

To install argofloats: Simple CLI for ArgoVis and Argofloats you can install using two methods.

pip install argofloats

or you can also try

git clone https://github.com/samapriya/argofloats.git
cd argofloats
python setup.py install

For Linux use sudo or try pip install argofloats --user.

I recommend installation within a virtual environment. Find more information on creating virtual environments here.

Getting started

As usual, to print help:

argofloats -h
usage: argofloats [-h] {readme,overview,pm,plm,global-search,platform-profiles,profile-export} ...

Simple CLI for ArgoVis & Argofloats

positional arguments:
  {readme,overview,pm,plm,global-search,platform-profiles,profile-export}
    readme              Go the web based porder readme page
    overview            Get overview of platforms and profiles
    pm                  Get Platform metadata
    plm                 Get Platform Profile metadata
    global-search       Global search reports using platform, profile or BGC type
    platform-profiles   Export all profiles for a given platform
    profile-export      Export profile based on Platform Profile ID, Lat, Long or Geometry GeoJSON file

optional arguments:
  -h, --help            show this help message and exit

To obtain help for specific functionality, simply call it with help switch, e.g.: argofloats pm -h. If you didn't install argofloats, then you can run it just by going to argofloats directory and running python argofloats.py [arguments go here]

Simple CLI for ArgoVis and Argofloats

The tool is designed to interact with the Argofloats Argovis API

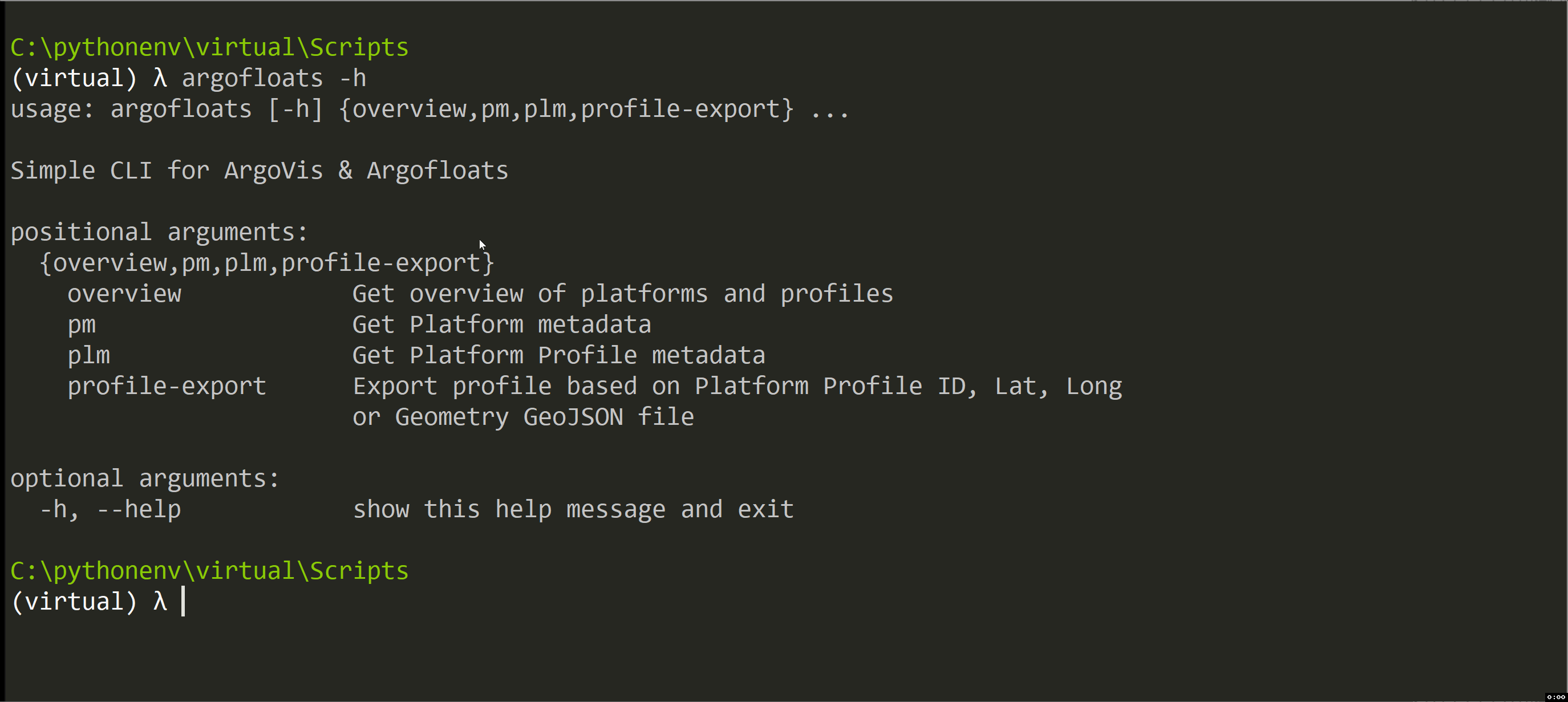

overview

The overview tool fetches the latest information about platform and profile count, last updated as well as the distribution of datasets across the different data centes or DACs. There are no arguments for this tool

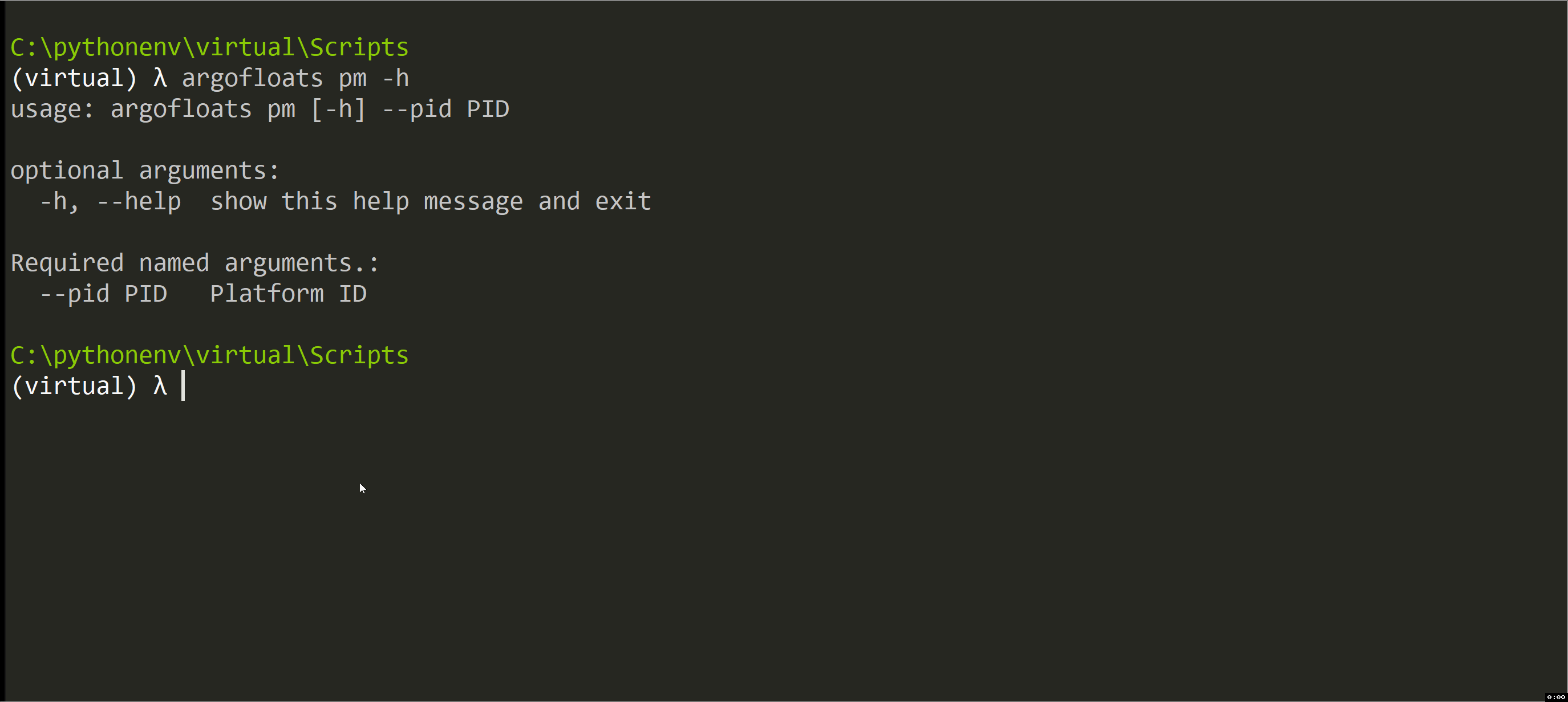

Platform Metadata

The tool fetches metadata about a platform as pretty prints the information as a JSON object. This does require a Platform ID also called WMO number for the argo float.

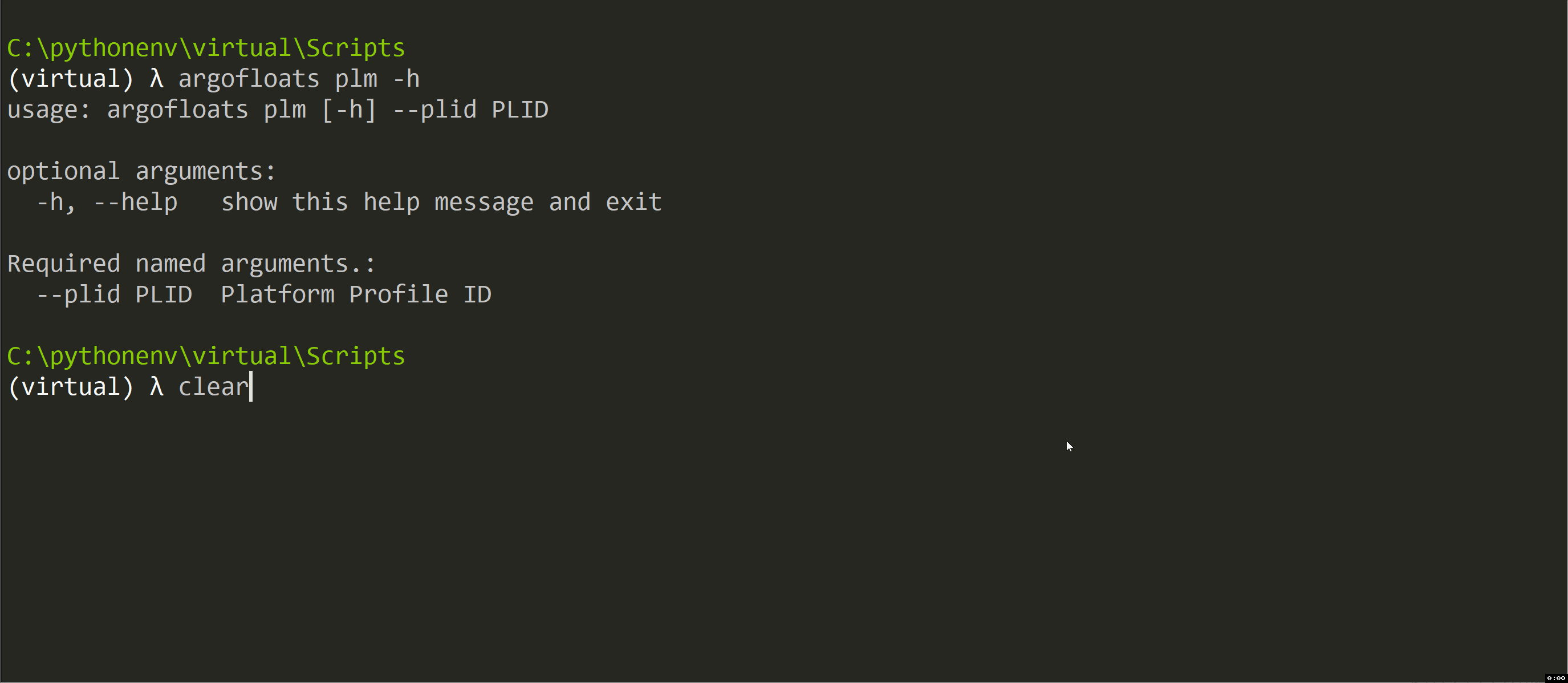

Profile metadata

Each platform consists of profiles where each profile is attached to a platform and is a single cycle of data collection. So platforms can have multiple profiles and generally represented as PlatformID_ProfileNo. This is the argument used by the tool and it pulls the metadata for that specific profile for that platform/argo float.

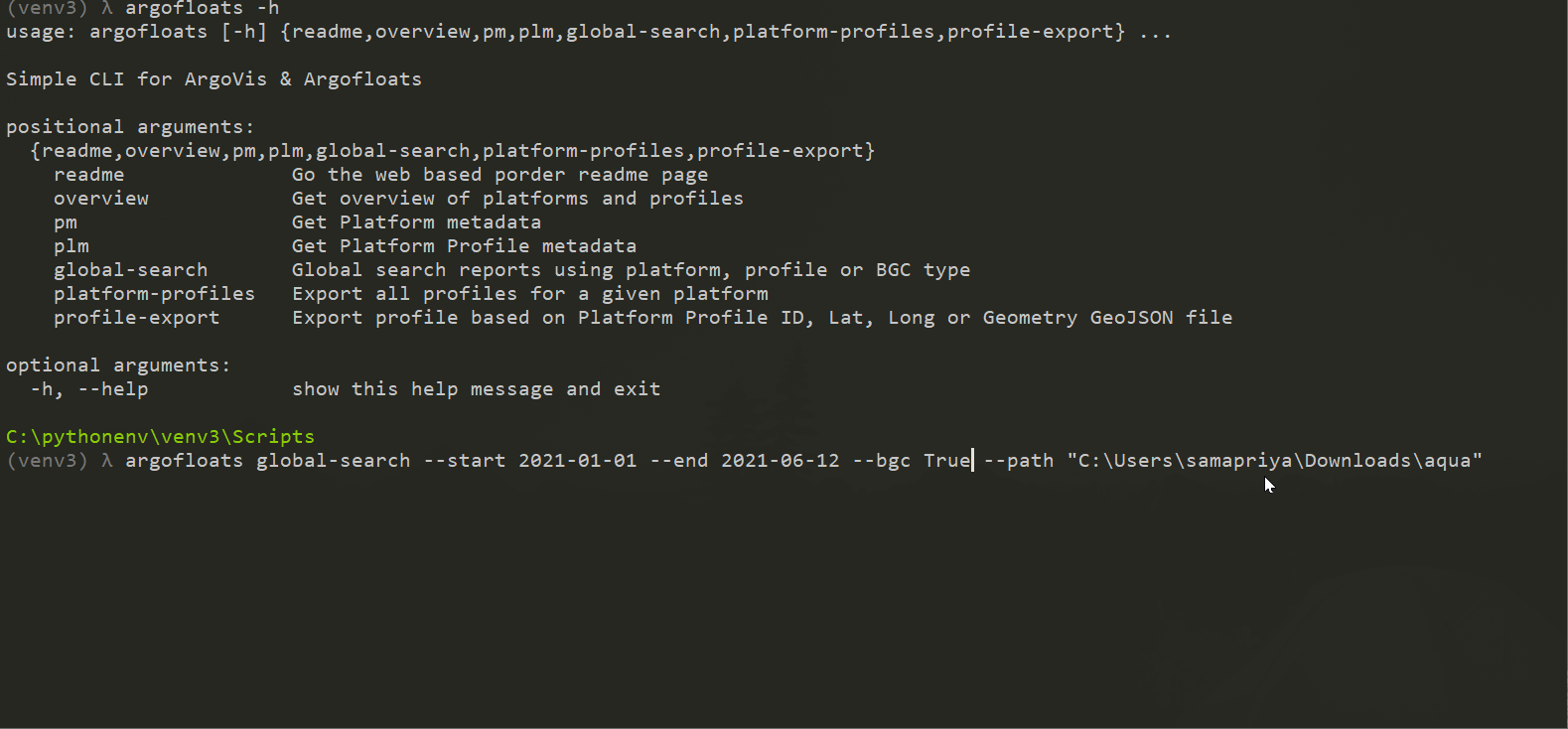

Global Search

The global search tool was created to look for quick snapshots of all platforms and platforms in a single month. The tool allows you to provide a start and end date and it generates monthly reports pertaining to profiles that are globally available for a specific month and year. The tool can further use filters like setting bgc to True to get only those profiles/platforms that has BGC data or providing a specific platform ID to get only those profiles pertaining to specific platform.

You can provide a filter for example here bgc is set to true to look for all those platforms & profiles with BGC data

You can also search with no arguments or filters to get all profiles in a month and year

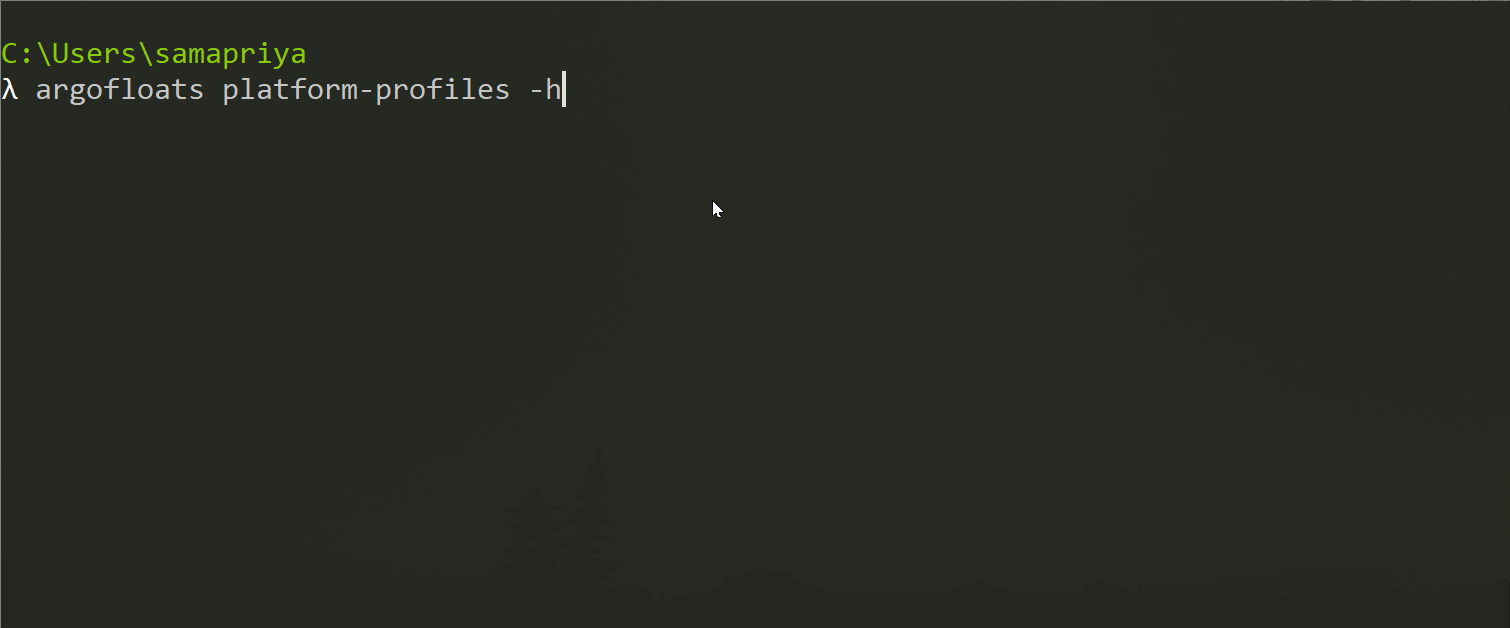

Platform Profiles

Each platform consists of profiles where each profile is attached to a platform and is a single cycle of data collection. So platforms can have multiple profiles and generally represented as PlatformID_ProfileNo. This tool fetches all platforms linked to a specific platform and exports it as a single CSV including platform profile id and measurements. If no path is provided the profile CSV is saved onto the home folder.

Profile Export

This tool allows you to search the argo floats database using either a lat long and a buffer area , or a geometry.geojson file or a given profile id. This tool is also capable to running long time searches overcoming the 3 month limit constrained by the argovis API. All use cases are shown below. The outputs are written as CSV file with a prefix argoprofile_

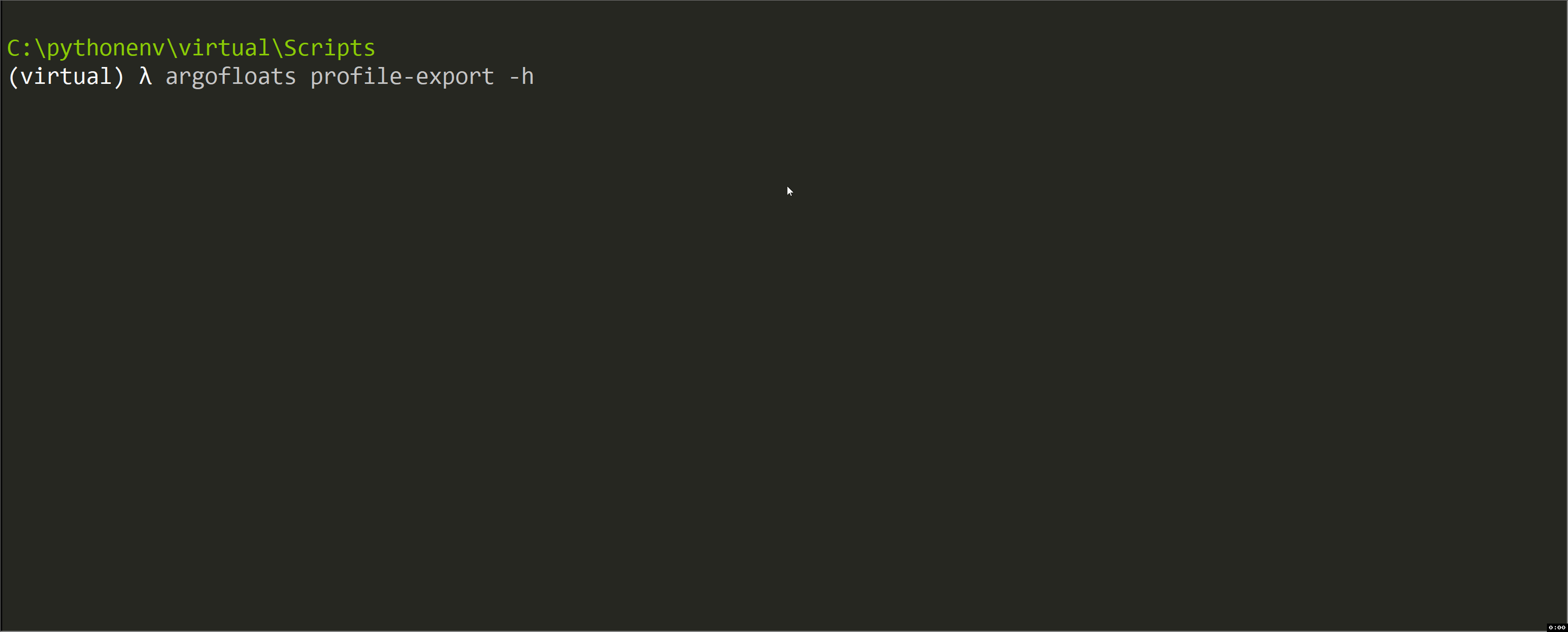

Using Profile ID

This uses the pofile ID and simply exports the profile as a CSV

Using point geometry

This uses a lat long and radius to search in kilometers along with start and end date and exports all matching profiles to individual CSV files

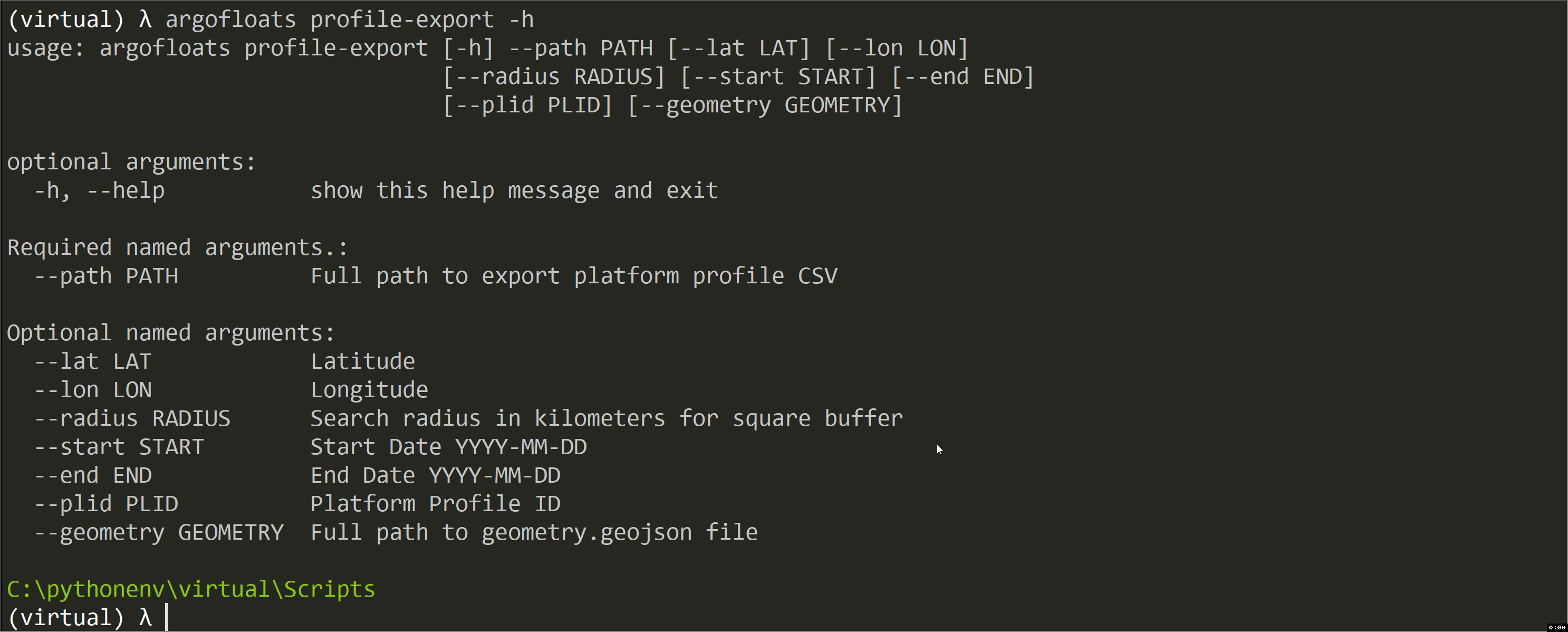

Using geometry GeoJSON file

This makes uses of a geojson file along with start and end date and exports all matching profiles to individual CSV files

Changelog

v0.0.7

• added BGC export for profiles apart from core export
• added Global search capability for quick filter and export using keywords

v0.0.6

• Improved error handling
• Better readout if search yields nothing
• General improvements & file skipping if exists

v0.0.5

• Added readme tool to open in browser

v0.0.4

• Fixed relative import of geopandas.
• Added platform profiles export tool.
• Minor general improvements.

v0.0.3

• Added readme to the overall tool.
• Improved profile metadata parsing
• Added version check for all future pypi versions

v0.0.2

• Added readme and created new branch.
