asm2cfg 0.2.2

Python command-line tool and GDB extension to view and save x86, ARM and objdump assembly files as control-flow graph (CFG) pdf files.

asm2cfg

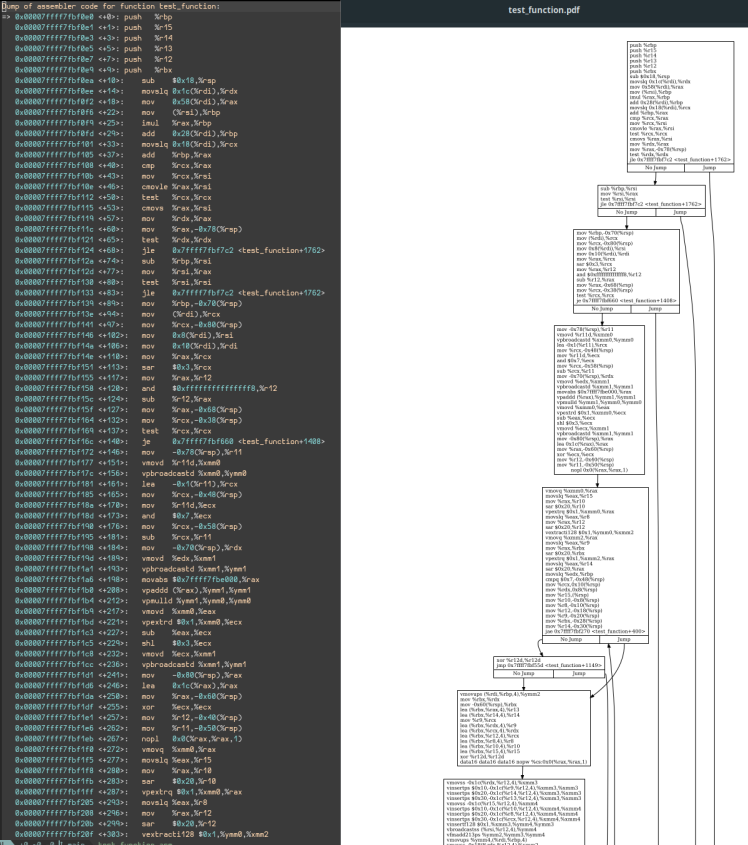

Python command-line tool and GDB extension to view and save x86, ARM and objdump assembly files as control-flow graph (CFG) pdf files. From GDB debugging session use viewcfg command to view CFG and use savecfg command to save it to the pdf file.

Program has been developed to support X86, ARM and objdump assembly outputs. Program is mostly tested with x86 assembly. ARM and objdump formats might not be fully supported. If you have any suggestions or find bugs, please open an issue or create a pull request. If you want to contribute, check Development how to get started.

Table of Content

• Install
• Usage From GDB
• Usage as Standalone
  • Knowing Function Name
  • Disassemble Function
  • Draw CFG
  • Examples
• Development
  • Python Environment
  • Testing
  • Code Linting
  • Command-Line Interface
  • GDB Integration
  • Current Development Goals

Install

Project can be installed with pip

pip install asm2cfg

To be able to view the dot files from GDB. External dot viewer is required. For this purpose xdot can be used for example. Any other dot viewer will also do. To install this on Debian based distro run

sudo apt install xdot

Or Arch based

sudo pacman -S xdot

To add extension to GDB you need to source the pip installed plugin to it. To find where pip placed GDB extension run which gdb_asm2cfg or in case if you use pyenv use pyenv which gdb_asm2cfg. Copy the path to the clipboard.

Then in you home directory if not already add .gdbinit file and place following line in it and replace path from the earlier step.

source <path-from-earlier>

For example in my Linux machine line end up to be

source ~/.local/bin/gdb_asm2cfg.py

Now when you start GDB no errors should be displayed and you are ready to go.

Usage From GDB

In GDB session this extension provides command viewcfg to view CFG with external dot viewer. Command savecfg saves the CFG to pdf file to current working directory with same name as the function being dumped. Both commands disassemble the current execution frame/function when the command is issued. To see help for these commands use help command like help viewcfg.

For example let's view main function from you favorite non-stripped executable. First run GDB until main function

gdb -ex 'b main' -ex 'run' <executable>

Now run viewcfg to view CFG as a dot graph with external editor. Or run savecfg to save CFG to pdf file named main.pdf to current working directory. If function is stripped then memory address of the function will used as a name instead. For example 0x555555555faf-0x555555557008.pdf.

If assembly function is very large with a lot of jumps and calls to other functions. Then rendering the CFG can take a long time. So be patient or cancel rendering with Ctrl-C. To make the rendering faster you can skip function calls instructions from splitting the code to more blocks. To set this run set skipcalls on and then run earlier command again. Note that if function is long and has a lot of jumps inside itself, then rendering is still gonna take a long time. To have normal behavior again run set skipcalls off.

Usage as Standalone

This method can be used with assembly files saved from ouput of objdump and GDB disassembly. Pip installation will come with asm2cfg command-line tool for this purpose.

To use as standalone script you first need to dump assembly from GDB or objdump to the file which is explained below.

Knowing Function Name

If you don't know the name of function you're looking for then you can also list all function names using GDB:

gdb -batch -ex 'b main' -ex r -ex 'info functions' ./test_executable

This will set breakpoint at function main, then run the program and print symbols from all loaded libraries.

For functions which come from main executable you can avoid running the program and simply do

gdb -batch -ex 'info functions' ./test_executable

If you want to narrow the search down you can also use regexp

gdb ... -ex 'info functions <regexp>' ...

Disassemble Function

Once you have the function name, you can produce its disassembly via

gdb -batch -ex 'b main' -ex r -ex 'pipe disassemble test_function | tee test_function.asm' ./test_executable

or

gdb -batch -ex 'set breakpoints pending on' -ex 'b test_function' -ex r -ex 'pipe disassemble | tee test_function.asm' ./test_executable

(the set breakpoint pending on command enables pending breakpoints and could be added to your .gdbinit instead)

For functions from main executable it's enough to do

gdb -batch -ex 'pipe disassemble test_function | tee test_function.asm' ./test_executable

You can also extract function's disassembly from objdump output:

objdump -d ./test_executable | sed -ne '/<test_function/,/^$/p' > test_executable.asm

(this may be useful for specific non-native targets which lack GDB support).

Draw CFG

Now you have the assembly file. Time to turn that to CFG pdf file. Do that by giving it to asm2cfg command-line tool like so

asm2cfg test_function.asm

Asm2cfg by default expects x86 assembly files. If you want to use ARM assembly files, then provide --target arm command-line flag.

Above command should output test_function.pdf file in the same directory where the executable was ran. If the assembly file is stripped then the function memory range is used as a name instead. For example 0x555555555faf-0x555555557008.pdf.

To view CFG instead of saving provide -v flag. And to skip function calls from splitting the code to further blocks provide -c flag. To show the help use -h.

Examples

Repository includes examples which can be used to test the standalone functionality for x86, ARM and objdump.

File test_function.asm is non-stripped assembly file and its corresponding output test_function.pdf.

File stripped_function.asm contains stripped function and its corresponding output stripped_function.pdf.

File att_syntax.asm is an example of non-stripped AT&T assembly.

File huge.asm is a large stripped assembly function and its corresponding output huge.pdf. This can be used to test processing time of big functions.

Files objdump.asm and stripped_objdump.asm are the regular and stripped objdump-based disassemblies of short functions.

File arm.asm is ARM based assembly file and its corresponding pdf file is arm.pdf.

Development

You want to contribute? You're very welcome to do so! This section will give you guidance how to setup development environment and test things locally.

Python Environment

For development this project manages packages with pipenv. Pipenv is a tool to manage Python virtual environments and packages with much less pain compared to normal pip and virtualenv usage.

Install pipenv for your system following the guide here.

After installing pipenv. Create virtual environment and install all required packages to it. Run following at project root

pipenv install -d

Now you can activate the virtual environment with

pipenv shell

Now your python and pip commands will correspond to created virtual environment instead of your system's Python installation.

To deactivate the environment, use

exit

Testing

This project uses pytest for testing. Some test are written using Python's own unittest testing framework, but they work with pytest out of the box. Pytest style is preferred way to write tests.

To run tests from project root, use pytest or

pipenv run pytest

During testing dot viewer might be opened if you have it installed. This is because GDB integration command viewcfg is tested, which will open external dot viewer. Just close it after it's opened. It should not affect the test run itself.

Code Linting

Project uses flake8 and pylint for code linting.

To run flake8, use

flake8

And to run pylint use

pylint src test

Both commands should not print any errors.

Command-Line Interface

To test command-line interface of asm2cfg wihtout installing the package. You can execute module directly. For example to print help

python -m src.asm2cfg -h

Standalone method can be used to try out the examples under examples folder as well. For example following command should generate main.pdf file to current working directory.

python -m src.asm2cfg -c examples/huge.asm

GDB Integration

Before testing GDB functionality, make sure asm2cfg is not installed with pip! This can lead to GDB using code from pip installed asm2cfg package instead of code from this repository!

Also pipenv cannot be used with GDB. You need to install required packages to your system's Python pip. This is because your installed GDB is linked against system's Python interpreter and will use it, instead of active virtual environment. If packages are not installed to your system's pip. You are likely to receive following error messages when trying to use asm2cfg with GDB

ModuleNotFoundError: No module named 'graphviz'

To fix this, install required packages to your system's pip without active virtual environment. Currently GDB integration only requires graphviz.

pip install graphviz

To use asm2cfg GDB related functionality. Use following line from project root.

PYTHONPATH=${PWD}/src gdb -ex 'source src/gdb_asm2cfg.py'

This will set Python import path so that GDB can import code from this repository without installing the package. After this you should be able to use commands viewcfg and savecfg.

Current Development Goals

There are might be cases asm2cfg will not fully support all x86 or ARM assembly lines. If you encounter such problems please open an issue.

Current developed goals are best described in issues section. Please open a new one if existing one does not exist.

If you want to talk to me, you can contact me at Discord with name Kazhuu#3121.
