auxilium 0.2.8

Python project for an automated test and deploy toolkit.

A Python project for an automated test and deploy toolkit - 100% reusable.

Code, Documentation and Tests

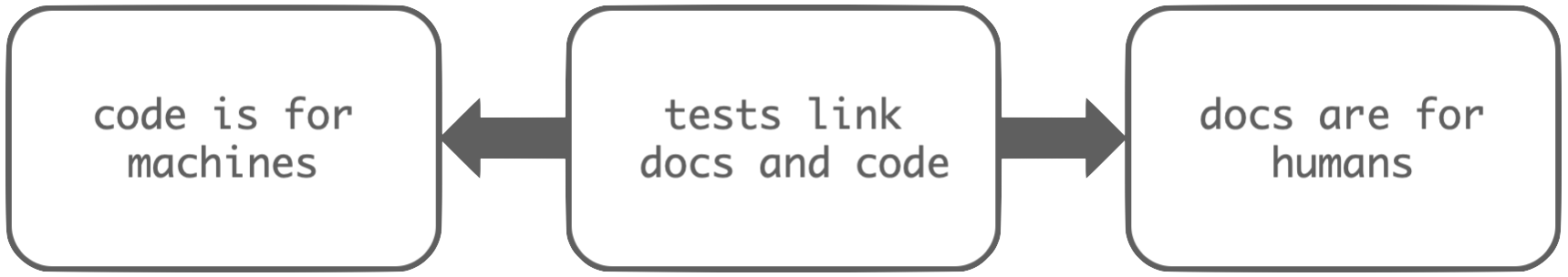

Modern software development comes as a triple of

• The code is the actual software program or library which can executed or invoked.

• The documentation should give an introducing the idea and mission, guide how to use it, describe functionality and features.

• Finally, intensive tests increases the confidence that the documented functionality is correctly implemented.

To support this auxilium is designed to build, to auto-doc, to test and to deploy small to medium size Python projects in 3 simple steps.

1. copy your source code into a boilerplate project structure

2. write useful documentation in your python source code doc strings

3. add as many as possible test cases in a designated test directory structure

What’s in the box?

Once setup up, auxilium serves as a development and integration workflow manager. It provides tools to run a ci/cd (continuous integration/continuous deployment) framework with state-of-art development and integration tools like

• source code management with git

• python environment virtualization with venv

• integrated dependency management with pip

• source code quality and style validation with flake8

• source code security checks with bandit

• automated software testing with unittest and regtest

• test coverage measurement with coverage

• automated documentation generation with sphinx

• documentation templates base on restructuredtext markup language

• designed to work even at online sites like PyPi.com and GitHub

• standard python distribution packaging with build and twine

• remote git repo management for BitBucket, GitHub, GitLab

• single command software release deployment to PyPi the Python Package Index database

How does it work?

• conventions on how the project is structured, i.e. where to find source, test and doc files

• provides useful template structure of files which can be easy modified and extended

• keeps always a single source of truth for project information (like version number)

• sets up a clear and straight structure of the project as well as the corresponding documentation

• minimises the places to edit, by default there are only three documentation files to be edited

• comes with a shell script to trigger plenty test and analysis routines incl. drafting pushing on git remotes and distribute on pypi.org

• uses standard community tools like unittest, flake8, coverage, sphinx and more

• no detailed configurations of any tools are needed, so you can focus completely on coding your project

• demo of how to use the framework and various services to build true ci/cd; a full automated test and deploy pipeline for the rest of us.

• creates and uses venv virtual environment to test on clean python installation

Moreover, we recommend to use pyenv and virtualenv to test different python installations, too.

Quick Start a Project

Once installed simply invoke auxilium create and enter a few project details.

The whole project structure will be created. Full functioning incl. documentation generation, testing, etc..

$ auxilium create

 Please enter project details.

Enter project name   : unicorn
Enter project slogan : Always be a unicorn.
Enter project author : dreamer
Enter project email  : dreamer@home
Enter project url    : www.dreamer.home/unicorn

Created project unicorn with these files:

  unicorn/CHANGES.rst
  unicorn/HOWTO.rst
  unicorn/LICENSE
  unicorn/MANIFEST.in
  unicorn/README.rst
  unicorn/requirements.txt
  unicorn/setup.py
  unicorn/upgrade_requirements.txt

  unicorn/doc/sphinx/conf.py
  unicorn/doc/sphinx/doc.rst
  unicorn/doc/sphinx/index.rst
  unicorn/doc/sphinx/intro.rst
  unicorn/doc/sphinx/logo.png
  unicorn/doc/sphinx/releases.rst
  unicorn/doc/sphinx/tutorial.rst

  unicorn/test/__init__.py
  unicorn/test/unittests.py

  unicorn/unicorn/__init__.py

Default Structure of a Project

The top level of the directory structure consists of three sub-dirs for source, doc and test files and some more or less standard project files. Assume the project is called unicorn.

/unicorn (project root dir)

   /.aux/venv (virtual python environment)

   /unicorn (python source files)
   /doc/sphinx (sphinx files)
   /test/unittests (unittest files)

   LICENSE (license to use)

   CHANGES.rst (change history)
   HOWTO.rst (user guide)
   README.rst (introduction)

   requirements.txt (pip dependencies)
   upgrade_requirements.txt (pip dependencies which always have to be upgraded)

   setup.py (configuration file to build a distribution)
   MANIFEST.in (configuration file to build a distribution)

   .gitignore (configuration file - files and folder which git should ignore)

On top level there ate the following files

• LICENSE is the license how to use, change or distribute the project.

• CHANGES.rst will contain the whole change and release history

• HOWTO.rst gives a intro how to use your project. This will show up in your documentation as tutorial.

• README.rst is this page which shows up on repository homepage at first. Moreover, this will show up in your documentation as introduction, too.

• requirements.txt are additional python packages, which are required for development and/or testing

• upgrade_requirements.txt are additional python packages (same as requirements.txt), which have to be upgraded, i.e. installed by pip with the –upgrade option. Usually used for dev repos.

• setup.py configs the installation procedure with pip and the meta keywords of your project on pypi.org. Most of the entries are found in the project __init__.py file.

• MANIFEST.in configs the files which will be part of the final distribution.

• .gitignore configs git which files and folder to ignore

and subdirectories

• .aux/venv which contains the virtual python environment

• unicorn/ as the actual python source directory (place to put the python scripts) Note, project root dir and python source dir must have the same name!

• doc/sphinx/ file read by sphinx to build documentation sites which can be extended, e.g. by auxilium doc --api, but also manually.

• test/ to contain all test scripts and data (by default there will be two: unittests.py and regtests.py)

As the actual python source files can be structured as you like inside

unicorn/unicorn/

only few information on your project are required and should be found in

unicorn/unicorn/__init__.py

Most of them are needed to setup the pip installation (using setuptools), deployment to PyPi.org as well as the sphinx configuration for generation a documentation. See here how unicorn/unicorn/__init__.py looks like.

# -*- coding: utf-8 -*-

# unicorn
# -------
# Always be a unicorn.
#
# Author:   dreamer
# Version:  0.1, copyright Thursday, 29 August 2019
# Website:  https://github.com/dreamer/unicorn
# License:  Apache License 2.0 (see LICENSE file)


import logging

logging.getLogger(__name__).addHandler(logging.NullHandler())

__doc__ = 'Always be a unicorn.'
__license__ = 'Apache License 2.0'

__author__ = 'dreamer'
__email__ = 'unicorn@home'
__url__ = 'https://www.dreamer.home/unicorn'

__date__ = 'Thursday, 29 August 2019'
__version__ = '0.1'
__dev_status__ = '3 - Alpha'

__dependencies__ = ()
__dependency_links__ = ()
__data__ = ()
__scripts__ = ()
__theme__ = ''

Once setup up, update file headers of all new and modified files and adding them to the project source code repository simply by auxilium update.

Automated Documentation Generation

The documentation is generated by sphinx and the main documentation files is located at

/auxilium (project root dir)

   /doc/sphinx (sphinx files)

auxilium extracts all docs from the source code file and links to some top level rst files.

So usually no file under /doc/sphinx requires to be edited.

The site-map of a documentation will look like this

/index.rst
   /intro.rst     -> README.rst
   /tutorial.rst  -> HOWTO.rst
   /doc.rst       -> api/* (generated by *sphinx-apidoc* via :code:`auxilium doc --api`)
   /releases.rst  -> CHANGES.rst

The project has a configuration (conf.py) to build html and latex resp. pdf documentation. The later requires a latex installation to work.

And auxilium will run and check code-blocks of code examples of your documentation during doc build (doctest).

All this is executed by just one command auxilium doc.

Since only doc.rst will not refer to a top level doc file of the project it is generated from the source code. So here the work starts to write good python doc strings in your source code files.

But if a more sphinx specific file reps. documentation is preferred. May be in order to provide detailed insights into the project: Simply delete api/* (if existing) and replace the contents of doc.rst.

More on documentation can be found in the documentation.

Automated Test and Test Coverage Framework

Test are invoked by unittest discovery which searches by default for files containing unittest.TestCase classes and process them.

Same for measuring the test coverage using coverage source code security and quality using bandit and flake8.

/unicorn (project root dir)

   /test/unittests (unittest files)

Run all tests and checks with auxilium test.

More on testing can be found in the documentation.

Automated Build and Deployment Framework

Once a project milestone is reached, docs are written and all tests are successfully passed, it is ready for deployment.

The default deployment platform is PyPi.org. Before deploying a distribution package is build. Moreover, it’s time to update (push to) the project state to a git remote repo like on GitHub, GitLab anf BitBucket

Invoke this with auxilium build. To push and deploy add options --push and --deploy.

More on build and deployment can be found in the documentation.

Installation

The latest stable version can always be installed or updated via pip:

$ pip install auxilium

Development Version

The latest development version can be installed directly from GitHub:

$ pip install --upgrade git+https://github.com/sonntagsgesicht/auxilium.git

Contributions

Issues and Pull Requests are always welcome.

License

Code and documentation are available according to the Apache Software License (see LICENSE).
