b3p 0.0.4rc1

Command line tools for preprocessing of wind turbine blade models

b3p

Command line tools to create models for composite (wind turbine) blades.

Functionality

• Building 3D models of wind turbine blades
• Creating a quad mesh for the blade
• Assigning scalable slab based laminate plans to the structure
• Assembling a shell mesh with laminate properties
• Writing mesh information to VTK files

Install

From pypi

pip install b3p

From source

git clone https://github.com/wr1/b3p.git
cd b3p
pip install -e .

How to run

Usage: b3p COMMAND

╭─ Commands ──────────────────────────────────────────────────╮
│ 2d         Create 2d meshes for calculation of 6x6 matrices │
│ build      Build the blade model, geometry, mesh, drape     │
│ ccx        Run the ccx analysis                             │
│ clean      Clean the working directory.                     │
│ shell      Start an interactive shell.                      │
│ --help,-h  Display this message and exit.                   │
│ --version  Display application version.                     │
╰─────────────────────────────────────────────────────────────╯

In a cloned repository:

cd examples
# build the blade model, geometry, mesh, drape
b3p build blade_test.yml
# run the ccx fea analysis
b3p ccx blade_test.yml

Output

Plot of geometric input parameters for the example blade

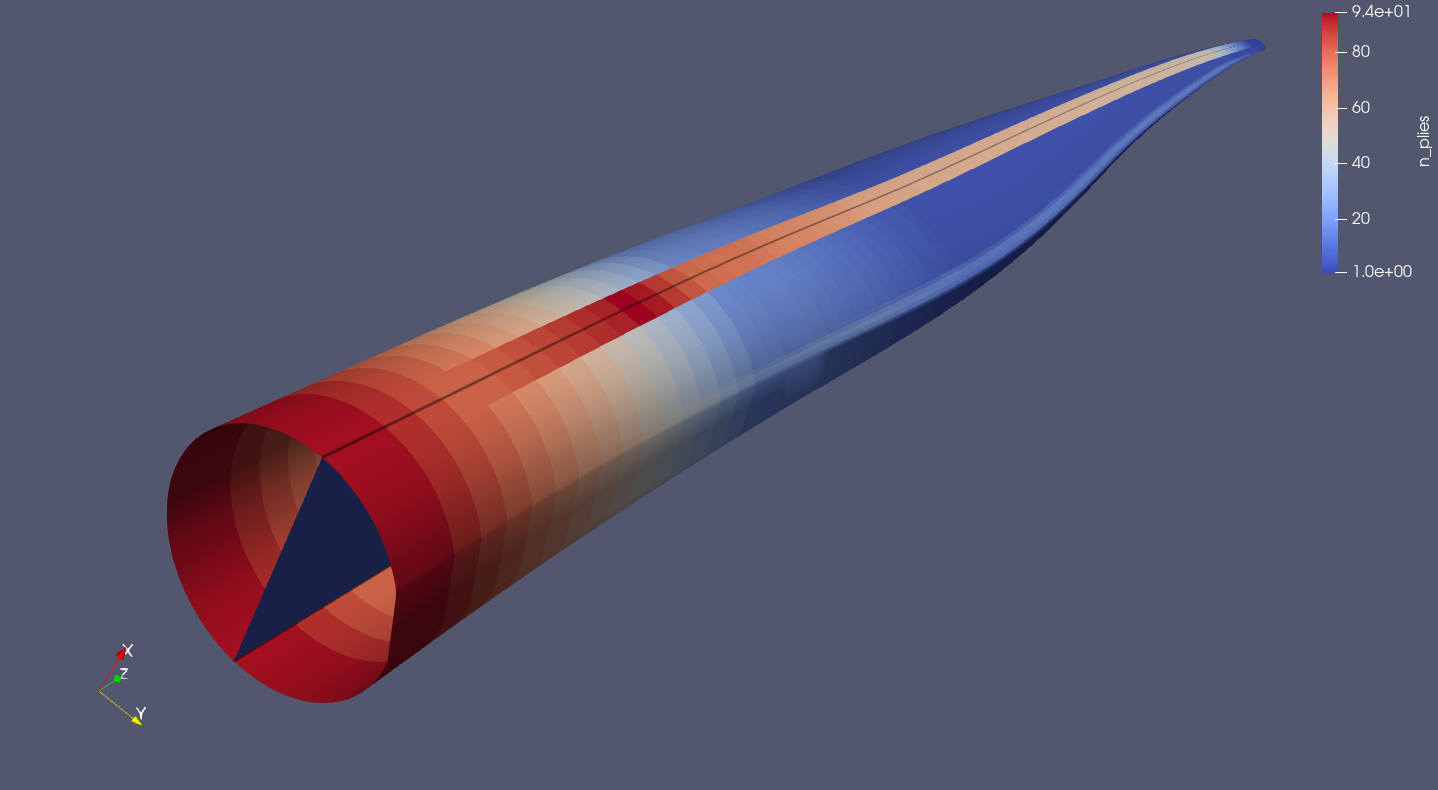

Visualisation of the number of plies on the mesh using Paraview

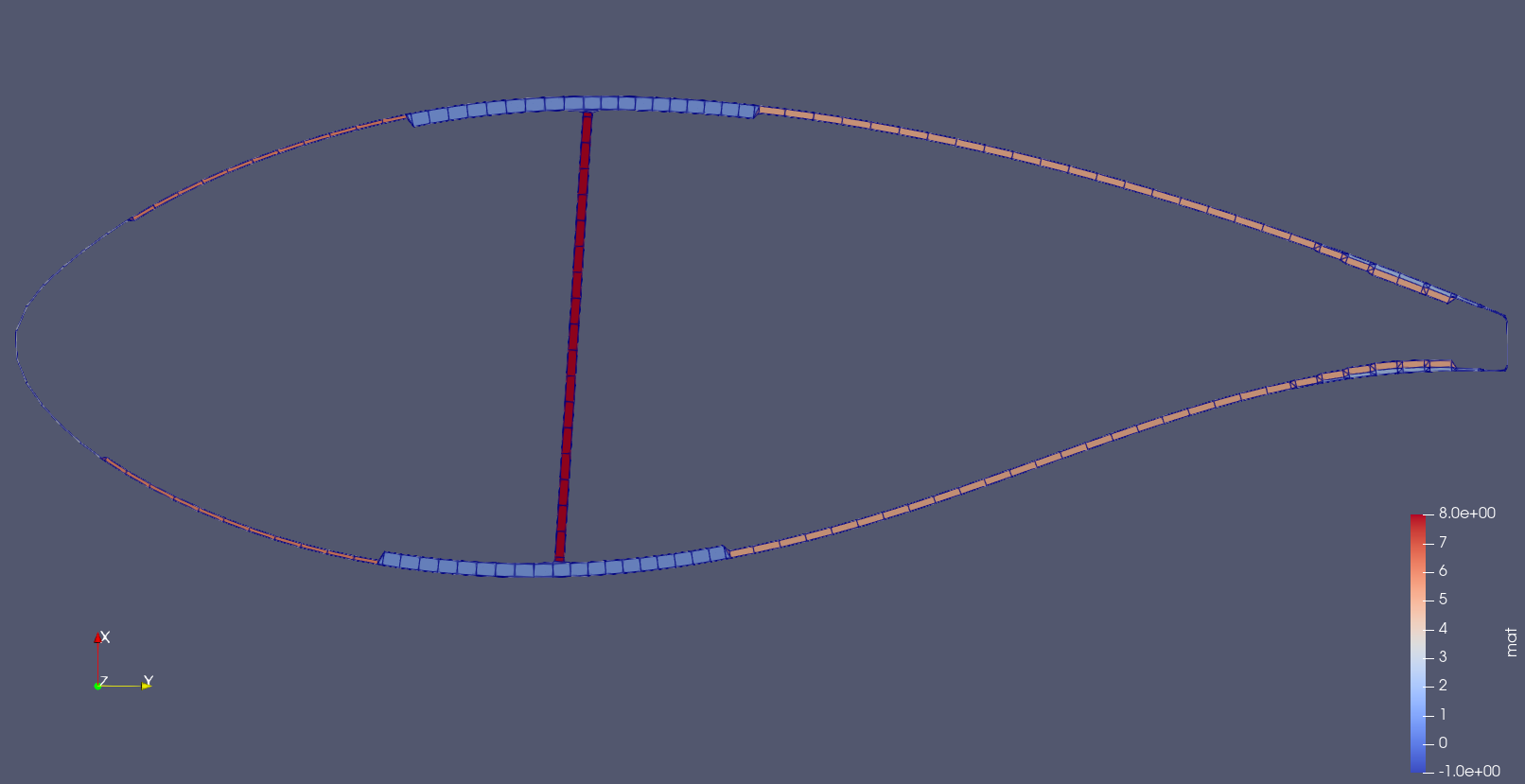

Visualisation of a 2d cross section mesh

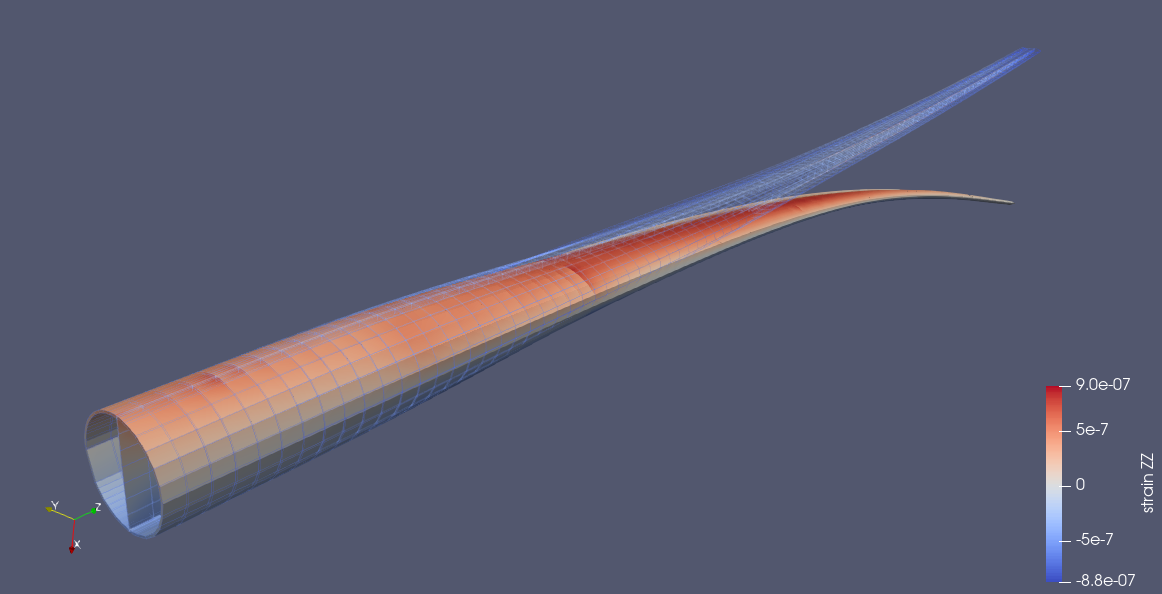

CalculiX results (very coarse mesh)
