benqprojector 0.0.13.7

Library to control BenQ projectors.

Python library to control BenQ projectors

Python library to control BenQ projectors over the serial interface or serial to network bridges like esp-link.

BenQ projectors and flat pannels with a serial port can support one of three protocols. This plugin supports projectors which are of the L, P, T, W and X series but probably also others.

Protocol

This Python library works if your projector supports the following command structure:

<CR>*<key>=<value>#<CR>

Where <CR> is a Carriage Return

Examples:
Power on : <CR>*pow=on#<CR>
Power off : <CR>*pow=off#<CR>
Change source to HDMI: <CR>*sour=hdmi#<CR>

Serial port

You can lookup and change the baud rate in the menu of your BenQ projector.

Network connected projectors

The commands as described above should also work over a network connection, however I don't own such projector and have implemented the network functionality using a serial to network bridge. The network support for native networked BenQ projectors is thus experimental. Let me know if your network connected BenQ projector works.

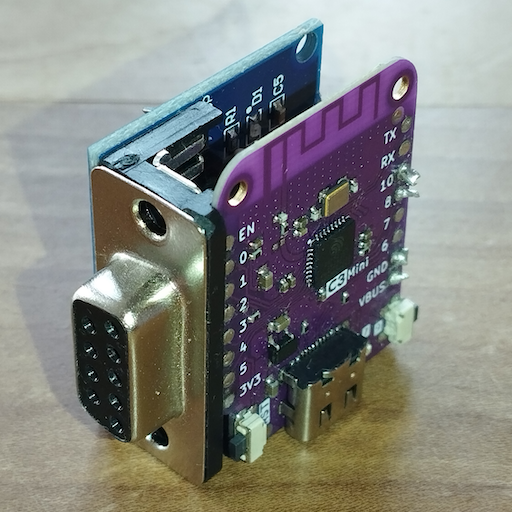

Example of a serial to network bridge using a serial to TTL converter and a Wemos C3 Mini:

It has to be said that a direct serial conection to the projector is much more responsive than using a network connection, at least when using a serial to network bridge. Maybe this is different on a native networked BenQ projector or using ethernet instead of WiFi.

PJLink

This library does not implement the PJLink protocol, but a proparitary BenQ protocol instead. The PJLink protocol is covered by other libraries.

Supported projectors

Known to work:

• MW519
• W1070
• W1100
• W1110
• X3000i

Not tested but use te same protocol according to the documentation: Others in the L, P, T, W and X Series

Not supported:

• RP552
• RP552H
• RP840G
• RP653
• RP703
• RP750
• RP750K
• RP652
• RP702
• RP790S
• RP705H

Some projectors need to be on to be able to detect the model and the library to work.

Please let me know if your projector is also supported by this plugin so I can improve the overview of supported devices.

Installation

To install the Python BenQ projector library use the Python package manager PIP:
pip3 install benqprojector

benqprojector CLI

You can use the Python BenQ projector library directly from the command line to turn on and off your projector using the following syntax:

Status of the projector: python3 -m benqprojector serial <serial port> <baud> status
Turn on the projector: python3 -m benqprojector serial <serial port> <baud> on
Turn off the projector: python3 -m benqprojector serial <serial port> <baud> off

Or if your projector is connected using a serial to network bridge:

Status of the projector: python3 -m benqprojector telnet <host> <port> status
Turn on the projector: python3 -m benqprojector telnet <host> <port> on
Turn off the projector: python3 -m benqprojector telnet <host> <port> off

Detecting your projector capabilities

The benqprojector CLI can detect the commands, sources and modes your projector supports. If you like to have your projector fully supported by this Python library please run this command and create an issue on Github with the output attached.

To examine your projector capabilities:
python3 -m benqprojector serial <serial port> <baud> examine

Your projector needs to be on and on an active source to be able to detect all your projector capabilities.

Troubleshooting

You can add the --debug flag to any CLI command to get a more details on what's going on. Like so:
python3 -m benqprojector serial <serial port> <baud> status --debug
