blinpy 0.1.10

Bayesian Linear Models in Python

blinpy - Bayesian LINear models in PYthon

When applying linear regression models in practice, one often ends up going
back to the basic formulas to figure out how things work, especially if Gaussian priors are applied. This package is built for this (almost trivial) task of fitting linear-Gaussian models. The package includes a basic numpy engine for fitting a general linear-Gaussian model, plus some model classes that provide a simple interface for working with the models.

In the end, before fitting a specified model, the model is always transformed into the following form:

Likelihood: y = Aθ + N(0, Γ_obs)

Prior: Bθ ~ N(μ_pr, Γ_obs).

If one has the system already in suitable numpy arrays, one can directly use the numpy engine to fit the above system. However, some model classes are defined as well that make it easy to define and work with some common types of linear-Gaussian models, see the examples below.

Installation

pip install blinpy

Examples

Fitting a line, no priors

Standard linear regression can be easily done with blinpy.models.LinearModel class that takes in the input data as a pandas DataFrame.

Let us fit a model y=θ₀ + θ₁x + e using some dummy data:

import pandas as pd
import numpy as np
from blinpy.models import LinearModel

data = pd.DataFrame(
    {'x': np.array([0.0, 1.0, 1.0, 2.0, 1.8, 3.0, 4.0, 5.2, 6.5, 8.0, 10.0]),
     'y': np.array([5.0, 5.0, 5.1, 5.3, 5.5, 5.7, 6.0, 6.3, 6.7, 7.1, 7.5])}
)

lm = LinearModel(
    output_col='y',
    input_cols=['x'],
    bias = True,
    theta_names=['th1'],
).fit(data)

print(lm.theta)

That is, the model is defined in the constructor, and fitted using the fit method. The fitted parameters can be accessed via lm.theta property. The code outputs:

{'bias': 4.8839773707086165, 'th1': 0.2700293864048287}

The posterior mean and covariance information are also stored in numpy arrays as lm.post_mu and lm.post_icov. Note that the posterior precision matrix (inverse of covariance) is given instead of the covariance matrix.

Fit a line with priors

Gaussian priors (mean and cov) can be added to the fit method of LinearModel. Let us take the same example as above, but now add a prior bias ~ N(4,1) and th1 ~ N(0.35, 0.001):

lm = LinearModel(
    output_col='y',
    input_cols=['x'],
    bias = True,
    theta_names=['th1'],
).fit(data, pri_mu=[4.0, 0.35], pri_cov=[1.0, 0.001])

print(lm.theta)

{'bias': 4.546825637808106, 'th1': 0.34442570226594676}

The prior covariance can be given as a scalar, vector or matrix. If it's a scalar, the same variance is applied for all parameters. If it's a vector, like in the example above, the variances for individual parameters are given by the vector elements. A full matrix can be used if the parameters correlate a priori.

Fit a line with partial priors

Sometimes we don't want to put priors for all the parameters, but just for a subset of them. LinearModel supports this via the pri_cols argument in the model constructor. For instance, let us now fit the same model as above, but only put the prior th1 ~ N(0.35, 0.001) and no prior for the bias term:

lm = LinearModel(
    output_col='y',
    input_cols=['x'],
    bias = True,
    theta_names=['th1'],
    pri_cols = ['th1']
).fit(data, pri_mu=[0.35], pri_cov=[0.001])

print(lm.theta)

{'bias': 4.603935457929664, 'th1': 0.34251082265349875}

Using the numpy engine directly

For some more complex linear models, one might want to use the numpy linear fitting function directly. The function is found from blinpy.utils.linfit, an example of how to fit the above example is given below:

import numpy as np
from blinpy.utils import linfit

x = np.array([0.0, 1.0, 1.0, 2.0, 1.8, 3.0, 4.0, 5.2, 6.5, 8.0, 10.0])
y = np.array([5.0, 5.0, 5.1, 5.3, 5.5, 5.7, 6.0, 6.3, 6.7, 7.1, 7.5])

X = np.concatenate((np.ones((11, 1)), x[:, np.newaxis]), axis=1)

mu, icov, _ = linfit(y, X, pri_mu=[4.0, 0.35], pri_cov=[1.0, 0.001])
print(mu)

[4.54682564 0.3444257]

One can give the optional prior transformation matrix B as an input to the linfit function, by default B is identity.

Smoothed interpolation

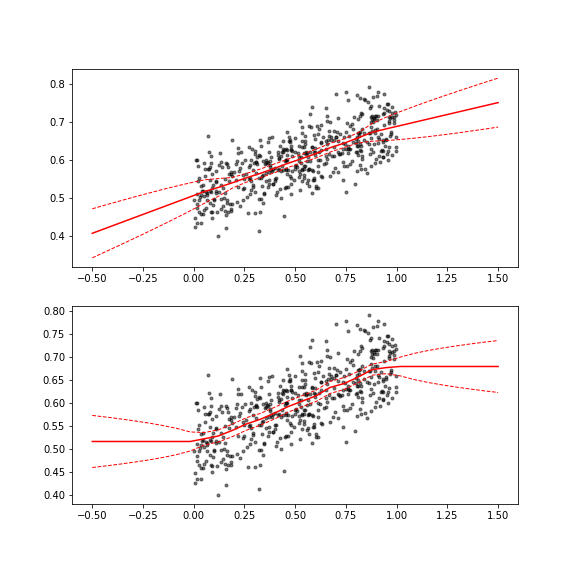

In many cases, one needs to approximate a function from noisy measurements. To get the smooth underlying trend behind the data, one often uses techniques like LOESS. An alternative way is to discretize the function onto a grid and treat the function values at the grid points as unknowns. In order to get smooth trends, one can add a prior (penalization term) that favors smoothness. In the helper function smooth_interp1, one can specify priors for the first and second order differences between the function values. The choice of using first or second order smoothness priors affects the extrapolation behavior of the function, as demonstrated below.

import numpy as np
import blinpy as bp
import matplotlib.pyplot as plt

# generate data
xobs = np.random.random(500)
ysig = 0.05
yobs = 0.5+0.2*xobs + ysig*np.random.randn(len(xobs))

# define grid for fitting
xfit = np.linspace(-0.5,1.5,30)

# fit with second order difference prior
yfit1, yfit_icov1 = bp.models.smooth_interp1(xfit, xobs, yobs, obs_cov=ysig**2, d2_var=1e-5)
yfit_cov1 = np.linalg.inv(yfit_icov1)

# fit with first order difference prior
yfit2, yfit_icov2 = bp.models.smooth_interp1(xfit, xobs, yobs, obs_cov=ysig**2, d1_var=1e-4)
yfit_cov2 = np.linalg.inv(yfit_icov2)

# plot results
plt.figure(figsize=(8,8))
plt.subplot(211)
plt.plot(xobs,yobs,'k.', alpha=0.5)
plt.plot(xfit, yfit1, 'r-')
plt.plot(xfit, yfit1+2*np.sqrt(np.diag(yfit_cov1)), 'r--', lw=1)
plt.plot(xfit, yfit1-2*np.sqrt(np.diag(yfit_cov1)), 'r--', lw=1)

plt.subplot(212)
plt.plot(xobs,yobs,'k.', alpha=0.5)
plt.plot(xfit, yfit2, 'r-')
plt.plot(xfit, yfit2+2*np.sqrt(np.diag(yfit_cov2)), 'r--', lw=1)
plt.plot(xfit, yfit2-2*np.sqrt(np.diag(yfit_cov2)), 'r--', lw=1)

plt.show()

Generalized Additive Models (GAM): line fit

The GamModel class offers a more general interface to linear model fitting. With GamModel one can fit models that consist of components that represent N columns in the final system matrix. Priors can be given (optional) for each block. For instance, the line fitting example, where a prior is given for the slope, is solved with GamModel as follows:

import numpy as np
import pandas as pd
from blinpy.models import GamModel

data = pd.DataFrame(
    {'x': np.array([0.0, 1.0, 1.0, 2.0, 1.8, 3.0, 4.0, 5.2, 6.5, 8.0, 10.0]),
     'y': np.array([5.0, 5.0, 5.1, 5.3, 5.5, 5.7, 6.0, 6.3, 6.7, 7.1, 7.5])}
)

gam_specs = [
    {
        'fun': lambda df: df['x'].values[:, np.newaxis],
        'name': 'slope',
        'prior': {
            'B': np.eye(1),
            'mu': np.array([0.35]),
            'cov': np.array([0.001])
        }
    },
    {
        'fun': lambda df: np.ones((len(df), 1)),
        'name': 'bias'
    }
]

model = GamModel('y', gam_specs).fit(data)
model.theta

{'slope': array([0.34251082]), 'bias': array([4.60393546])}

That is, one feeds in a list of dicts that specify the GAM components. Each dict must contain a function that returns the system matrix columns and a name for the model component. Optionally, one can specify a Gaussian prior for the components. The GamModel class then compiles and fits the linear-Gaussian system.

GAM: non-parametric regression

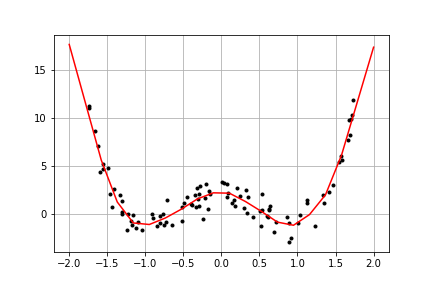

Let us take a slightly more non-trivial example of a GAM, where we model an unknown function in a grid of selected input points. Points in between are linearly interpolated. Moreover, we impose a second order difference prior on the function values to enforce smoothness. The interpolation matrix and difference prior construction are done with utility functions provided in the package. The example code is given below:

import numpy as np
import pandas as pd
import blinpy as bp
import matplotlib.pyplot as plt

xobs = -1.75 + 3.5*np.random.random(100)
yobs = 3*xobs**4-6*xobs**2+2 + np.random.randn(len(xobs))
data = pd.DataFrame({'x': xobs, 'y': yobs})

xfit = np.linspace(-2,2,20)
nfit = len(xfit)

gam_spec = [
    {
        'fun': lambda df: bp.utils.interp_matrix(df['x'].values, xfit),
        'name': 'smoothfun',
        'prior': {
            'B': bp.utils.diffmat(nfit, order=2),
            'mu': np.zeros(nfit-2),
            'cov': np.ones(nfit-2)
        }
    }
]

model = bp.models.GamModel('y', gam_spec).fit(data)
print(model.theta)

plt.figure(figsize=(6,4))
plt.plot(xobs, yobs, 'k.')
plt.plot(xfit, model.post_mu, 'r-')
plt.grid(True)
plt.show()

{'smoothfun': array([16.83584518, 11.41451668,  5.99318818,  1.70894339, -0.57917346,
       -1.10535146, -0.62246082,  0.95388427,  1.88575506,  2.07577794,
        2.19637689,  1.61404071,  0.48381775, -0.22563978, -0.74711054,
       -0.82681361,  0.84100582,  4.54902101,  8.76411573, 12.97921046])}

GAM models give a nice way to blend parametric and nonparametric regression models together.
