canvasplus 1.2.3

Improved Canvas widget for tkinter with more functionality to display graphical elements like lines or text.

Canvas Plus

Obsolete

This package is now canvasplus without capitals. https://pypi.org/project/canvasplus/

V1.2.3

An improved Canvas widget for tkinter with more functionality to display graphical elements like lines or text.

Tkinter's Canvas widget has some limitations which are adressed in this package.

Simmilar to the default tkinter Canvas widget, e.g canvas.create_rectangle, other canvas objects can be created.

Availability

Option 1: Pip

Pip install this package

pip install CanvasPlus

from CanvasPlus import CanvasPlus
CanvasPlus()

import CanvasPlus
CanvasPlus.CanvasPlus()

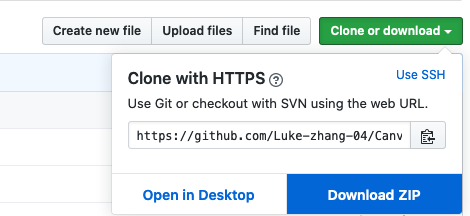

Option 2: Github

Download a zip file containing all files.

git clone https://github.com/Luke-zhang-04/CanvasPlus.git

or

from CanvasPlus.canvasplus import CanvasPlus
CanvasPlus()

import CanvasPlus.canvasplus as CanvasPlus
CanvasPlus.CanvasPlus()

Usage

Usage is very simple, especially for those with experience using tkinter canvas.

For complete documentation, head over the the wiki

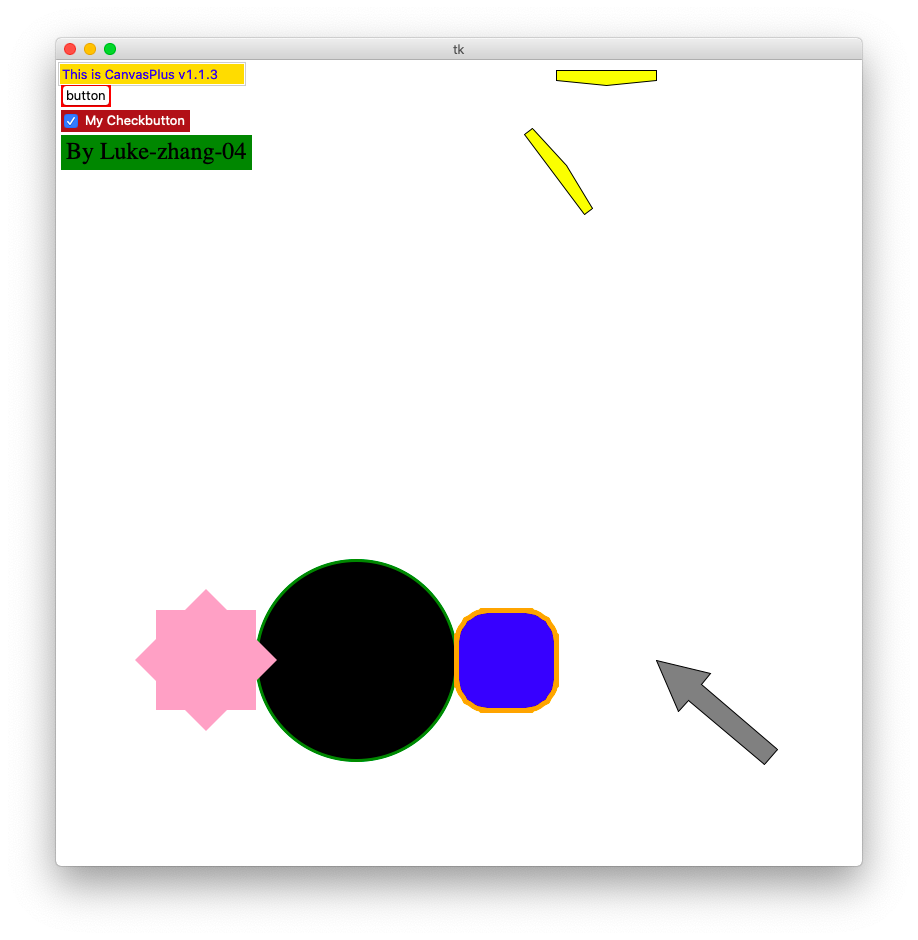

Example:

#Imports
from CanvasPlus import CanvasPLus
from tkinter import Tk, StringVar, DoubleVar

#set up canvas
root = Tk()
canvas = CanvasPlus(root, width=800, height=800, background = "white")
canvas.pack()
#create circle function
canvas.create_circle(300, 600, 100, fill = "black", outline = "green", width = 3)

#create rounded rectangle function
canvas.create_round_rectangle(
    400, 550, 500, 650, radius = 75, fill = "blue", outline = "orange", width = 5
)

#create arrow function and rotate it to by 310 degrees clockwise
arrow = canvas.create_arrow(600, 600, 50, 50, 150, 20, fill = "grey", outline = "black")
canvas.rotate(arrow, 600, 600, 310, unit="deg")

#create a rectangle and convert it to a polygon; then rotate it by pi/4 radians (45 degrees)
rect = canvas.create_rectangle(100, 550, 200, 650, fill = "#f7a8c6", width = 0)
canvas.clone(rect)
rect = canvas.poly(rect)
canvas.rotate(rect, 150, 600, math.pi/4)

#create an entry and set it's default value
content = StringVar()
canvas.create_entry(0, 0, anchor = "nw", textvariable = content, fg = "blue", bg = "gold")
content.set("This is CanvasPlus %s" % _canvasPlusVersion)

#create button to print the value in the previously cretaed entry
canvas.create_button(
    5, 25, anchor = "nw", text = "button", width = 50, highlightbackground = "red",
    command = lambda e = content: print(e.get())
)

#create checkbutton and toggle it
_, checkbutton = canvas.create_checkbutton(
    5, 50, anchor = "nw", bg = "brown", fg = "white", text = "My Checkbutton"
)
checkbutton.toggle()

#create a label
canvas.create_label(
    5, 75, font = ("Times", "24"), fg = "black", bg = "green", text = "By Luke-zhang-04", anchor = "nw"
)

#flip example
aPrime = canvas.create_polygon(500, 10, 500, 20, 550, 25, 600, 20, 600, 10, fill = "yellow", outline = "black")
a = canvas.clone(aPrime)
canvas.flip(a, m = .5, b = -200)

canvas.update()
canvas.mainloop()
