Host side driver for the Capable Robot Programmable USB Hub

Project description

Capable Robot Programmable USB Hub Driver

This package has two functions:

  • It provides access to internal state of the Capable Robot USB Hub, allowing you to monitor and control the Hub from an upstream computer.
  • It creates a transparent CircuitPython Bridge, allowing unmodified CircuitPython code to run on the host computer and interact with I2C & SPI devices attached to the USB Hub.

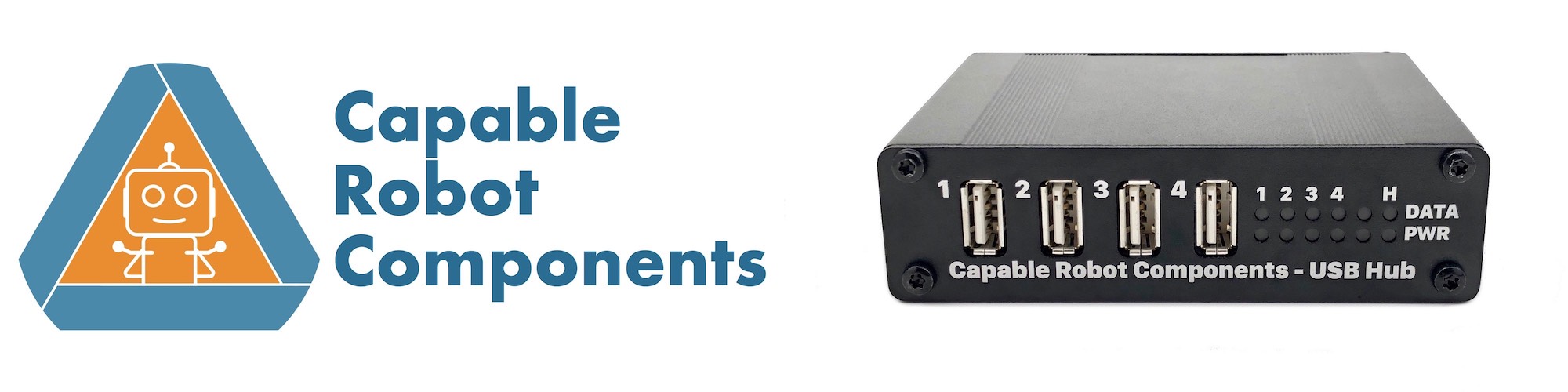

Capable Robot logo & image of Programmable USB Hub

Installing

Install and update using pip:

pip install capablerobot_usbhub

This driver requires Python 3.6 or newer.

Additional Linux Instructions

On Linux, the the udev permission system will likely prevent normal users from accessing the USB Hub's endpoint which allows for Hub Monitoring, Control, and I2C Bridging. To resolve this, install the provided udev rule:

sudo cp 50-capablerobot-usbhub.rules /etc/udev/rules.d/
sudo udevadm control --reload
sudo udevadm trigger

Then unplug and replug your USB Hub. Note, the provided udev rule allows all system users to access the Hub, but can be changed to a specific user or user group.

Additional Windows Instructions

On Windows, the low-level USB driver for the Hub's VID/PID must be re-assigned from the default one to the libusbk driver. This can be done with the Zadig GUI, or by executing the following commands:

pip install capablerobot_usbregister
usbregister device usbhub

For additional details on how the usbregister command-line utility work, please vist the CapableRobot_USBRegister repository.

Usage & Examples

The examples folder has some code samples of how to use this Python API to control the Programmable USB Hub. There is also another example repository which includes additional host-side code as well as examples of customizing behavior via changing the Hub's firmware.

Working Functionality

  • Reading USB Hub registers over USB and decoding of register data.
  • Writing USB Hub registers over USB.
  • Reading & writing I2C data thru the Hub.
  • Python API to control and read the two GPIO pins.
  • CircuitPython I2C Bridge to the rear I2C1 port.
  • CircuitPython SPI Bridge to the internal mikroBUS header.

Not Working / Not Implemented Yet

No known errata at this time

Contributing

Contributions are welcome! Please read our Code of Conduct before contributing to help this project stay welcoming.
