cbpy 0.0.1

Implement Chaotic Backpropagation Algorithm

Chaotic Back-propagation (CBP)

cbpy is a light package for research purpose, which implements the CBP algorithm in the paper "Brain-inspired Chaotic Back-Propagation".

Install

pip install cbpy

Examples

Example1. reveal the principles of Chaotic Back-propagation (CBP) with single-neuron network.

1. prepare the dataset

import torch
import torch.nn as nn
import cbpy as cbp

inp = torch.FloatTensor([[1]]) # input sample
tgt = torch.FloatTensor([[0]]) # target of input

2. define single-neuron network

class SingleNet(nn.Module):
    def __init__(self, init_value=0):
        super().__init__()
        self.layer = nn.Linear(1, 1)
        self.act_func = nn.Sigmoid()
        nn.init.constant_(self.layer.weight, init_value)
        nn.init.constant_(self.layer.bias, init_value)

    def forward(self, x):
        out = self.act_func(self.layer(x))
        return out

3. training with BP algorithm

net = SingleNet()
loss_func = nn.MSELoss() # loss function
optimizer = torch.optim.SGD(net.parameters(), lr=1)

loss_list = []
weight_list = []
bias_list = []
for i in range(1000):
    optimizer.zero_grad()
    out = net(inp)
    loss_bp = loss_func(out, tgt)
    loss_bp.backward()
    optimizer.step()

    loss_list.append(loss_bp.item())
    weight_list.append(net.layer.weight.item())
    bias_list.append(net.layer.bias.item())

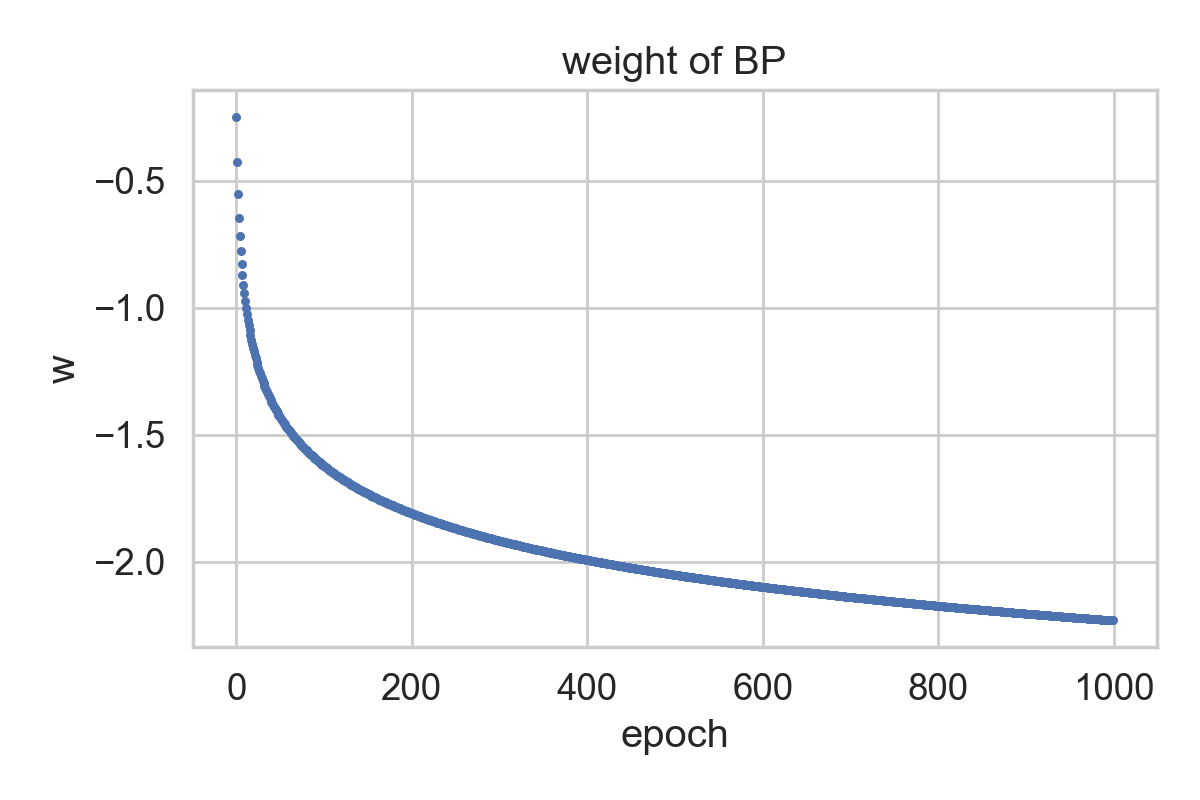

4. plot the learning curve of the weight for BP

import seaborn as sns
sns.set(context='notebook', style='whitegrid', font_scale=1.2)

cbp.plot_series(weight_list, ylabel='w', title='weight of BP')

5. training with CBP algorithm

# define the chaotic loss function
def chaos_loss(out, z, I0=0.65):
    return -z * (I0 * torch.log(out) + (1 - I0) * torch.log(1 - out))

# training with CBP
net = SingleNet()
optimizer = torch.optim.SGD(net.parameters(), lr=1)

z = 9 # initial chaotic intensity
beta = 0.999 # anealing constant

loss_bp_list = []
loss_cbp_list = []
weight_list = []
bias_list = []
for i in range(1000):
    optimizer.zero_grad()
    out = net(inp)
    loss_bp = loss_func(out, tgt)
    loss_chaos = chaos_loss(out, z) # chaotic loss
    loss_cbp = loss_bp + loss_chaos # loss of CBP
    loss_cbp.backward()
    optimizer.step()
    z *= beta

    loss_bp_list.append(loss_bp.item())
    loss_cbp_list.append(loss_cbp.item())
    weight_list.append(net.layer.weight.item())
    bias_list.append(net.layer.bias.item())

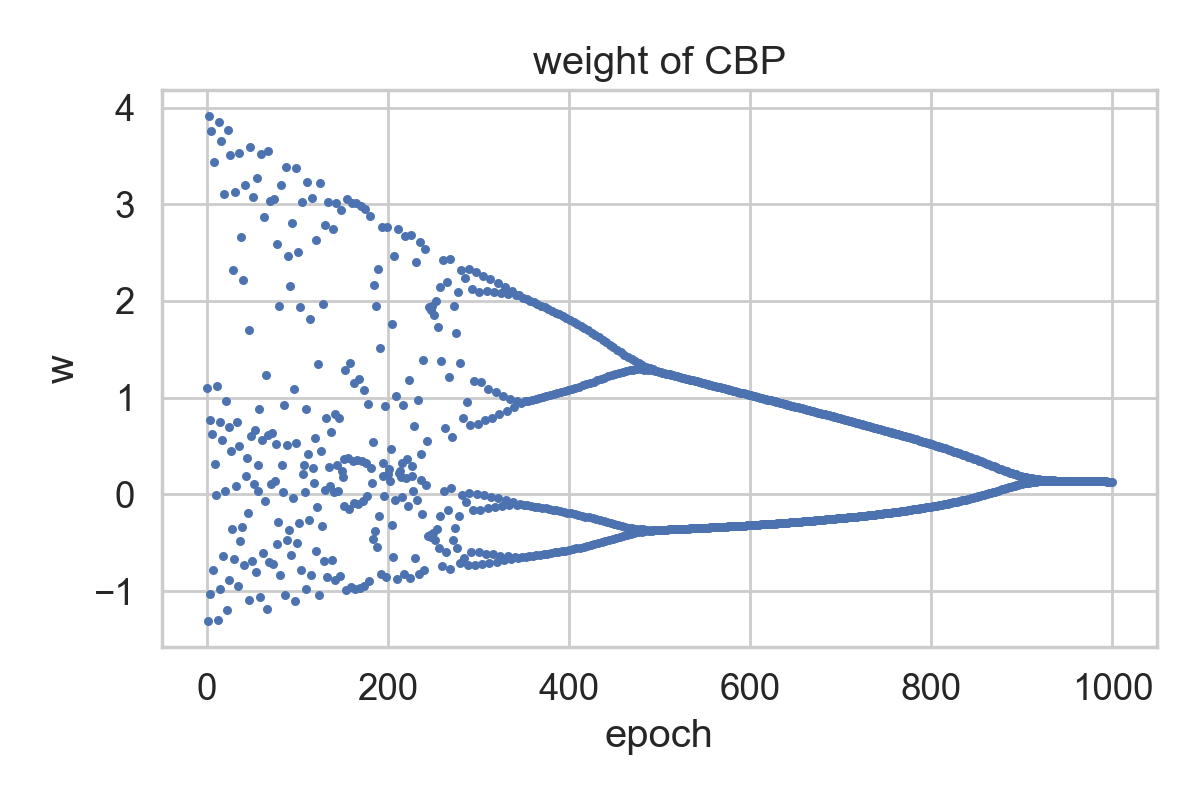

6. plot the learning curve of the weight for CBP

cbp.plot_series(weight_list, ylabel='w', title='weight of CBP')

Example2. validate the global optimization ability of CBP on the XOR problem

1. prepare the dataset and parameters

# create the XOR dataset
trainloader = cbp.create_xor_dataloader()

inp, tgt = next(iter(trainloader))
print(inp, '\n', tgt)

# define params
loss_func = torch.nn.BCELoss() # loss function
lr = 0.2 # learning rate
max_epoch = 10000 # maximal training epoch
seed = 32 # random number seed
init_mode = 1 # initial weight interval
layer_list = [2, 2, 1] # layers for MLP

2. training by BP

cbp.set_random_seed(seed)
model = cbp.MLPS(layer_list, init_mode=init_mode,
                 act_layer=torch.nn.Sigmoid(), active_last=True)

zs = None # chaotic intensity
cbp_epoch = 0
bp_l_list, bp_a_list, bp_w_list, bp_o_list = cbp.train_with_chaos(
    model=model,
    trainloader=trainloader,
    testloader=trainloader,
    loss_func=loss_func,
    zs=zs,
    record_weight=True,
    whole_weight=True,
    cbp_epoch=cbp_epoch,
    max_epoch=max_epoch,
    bp_lr=lr
)

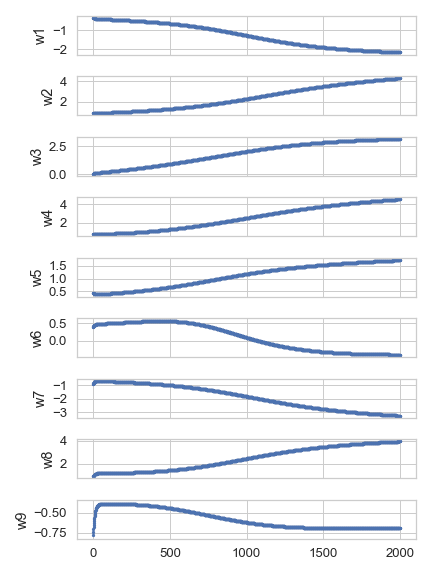

3. plot the trajectories of the weights for BP (first 2000 epochs)

cbp.plot_xor_weight(bp_w_list[:2000])

Weights of BP

4. training by BP from the same initial condition as CBP

cbp.set_random_seed(seed)
model = cbp.MLPS(layer_list, init_mode=init_mode,
                 act_layer=torch.nn.Sigmoid(), active_last=True)
zs = 12 # chaotic intensity
beta = 0.999 # annealing constant
cbp_epoch = max_epoch
cbp_l_list, cbp_a_list, cbp_w_list, cbp_o_list = cbp.train_with_chaos(
    model=model,
    trainloader=trainloader,
    testloader=trainloader,
    loss_func=loss_func,
    zs=zs,
    beta=beta,
    record_weight=True,
    whole_weight=True,
    cbp_epoch=cbp_epoch,
    max_epoch=max_epoch,
    cbp_lr=lr
)

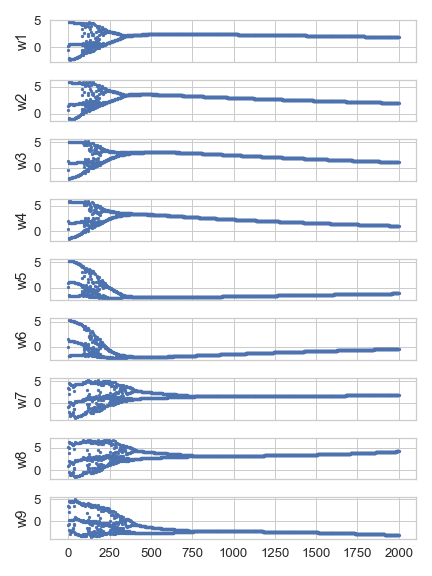

5. plot the trajectories of the weights in CBP (first 2000 epochs)

cbp.plot_xor_weight(cbp_w_list[:2000], suptitle='CBP')

Weights of CBP

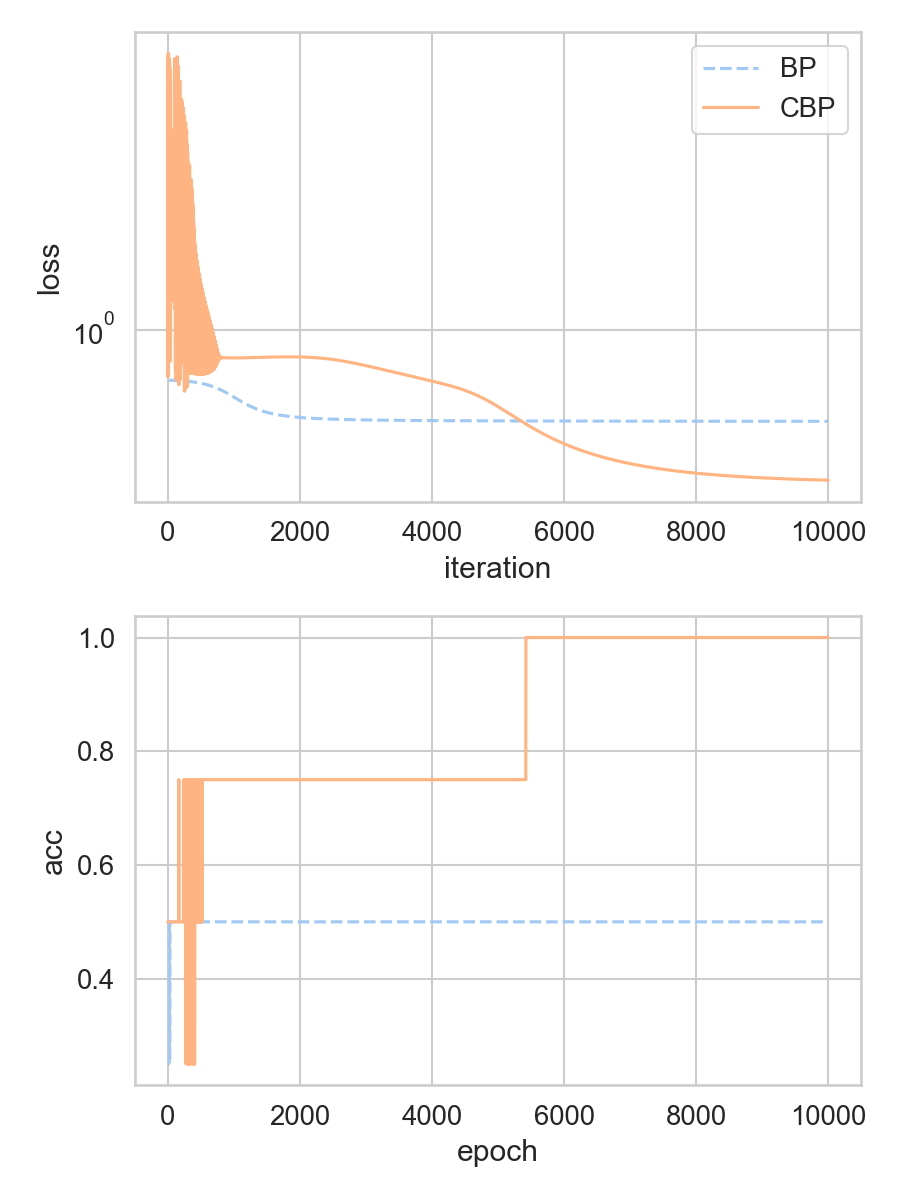

6. compare the loss and accuracy of BP and CBP

import numpy as np

loss_mat = np.array([bp_l_list, cbp_l_list]).T
acc_mat = np.array([bp_a_list, cbp_a_list]).T
cbp.plot_mul_loss_acc(loss_mat, acc_mat, alpha=1, ylabels=['loss', 'acc'])

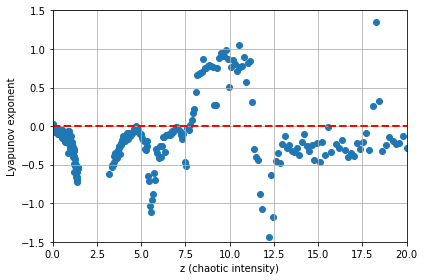

Example3. choose the parameter z (initial chaotic intensity)

cbp.set_random_seed(seed)
model = cbp.MLPS(layer_list, init_mode=init_mode, act_layer=torch.nn.Sigmoid(), active_last=True)

ws_lists = cbp.debug_chaos(model, trainloader, loss_func=loss_func)
le_list = cbp.cal_lyapunov_exponent(ws_lists)
cbp.plot_lyapunov_exponent_with_z(le_list)

In this example, the Lyapunov exponent around interval [8, 11] is positive, which indicates chaotic dynamics.
Then, z = 12 was chosen as the initial chaotic intensity.

Reproduce the results in the paper

To reproduce the results in the paper, check the notebook files in paper_example.

Components

• chaos_optim.py: implement the CBP algorithm in the form of optimizer.
• net.py: contains the neural network class, currently only support MLP.
• train.py: provide APIs to preform training with the Pytorch style.
• dataset.py: provide APIs to create the trainloader and testloader.
• utils.py: several auxiliary functions to analysis the training results.
• plot.py: several functions to show the training results.

License

MIT License
