cece 0.1.1

Conceptual Edits as Counterfactual Explanations

Conceptual Edits as Counterfactual Explanations (CECE)

CECE: a powerful Python library for generating semantic counterfactual explanations for any machine learning algorithm.

More information about the framework and the algorithm that the library uses can be found in the paper: Choose your Data Wisely: A Framework for Semantic Counterfactuals .

Citation

@article{dervakos2023choose,
  title={Choose your Data Wisely: A Framework for Semantic Counterfactuals},
  author={Dervakos, Edmund and Thomas, Konstantinos and Filandrianos, Giorgos and Stamou, Giorgos},
  journal={arXiv preprint arXiv:2305.17667},
  year={2023}
}

How to install the library

# Install cece
pip install cece

- or -

git clone https://github.com/geofila/Semantic-Counterfactuals.git
cd Semantic-Counterfactuals
git install .

How to use the library

Use Case 1: Calculate the semantic distance between 2 queries

from cece.queries import *
from cece.refine import *


q1 = Query(np.array([set(["car", "vehicle"]), set(["tree"])]))
q2 = Query(np.array([set(["car"]), set(["tree"]), set(["person"])]))

r = refine (q1, q2,verbose= True, return_edits = True)

print (r)

Remains the same: {'tree'}
-------------------------------------
Tranform {'car'} from {'vehicle'} -> set()
Add: {'person'}
--------------------------------------
(2, {'additions': [{'person'}], 'removals': [], 'transf': [({'car', 'vehicle'}, {'car'})]})

from cece.wordnet import *

q1 = Query(np.array([set(connect_term_to_wordnet("car")),
                     set(connect_term_to_wordnet("man")),]))

q2 = Query(np.array([set(connect_term_to_wordnet("woman")),
                     set(connect_term_to_wordnet("truck"),)]))

r = refine (q1, q2,verbose= True, return_edits = True)
print ("Cost: ", r[0])

-------------------------------------
Tranform {'motor_vehicle.n.01', 'artifact.n.01', 'instrumentality.n.03', 'whole.n.02', 'object.n.01', 'conveyance.n.03', 'wheeled_vehicle.n.01', 'vehicle.n.01', 'self-propelled_vehicle.n.01', 'physical_entity.n.01', 'entity.n.01'} from {'car.n.01'} -> {'truck.n.01'}
Tranform {'living_thing.n.01', 'adult.n.01', 'whole.n.02', 'organism.n.01', 'person.n.01', 'object.n.01', 'physical_entity.n.01', 'entity.n.01'} from {'man.n.01'} -> {'woman.n.01'}
--------------------------------------
Cost:  4

q1 = Query(np.array([connect_term_to_wordnet("tree"),
                     connect_term_to_wordnet("man"),]))

q2 = Query(np.array([connect_term_to_wordnet("man"),
                     connect_term_to_wordnet("truck"),]))

r = refine (q1, q2,verbose= True, return_edits = True)
print ("Cost: ", r[0])

Remains the same: {'man.n.01', 'living_thing.n.01', 'adult.n.01', 'whole.n.02', 'organism.n.01', 'person.n.01', 'object.n.01', 'physical_entity.n.01', 'entity.n.01'}
-------------------------------------
Tranform {'entity.n.01', 'whole.n.02', 'physical_entity.n.01', 'object.n.01'} from {'living_thing.n.01', 'organism.n.01', 'vascular_plant.n.01', 'tree.n.01', 'woody_plant.n.01', 'plant.n.02'} -> {'motor_vehicle.n.01', 'instrumentality.n.03', 'truck.n.01', 'conveyance.n.03', 'wheeled_vehicle.n.01', 'vehicle.n.01', 'self-propelled_vehicle.n.01', 'artifact.n.01'}
--------------------------------------
Cost:  14

or even simpler

q1 = Query(np.array(connect_list_to_wordnet(["tree", "man"])))
q2 = Query(np.array(connect_list_to_wordnet(["man", "truck"])))
r = refine (q1, q2,verbose= True, return_edits = True)
print ("Cost: ", r[0])

Remains the same: {'man.n.01', 'living_thing.n.01', 'adult.n.01', 'whole.n.02', 'organism.n.01', 'person.n.01', 'object.n.01', 'physical_entity.n.01', 'entity.n.01'}
-------------------------------------
Tranform {'entity.n.01', 'whole.n.02', 'physical_entity.n.01', 'object.n.01'} from {'living_thing.n.01', 'organism.n.01', 'vascular_plant.n.01', 'tree.n.01', 'woody_plant.n.01', 'plant.n.02'} -> {'motor_vehicle.n.01', 'instrumentality.n.03', 'truck.n.01', 'conveyance.n.03', 'wheeled_vehicle.n.01', 'vehicle.n.01', 'self-propelled_vehicle.n.01', 'artifact.n.01'}
--------------------------------------
Cost:  14

or even simpler

from cece.xDataset import createMSQ

q1 = createMSQ(["tree", "man"], connect_to_wordnet = True)
q2 = createMSQ(["man", "truck"], connect_to_wordnet = True)
r = refine (q1, q2,verbose= True, return_edits = True)
print ("Cost: ", r[0])

Remains the same: {'man.n.01', 'living_thing.n.01', 'adult.n.01', 'whole.n.02', 'organism.n.01', 'person.n.01', 'object.n.01', 'physical_entity.n.01', 'entity.n.01'}
-------------------------------------
Tranform {'entity.n.01', 'whole.n.02', 'physical_entity.n.01', 'object.n.01'} from {'living_thing.n.01', 'organism.n.01', 'vascular_plant.n.01', 'tree.n.01', 'woody_plant.n.01', 'plant.n.02'} -> {'motor_vehicle.n.01', 'instrumentality.n.03', 'truck.n.01', 'conveyance.n.03', 'wheeled_vehicle.n.01', 'vehicle.n.01', 'self-propelled_vehicle.n.01', 'artifact.n.01'}
--------------------------------------
Cost:  14

Use Case 2: Use it for a Datatset

from cece.xDataset import *


# initialize an instance of the Dataset
ds = xDataset(dataset = [["tree", "man"],
                         ["man", "truck"],
                         ["kitchen", "oven", "refrigerator"],
                         ["bed", "pillow", "blanket", "woman"],
                         ["sofa", "cushion", "pillow"],],

              labels = ["outdoor", "outdoor", "indoor", "indoor", "indoor"],
              connect_to_wordnet = True)


ds.retrieve(ds.dataset[1])

{1: 0, 0: 14, 4: 28, 3: 29, 2: 36}

for idx, cost in ds.retrieve(ds.dataset[1]).items():
    print (f"Cost: {cost} for '{ds.labels[idx]}' with id: {idx}")

Cost: 0 for 'outdoor' with id: 1
Cost: 14 for 'outdoor' with id: 0
Cost: 28 for 'indoor' with id: 4
Cost: 29 for 'indoor' with id: 3
Cost: 36 for 'indoor' with id: 2

results = ds.retrieve([ "car", "woman"])

for idx, cost in results.items():
    print (f"Cost: {cost} for '{ds.labels[idx]}' with id: {idx}")

Cost: 4 for 'outdoor' with id: 1
Cost: 16 for 'outdoor' with id: 0
Cost: 27 for 'indoor' with id: 3
Cost: 28 for 'indoor' with id: 4
Cost: 36 for 'indoor' with id: 2

Explain Method - Get a Semantic Counterfatual

results = ds.explain([ "car", "woman"], "outdoor")

print (f"Cost: {results[1]} for '{ds.labels[results[0]]}' with id: {results[0]}")

Cost: 27 for 'indoor' with id: 3

from cece.xDataset import *
ds.find_edits(["car", "man"], ["woman", "truck"])

(4,
 {'additions': [],
  'removals': [],
  'transf': [({'artifact.n.01',
     'car.n.01',
     'conveyance.n.03',
     'entity.n.01',
     'instrumentality.n.03',
     'motor_vehicle.n.01',
     'object.n.01',
     'physical_entity.n.01',
     'self-propelled_vehicle.n.01',
     'vehicle.n.01',
     'wheeled_vehicle.n.01',
     'whole.n.02'},
    {'artifact.n.01',
     'conveyance.n.03',
     'entity.n.01',
     'instrumentality.n.03',
     'motor_vehicle.n.01',
     'object.n.01',
     'physical_entity.n.01',
     'self-propelled_vehicle.n.01',
     'truck.n.01',
     'vehicle.n.01',
     'wheeled_vehicle.n.01',
     'whole.n.02'}),
   ({'adult.n.01',
     'entity.n.01',
     'living_thing.n.01',
     'man.n.01',
     'object.n.01',
     'organism.n.01',
     'person.n.01',
     'physical_entity.n.01',
     'whole.n.02'},
    {'adult.n.01',
     'entity.n.01',
     'living_thing.n.01',
     'object.n.01',
     'organism.n.01',
     'person.n.01',
     'physical_entity.n.01',
     'whole.n.02',
     'woman.n.01'})]})

Global Explanations

from cece.xDataset import *

# initialize an instance of the Dataset
ds = xDataset(dataset = [["tree", "man"],
                         ["man", "truck"],
                         ["kitchen", "oven", "refrigerator", "man"],
                         ["bed", "blanket", "woman"],
                         ["sofa", "pillow", "man"],],

              labels = ["outdoor", "outdoor", "indoor", "indoor", "indoor"],
              connect_to_wordnet = True)

ds.global_explanation([["tree", "man", "car"], ["man", "truck", "car"]], ["outdoor", "outdoor"])

{'motor_vehicle.n.01': -3,
 'conveyance.n.03': -3,
 'wheeled_vehicle.n.01': -3,
 'vehicle.n.01': -3,
 'self-propelled_vehicle.n.01': -3,
 'padding.n.01': 2,
 'cushion.n.03': 2,
 'pillow.n.01': 2,
 'car.n.01': -2,
 'sofa.n.01': 2,
 'furnishing.n.02': 2,
 'seat.n.03': 2,
 'furniture.n.01': 2,
 'living_thing.n.01': -1,
 'organism.n.01': -1,
 'vascular_plant.n.01': -1,
 'tree.n.01': -1,
 'woody_plant.n.01': -1,
 'plant.n.02': -1,
 'artifact.n.01': 1,
 'truck.n.01': -1,
 'instrumentality.n.03': -1}

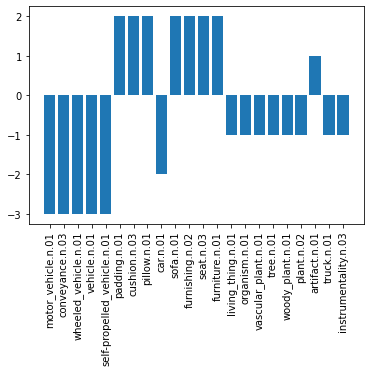

# plot the global explanation in abar plot
import matplotlib.pyplot as plt

explanations = ds.global_explanation([["tree", "man", "car"], ["man", "truck", "car"]], ["outdoor", "outdoor"])

plt.bar(explanations.keys(), explanations.values())
plt.xticks(rotation=90)
plt.show()

How to use the library with Graphs

# Create an instance of a graph
# The graph bellow contains the triples:
# (car, in, garage)
# (person, in, car)
# (person, in, garage)

instance1 = [
    connect_list_to_wordnet(["car", "in^garage"]),
    connect_list_to_wordnet(["person", "in^car"]),
    connect_list_to_wordnet(["person", "in^garage"]),
]

# and also we create two additional instances in order to create an Explanation Dataset
instance2 = [
    connect_list_to_wordnet(["car", "in^garage"]),
    connect_list_to_wordnet(["cat", "in^car"]),
    connect_list_to_wordnet(["person", "in^garage"]),
]


instance3 = [
    connect_list_to_wordnet(["car", "in^garage"]),
    connect_list_to_wordnet(["dog", "in^car"]),
    connect_list_to_wordnet(["person", "in^garage"]),
]


from cece.graph import *

# we transform the instances to a graph through the Graph class
# this class gives us additional functionality
g1 = Graph (instance1, connect_to_wordnet = False)
g2 = Graph (instance2, connect_to_wordnet = False)
g3 = Graph (instance3, connect_to_wordnet = False)


# calculate the set edit cost from graph g1 to graph g2, along with the set edit path
g1.cost(g2, return_edits = True)

(9,
 {'additions': [],
  'removals': [],
  'transf': [([{'physical_entity.n.01', 'whole.n.02', 'person.n.01', 'entity.n.01', 'living_thing.n.01', 'object.n.01', 'organism.n.01'}
     {'abstraction.n.06', 'definite_quantity.n.01', 'whole.n.02', 'measure.n.02', 'unit_of_measurement.n.01', 'instrumentality.n.03', 'motor_vehicle.n.01', 'conveyance.n.03', 'car.n.01', 'vehicle.n.01', 'artifact.n.01', 'physical_entity.n.01', 'self-propelled_vehicle.n.01', 'linear_unit.n.01', 'entity.n.01', 'object.n.01', 'inch.n.01', 'wheeled_vehicle.n.01'}]
    {},
    [{'physical_entity.n.01', 'whole.n.02', 'placental.n.01', 'cat.n.01', 'animal.n.01', 'entity.n.01', 'living_thing.n.01', 'object.n.01', 'chordate.n.01', 'mammal.n.01', 'feline.n.01', 'organism.n.01', 'vertebrate.n.01', 'carnivore.n.01'}
     {'abstraction.n.06', 'definite_quantity.n.01', 'whole.n.02', 'measure.n.02', 'unit_of_measurement.n.01', 'instrumentality.n.03', 'motor_vehicle.n.01', 'conveyance.n.03', 'car.n.01', 'vehicle.n.01', 'artifact.n.01', 'physical_entity.n.01', 'self-propelled_vehicle.n.01', 'linear_unit.n.01', 'entity.n.01', 'object.n.01', 'inch.n.01', 'wheeled_vehicle.n.01'}]
    {})]})

Simpler way to create a graph

# simpler way to create graphs using connect_to_wordnet = True parameter
instance1 = [["car", "in^garage"], ["person", "in^car"], ["person", "in^garage"]]
instance2 = [["car", "in^garage"], ["cat", "in^car"], ["person", "in^garage"]]
instance3 = [["car", "in^garage"], ["dog", "in^car"], ["person", "in^garage"]]

from cece.graph import *

g1 = Graph (instance1, connect_to_wordnet = True)
g2 = Graph (instance2, connect_to_wordnet = True)
g3 = Graph (instance3, connect_to_wordnet = True)

g1.cost(g2, return_edits = True)

(9,
 {'additions': [],
  'removals': [],
  'transf': [([{'physical_entity.n.01', 'whole.n.02', 'person.n.01', 'entity.n.01', 'living_thing.n.01', 'object.n.01', 'organism.n.01'}
     {'abstraction.n.06', 'definite_quantity.n.01', 'whole.n.02', 'measure.n.02', 'unit_of_measurement.n.01', 'instrumentality.n.03', 'motor_vehicle.n.01', 'conveyance.n.03', 'car.n.01', 'vehicle.n.01', 'artifact.n.01', 'physical_entity.n.01', 'self-propelled_vehicle.n.01', 'linear_unit.n.01', 'entity.n.01', 'object.n.01', 'inch.n.01', 'wheeled_vehicle.n.01'}]
    {},
    [{'physical_entity.n.01', 'whole.n.02', 'placental.n.01', 'cat.n.01', 'animal.n.01', 'entity.n.01', 'living_thing.n.01', 'object.n.01', 'chordate.n.01', 'mammal.n.01', 'feline.n.01', 'organism.n.01', 'vertebrate.n.01', 'carnivore.n.01'}
     {'abstraction.n.06', 'definite_quantity.n.01', 'whole.n.02', 'measure.n.02', 'unit_of_measurement.n.01', 'instrumentality.n.03', 'motor_vehicle.n.01', 'conveyance.n.03', 'car.n.01', 'vehicle.n.01', 'artifact.n.01', 'physical_entity.n.01', 'self-propelled_vehicle.n.01', 'linear_unit.n.01', 'entity.n.01', 'object.n.01', 'inch.n.01', 'wheeled_vehicle.n.01'}]
    {})]})

instance1 = [["car", "in^garage"], ["person", "in^car"], ["person", "in^garage"]]
instance2 = [["car", "in^garage"], ["cat", "in^car"], ["person", "in^garage"]]
instance3 = [["car", "in^garage"], ["dog", "in^car"], ["person", "in^garage"]]

dataset = [instance1, instance2, instance3]
gd = xDataset(dataset, ["outdoor", "indoor", "indoor"], connect_to_wordnet =True, is_graph = True)

Retrieve the Closest Sample using Graphs

gd.retrieve([["car", "in^car"], ["person", "in^car"], ["person", "in^garage"]])

{0: 11, 1: 20, 2: 20}

Explain a Sample using Graphs

gd.explain([["car", "in^car"], ["person", "in^car"], ["person", "in^garage"]], "indoor")

(0, 11)
