circuitpython-sparkfun-qwiicquadsolidstaterelay 1.0.6

CircuitPython library for the Sparkfun Quad Solid State Qwiic Relay

Introduction

CircuitPython library for SparkFun Qwiic Quad Solid State Relay Kit (COM-16833).

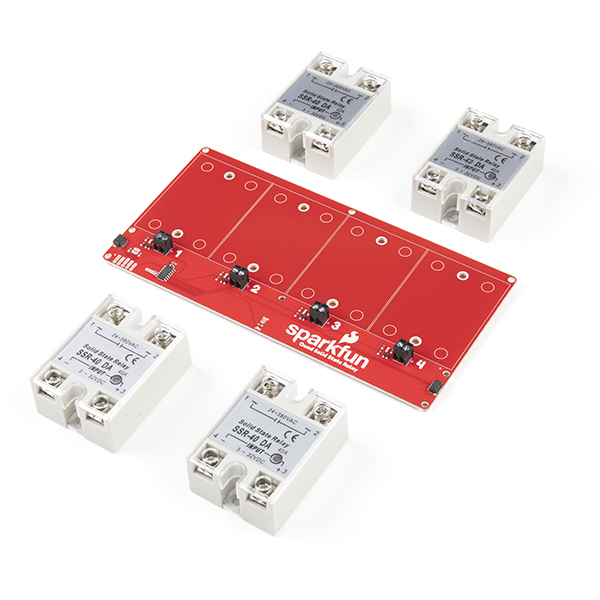

SparkFun Qwiic Quad Solid State Relay Kit (COM-16566)

Dependencies

This driver depends on:

• Adafruit CircuitPython

• Bus Device

• SparkFun Qwiic Quad Solid State Relay Kit (COM-16566) Hardware

Please ensure all dependencies are available on the CircuitPython filesystem. This is easily achieved by downloading the Adafruit library and driver bundle or individual libraries can be installed using circup.

Installing from PyPI

Note

This library is not available on PyPI yet. Install documentation is included as a standard element. Stay tuned for PyPI availability!

On supported GNU/Linux systems like the Raspberry Pi, you can install the driver locally from PyPI. To install for current user:

pip3 install circuitpython-sparkfun-qwiicquadsolidstaterelay

To install system-wide (this may be required in some cases):

sudo pip3 install circuitpython-sparkfun-qwiicquadsolidstaterelay

To install in a virtual environment in your current project:

mkdir project-name && cd project-name
python3 -m venv .env
source .env/bin/activate
pip3 install circuitpython-sparkfun-qwiicquadsolidstaterelay

Installing to a Connected CircuitPython Device with Circup

Make sure that you have circup installed in your Python environment. Install it with the following command if necessary:

pip3 install circup

With circup installed and your CircuitPython device connected use the following command to install:

circup install sparkfun_qwiicquadsolidstaterelay

Or the following command to update an existing version:

circup update

Usage Example

""" QuadRelayTest """
# QuadRelayTest: Copyright (c) 2022 Graham Beland
#
# SPDX-License-Identifier: MIT
# import the CircuitPython board and busio libraries
import time as tm
# CircuitPython board
import board
# the sparkfun_qwiicquadsolidstaterelay
import sparkfun_qwiicquadsolidstaterelay

# Create bus object using the board's I2C port
i2c = board.I2C()

# Note: default i2c address is 8
theRelay = sparkfun_qwiicquadsolidstaterelay.Sparkfun_QwiicQuadSolidStateRelay(i2c)
print("Opened: Relay Controller")
if theRelay.connected:
    print("Relay connected. ")
    theRelay.relay_on(1)
    tm.sleep(1)
    theRelay.relay_off(1)
else:
    print("Relay does not appear to be connected. Please check wiring.")

Documentation

API documentation for this library can be found on Read the Docs.

For information on building library documentation, please check out this guide.

Contributing

Contributions are welcome! Please read our Code of Conduct before contributing to help this project stay welcoming.
