ck-widgets 0.2.0

Package with widgets and components for Textual TUI Framework.

CvaniaK's Widgets for Textual TUI (ck_widgets)

This is list of Widgets for Textual framework, created from my personal need.

⚠ NOTE: This project widgets names, arguments, etc. can vary along diffrent versions.

Install

This is pip package so you can install it using command below:

pip3 install ck-widgets
# or
python3 -m pip install ck-widgets

ValueBar

Examples

The simples example:

# Simples value bar
from ck_widgets.widgets import ValueBarH, ValueBarV
vbar_horizontal = ValueBarH(max_value=50)
# or
vbar_vertical = ValueBarV(max_value=50)

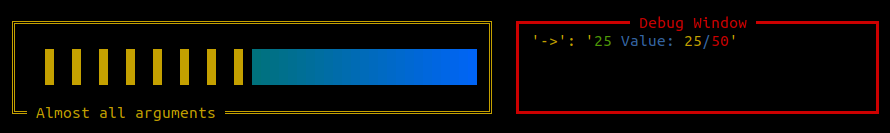

And here is example with almost all arguments:

# Example with almost all arguments
from ck_widgets.widgets import ValueBarH, CColor, CustomColor
from rich import box

background_color: List[CColor] = ["rgb(0,0,0)", "rgb(0,0,0)", "yellow"]
ValueBarH(
    name="name_to_catch_in_event",
    label="Almost all arguments",
    label_align="left",
    label_position="bottom",
    start_value=25,
    max_value=50,
    height=6,
    instant=True,
    reversed=True,
    color=CustomColor.gradient("green", "rgb(0, 100, 250)"),
    bg_color=background_color,
    border_style="yellow",
    padding=(1,1),
    box=box.DOUBLE_EDGE,
)

And this example:

you can check code in this file ck_widgets/exmples/value_bar.py or test it by using command below:

python3 -m ck_widgets.examples.value_bar

Known Limitations

• You need to force size of layout to be not smaller than maximum size of of ValueBar (otherwise it will behave badly)
• ...

TODO

• Reactive version (so it gives values from 0 to 1 and can be resized/'squashed')
• Be sure that provide all arguments
• Test edge cases
• Clean up how to provide color
• Label on left or right site
• ...

ListViewUo

While waiting for ticket (also mentioned here) and official ListView, you can use this dirty version that allows you to scroll thrue list of widgets.

Examples

You can use it this way:

from ck_widgets_lv import ListViewUo

class TestListView(App):
    async def on_mount(self, event: events.Mount) -> None:
        await self.view.dock(ListViewUo([Placeholder(height=10) for _ in range(20)]))

if __name__ == "__main__":
    TestListView.run()

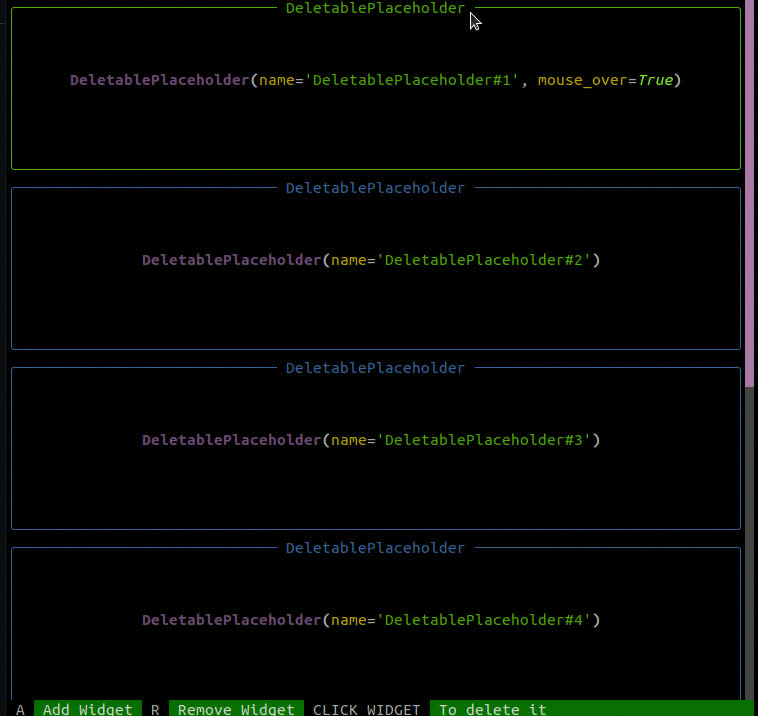

or more complex example (from gif demo above):

from textual.widgets import Placeholder
from textual.widget import Widget
from textual.events import Message
from textual.app import App
from textual import events

from ck_widgets.widgets import ListViewUo

if __name__ == "__main__":
    from textual.widgets import Footer

    class DeleteStatus(Message):
        def __init__(self, sender: Widget):
            super().__init__(sender)
            self.to_delete = sender

    class DeletablePlaceholder(Placeholder):
        async def on_click(self, event: events.Click) -> None:
            await self.emit(DeleteStatus(self))

    class TestListView(App):
        async def action_add(self) -> None:
            await self.list_view.add_widget(DeletablePlaceholder(height=10))
            self.refresh()

        async def action_add_index_2(self) -> None:
            await self.list_view.add_widget(DeletablePlaceholder(height=10), index=2)
            self.refresh()

        async def action_remove(self) -> None:
            await self.list_view.remove_widget_by_index()
            self.refresh()

        async def action_remove_index_2(self) -> None:
            await self.list_view.remove_widget_by_index(index=2)
            self.refresh()

        async def on_load(self, _: events.Load) -> None:
            await self.bind("a", "add()", "Add Widget")
            await self.bind("s", "add_index_2()", "Add Widget in index 2")
            await self.bind("r", "remove()", "Remove Widget")
            await self.bind("e", "remove_index_2()", "Remove Widget in index 2")
            await self.bind("Click Widget", "_()", "To delete it")

        async def on_mount(self, event: events.Mount) -> None:
            self.list_view = ListViewUo(
                [DeletablePlaceholder(height=10) for _ in range(7)]
            )

            await self.view.dock(Footer(), edge="bottom")
            await self.view.dock(self.list_view)

        async def handle_delete_status(self, message: DeleteStatus):
            await self.list_view.remove_widget(message.to_delete)

    TestListView.run()

Change Log

[0.2.0] - 2022-04-11

Added

• ListViewUo from previous repo

[0.1.0] - 2022-02-26

Added

• ValueBar
• Test version of DebugWidget
