cloudimized 1.3.11

Google Cloud Platform (GCP) configuration scanning tool

Cloudimized

Cloudimized is a Google Cloud Platform (GCP) configuration scanning tool. It allows monitoring changes of selected resources.

Cloudimized performs similar function as Oxidized, but for Cloud environment.

Overview

Cloudimized periodical scans of GCP resources via API calls and dumps them into yaml files. Files are tracked in Git, so every configuration change is being tracked. It gathers additional information for each change: changer's identity, related Terraform runs (optionally), identify change ticket number (optionally). Optionally it sends Slack notifications for each change.

Features

• Project discovery across GCP organization
• Identifying changer identity
• Manual changes detection
• Identifying Terraform runs
• Identifying change tickets
• Slack notifications

Feature details

Workflow

On each execution Cloudimized performs following actions:

1. Gets configuration from previous execution from Git remote
2. Clears all configuration files from local repo
3. Performs resource reading
   1. For all projects for all resources executes API call to get resource configuration
   2. (optional) Performs configured field and item filtering for each resource
4. Dumps all results in yaml files format in local Git repo
5. Checks local Git repo state and detects all changed resource
6. For each detected change performs additional information gathering:
   1. Get GCP Logs for change to identify changer's identity
   2. Identifies manual changes
      1. changes performed directly by individual users as opposed to service accounts i.e. changes done outside of Terraform
   3. (optional) If change performed via Terraform Service Account, identify related Terraform runs.
      1. Get Terraform Runs URL
      2. (optional) Get ticket/issue marker from Terraform Run message. Generate ticket URL.
7. Commit each individual change to Git repo
   1. Contains configuration Git diff
   2. Contains all additional gathered information

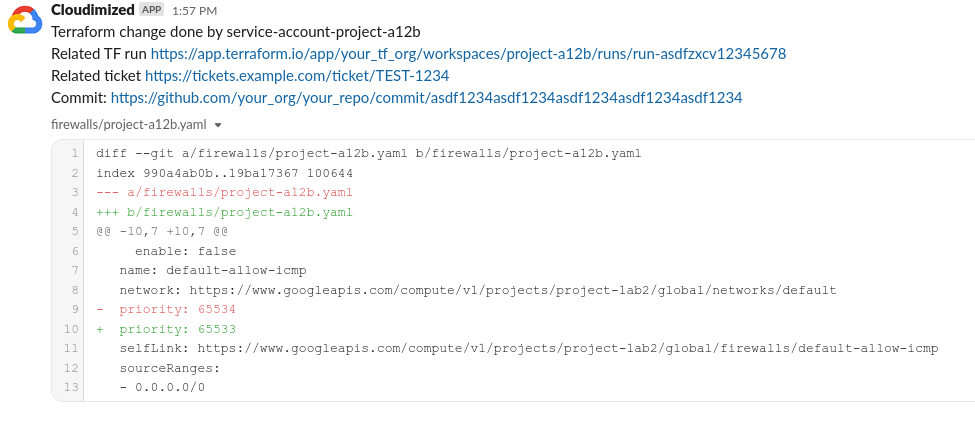

8. (optional) Send Slack notification for each change
   1. Containing same information as Git commit
9. Push new commits to remote repo

Installation

1. Install Cloudimized with pipx (recommended) or plain pip.

pipx install cloudimized

2. Cloudimized for operation requires Git repo for storing GCP configuration files.
   1. Set-up empty Git repo in remote location i.e. GitHub or GitLab

Running

After installation:

1. Perform necessary configuration
2. Schedule periodic, regular script execution
   1. This can be achieved via number of ways i.e.
      1. via cron
      2. via automation server
   2. Execute with cloudimized -c <PATH_TO_FILE>/config.yaml

Configuration

Service accounts

GCP Service Account

GCP Service Account is used to perform resources scanning, log reading and project discovery. Below steps show setting up account with organization wide reading permissions.

1. Create dedicated Service Account in selected GCP project
2. On organization level create custom role with permissions:
   1. logging.logEntries.list //required to identify changer
   2. <resource>.list //for each resource to be scanned
      1. i.e. compute.subnetworks.list for scanning of VPC subnetwork resource
      2. Refer to official Google docs for method and its permission mapping
3. On organization level create IAM policy that binds Service Account with Roles: Browser and custom role you've created

This will grant Service Account permission to discover all projects in Organzation, perform scanning of selected resources in all projects and perform Logs scanning in all projects. If needed it is possible to limit permissions to selected Folders and/or Projects.

See:

• Google Cloud listing permissions

GIT Service Account

GIT Service Account is used to get configuration repository from remote and pushing to that repo detected configuration changes. In your GIT remote you need to configure account/access token with proper permissions. Script allows communication via both HTTPS and SSH.

Terraform Service Account

Terraform Account is used to read Terraform Runs. Concept of Service Account doesn't exist in Terraform, so this is performed in following way:

1. Create Terraform Team with "Runs: Read Runs" permissions
2. For each Terraform organization generate Team API token for your Team

See:

• Terraform teams
• Terraform permissions
• Terraform API tokens

Slack Service Account

Slack Service Account is used for sending detected change notification to Slack channel. This is done via Slack App.

1. Create Slack app on Slack API page
   1. Select From scratch
   2. App Name - enter Cloudimized
   3. Workspace - select your workspace
2. In Add features and funcionality select Permissions
3. In Scopes -> Bot Token Scopes, click Add an OAuth Scopes
   1. Select files:write
4. In OAuth Tokens for Your Woskrpace, click Install to Workspace
5. Click Allow access
6. Bot User OAuth Token has been generated, take a note
7. Select/create channel to which notifications will be sent
   1. Add App bot user by @mentioning App name in selected channel

See:

• Slack app setup

Jira Service Account

Jira Service Account is used for creating issues(tickets) for selected changes. Depending on your Jira deployement (Cloud vs Server), you need to setup an account with proper permissions to create Issues of selected type in given project.

See:

• Jira Cloud API token
• Jira Software docs

Secrets

All secrets required to run script need to be passed via env variables.

GIT secrets

Communication with GIT remote can be both SSH and HTTPS based. If using SSH you need to take care of your SSH keys configuration. If using HTTPS you need to pass credentials via following env variables:

• env var GIT_USR - username
• env var GIT_PSW - password/token

Google Service Account secrets

Cloudimized authenticates to GCP using GCP Service Account. After creating account you need to download JSON key file. Passing credentials to script can be achieved either by setting env var or using Google's ADC mechanism

• env var GOOGLE_APPLICATION_CREDENTIALS set to file path of service account's JSON key token

or

• Authenticate via gcloud auth application-default login by providing service account's JSON key token

See:

• Best practices to securely authenticate applications in Google Cloud
• Authenticating as a service account
• gcloud auth application-default login

Terraform secrets

Cloudimized authenticates to Terraform using Team token for each Terraform organization. Tokens are stored in JSON file that only contains mapping between organization and team token value. File is passed to script by providing JSON file location. This can be done by:

• env var TERRAFORM_READ_TOKENS set to file path of terraform's JSON mapping key

or

• option workspace_token_file in configuration file set to file path of terraform's JSON mapping key

Slack secrets

Cloudimized authenticates to Slack using Slack's Applications Bot User token. Token is passed to script via env var

• env var SLACK_TOKEN set to token value

Jira secrets

Cloudimized authenticates to Jira using Username and Password/Token combination. Credentials are passed to script via env var

• env var JIRA_USR - Jira's username - (note: not set when using Token auth)
• env var JIRA_PSW - Jira's password/Token

Configuration file

Example configuration file:

services:
  # GCP API Service name - https://cloud.google.com/compute/docs/reference/rest/v1#service:-compute.googleapis.com
  - serviceName: compute
    # GCP API version - https://cloud.google.com/compute/docs/reference/rest/v1#service:-compute.googleapis.com
    version: v1
    # List of all queries to send for this API Service
    queries:
      # User defined name of resource
      - resource: networks
        # GCP API method name - https://cloud.google.com/compute/docs/reference/rest/v1/networks/list
        gcp_api_call: networks.list
        # GCP API method parameters - https://cloud.google.com/compute/docs/reference/rest/v1/networks/list#path-parameters
        gcp_function_args:
          # Special Cloudimized value for setting ProjectID - script performs dynamic replacement with real Project ID
          project: <PROJECT_ID>
        # resource.type value in GCP Logs entries generated for this resource changes - https://cloud.google.com/logging/docs/api/v2/resource-list#tag_gce_network
        gcp_log_resource_type: gce_network
        # Field name in response where resources are stored, (DEFAULT: items) - https://cloud.google.com/compute/docs/reference/rest/v1/networks/list#response-body
        # items: items
        # List of fields to exclude from configuration i.e. for status related fields
        field_exclude_filter:
          # From each resource remove field "stateDetails" nested under "peerings"
          - peerings:
            # https://cloud.google.com/compute/docs/reference/rest/v1/networks/list#response-body
            - stateDetails
        # List of conditions to filter out whole individual resources
        item_exclude_filter:
          # From results remove each resource that "name" under "peerings" matches "servicenetwork-googleapis-com"
          - peerings:
              name: "servicenetworking-googleapis-com"
        sortFields:
           # Define fields used to perform sorting of results
           ## Sort items in results using 'name' field as key
           - name
           ## Sort inner list (under key 'secondaryIpRanges') in each item using 'name' field as key
           - secondaryIpRanges: name

git:
   # Git repo's URL for GCP configuration storing
  remote_url: https://github.com/<ORG>/<REPO_NAME>
   # Local directory for storing GCP configuration
  local_directory: gcp_config

# Perform dynamic discovery of all projects in GCP organization
discover_projects: True

# Static list of project IDs (alternative to the above approach)
#project_list:
#  # GCP project ID
#  - my-project-ID

# List of project IDs to exclude from scanning - for use with dynamic discoery
excluded_projects:
  - excluded-project-ID

# Number of threads for scanning resources
thread_count: 4 # default - 3

# Change handling configuration
change_processor:
  # Interval (in minutes) between each scan - has to match script execution interval
  scan_interval: 30
  # Regex to identify service account username - match meaning non-manual change
  service_account_regex: '^(my-terraform-sa-|\d+@|service-\d+).*'
  # Regex to identify ticket/issue from Terraform Run message i.e. ADR-1234
  ticket_regex: "^.*?([a-zA-z]{2,3}[-_][0-9]+).*"
  # Ticket/Issue URL base in ticketing system. Used to create ticket link
  ticket_sys_url: "https://my-tickets.com/list"
  # Slack notifications config
  slack:
    # Slack channel ID for Cloudimized notifications
    channelID: "C123456789A"
    # Commit URL base in Git system. Used to create commit link
    repoCommitURL: "https://github.com/<ORG>/<REPO_NAME>/commit"
  # Jira issue creator config
  jira:
     # Jira's URL
     url: "https://my.jira.com"
     # Jira's Project Key - Project in which create issue
     projectKey: "KEY"
     # Jira's Issue Type - Issue's type to be created (optional)
     issueType: "Task" #default
     # Jira's Issue fields - set values on fields in Issue (optional)
     fields:
        field_name: "field_value"
     # Regex filter for selecting projects for which create issues (optional)
     filterSet:
        projectId: ".*production-only.*"
     # Flag to indicate token use for auth instead of Username/Password
     isToken: True
  # Terraform Runs configuration
  terraform:
    # Terraform URL
    url: "https://app.terraform.io"
    # Path to JSON file containing Organization to team token mapping
    #workspace_token_file: "<path-to-file>"
    # Mapping between GCP Service Account performing changes and Terraform Org/Workspace
    service_workspace_map:
      # GCP Service Account name
      terraform-service-account-no1:
        # Terraform Organization
        org: my-organization
        # Terraform workspaces list
        workspace: ["my-workspace-no1"]

Single run mode

Allows to run cloudimized only to scan given resource and dump them into text files, without performing and additional functions (no Git, Terraform, Slack, Jira interaction and no GCP logs lookup).

Running

cloudimized --singlerun/-s <RESOURCE_NAME> --output/-o {yaml, csv}

i.e
cloudimized -s addresses -o csv

Configuration

Resource configurations for single run (<RESOURCE_NAME> parameter) to be scanned are stored in singlerunconfigs directory and are selected based on filename. Resource configuration is the same as in main config file. Additional singe run mode configs can be added to folder as needed.

Get info available configs or what will be run with <RESOURCE_NAME> with:

cloudimized -s --list
cloudimized -s --describe --name <RESOURCE_NAME>

Output

By default script will dump results in YAML format same as in main mode. If chosen it can dump results in CSV file format (single file per resource).
