cloupy 2.0.0

The package allows to download, process and visualize climatological data from reliable sources

The cloupy package is NO LONGER SUPPORTED.

Due to unmaintainable code and numerous outdated functionalities, development and maintenance of the cloupy package have been discontinued.

If you installed the cloupy package to create interpolation maps, there is a much better tool available: https://pypi.org/project/geokrige/. This section of the documentation may be especially helpful.

Significant changes have been made to the data sources from which the cloupy package downloads data, rendering cloupy tools potentially dysfunctional.

The only components that are relatively up-to-date are the Walter-Lieth diagrams.

cloupy is a Python package for climatological data downloading, processing and visualizing. The main goal of the package is to help its author in writing a BA thesis. The package is well adapted to academic work - used data sources are reliable and graphs are easy to modify. What's more, cloupy is intuitive and really easy to use, so even users who are not related to the climatological environment should have no problems with the package usage.

Installation

Run the following command on the command line:

Windows:

pip install cloupy

Linux:

pip3 install cloupy

Usage/Examples

This is just a demonstration of the cloupy functionality and some (in my opinion the most important) features of the functions/classes. However, every function and class has many arguments which are not used in this tutorial, so check the docstrings to see all features

Table of contents

1. Data downloading and processing

   a. Download climatological data from the IMGW database

   b. Download specific climatological elements from the IMGW database

   c. Useful functions for working with the IMGW database

   d. Download climatological data from the WMO database

   e. Useful functions for working with the WMO database

   f. Check data continuity

2. Maps

   a. Exemplary interpolation map

   b. The same exemplary map, but without setting the map style and data filtering

   c. Zoom a map to a specific location, show the difference between default style and retro style

   d. Draw a map from the manually provided data, select a non-default shapefile to draw borders of the country, plot additional shapes from an additional shapefile

   e. Import the data for drawing the interpolation map from the global dataframe and draw multi-country map. Zoom to a specific area without changing the extrapolation points

3. Graphs

   a. Download climatological data for the station in Poznań (WMO ID: 12330) from the IMGW and draw a Walter-Lieth diagram

   b. Download climatological data for the station in Harare (WMO ID: 67775) from the WMO database

   c. Download data, set as global dataframe and draw a Walter-Lieth diagram based on the global dataframe

   d. The graph style that better fits a scientific article

   e. Select which graph elements are to be drawn

   f. Provide drawing data manually

See also recap of the drawing process and brief documentation

Data downloading and processing

Download climatological data from the IMGW database

Use the d_imgw_data() function to download the data from the IMGW database. In the code below, the data will be downloaded from the synoptic stations of the IMGW database. In this case, the selected data interval is monthly, the data string starts in 1966 and ends in 2020. The coordinates will be added to the stations in the downloaded data:

import cloupy as cl

data = cl.d_imgw_data(interval='monthly', stations_kind='synop', years_range=range(1966, 2021), return_coordinates=True)

Download specific climatological elements from the IMGW database

You can specify which climatological elements from the IMGW database will be downloaded by setting the keywords argument of the d_imgw_data() function. The keywords argument must be a single string or a list of strings. If the given string is in a column name, the column will be added to the dataframe that will be returned. In the example below, the returned dataframe will contain the columns whose names contain the given words ('temperatura' means temperature, 'opad' means precipitation):

import cloupy as cl

data = cl.d_imgw_data(
    interval='monthly', stations_kind='synop', years_range=range(1966, 2021),
    keywords=['temperatura', 'opad'] # the function is not case-sensitive (try: ['tEmPeRaTURA', 'oPad'])
)

Useful functions for working with the IMGW database

See available file formats from the IMGW database for the given arguments:

import cloupy as cl

cl.i_imgw_get_file_formats(interval='monthly', stations_kind='climat', file_format_index='all')

See column names in the given file format, see column names in all file formats, search for a keyword in all file formats:

# column names in the 's_m_d' file format (monthly interval, synoptic station, the first file format from the available file formats)
colnames_in_sdt = cl.i_imgw_search_keywords_in_columns(keywords='', file_format='s_m_d')

# column names in all file formats (if the 'file_format' argument is None, then search in every file format)
colnames_in_all = cl.i_imgw_search_keywords_in_columns(keywords='', file_format=None)

# search for a keyword in all file formats
keywords_in_all = cl.i_imgw_search_keywords_in_columns(keywords='temperatura', file_format=None)

Download climatological data from the WMO database

You can download data from the WMO database for a single station or for an entire country. If you would like to download the data for a single station, pass the station name (usually the city where the station is located) to the station_name argument. If you would like to download the data for an entire country, pass the country name prefixed with cou to the station_name argument (e.g. 'couGERMANY'). There are 5 elements that can be downloaded: mean air temperature ('mean'), precipitation ('preci'), minimum air temperature ('min_temp'), maximum air temperature ('max_temp') and sea level pressure ('sl_press'). To specify which element you would like to download, pass a single string or a list of strings to the elements_to_scrape argument:

import cloupy as cl

single_station = cl.d_wmo_data(station_name='POZNAN', elements_to_scrape=['temp', 'preci', 'sl_press'])
entire_country = cl.d_wmo_data(station_name='couUnited Arab Emirates', elements_to_scrape='temp', return_coordinates=True)

Useful functions for working with the WMO database

You can see all available station and country names with the cl.i_wmo_get_stations() function:

import cloupy as cl

info_df = cl.i_wmo_get_stations()

You can search for the nearest stations to the specified points with the cl.i_wmo_search_near_station() function:

import cloupy as cl

close_to_london = cl.i_wmo_search_near_station(lon=0, lat=51)
higher_acceptable_distance = cl.i_wmo_search_near_station(lon=0, lat=51, degrees_range=3)

Check data continuity

With the cl.check_data_continuity() function you can remove all stations that do not have satisfactory data continuity. The function will group a dataframe by unique values, count number of records for every single station and remove all stations that have too few number of records:

import cloupy as cl

df = cl.d_imgw_data(interval='monthly', stations_kind='synop', years_range=range(1966, 2021))
df = cl.check_data_continuity(df=df, main_column=0, precision=1)

In the example above, the check_data_continuity() groups the dataframe by the unique values in the first column (0 is the index of the dataframe columns), counts the number of records for each station, takes the highest number of records (high_records) and removes stations with the number of records less than the high_records. The precision argument is set to 1, which means that the required number of records to keep a station is equal to 1 * high_records (if high_records is 1000, then the station must have 1000 records to be kept). If the precision argument was 0.5, then the required number of records to keep a station would be equal to 0.5 * high_records (if high_records is 1000, then the station must have at least 500 records to be kept)

Maps

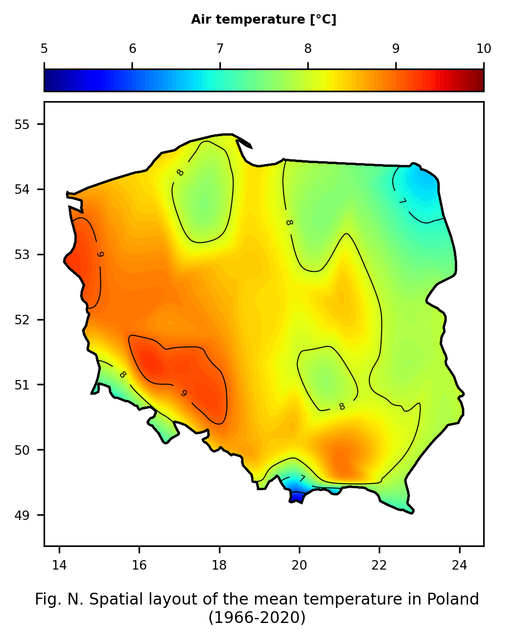

Exemplary interpolation map

import cloupy as cl
import numpy as np

imap = cl.m_MapInterpolation(country='POLAND')

imap.d_imgw_data(
    years_range=range(1966, 2021),
    column_with_values='temp',
    check_continuity=True,
    continuity_precision=1
)
imap.dataframe = imap.dataframe[imap.dataframe.iloc[:, 0] > 5] # filter the dataframe to exclude
                                                               # alpine stations that negatively
                                                               # affect the interpolation result

imap.draw(
    levels=np.arange(5, 10.01, 0.05), # (start, end, step)
    show_contours=True,
    contours_levels=[5, 6, 7, 8, 9, 10],
    clabels_add=[
        (17.5, 54),
        (19.8, 53.5),
        (23, 54),
        (21, 50.8),
        (17, 50.8),
        (15, 53),
        (15.5, 51.1),
        (20, 49.5)
    ],
    cbar_ticks=[5, 6, 7, 8, 9, 10],
    cbar_title='Air temperature [°C]',
    title='Fig. N. Spatial layout of the mean temperature in Poland\n(1966-2020)',
    title_ha='center',
    title_x_position=0.5,
    save='air_temperature_poland.png'
)

The same exemplary map, but without setting the map style and data filtering

Note that in the above code the most of the arguments are not necessary and are only optional for setting the map style - the code for drawing may be significantly shorter. However, in this case the map style may not be satisfactory and not filtered data may affect negatively the interpolation result:

import cloupy as cl

# The map based on the same dataset, but without data filtering and style setting
imap = cl.m_MapInterpolation(country='POLAND')
imap.d_imgw_data(years_range=range(1966, 2021), column_with_values='temp')
imap.draw(save='ugly_map.png')

# The 'save' argument does not have to be specified either - the map will be displayed in your app with
# a lower DPI value, so the quality of the image may be poor. When the map is being saved, the DPI
# value is higher, so the image quality is much better. Different DPIs are used to enhance the
# work - lower DPI makes the map creation process much faster, so it is used to preview the map

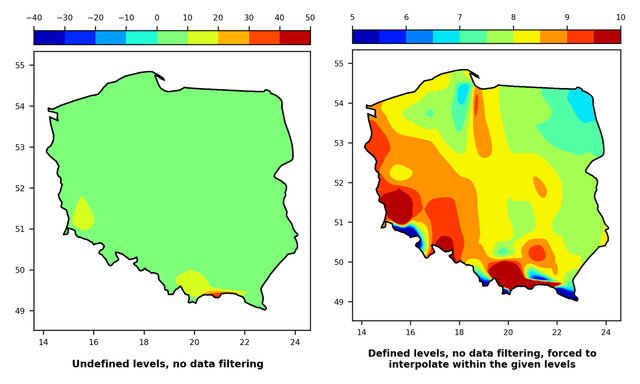

In the figure on the left, no levels were specified and no data was filtered. In the figure on the right, the data was not filtered (alpine stations were still in the dataset, stations with poor data continuity were also in the dataset), but the levels were specified by passing levels=np.arange(5, 10.5, 0.5) to the imap.draw() method. The red spots in the lower parts of the map are the result of the alpine stations in the dataset - due to the significantly deviated values, the interpolation effect is somewhat distorted. The values inside the red spots are much higher than 12°C, so they are not within the specified levels, which would result in the appearance of white spots. However, to the imap.draw() method another argument was passed to force the interpolation process to interpolate within the given levels - interpolation_within_levels=True. When the interpolation_within_levels is set to True, the white spots are replaced with the lowest or highest color level (depending on whether the values are below the specified levels or above the specified levels)

Data filtering is not always necessary, but specifying manually levels is almost always necessary! Nevertheless, to get high-quality interpolation effect, it is recommended to always check the dataset and specify the interpolation levels

Zoom a map to a specific location, show the difference between default style and retro style

Sometimes you may want to highlight a specific region of a country and it is possible by passing the zoom_in argument to the imap.draw() method. This argument is also handy when you are working with a country that has overseas territories (e.g. France) and would like to show only a specific part of the country

The zoom_in argument accepts a list of tuples where the first tuple holds the x-values to which the view will be adjusted, and the second tuple holds the y-values to which the view will be adjusted, e.g. zoom_in=[(16, 18), (50, 51)] will zoom into the region of Poland that is located between 16 and 18 degree of the east longitude and between 50 and 51 degree of the north latitude

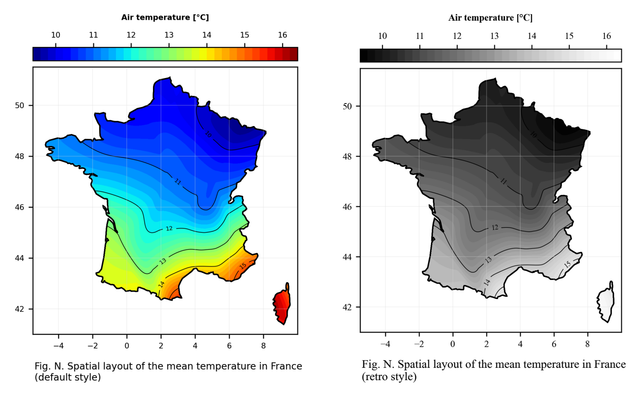

The exemplary maps of France with the zoom_in argument in the default and retro styles:

import cloupy as cl
import numpy as np
import matplotlib.pyplot as plt

# create the interpolation map class and prepare the data
imap=cl.m_MapInterpolation('FRANCE')
imap.d_wmo_data('couFRANCE', 'temp', check_continuity=True)
imap.dataframe = imap.dataframe[imap.dataframe.iloc[:, 0] > 9]  # remove alpine stations

# set the style, modify the map, draw
styles = ['default', 'retro']
for style in styles:

    cl.set_diagStyle(style) # set global style for cloupy

    imap.draw(
        zoom_in=[(-5.5, 10), (41, 51.5)], # zoom into the european part of France
        levels=np.arange(9.4, 16.5, 0.2),
        show_grid=True,
        show_contours=True,
        contours_levels=np.arange(6, 16, 1),
        clabels_add=[
            (5, 49),
            (3, 47),
            (2.5, 45.3),
            (2, 44),
            (2, 43),
            (6.7, 43.8)
        ],
        clabels_inline_spacing=-7,
        xticks=np.arange(-4, 9, 2),
        cbar_ticks=np.arange(9, 17, 1),
        cbar_title='Air temperature [°C]',
        title=f'Fig. N. Spatial layout of the mean temperature in France\n({style} style)',
        save=f'france_mean_temperature_layout_{style}.png'
    )

# merge the maps
fig, (ax1, ax2) = plt.subplots(nrows=1, ncols=2, figsize=(8, 4))
ax1.axis('off')
ax2.axis('off')

img1 = plt.imread('france_mean_temperature_layout_default.png')
img2 = plt.imread('france_mean_temperature_layout_retro.png')

ax1.imshow(img1)
ax2.imshow(img2)

plt.subplots_adjust(wspace=-0.3)
plt.savefig('france_styles_comp.png',
            dpi=300, bbox_inches='tight',
            pad_inches=0.05, facecolor='white'
            )

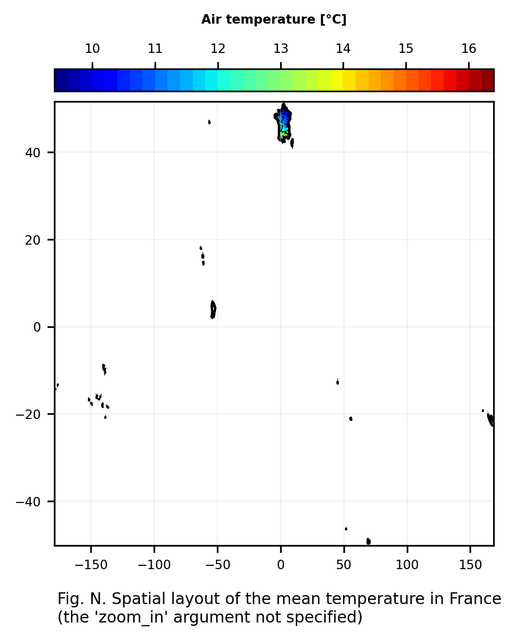

In this case, if the zoom_in argument was not specified, the maps would be completely indecipherable. This is due to the overseas territories of France which affects negatively the interpolation process and the default map zooming (by default the map is being zoomed into the extreme points of the shapefile):

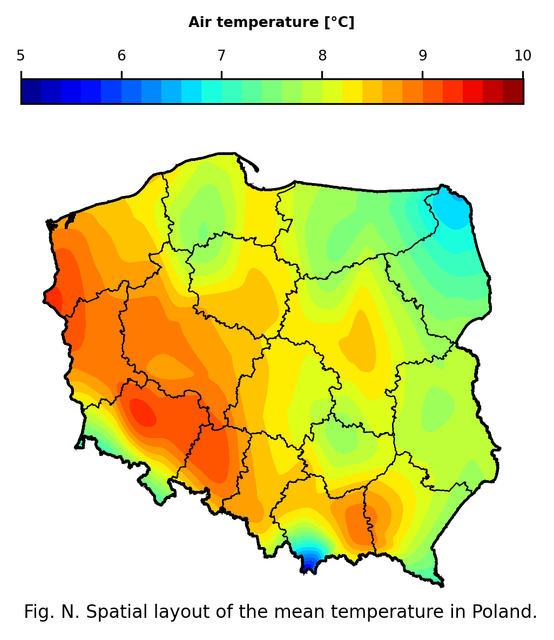

Draw a map from the manually provided data, select a non-default shapefile to draw borders of the country, plot additional shapes from an additional shapefile

The country borders do not have to be drawn from the default cloupy shapefile - you can provide your own non-default shapefile by passing its path to the shapefile_path argument of the cl.m_MapInterpolation() class

What is more, it is also possible to draw additional shapes (e.g. states, voivodeships, rivers, lakes) by passing a dictionary to the add_shapes argument of the imap.draw() method. The dictionary keys must be shapes' paths and the dictionary values must be style/coordinates system set arguments. The dictionary values must be a single str in which arguments are separated by commas, e.g.:

add_shapes={
    'path/to/the/shapefile': 'crs=epsg:4326, linestyle=solid, linewidth=0.5',
    'path/to/another/shapefile': 'crs=epsg:2180,color=red,fill_color=blue'
}

The data for a map can be provided manually by passing a pandas.DataFrame() object to the dataframe argument of the cl.m_MapInterpolation():

import cloupy as cl

df = cl.d_imgw_data(
    interval='monthly', stations_kind='synop',
    years_range=range(1966, 2021), return_coordinates=True
)

df = df.iloc[:, [1, 12, -3, -2]] # remove unnecessary columns from the data
df = cl.check_data_continuity(df=df, main_column=0, precision=1) # check data continuity
df = df.groupby('Nazwa stacji').mean() # calc the mean values for the stations
df = df[df.iloc[:, 0] > 5] # remove alpine stations which deviates significantly from the rest

When the dataframe meets the required data structure (see cl.m_MapInterpolation docs for more detailed information) for the interpolation map, it can be passed to the cl.m_MapInterpolation() class. So, if you want to provide the data manually, draw non-default borders and additional shapes, the code will look like this:

import numpy as np

imap = cl.m_MapInterpolation(
    shapefile_path='path/to/shapefile', # specify the path to your non-default shapefile
    crs='epsg:4326', # specify the shapefile coordinates system
    dataframe=df # pass manually the dataframe
)

imap.draw(
    levels=np.arange(5, 10.2, 0.2),
    add_shape={
        'path/to/addit/shapefile': 'crs=epsg:4326, linewidth=0.5, linestyle=solid, color=black'
    },   # specify the path to the additional shapefile (as key) and its settings (as value)
    show_coordinates=False,
    show_frame=False,
    cbar_ticks=np.arange(5, 11, 1),
    cbar_title='Air temperature [°C]',
    title='Fig. N. Spatial layout of the mean temperature in Poland.',
    title_y_position=0.15,
    save='non-default_borders_and_additional_shp.png'
)

For the above map, the shapefiles were downloaded from the GADM website under GADM license.

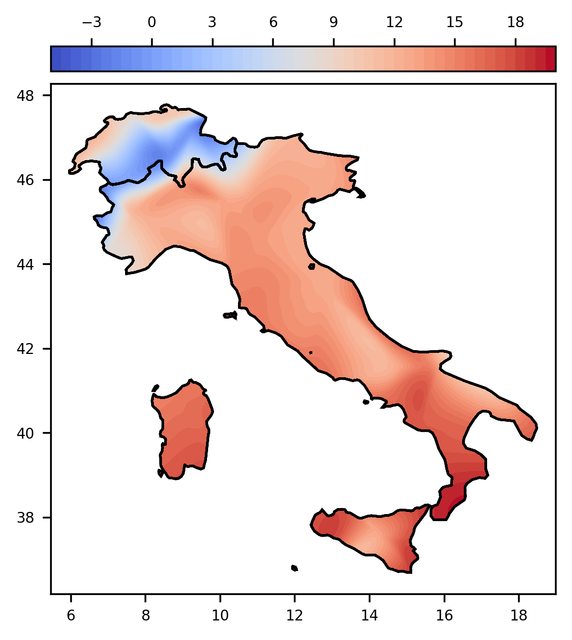

Import the data for drawing the interpolation map from the global dataframe and draw multi-country map. Zoom to a specific area without changing the extrapolation points

import cloupy as cl
import pandas as pd
import numpy as np

countries = ['ITALY', 'SWITZERLAND']
global_df = pd.DataFrame(columns=['station', 'year', 'month', 'temp', 'lon', 'lat', 'elv'])
for country in countries:
    data_for_country = cl.d_wmo_data(
        station_name='cou' + country,
        elements_to_scrape='temp',
        return_coordinates=True
    )
    global_df = global_df.append(data_for_country)

cl.set_global_df(global_df)
imap = cl.m_MapInterpolation(country=countries)
imap.import_global_df(
    columns_order=[0, 3, 4, 5],
    check_continuity=True,
    continuity_precision=0.2
)

# in this case, there is no need to remove the alpine stations (they are significantly relevant)
imap.draw(
    levels=np.arange(-5, 20.5, 0.5),
    cmap='coolwarm',
    save='multiple_countries.png'
)

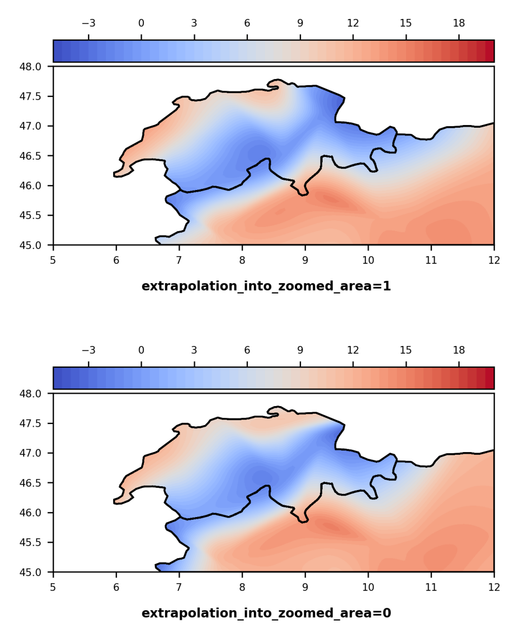

If you wished to take a closer look at the situation on the Italian-Swiss border, you could use the zoom_in argument of the imap.draw() method. You may notice some slight differences in the colors' layout between the map before zooming in and the map after zooming in. The differences result from different extrapolation points, which are always in the corners of the plot (when you zoom into a specific area, it means that you change the corner points of the plot, which affects the extrapolation result). You can force the imap.draw() method to extrapolate the values to the points of the original plot (before zooming) by setting the extrapolation_into_zoomed_area argument to False:

import matplotlib.pyplot as plt

# draw maps (1 = True, 0 = False)
for boolean in [1, 0]:
    imap.draw(
        levels=np.arange(-5, 20.5, 0.5),
        cmap='coolwarm',
        zoom_in=[(5, 12), (45, 48)],
        extrapolation_into_zoomed_area=boolean,
        figsize=(5, 2.5),
        title=f'extrapolation_into_zoomed_area={boolean}',
        title_ha='center',
        title_x_position=0.5,
        title_y_position=0,
        title_bold=True,
        save=f'multiple_countries_zoomed_in_{boolean}.png'
    )

# merge the maps
fig, (ax1, ax2) = plt.subplots(nrows=2, ncols=1, figsize=(4, 8))
ax1.axis('off')
ax2.axis('off')

img1 = plt.imread('multiple_countries_zoomed_in_1.png')
img2 = plt.imread('multiple_countries_zoomed_in_0.png')

ax1.imshow(img1)
ax2.imshow(img2)

plt.subplots_adjust(hspace=-0.5)
plt.savefig('multpile_countries_extr_into_comp.png',
            dpi=300, bbox_inches='tight',
            pad_inches=0.05, facecolor='white'
            )

As you can see, the slight differences are noticeable in the color layout. The extrapolation_into_zoomed_area argument must be set to True if the zoom_in argument is used for zooming into a specific part of the country that has overseas territories (like in the example of France above). If the extrapolation_into_zoomed_area argument was set to False in the case of France, the method would extrapolate values to the corners of the original plot (the plot before zooming, so the interpolation result in the European France would be completely distorted). In the case of Italy and Switzerland, some slight differences are noticeable, but these differences are still acceptable. However, if you want to zoom into a specific part of the map with preserving the original color/contours layout, you can set the extrapolation_into_zoomed_area argument to False

Graphs

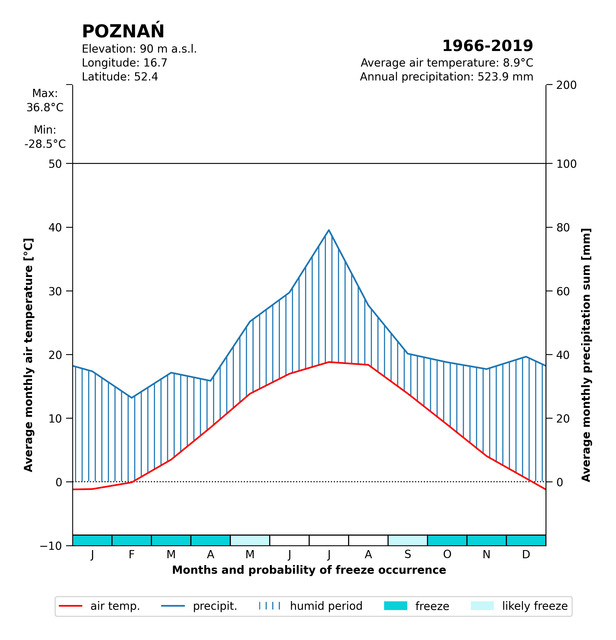

Download climatological data for the station in Poznań (WMO ID: 12330) from the IMGW database and draw a Walter-Lieth diagram

import cloupy as cl

wl = cl.g_WalterLieth(station_name='POZNAŃ')
wl.d_imgw_data(years_range=range(1966, 2020))
wl.draw()

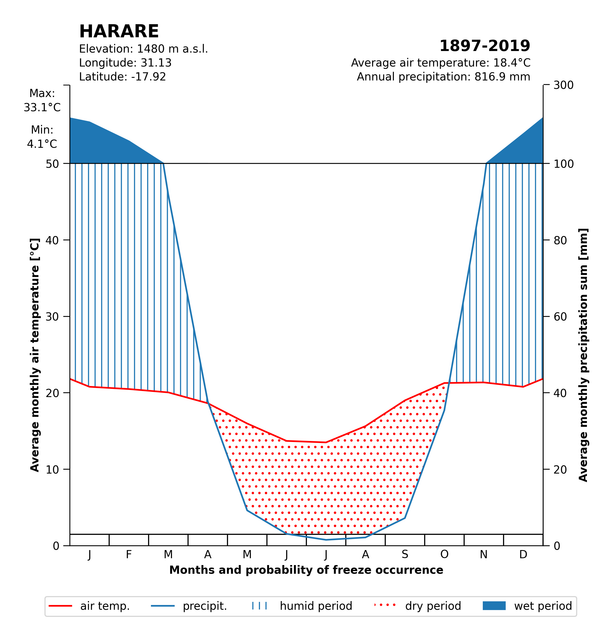

Download climatological data for the station in Harare (WMO ID: 67775) from the WMO database and draw a Walter-Lieth diagram

import cloupy as cl

wl = cl.g_WalterLieth(station_name='HARARE')
wl.d_wmo_data()
wl.draw()

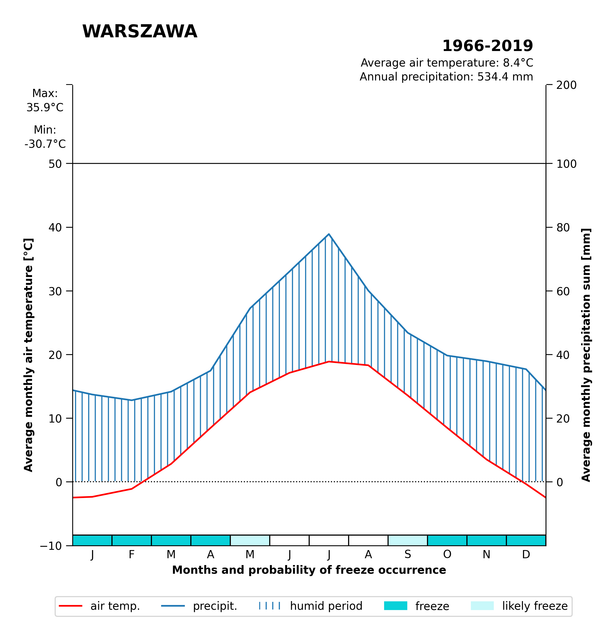

Download data, set as global dataframe and draw a Walter-Lieth diagram based on the global dataframe

import cloupy as cl

global_df = cl.d_imgw_data(
    interval='monthly',
    stations_kind='synop',
    years_range=range(1966, 2020)
    )
cl.set_global_df(global_df)

wl = cl.g_WalterLieth('WARSZAWA')
wl.import_global_df(columns_order='imgw_monthly')
wl.draw()

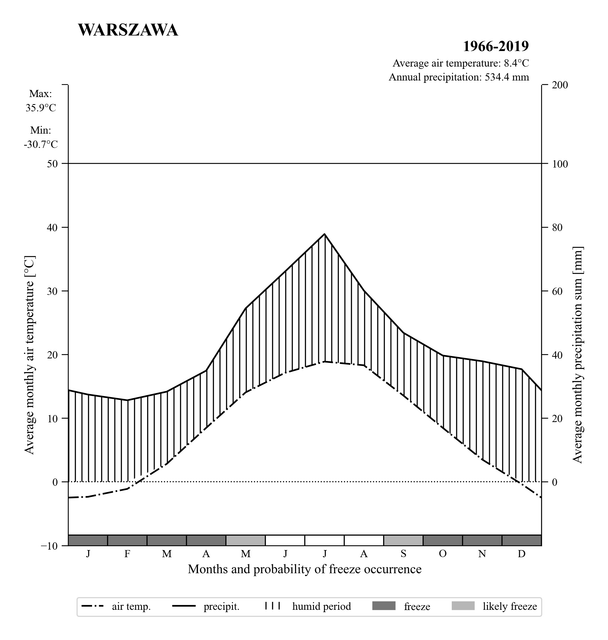

The graph style that better fits a scientific article

cl.set_diagStyle('retro')
wl.draw()

Select which graph elements are to be drawn

As you can see, the graph for POZNAŃ displays information about the coordinates, while the graphs for WARSZAWA do not. The coordinates for POZNAŃ are automatically imported when the wl.d_imgw_data() method is used. However, when we import data from the global dataframe for WARSZAWA, the wl.import_global_df() method does not add coordinates automatically and the coordinates have to be added manually when the cl.g_WalterLieth() object is being created. In our case, for the graph for WARSZAWA it would be:

wl = cl.g_WalterLieth(station_name='WARSZAWA', lat=52.2, lon=21.0, elevation=100)

Now the wl.draw() method will display the coordinates box. So, if the cl.g_WalterLieth() object does not find the unnecessary data, it will just simply not display missing values. What is more, you can manually decide which elements on the graph are to be drawn

The wl.draw() method takes several arguments that let you decide which element on the graph will be displayed. For example, if you do not want to display the title (which actually is the station name), the yearly means box and the bottom freeze rectangles, you have to pass the following arguments to the wl.draw() method:

wl.draw(title_text=False, yearly_means_box=False, freeze_rectangles=False)

Provide drawing data manually

cloupy graphs can be drawn from the data provided manually. Every graph has its required data structure which must be preserved in the pandas.DataFrame() object. For a Walter-Lieth graph, the pandas.DataFrame() object must contain 5 or 6 columns, depending on the data interval (5 for a monthly interval, 6 for a daily interval). Data can be passed to the dataframe argument in the cl.g_WalterLieth() object. For example, the process might look like this:

import cloupy as cl
import pandas as pd

data = pd.DataFrame(
    {
        'months': [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12],
        'temp': [-2, -1, 0, 7, 15, 18, 19, 20, 18, 14, 8, 3],
        'preci': [50, 25, 55, 60, 70, 80, 90, 80, 68, 50, 45, 49],
        'max_temp': [10, 15, 17, 18, 19, 20, 35, 34, 25, 20, 15, 10],
        'min_temp': [-36, -29, -20, -15, -5, -1, 1, 2, -1, -4, -18, -22]
                            }
)
wl = cl.g_WalterLieth(station_name='TEST', dataframe=data)
wl.draw()

More detailed information on the required data structure is available in the graphs classes docstrings

Recap of the drawing process

cloupy drawing system is easy and can be summarized as follows:

• create a graph/map class, provide data for further processing and drawing (follow required data structure)
• optionally, use the graph/map class methods to download and process data
• use the draw() method to specify the graph/map style

Brief Documentation (the most important functions and classes)

DATA PROCESSING FUNCTIONS/CLASSES

• check_data_continuity -> check data continuity and return a dataframe with the filtered values
• set_global_df(...) -> set global data frame from which data can be imported in any time
• read_global_df(...) -> return the global data frame as pandas.DataFrame

DATA SCRAPING FUNCTIONS

• d_imgw_data(...) -> download IMGW data files from the IMGW database and return it as one merged pd.DataFrame
• i_imgw_get_file_formats(...) -> return the available file formats for the given 'interval' and 'stations_kind' in the IMGW database (different file formats contain different data)
• i_imgw_search_keywords_in_columns(...) -> search for the given keywords in the column names and return a dictionary with the file formats in which the keywords were found
• d_wmo_data(...) -> download climatological data for specified station/stations from the WMO website
• i_wmo_get_stations(...) -> return pandas.DataFrame with WMO stations information (WMO ids, coordinates, etc.)
• i_wmo_search_near_station(...) -> return the nearest stations from WMO database for the given coordinates

DATA VISUALIZATION FUNCTIONS

• set_diagStyle(...) -> choose global style for diagrams
• change_diagStyle_params(...) -> change global parameters for drawing diagrams

DATA VISUALIZATION CLASSES

Note that every class for drawing diagrams contains some of the above functions as its methods (for data scraping and processing)

• m_MapInterpolation(...) -> create a MapInterpolation class where the data for drawing an interpolation map can be downloaded, modified, manually provided
• g_WalterLieth(...) -> create a WalterLieth object where the data for drawing a Walter-Lieth diagram can be downloaded, modified, manually provided

More detailed documentation for every function, class and method is available in the cloupy's Python files

Future Features

• more climatological data processing functions (e.g. completing missing data)
• more climatological graphs

Dependencies

Packages/libraries:

• Pandas version: 1.1.4; 1.3.5 or higher
• Matplotlib version: 3.3.2; 3.4.3 or higher
• Requests version: 2.24.0; 2.26.0 or higher
• bs4 version: 4.9.3 or higher
• pyshp version: 2.1.3
• pyproj version: 3.2.1 or higher
• scipy version: 1.7.2 or higher
• Numpy version: 1.19.4; 1.21.4 or higher
• Pillow version: 8.4.0 or higher
• cycler version: 0.11.0
• Pytest version: 6.2.5 or higher (only for running tests)
• Mock version: 4.0.3 or higher (only for running tests)

Python version: 3.8.2; 3.9.6, 3.10.2

OS: Windows; Linux

All the above versions of packages/Python have been tested. Note that cloupy should also be compatible with the versions between mentioned (e.g. cloupy should work fine on any Pandas' version between 1.1.4 and 1.3.5; any Python version between 3.8.2 and 3.9.6). However, it has not been tested and it is recommended to use the most recent version of the packages/libraries and Python.

Running Tests

To run tests, run the following command from the root directory:

# change directory to the cloupy root directory, for example:
cd c:\Python\Lib\site-packages\cloupy

python -m pytest

If you want to run only unit/integration testing:

python -m pytest test\test_unit

python -m pytest test\test_integration

Note that the integration testing may take some time (during the process, data downloading functions are being tested, so duration depends on several factors). The process usually takes about 9-10 minutes

If you want to skip data downloading tests, run the following command:

python -m pytest -k "not downloading"

Support

For support, please contact me via email: [e-mail]

If you want to report a bug, see CONTRIBUTING.md

License

cloupy is licensed under MIT.

Author

@Kamil Grala
