cma 4.4.4

CMA-ES, Covariance Matrix Adaptation Evolution Strategy for non-linear numerical optimization in Python

The CMA-ES is a randomized derivative-free numerical optimization algorithm for difficult (non-convex, ill-conditioned, multi-modal, rugged, noisy) optimization problems in continuous or mixed-integer search spaces, implemented in Python.

The typical domain of application are objective functions with:

• search space dimension between five and a few hundred,

• dependent decision variables (non-separable)

• gradients not being available or useful,

• at least, say, 100 times dimension function evaluations possible and needed to get a satisfactory solution,

• ill-conditioned or rugged or multi-modal landscapes.

The handling of

• bound constraints via the 'bounds' = [lower, upper] option or the cma.BoundDomainTransform wrapper

• linear and nonlinear constraints via the constraints argument to fmin2 or fmin_con2

• noise via noise_handler=True as argument to fmin2

• integer variables for mixed-integer problems via the 'integer_variables'=index_list option

is available too. The CMA-ES is quite reliable, however for small budgets (fewer function evaluations than 100 times dimension) or in very small dimensions faster methods are available.

The pycma module provides two independent implementations of the CMA-ES algorithm in the classes cma.CMAEvolutionStrategy and a basic implementation cma.purecma.CMAES.

Installation

In the terminal command line type

python -m pip install cma

The package will be downloaded and installed automatically. To upgrade an existing installation, ‘install’ must be replaced by ‘install -U’. For the documentation of pip, see here.

Alternatively, download and unpack the cma-...tar.gz file under the above Download files link. The folder cma from the tar archive can be used without any installation (for import to find it, it must be in the current folder or the Python search paths) or can be installed by pip install -e ..

Usage Example

In a Python shell:

>>> import cma
>>> help(cma)
    <output omitted>
>>> es = cma.CMAEvolutionStrategy(8 * [0], 0.5)
(5_w,10)-aCMA-ES (mu_w=3.2,w_1=45%) in dimension 8 (seed=468976, Tue May  6 19:14:06 2014)
>>> help(es)  # the same as help(cma.CMAEvolutionStrategy)
    <output omitted>
>>> es.optimize(cma.ff.rosen)
Iterat #Fevals   function value    axis ratio  sigma  minstd maxstd min:sec
    1      10 1.042661803766204e+02 1.0e+00 4.50e-01  4e-01  5e-01 0:0.0
    2      20 7.322331708590002e+01 1.2e+00 3.89e-01  4e-01  4e-01 0:0.0
    3      30 6.048150359372417e+01 1.2e+00 3.47e-01  3e-01  3e-01 0:0.0
  100    1000 3.165939452385367e+00 1.1e+01 7.08e-02  2e-02  7e-02 0:0.2
  200    2000 4.157333035296804e-01 1.9e+01 8.10e-02  9e-03  5e-02 0:0.4
  300    3000 2.413696640005903e-04 4.3e+01 9.57e-03  3e-04  7e-03 0:0.5
  400    4000 1.271582136805314e-11 7.6e+01 9.70e-06  8e-08  3e-06 0:0.7
  439    4390 1.062554035878040e-14 9.4e+01 5.31e-07  3e-09  8e-08 0:0.8
>>> es.result_pretty()  # pretty print result
termination on tolfun=1e-11
final/bestever f-value = 3.729752e-15 3.729752e-15
mean solution: [ 1.          1.          1.          1.          0.99999999  0.99999998
  0.99999995  0.99999991]
std deviation: [  2.84303359e-09   2.74700402e-09   3.28154576e-09   5.92961588e-09
   1.07700123e-08   2.12590385e-08   4.09374304e-08   8.16649754e-08]

optimizes the 8-dimensional Rosenbrock function with initial solution all zeros and initial sigma = 0.5.

Pretty much the same can be achieved with the “one-liner”

>>> import cma
>>> xopt, es = cma.fmin2(cma.ff.rosen, 8 * [0], 0.5)
    <output omitted>

where cma.fmin2 provides also options for restarts.

The same can be run via the ask-and-tell interface which gives the user direct control over the iteration loop of the algorithm:

>>> import cma
>>> es = cma.CMAEvolutionStrategy(12 * [0], 0.5)
>>> while not es.stop():
...     solutions = es.ask()
...     es.tell(solutions, [cma.ff.rosen(x) for x in solutions])
...     es.logger.add()  # write data to disc to be plotted
...     es.disp()
    <output omitted>
>>> es.result_pretty()
    <output omitted>

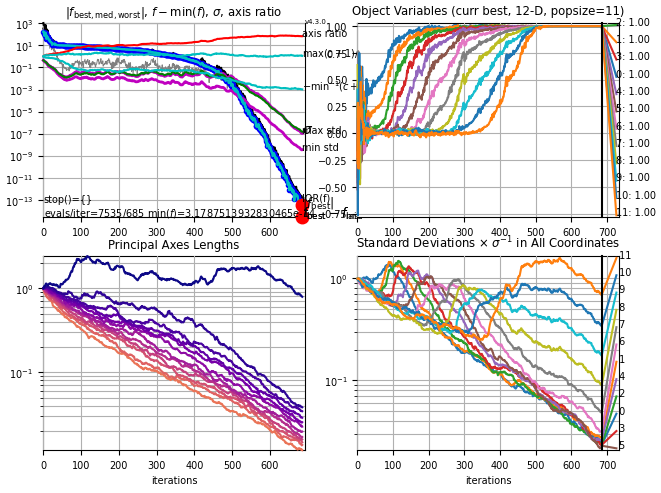

>>> cma.plot()  # shortcut for es.logger.plot()

A single run on the 12-dimensional Rosenbrock function.

The CMAOptions class manages the options for CMAEvolutionStrategy. The options class allows for substring search. For example, verbosity options can be found like

>>> import cma
>>> cma.s.pprint(cma.CMAOptions('erb'))
{'verb_log': '1  #v verbosity: write data to files every verb_log iteration, writing can be time critical on fast to evaluate functions'
 'verbose': '1  #v verbosity e.v. of initial/final message, -1 is very quiet, not yet implemented'
 'verb_plot': '0  #v in fmin(): plot() is called every verb_plot iteration'
 'verb_disp': '100  #v verbosity: display console output every verb_disp iteration'
 'verb_filenameprefix': 'outcmaes  # output filenames prefix'
 'verb_append': '0  # initial evaluation counter, if append, do not overwrite output files'
 'verb_time': 'True  #v output timings on console'}

Options are passed as another argument, after sigma, to cma.fmin2 or cma.CMAEvolutionStrategy like

>>> import cma
>>> es = cma.CMAEvolutionStrategy(8 * [0], 0.5,
                                  {'verb_disp': 1}) # display each iteration

Documentations

The full package API documentation:

• current

• version 1.x

See also

• Links to more documentation

• An FAQ (under development)

• General CMA-ES source code page with practical hints

• CMA-ES on Wikipedia

Dependencies

• required (unless for cma.purecma): numpy – array processing for numbers, strings, records, and objects

• optional (highly recommended): matplotlib – Python plotting package (includes pylab)

Use pip install numpy etc. for installation. The cma.purecma submodule can be used without any dependencies installed.

License: BSD-3-Clause
