collectd-plugin-VMG1312-xDSL 1.0.5

A collectd module written in Python for getting the xDSL status of Zyxel VMG1312 modems/routers

collectd-plugin-VMG1312-B30A-xDSL

Supported hardware

This is a collectd plugin for monitoring the xDSL status of Zyxel VMG1312 VDSL/VDSL2 modems/routers.

I developed and tested it with the B30A-version (a VDSL2-Vectoring modem for Germany) of this modem, but it might work as well with other variants.

Supported parameters

This plugin reads the xDSL-status only!

For reading things like interface-counters etc. the modem has an SNMP-server that can be used. Unfortunately this SNMP-server does not serve the xDSL-status (facepalm!), that's where this plugin comes into place.

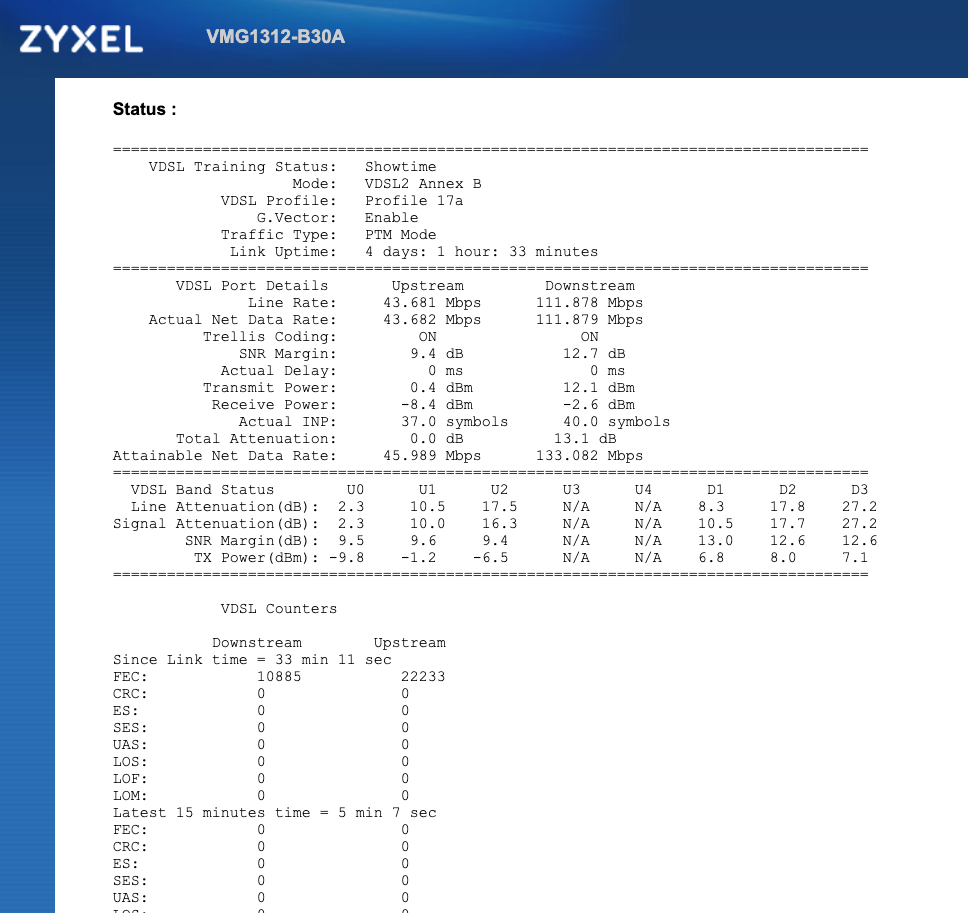

If your modem has a page like the one shown below, this plugin will probably be able to read all status parameters of the first three sections. The "VDSL Counters" section won't be a read - I don't see much use in reading these.

Dependencies

• collectd 4.9+

Installation

1. pip3 install collectd-plugin-VMG1312-xDSL
2. Configure the plugin as shown below
3. Restart collectd

Configuration

LoadPlugin python
<Plugin python>
    Import "VMG1312_xDSL"

    <Module VMG1312_xDSL>
        URL "http://<ip_of_your_modem>"
        User "admin"
        Password "1234"
    </Module>
</Plugin>

License

This project is licensed under the terms of the GPLv3 license.

Build

python setup.py sdist

twine upload dist/*
