compressnets 1.1.2

Package for temporal network data compression

compressnets

Compressnets is a Python package designed to compress high-resolution temporal network data (eg. contact networks) to lower resolution, while maintaining important temporal structural features.

Compressnets is designed for taking sequences of static networks (represented as adjacency matrices) and compressing them to a user-specified reduced number of adjacency matrices. For example, say you have contact data at the resolution of 20 seconds, over the course of 24 hours, which can be represented as 4,320 adjacency matrices. You might wish to compress the data from the original 4,320 adjacency matrices into the best 20 adjacency matrices that best represent the temporal dynamics. The compressnets package can help you to progressively aggregate the data into the best 20 representative "snapshots" (single static network valid for a duration of time).

Pre-print with further details on the compression algorithm and theoretical framework is available on the arXiv.

Most basic usage

This example is just to show how to use the package. In practice, 3 starting snapshots is unrealistic as there wouldn't be a need to use an algorithm for compressing 3 snapshots into 2, so this example just demonstrates package usage in a simple way. See below for a usage demo using a built-in sample network.

To use compressnets, install the package via the PyPi index via pip install compressnets.

The core elements of compressnets are the objects, network.TemporalNetwork and network.Snapshot, and the algorithm compression.Compressor.compress(...).

Follow along the following example in your own Python workspace with

from compressnets import compression, network

As an example, create NumPy arrays to represent your adjacency matrices (or load them from data via your own code):

matrix_1 = np.array([[0, 0, 1],[0, 0, 1],[1, 1, 0]])
matrix_2 = np.array([[0, 1, 1],[1, 0, 1],[1, 1, 0]])
matrix_3 = np.array([[0, 1, 0],[1, 0, 1],[0, 1, 0]])

Next, you will be creating Snapshot objects out of your arrays. A snapshot is simply an adjacency matrix coupled with a start time, end time, and beta value, which will be used in the computation process for the compression algorithm.

Note: While the durations of each snapshot may vary in length from one another, the end_time of one snapshot should be the start_time of the next one. In other words, there should not be gaps in your snapshots.

Note: It's also best practice to set the very first start_time as 0. The to_snapshot_list() helper function will do this automatically, but if you configure snapshots by hand, be sure to standardize to start at 0.

If the duration of all of your snapshots is uniform, you can use the TemporalData object as a helper object to quickly make a series of snapshots using your list of adjacency matrices, like this:

infect_rate = 0.5
your_temporal_data = network.TemporalData([matrix_1, matrix_2, matrix_3], interval=1, beta=infect_rate)
snapshots = your_temporal_data.to_snapshot_list()

See section below on choosing beta, but for this example, it can be any value between 0 and 1.

Note: beta should be the same for all snapshots in the list.

If your snapshots have custom durations and are not all equal to the same interval, you can instead create your own list of Snapshot objects from your arrays, equipped with a consecutive start and end time for each, (instead of using the TemporalData helper):

snapshots = [network.Snapshot(start_time=0, end_time=1, beta=infect_rate, A=matrix_1),
             network.Snapshot(start_time=1, end_time=2, beta=infect_rate, A=matrix_2),
             network.Snapshot(start_time=2, end_time=3, beta=infect_rate, A=matrix_3)]

Either way, once you have a list of Snapshot objects, then create a TemporalNetwork object to contain all of your ordered snapshots:

your_temporal_network = network.TemporalNetwork(snapshots)

Using the algorithmic compression from our paper [link], you can compress the temporal network into a desired number of compressed snapshots (in this example, 2), by calling on an instance of the static Compressor class

your_compressed_network_result = compression.Compressor.compress(your_temporal_network,
                                                          compress_to=2,
                                                          how='optimal')

which will return the new TemporalNetwork object, and also the total induced error from the snapshots that were selected for compression. The elements can be accessed via a dictionary as

your_compressed_network = your_compressed_network_result["compressed_network"]
total_induced_error = your_compressed_network_result["error"]

To compress your original network into an even division and aggregation of snapshots, not using our algorithm, you can call compress and changing the how argument to even:

your_even_compressed_network_result = compression.Compressor.compress(your_temporal_network,
                                                          compress_to=2,
                                                          how='even')
even_compressed_network = your_even_compressed_network_result["compressed_network"]

From the resulting compressed TemporalNetwork objects, you can now access your snapshots as you would with your original temporal network, by accessing the snapshots member via

your_new_snapshots = your_compressed_network.snapshots

from which you can access each snapshot's new duration, adjacency matrix, start and end times.

Usage using demo network

For a more involved demo, make use of the compressnets.demos module to access a more complex temporal network without having to create one yourself. Follow the code below in your own workspace to use a sample temporal network to compress it, and visualize a system of ODEs over the compressed network vs. the original temporal solution.

from compressnets import compression, network, demos, solvers

demo_network = demos.Sample.get_sample_temporal_network()
compressed_optimal = compression.Compressor.compress(demo_network, compress_to=4, how='optimal')["compressed_network"]
compressed_even = compression.Compressor.compress(demo_network, compress_to=4, how='even')["compressed_network"]

Now you have the resulting compressed temporal networks for the optimal (algorithmic) method and from an even aggregation method.

To visualize the new time boundaries of each aggregated snapshot, and compare a full Susceptible-Infected disease spread process against the fully temporal network, you can utilize the compressnets.solvers module to solve a system of ODEs and plot the resulting figure:

## Creating and solving a model with the original temporal network

N = demo_network.snapshots[0].N
beta = demo_network.snapshots[0].beta
model = solvers.TemporalSIModel({'beta': beta}, np.array([1/N for _ in range(N)]),
                                demo_network.snapshots[demo_network.length-1].end_time,
                                demo_network)
soln = model.solve_model()
smooth_soln = model.smooth_solution(soln)
plt.plot(smooth_soln[0], smooth_soln[1], color='k', label='Temporal solution')
plt.vlines(list(demo_network.get_time_network_map().keys()), ymin=0, ymax=N/3, ls='-',
          lw=0.5, alpha=1.0, color='k')


## Creating and solving a model with the algorithmically compressed temporal network

N = compressed_optimal.snapshots[0].N
beta = compressed_optimal.snapshots[0].beta
model = solvers.TemporalSIModel({'beta': beta}, np.array([1/N for _ in range(N)]),
                                compressed_optimal.snapshots[compressed_optimal.length-1].end_time,
                                compressed_optimal)
soln = model.solve_model()
smooth_soln = model.smooth_solution(soln)
plt.plot(smooth_soln[0], smooth_soln[1], color='b', label='Optimal compressed')
plt.vlines(list(compressed_optimal.get_time_network_map().keys()), ymin=N/3, ymax=2*N/3, ls='-',
          lw=0.5, alpha=1.0, color='b')


## Creating and solving a model with the evenly compressed temporal network

N = compressed_even.snapshots[0].N
beta = compressed_even.snapshots[0].beta
model = solvers.TemporalSIModel({'beta': beta}, np.array([1/N for _ in range(N)]),
                                compressed_even.snapshots[compressed_even.length-1].end_time,
                                compressed_even)
soln = model.solve_model()
smooth_soln = model.smooth_solution(soln)
plt.plot(smooth_soln[0], smooth_soln[1], color='r', label='Even compressed')
plt.vlines(list(compressed_even.get_time_network_map().keys()), ymin=2*N/3, ymax=N, ls='-',
          lw=0.5, alpha=1.0, color='r')

plt.ylabel('Number infected')
plt.xlabel('Time')
plt.legend()
plt.show()

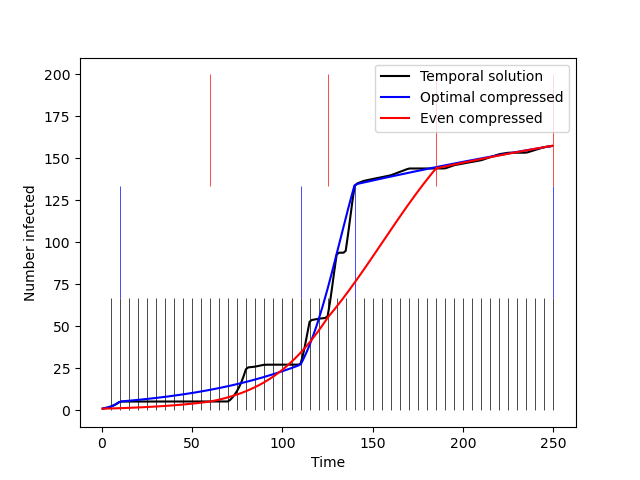

Output figure from the sample code above using the provided demo temporal network. The original temporal network has 50 snapshots and is compressed down to 4 snapshots. In blue, you see the resulting temporal boundaries of the 4 snapshots compressed using our algorithm. In red, you see the resulting temporal boundaries of the 4 snapshots compressed into even-size aggregate matrices. The time series represent an SI epidemic process over the 3 versions of the network.

Choosing the infect rate beta

The best beta value to choose for your series of networks is one that, given an SI process over the full sequence of temporal networks, won't saturate (infect the entire network) too quickly, but that also provides rich enough dynamics that can be observed.

One way to test if a given beta value is appropriate is to use the solvers module. The same module that is shown in the demo to assess how your compression performed is also just as useful for a pre-analysis of your system.

For example, running just the top block of the demo above will give you a time series solution on your full temporal network:

N = demo_network.snapshots[0].N
beta = YOUR_CHOSEN_VALUE
model = solvers.TemporalSIModel({'beta': beta}, np.array([1/N for _ in range(N)]),
                                demo_network.snapshots[demo_network.length-1].end_time,
                                demo_network)
soln = model.solve_model()
smooth_soln = model.smooth_solution(soln)
plt.plot(smooth_soln[0], smooth_soln[1], color='k', label='Temporal solution')

You can try out a range of different beta values until you see a time series solution that doesn't saturate too quickly and also doesn't die off. The compression algorithm is robust to a range of values around your specified value, so no need to worry about a precise value of beta, just one that's in the appropriate range for the epidemic dynamics to be observed.

Citation

If you use this package, please name your use of this package as well as the original paper on the framework, as

Allen, Andrea J. and Moore, Cristopher and Hébert-Dufresne, Laurent. A network compression approach for quantifying the importance of temporal contact chronology. Preprint at https://arxiv.org/abs/2205.11566 (2022).

Code written and maintained by Andrea Allen.
