A scikit-learn meta-estimator for computing tight conformal predictions
Project description
👖 Conformal Tights
A scikit-learn meta-estimator that adds conformal prediction of coherent quantiles and intervals to any scikit-learn regressor. Features:
- 🍬 Meta-estimator: add prediction of quantiles and intervals to any scikit-learn regressor
- 🌡️ Conformally calibrated: accurate quantiles, and intervals with reliable coverage
- 🚦 Coherent quantiles: quantiles increase monotonically instead of crossing each other
- 👖 Tight quantiles: selects the lowest dispersion that provides the desired coverage
- 🎁 Data efficient: requires only a small number of calibration examples to fit
- 🐼 Pandas support: optionally predict on DataFrames and receive DataFrame output
Using
Installing
First, install this package with:
pip install conformal-tights
Predicting quantiles
Conformal Tights exposes a meta-estimator called ConformalCoherentQuantileRegressor
that you can use to wrap any scikit-learn regressor, after which you can use predict_quantiles
to predict conformally calibrated quantiles. Example usage:
from conformal_tights import ConformalCoherentQuantileRegressor
from sklearn.datasets import fetch_openml
from sklearn.model_selection import train_test_split
from xgboost import XGBRegressor
# Fetch dataset and split in train and test
X, y = fetch_openml("ames_housing", version=1, return_X_y=True, as_frame=True, parser="auto")
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.15, random_state=42)
# Create a regressor, wrap it, and fit on the train set
my_regressor = XGBRegressor(objective="reg:absoluteerror")
conformal_predictor = ConformalCoherentQuantileRegressor(estimator=my_regressor)
conformal_predictor.fit(X_train, y_train)
# Predict with the wrapped regressor
ŷ_test = conformal_predictor.predict(X_test)
# Predict quantiles with the conformal wrapper
ŷ_test_quantiles = conformal_predictor.predict_quantiles(X_test, quantiles=(0.025, 0.05, 0.1, 0.9, 0.95, 0.975))
When the input data is a pandas DataFrame, the output is also a pandas DataFrame. For example, printing the head of ŷ_test_quantiles
yields:
house_id | 0.025 | 0.05 | 0.1 | 0.9 | 0.95 | 0.975 |
---|---|---|---|---|---|---|
1357 | 114784 | 120894 | 131618 | 175761 | 188052 | 205449 |
2367 | 67417 | 80074 | 86754 | 117854 | 127583 | 142322 |
2822 | 119423 | 132048 | 138725 | 178526 | 197246 | 214206 |
2126 | 94031 | 99850 | 110891 | 150249 | 164703 | 182528 |
1544 | 68996 | 81516 | 88232 | 121774 | 132425 | 147110 |

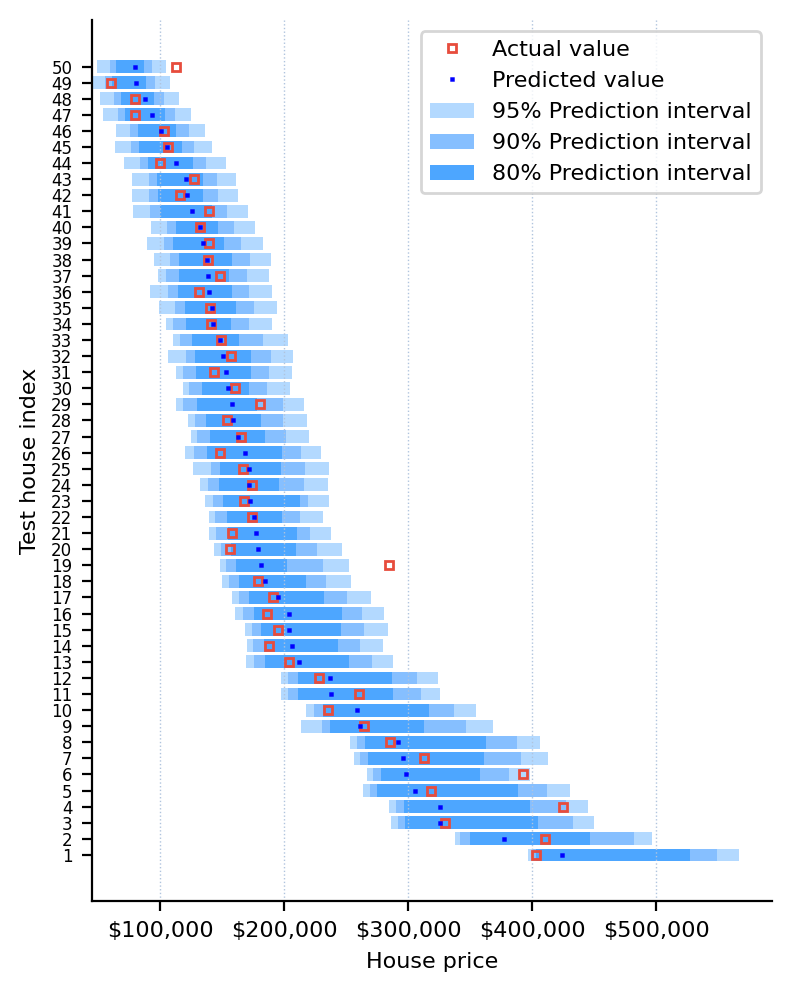

Let's visualize the predicted quantiles on the test set:
Expand to see the code that generated the graph above
import matplotlib.pyplot as plt
import matplotlib.ticker as ticker
%config InlineBackend.figure_format = "retina"
plt.rcParams["font.size"] = 8
idx = (-ŷ_test.sample(50, random_state=42)).sort_values().index
y_ticks = list(range(1, len(idx) + 1))
plt.figure(figsize=(4, 5))
for j in range(3):
end = ŷ_test_quantiles.shape[1] - 1 - j
coverage = round(100 * (ŷ_test_quantiles.columns[end] - ŷ_test_quantiles.columns[j]))
plt.barh(
y_ticks,
ŷ_test_quantiles.loc[idx].iloc[:, end] - ŷ_test_quantiles.loc[idx].iloc[:, j],
left=ŷ_test_quantiles.loc[idx].iloc[:, j],
label=f"{coverage}% Prediction interval",
color=["#b3d9ff", "#86bfff", "#4da6ff"][j],
)
plt.plot(y_test.loc[idx], y_ticks, "s", markersize=3, markerfacecolor="none", markeredgecolor="#e74c3c", label="Actual value")
plt.plot(ŷ_test.loc[idx], y_ticks, "s", color="blue", markersize=0.6, label="Predicted value")
plt.xlabel("House price")
plt.ylabel("Test house index")
plt.yticks(y_ticks, y_ticks)
plt.tick_params(axis="y", labelsize=6)
plt.grid(axis="x", color="lightsteelblue", linestyle=":", linewidth=0.5)
plt.gca().xaxis.set_major_formatter(ticker.StrMethodFormatter("${x:,.0f}"))
plt.gca().spines["top"].set_visible(False)
plt.gca().spines["right"].set_visible(False)
plt.legend()
plt.tight_layout()
plt.show()
Predicting intervals
In addition to quantile prediction, you can use predict_interval
to predict conformally calibrated prediction intervals. Compared to quantiles, these focus on reliable coverage over quantile accuracy. Example usage:
# Predict an interval for each example with the conformal wrapper
ŷ_test_interval = conformal_predictor.predict_interval(X_test, coverage=0.95)
# Measure the coverage of the prediction intervals on the test set
coverage = ((ŷ_test_interval.iloc[:, 0] <= y_test) & (y_test <= ŷ_test_interval.iloc[:, 1])).mean()
print(coverage) # 96.6%
When the input data is a pandas DataFrame, the output is also a pandas DataFrame. For example, printing the head of ŷ_test_interval
yields:
house_id | 0.025 | 0.975 |
---|---|---|
1357 | 107203 | 206290 |
2367 | 66665 | 146005 |
2822 | 115592 | 220315 |
2126 | 85288 | 183038 |
1544 | 67890 | 150646 |
Contributing
Prerequisites
1. Set up Git to use SSH
- Generate an SSH key and add the SSH key to your GitHub account.
- Configure SSH to automatically load your SSH keys:
cat << EOF >> ~/.ssh/config Host * AddKeysToAgent yes IgnoreUnknown UseKeychain UseKeychain yes EOF
2. Install Docker
- Install Docker Desktop.
- Enable Use Docker Compose V2 in Docker Desktop's preferences window.
- Linux only:
- Export your user's user id and group id so that files created in the Dev Container are owned by your user:
cat << EOF >> ~/.bashrc export UID=$(id --user) export GID=$(id --group) EOF
- Export your user's user id and group id so that files created in the Dev Container are owned by your user:
3. Install VS Code or PyCharm
- Install VS Code and VS Code's Dev Containers extension. Alternatively, install PyCharm.
- Optional: install a Nerd Font such as FiraCode Nerd Font and configure VS Code or configure PyCharm to use it.
Development environments
The following development environments are supported:
- ⭐️ GitHub Codespaces: click on Code and select Create codespace to start a Dev Container with GitHub Codespaces.
- ⭐️ Dev Container (with container volume): click on Open in Dev Containers to clone this repository in a container volume and create a Dev Container with VS Code.
- Dev Container: clone this repository, open it with VS Code, and run Ctrl/⌘ + ⇧ + P → Dev Containers: Reopen in Container.
- PyCharm: clone this repository, open it with PyCharm, and configure Docker Compose as a remote interpreter with the
dev
service. - Terminal: clone this repository, open it with your terminal, and run
docker compose up --detach dev
to start a Dev Container in the background, and then rundocker compose exec dev zsh
to open a shell prompt in the Dev Container.
Developing
- This project follows the Conventional Commits standard to automate Semantic Versioning and Keep A Changelog with Commitizen.
- Run
poe
from within the development environment to print a list of Poe the Poet tasks available to run on this project. - Run
poetry add {package}
from within the development environment to install a run time dependency and add it topyproject.toml
andpoetry.lock
. Add--group test
or--group dev
to install a CI or development dependency, respectively. - Run
poetry update
from within the development environment to upgrade all dependencies to the latest versions allowed bypyproject.toml
. - Run
cz bump
to bump the package's version, update theCHANGELOG.md
, and create a git tag.
