Cosmic-CoNN: A Cosmic Ray Detection Deep Learning Framework, Dataset, and Toolkit

Documentation • PyPI Release • LCO CR Dataset • Publications

[New] Demo video for interactive CR mask visualization and editing

About

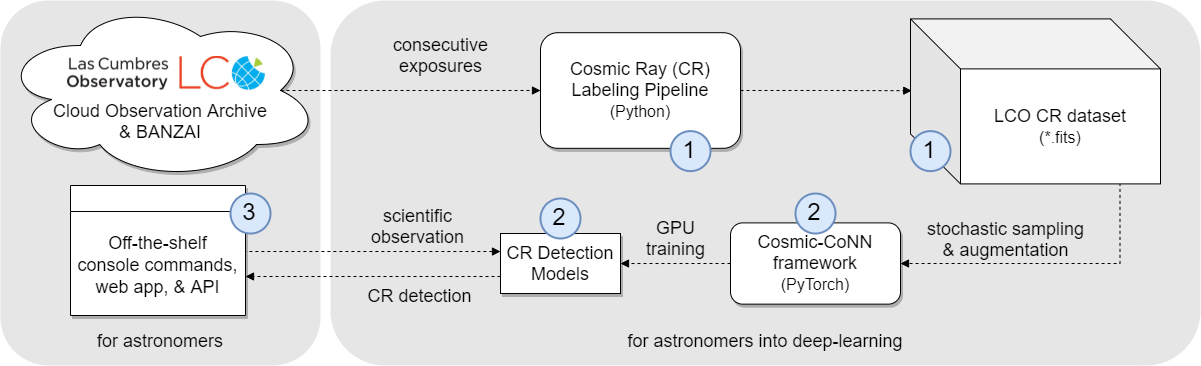

Cosmic-CoNN is an end-to-end solution to help tackle the cosmic ray (CR) detection problem in CCD-captured astronomical images. It includes a deep-learning framework, high-performance CR detection models, a new dataset, and a suite of tools to use to the models, shown in the figure above:

1. LCO CR dataset, a large, diverse cosmic ray dataset that consists of over 4,500 scientific images from Las Cumbres Observatory (LCO) global telescope network's 23 instruments. CRs are labeled accurately and consistently across many diverse observations from various instruments. To the best of our knowledge, this is the largest dataset of its kind.

2. A PyTorch deep-learning framework that trains generic, robust CR detection models for ground- and space-based imaging data, as well as spectroscopic observations.

3. A suite of tools including console commands, a web app, and Python APIs to make deep-learning models easily accessible to astronomers.

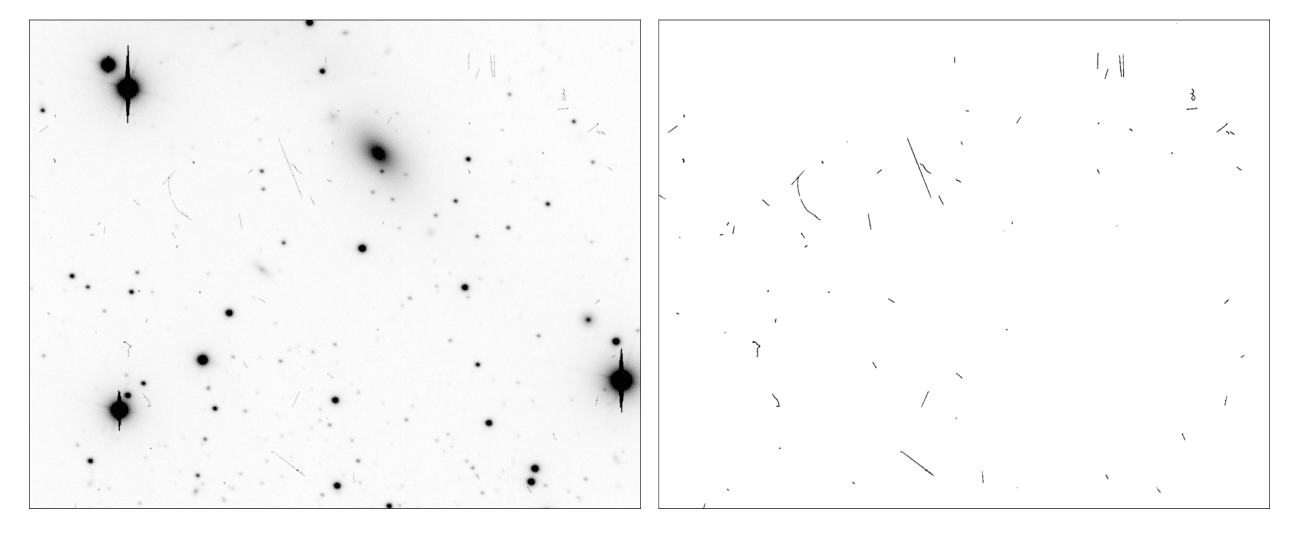

Visual inspection of Cosmic-CoNNCR detection results. Detecting CRs in a Gemini GMOS-N 1×1 binning image with our generic ground-imaging model. The model was trained entirely on LCO data yet all visible CRs in the image stamp are correctly detected regardless of their shapes or sizes.

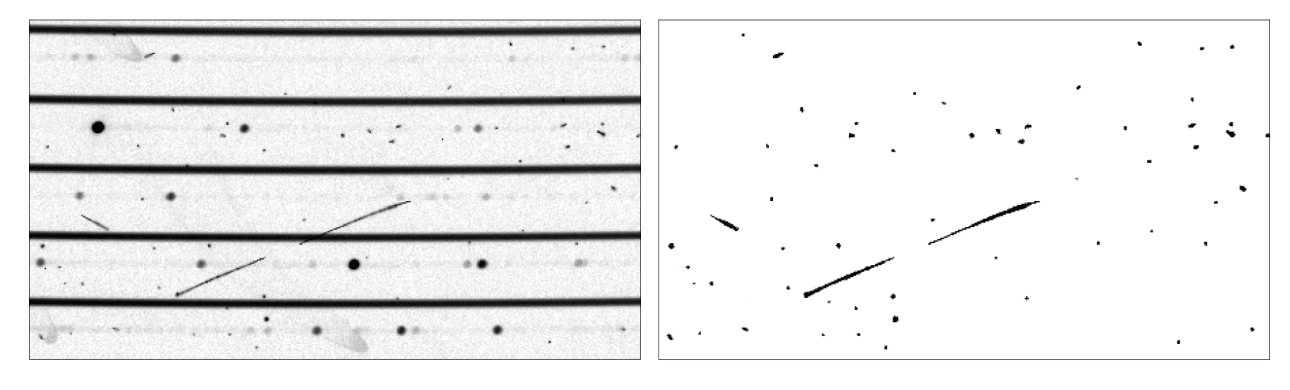

The Cosmic-CoNN NRES model detects CRs over the spectrum robustly on a LCO NRES spectroscopic image. The horizontal bands in the left image are the spectroscopic orders, which are left out of the CR mask.

Installation

We recommend using uv. See the step-by-step installation guide for more detail. PyTorch must be requested explicitly via an extra — cpu and cuda are mutually exclusive:

  # CPU-only PyTorch (no GPU required)
  $ uv pip install "cosmic-conn[cpu]"

  # CUDA-enabled PyTorch (requires NVIDIA GPU with CUDA 12.4)
  $ uv pip install "cosmic-conn[cuda]"

  # include Flask to use the interactive web tool
  $ uv pip install "cosmic-conn[cpu,webapp]"

  # install all dependencies for development
  $ uv pip install "cosmic-conn[cpu,develop]"

If you are using plain pip, install PyTorch separately from the PyTorch website before installing cosmic-conn. See the installation guide for more detail.

Command-line interface

After installation, you can batch process FITS files for CR detection from the terminal:

  $ cosmic-conn -m ground_imaging -e SCI -i input_dir

-m or --model specifies the CR detection model. "ground_imaging" is loaded by default, "NRES" is the spectroscopic model for LCO NRES instruments. You can also download a Hubble Space Telescope model trained by deepCR and pass in the model's path.

-i or --input specifies the input file or directory.

-e or --ext defines which FITS extension to read image data, by default we read the first valid image array in the order of hdul[0] -> hdul[1] -> hdul['SCI'] unless user specify an extension name.

See documentation for the complete user guide.

Python APIs

It is also easy to integrate Cosmic-CoNN CR detection into your data workflow. Let image be a two-dimensional float32 numpy array of any size:

  from cosmic_conn import init_model

  # initialize a Cosmic-CoNN model
  cr_model = init_model("ground_imaging")

  # the model outputs a CR probability map in np.float32
  cr_prob = cr_model.detect_cr(image)

  # convert the probability map to a boolean mask with a 0.5 threshold
  cr_mask = cr_prob > 0.5

Interactive CR mask visualization and editing

  $ cosmic-conn -am ground_imaging -e SCI

The Cosmic-CoNN web app automatically finds large CRs for close inspection. It supports live CR mask visualization and editing and is especially useful to find the suitable thresholds for different types of observations. We are working on addding the paintbrush tool for pixel-level manual editing.

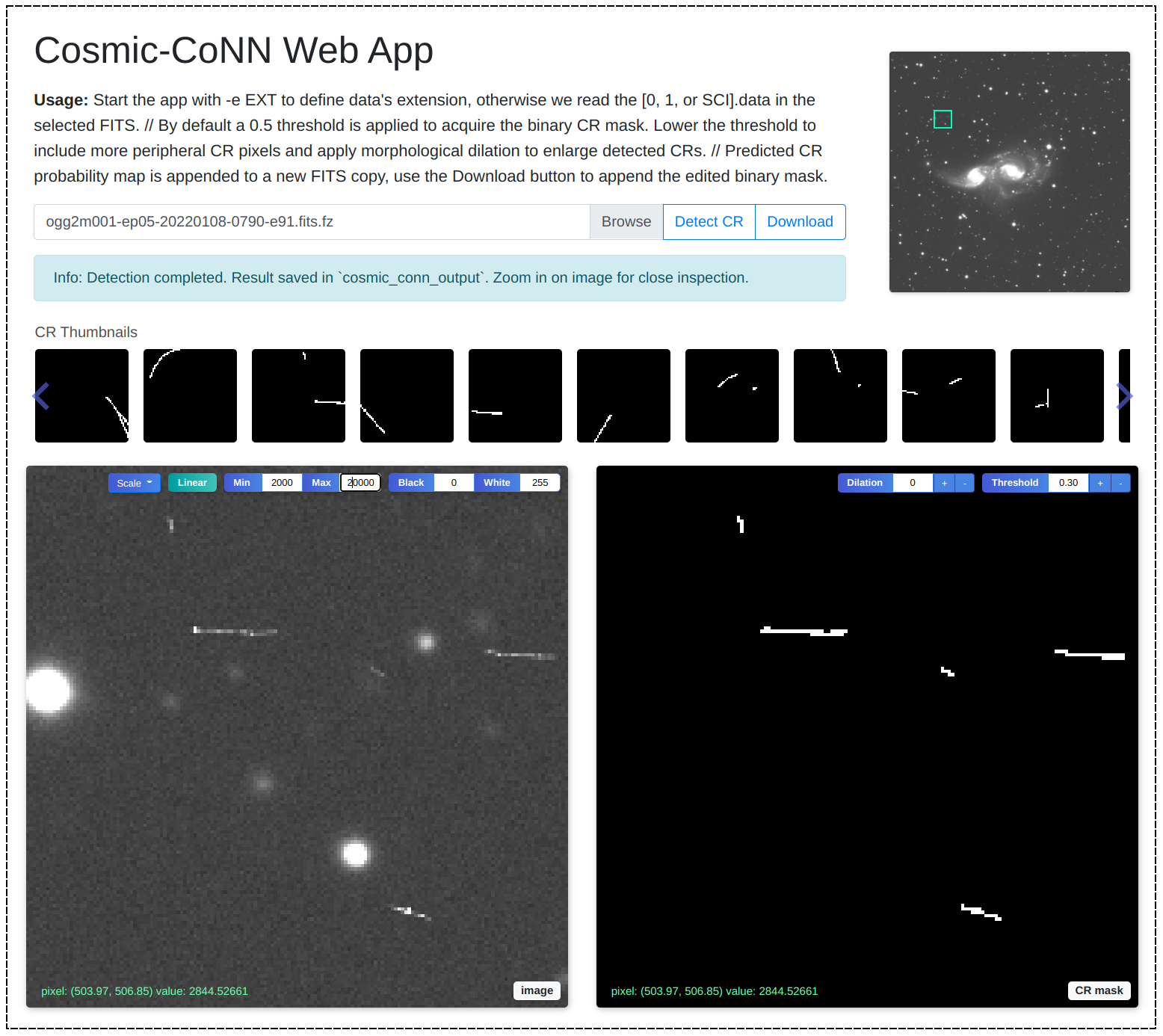

The Cosmic-CoNN web app interface.

Train new models with Cosmic-CoNN

See documentation for the developer guide on using LCO CR dataset, data reduction, and model training.

Publications

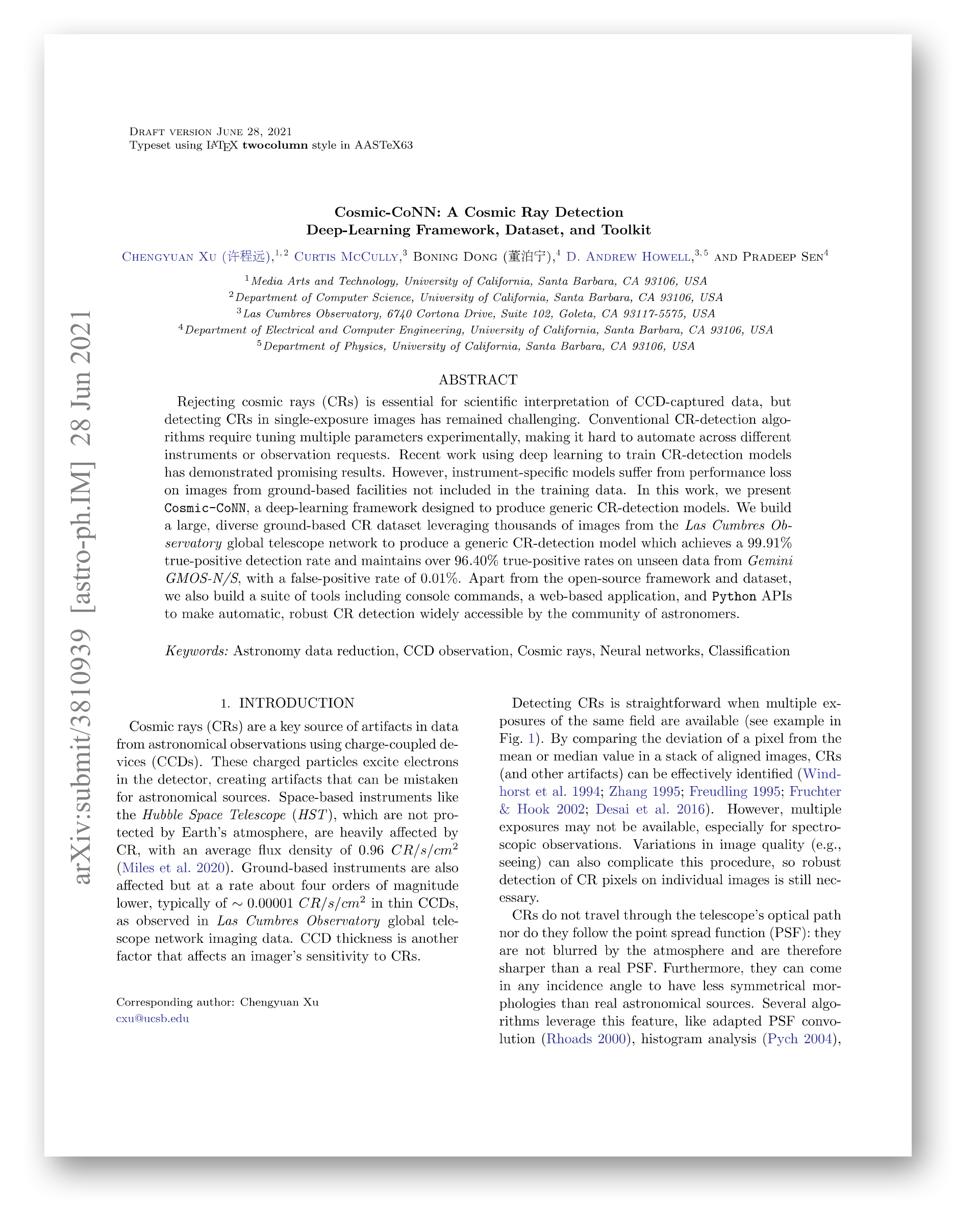

This repository is part of our Cosmic-CoNN research paper. Our methods and a thorough evaluation of models' performance are available in the paper. If you used the Cosmic-CoNN or the LCO CR dataset for your research, please cite our paper: The Astrophysical Journal, NASA ADS

@article{Xu_2023,
doi = {10.3847/1538-4357/ac9d91},
url = {https://dx.doi.org/10.3847/1538-4357/ac9d91},
year = {2023},
month = {jan},
publisher = {The American Astronomical Society},
volume = {942},
number = {2},
pages = {73},
author = {Chengyuan Xu and Curtis McCully and Boning Dong and D. Andrew Howell and Pradeep Sen},
title = {Cosmic-CoNN: A Cosmic-Ray Detection Deep-learning Framework, Data Set, and Toolkit},
journal = {The Astrophysical Journal},
}

Please also cite the LCO CR dataset if you used the Cosmic-CoNN ground_imaging model or the data in your research:

@dataset{xu_chengyuan_2021_5034763,
  author       = {Xu, Chengyuan and
                  McCully, Curtis and
                  Dong, Boning and
                  Howell, D. Andrew and
                  Sen, Pradeep},
  title        = {Cosmic-CoNN LCO CR Dataset},
  month        = jun,
  year         = 2021,
  publisher    = {Zenodo},
  version      = {0.1.0},
  doi          = {10.5281/zenodo.5034763},
  url          = {https://doi.org/10.5281/zenodo.5034763}
}

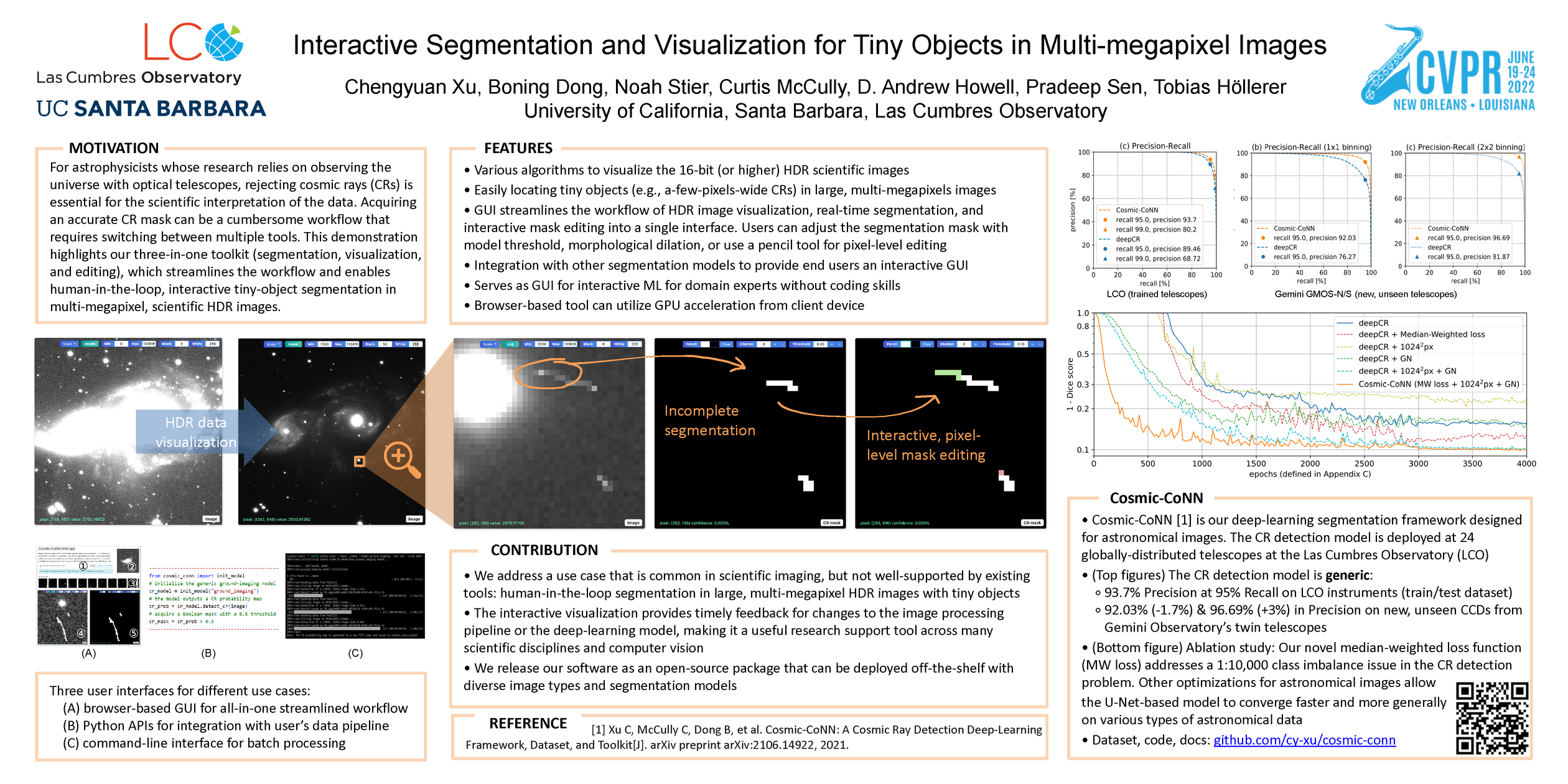

Interactive Segmentation and Visualization for Tiny Objects in Multi-megapixel Images
CVPR 2022

@InProceedings{Xu_2022_CVPR,
    author    = {Xu, Chengyuan and Dong, Boning and Stier, Noah and McCully, Curtis and Howell, D. Andrew and Sen, Pradeep and H\"ollerer, Tobias},
    title     = {Interactive Segmentation and Visualization for Tiny Objects in Multi-Megapixel Images},
    booktitle = {Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR)},
    month     = {June},
    year      = {2022},
    pages     = {21447-21452}
}
