crab 0.5.1

Cron alert board

Crab is a dashboard system for monitoring cron jobs, or other scheduled tasks. The Crab server receives messages when tasks start or finish, and displays the status of all of the tasks via a web interface. It can also send notifications by email, for example to warn if a task fails, is missed or does not complete within its time-out period.

Tasks communicate with the Crab server by JSON messages sent by HTTP PUT requests. The finish message includes the status of the job, and any output from it. Further messages are used to import and export the client’s crontab, which the server uses to determine the intended schedule.

Requirements

Packages

• crontab (0.15 or newer)

• CherryPy

• Mako (PyPI entry)

• jQuery

• PyRSS2Gen (optional)

• Font Awesome (optional)

• ansi_up (optional)

• MySQL Connector (needed only if using a MySQL database, PyPI entry)

Python Version

Crab server

Has been tested on Python 2.6, 2.7 and 3.2.

Client library and utilities

Works with Python 2.4 in addition to the above versions (but may require the pytz and simplejson packages also to be installed).

Installation

The Crab server, clients and libraries can be installed as follows:

python setup.py install

If necessary, the --install-data option can be used to configure the location in which the templates (templ), resources (res) and example files (doc) should be installed.

To run Crab without installing it, and if any of the Python dependencies listed above can not be installed, they can be symlinked into the lib directory in the following locations:

lib/PyRSS2Gen.py
lib/cherrypy
lib/crontab
lib/mako

The jQuery JavaScript library should be copied or symlinked into Crab’s res directory as:

res/jquery.js

To use Font Awesome icons, copy or symlink its webfonts directory into Crab’s res directory, and also place its stylesheet inside that subdirectory, giving:

res/webfonts/fontawesome-all.css
res/webfonts/fa-*.*

Note that Font Awesome is not backward compatible between major version numbers. Crab now uses version 5 of Font Awesome.

To use ansi_up to interpret ANSI color commands in cron job output, copy or symlink the ansi_up.js file into Crab’s res directory:

res/ansi_up.js

The Crab Server

Database Creation

A SQLite database file can be prepared for Crab using the schema provided:

% sqlite3 crab.db < doc/schema.sql

Alternatively if you are going to be using MySQL for your Crab database, create the database:

% mysqladmin -u root -p create crab

and create a user account for crab, changing the password (the “identified by” clause) to something suitable:

% mysql -u root -p mysql
> create user 'crab'@'localhost' identified by 'crab';
> grant all on crab.* to 'crab'@'localhost';
> flush privileges;

You can prepare a table creation script suitable for MySQL using the Makefile in the doc directory of the source package:

% make -C doc schema_mysql.sql
% mysql -u crab -p crab < doc/schema_mysql.sql

Configuration

The Crab server is configured by a crabd.ini file which can be placed either in /etc/crab/ or ~/.crab/. Note that this is a CherryPy configuration file, which is read slightly differently to typical .ini files which use Python’s ConfigParser.

% cp doc/crabd.ini ~/.crab/

The example crabd.ini file should be edited to uncomment the [crab] and [store] sections. The home and file entries must point to the location of Crab’s data files and the database file just created. By default the data files are installed in share/crab relative to the Python system prefix (sys.prefix).

There is also an [outputstore] section in the server configuration file. This allows the output from cron jobs and raw crontab files to be stored separately, and can be used to prevent the main database from becoming excessively large.

If you would like to have Crab delete the history of job events over a certain age, you can have it run a cleaning service by enabling the [clean] section of the server configuration file. Here you can select the cleaning schedule and length of history to keep. A fairly frequent cleaning schedule is recommended to avoid the accumulation of a large number of old events so that each cleaning operation does not take long. If the file output store is being used, the cleaning service will remove only the event records and not the output text. You can remove old output text separately, for example by running in your output store directory:

% find output -type f -mtime +90 -delete
% find output -type d -empty -delete

Running

The Crab server is run as crabd. When the server is executed directly, it will stay in the foreground:

% crabd

It can also be run in the background with the crabd-check script, which checks that it is not still running from a previous invocation of crabd-check. Therefore this is suitable for running from cron to keep the server running:

PYTHONPATH=/path/to/crab/lib
PATH=/path/to/crab/scripts:/bin:/usr/bin
7-57/10 * * * * CRABIGNORE=yes crabd-check

With the server running, the Crab dashboard should be visible from a web browser, by default on port 8000. The Crab clients will use this same web service to communicate with the server.

Migrating Job Information

The Crab server has the ability to export and import cron job information, including:

• The list of cron jobs.

• The configuration and notifications attached to each job.

• General host/user-based notifications.

• Raw crontabs.

You can write this information to a JSON file using the --export option:

% crabd --export job_information.json

Similarly you can read information with the --import option:

% crabd --import job_information.json

This merges the information from the file with the server’s existing configuration. You can also give a file name of - to export to standard output or read from standard input.

Monitoring Cron Jobs

There are two Crab client commands: the crab utility, and the crabsh wrapper shell. Cron jobs can either be run under crabsh, or they can be updated to report their own status to the Crab server.

Configuration

The Crab clients are configured by a crab.ini file which can be placed either in /etc/crab/ or ~/.crab/. The file specifies how to contact the Crab server, and the username and hostname which the client will use to report cron jobs.

% cp doc/crab.ini ~/.crab/

The configuration can be checked with the crab info command. This reports the settings, and indicates which configuration files were read. It is a useful way to check that everything is in order before importing a crontab.

The crabsh Wrapper

crabsh is a wrapper script designed to act like a shell. It can therefore be invoked by cron via the SHELL variable, for example:

PYTHONPATH=/path/to/crab/lib
SHELL=/path/to/crab/scripts/crabsh
0 10 * * 1-5 CRABID=test echo "Test cron job"

Where the rules following the SHELL assignment will be run with the wrapper. The PYTHONPATH will need to be set if Crab is not installed where the system can find it. Cron requires the full path when specifying the SHELL. The CRABID parameter is used to give the cron job a convenient and unique name. This is optional, unless there are multiple jobs with the same command, in which case they would otherwise be indistinguishable. However if it specified, then it must be unique for a given host and user, as the Crab server will use it in preference to the command string to identify cron job reports.

crabsh will notify the server when the job starts, and when it finishes, assuming it succeeded if the exit status was zero.

Crab-aware Cron Jobs

Alternatively a cron job can report its own status to the Crab server. The most straightforward way to do this is to execute the crab utility. So a cron job written as a shell script could include commands such as:

% crab start -c "$0"
% crab finish -c "$0"
% crab fail -c "$0"

In this way you can also report a warning with crab warning or an unknown status with crab unknown.

Python

If the cron job is written in Python, it could import crab.client directly and make use of the CrabClient class.

Perl

A Perl module WWW::Crab::Client is also available.

Other languages

Other language libraries could be written. They would need to make HTTP PUT requests with an appropriate JSON message.

Managing the Cron Job List

The Crab server needs to be given the schedule for each job so that it can detect when a job is late or missed. This is done by “importing” a user’s crontab file:

% crab import

The database entries can then be checked by “exporting” them, again using the crab utility:

% crab export
> CRON_TZ=Pacific/Honolulu
> 0 10 * * 1-5 CRABID=test echo "Test cron job"

The output is a set of crontab-style lines representing the entries from the database. The crontab can be retrieved exactly as last imported (from a separate database table containing the raw crontab) by giving the --raw option as follows:

% crab export --raw

This is useful as a backup in case a crontab is accidentally lost. However it will not contain any new jobs which have been added automatically by the Crab server since the last import.

Cron Job Parameters

In order to specify the Crab specific parameters of a cron job, Bourne-style shell variables at the start of a command are used. The syntax for each cron job is as follows:

<schedule> [CRABIGNORE=yes] [CRABID=<identifier>] <command string>

A command starting with CRABIGNORE set to a value other than 0/no/off/false will be ignored when importing a crontab, and crabsh will not report its status to the Crab server.

A CRABID specification will override any CRABID environment variable in effect, and is a better way of specifying the identifier as it can not apply to more than one cron job. There should not be multiple jobs with the same identifier for any user and host.

The Crab parameters can be placed in any order before the remainder of the command string, but they must precede any other variables.

Environment Variables

CRABCLIENTHOSTNAME

The host name to be used by Crab clients to identify themselves, overriding any value in the configuration files.

CRABECHO

If present and not set to 0/no/off/false then crabsh will print out the standard output and standard error it receives from the cron job. This allows the output to be sent by email via cron’s default behavior as well as being captured by the Crab system.

CRABHOME

If present overrides the Crab server home directory, where the res and templ directories are to be found.

CRABHOST

Specifies the Crab server to which clients should connect, overriding the setting in the configuration file.

CRABID

Specifies the job identifier which crabsh will use to file reports if there is no CRABID= variable at the start of the cron command. This should be used with caution to avoid specifying the same identifier for multiple cron jobs.

CRABIGNORE

Prevents Crab from acting on specific cron jobs. Jobs imported with this value present and not set to 0/no/off/false will not be entered into the database. Additionally if the crabsh wrapper script is used to run such a job, it will not report its status to the Crab server.

CRABPIDFILE

Gives the path to a PID file which crabsh should use to control the execution of a cron job. When this parameter is set, it will use the file to try not to run multiple copies of the job at the same time. Each job should have a separate PID file, so this parameter is most conveniently given at the start of a command string.

CRABPORT

Specifies the port on the Crab server, overriding the setting in the configuration file.

CRABSHELL

The shell which crabsh will use to invoke the cron job command. Defaults to /bin/sh regardless of the user’s shell to replicate cron’s behavior.

CRABSYSCONFIG

The directory to be searched for system-level configuration files. If not set, then /etc/crab will be used.

CRABUSERCONFIG

A directory to search for user-level configuration files. If not set then ~/.crab will be used.

CRABUSERNAME

The user name to be used by Crab clients to identify themselves, overriding any value in the configuration files.

CRABWATCHDOG

Specifies a timeout (in minutes) which crabsh should apply to the cron job, killing it and reporting status “watchdog” if exceeded. (Requires Python 3.3 or the subprocess32 backport module.)

CRON_TZ

Cron reads this variable to know in which timezone to interpret the crontab schedule. When the server receives a crontab, it will check for this timezone and use it to override the general timezone which the crab utility will send with the crontab (if it is able to determine it).

MAILTO

Configures the email address to which cron sends email. This is useful when CRABECHO is on, or if crabsh needs to report a failure to contact the Crab server.

SHELL

Cron uses this variable to select the shell which will be used to execute the cron jobs. The full path must be specified. Crab does not use this variable itself.

TZ

This can be set to the system timezone, in which case crab import will use it as the default timezone for the crontab.

The Web Interface

The Crab dashboard allows the status of the jobs to be monitored. On this page, the job status column will change color to indicate the status, and it will flash while the job is running. Clicking on the status will lead to the most recent output recorded for the job.

The host and user columns contain links leading to a summary page of the cron jobs for a given user or host. From this page, the links below each table can be used to show deleted jobs, and to display the raw crontab as last imported.

Clicking on a job ID or command link leads to the job information page, giving a summary of the job’s parameters and a table of the most recent events. Clicking the status of any job finish event leads to the corresponding output.

Job Configuration

Below the summary on the job information page, there is a link allowing the job’s configuration to be edited. If a job is deleted, then its configuration is considered to be orphaned. In this case, when configuring a job for which no configuration exists, the system will offer a list of orphaned configurations for re-linking. This should be used when the job is actually the continuation of a previous job. Note that notifications which are attached to specific jobs are linked via the configuration. Therefore re-linking the configuration will re-attach all associated notifications.

However this problem can generally be avoided by giving the jobs suitable names via the CRABID parameter. Crab will then be able to recognize jobs by name even if the command string changes.

The grace period specifies how close to the scheduled time the job must start in order not to be considered missed. The time-out is the maximum expected duration of the job. If it runs for longer than this, it will be marked as stopped with timed-out (error) status. Note that the job may actually still be running when this status is displayed. If the job is restarted, or reported as already running, during the time-out period, then the time-out is reset. If either of these timing parameters are left blank then the default values of 2 minutes grace period and 5 minutes time-out will be used.

Regular expression patterns used to determine success or failure and to identify warnings can be given. These patterns are compared to the standard output and standard error of the job when it finishes, but do not override a more severe status. For example if a job is reported as finishing with failure, then it will be logged as such even if the success or warning patterns match. If none of the patterns match then the status is logged as it was reported, unless a success pattern was defined. If the success pattern does not match then the status will be failure if the was no failure pattern or unknown if there was a failure pattern which did not match.

The “Inhibit execution” checkbox can be use to temporarily request that a job not be run. This setting is stored in the Crab server and passed to the client when it reports that a job is being started. Note that there is no guarantee that the job will not be run while this option is selected: the client could fail to connect to the server before starting the job, or it could choose to ignore the inhibit setting. The crabsh wrapper shell reads a configuration parameter allow_inhibit from the crabsh section of the cran.ini file to determine whether inhibit requests should be honored. (The default value is true, i.e. it will not run the job if it receives the inhibit flag in response to its job starting message.)

The job configuration page also allows jobs to be marked as deleted. Normally this would be done by importing a new crontab without that job in it, but having this available on the web interface is useful in situations such as the host being inaccessible. Note that if a start or finish event is received from the job, but the Crab server is still able to identify it, then the job should be automatically marked as not deleted.

There is also the option to alter the job identifier. However care must be taken to also update it in the job itself, for example via the CRABID parameter in the crontab. If the identifier is changed via the web server but not in the job, then the Crab server will identify it as a new job the next time it receives a start or finish report from it.

Notifications

Crab includes a configurable notifications system, which currently supports sending notification messages by email. Notifications can either be attached to a specific job, or configured by host name and/or by user name.

A link below the summary on the job information page allows notifications to be attached to that job. Check-boxes for each notification can be used to select which severity of events should be featured, and whether the job output should be included. The schedule box should contain a cron-style schedule specification (e.g. 0 12 * * *), and if left blank, will default to the value given in the crabd.ini file, allowing all notification schedules to be managed in one place. Notifications will only be sent if there are relevant events, so it is possible to request almost-immediate error warnings by including a schedule of * * * * * and selecting errors only.

The add and delete links can be used to add and remove notifications, but the changes are not saved until the Configure button is clicked.

The drop-down menu which appears when the mouse is positioned over the Crab heading at the top of each page includes a link to the main notifications page. This allows notifications to be configured by host name and/or by user name. Notifications will include any jobs where the host and user match the specified values, but if either is left blank, then it will match all entries.

Additional Job Actions

Depending on the state of a job, additional links may appear below the summary on the job information page. These are:

• “Clear status”: this appears when the job is in a warning or error state. Selecting this option sets the job state to “Cleared”, which you can use to acknowledge the problem. The job’s status will then be shown in green on the dashboard.

• “Resume inhibited job”: this appears when the inhibit setting has been selected on the job configuration page. The link provides a convenient means of removing the inhibit setting.

Screenshots

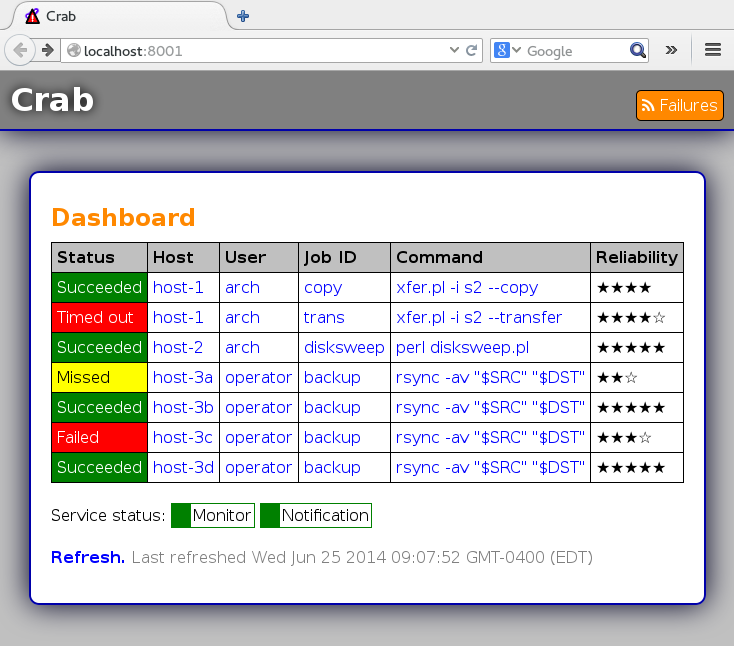

• The dashboard page:

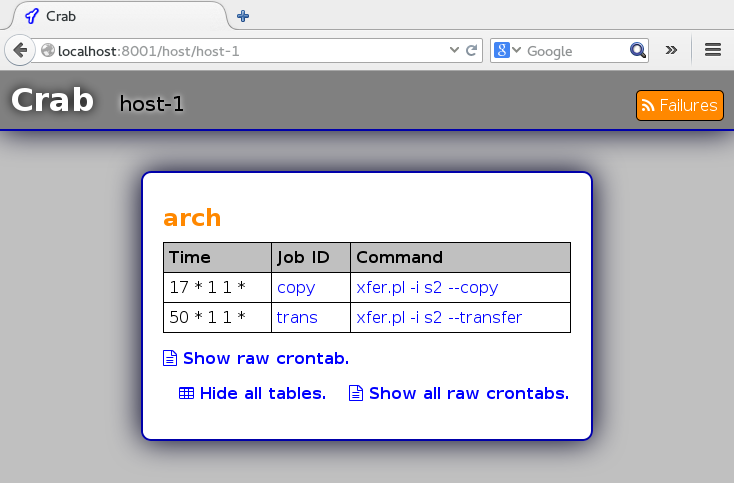

• View of cron jobs by host:

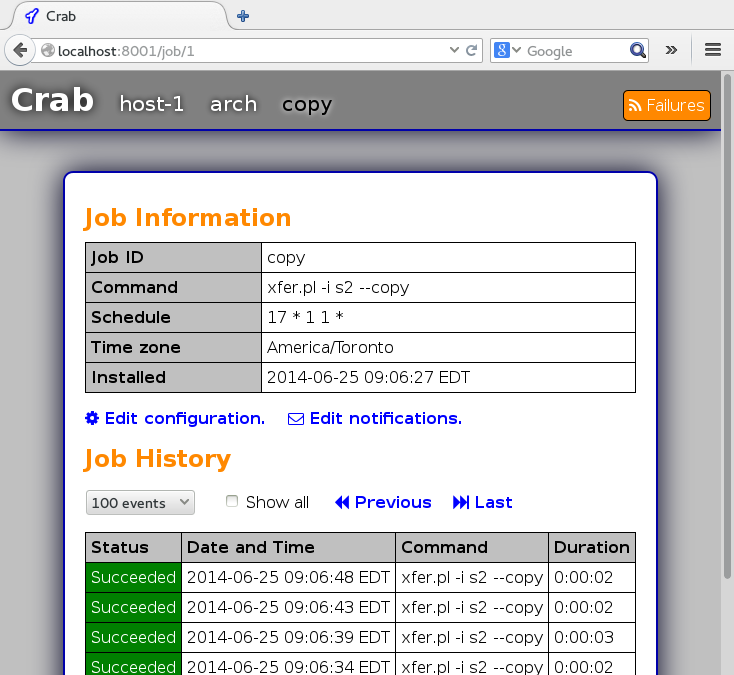

• Information page for a cron job:



Copyright

Copyright (C) 2012-2014 Science and Technology Facilities Council.

Copyright (C) 2015-2021 East Asian Observatory.

Crab is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with Crab. If not, see <https://www.gnu.org/licenses/>.
