CRIKit: The Constitutive Relation Inference Toolkit

Quick Start | Documentation | Installation Guide

Overview

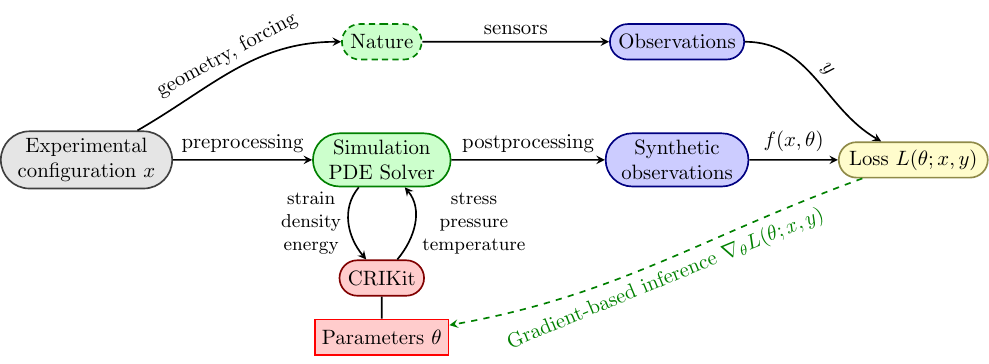

CRIKit integrates FEniCS and Pyadjoint with machine learning libraries like JAX and TensorFlow, and provides tools to infer physically-compatible constitutive relations from sparse, noisy observations of a system modeled by partial differential equations. CRIKit bridges the FEniCS world with those of JAX and TensorFlow by storing covering maps between abstract Space classes that represent spaces like a FEniCS FunctionSpace or a space of JAX arrays of a particular shape, or a direct sum of multiple Spaces.

CRIKit also provides tools to help perform post-processing, such as observation operators, as well as a collection of loss functions.

Quick Start

Constructing And Optimizing a CR

This guide will show you the basics of constructing and optimizing a simple CR that represents linear elasticity, assuming that you're already familiar with the basics of FEniCS. You can compare the mechanics of CRIKit to that of FEniCS directly by comparing this example to the 2D linear elasticity example from Numerical tours of Computational Mechanics using FEniCS. The primary difference between the model shown here and the linked example in the previous sentence is that here we use a geometrically nonlinear model, as described in the documentation for the libCEED hyperelasticity example.

from crikit import *
import jax
from jax import numpy as jnp
import numpy as np
from functools import partial

# set up mesh, FunctionSpace, etc
fe_order = 2
dims = 2
Nx, Ny = 50, 5
L = 20.
H = 1.
mesh = RectangleMesh(Point(0., 0.), Point(L, H), Nx, Ny)
V = VectorFunctionSpace(mesh, "CG", fe_order)
quad_params = {'quadrature_degree' : fe_order + 1}
set_default_covering_params(domain=mesh.ufl_domain(),
                            quad_params=quad_params)
u = Function(V)

def left_boundary(x, on_boundary):
    return near(x[0], 0.)

bcs = [DirichletBC(V, Constant((0., 0.)), left_boundary)]

# these will tell CRIKit what the inputs and ouputs to the CR
# are so that we can automatically generate the scalar and form-invariants
# Let's suppose you want the Cauchy stress tensor as a function of the
# strain sym(grad(u))
input_types = (TensorType.make_symmetric(2, dims, 'strain'),)
output_type = TensorType.make_symmetric(2, dims, 'stress')

# initial guess of parameters
Youngs = 1.0e5
Poisson = 0.3

lmbda = (Youngs * Poisson) / ((1 + Poisson) * (1 - 2 * Poisson))
mu = Youngs / (2 * (1 + Poisson))
# since this is 2-d, we need to use a modified version of lambda
# to make our initial guesses physical
lmbda = 2 * lmbda * mu / (lmbda + 2 * mu)

theta = array([lmbda, mu])

def cr_func(invariants, theta):
    lmbda, mu = theta
    return jnp.array([lmbda * jnp.log1p(invariants[0]), 2 * mu])

cr = CR(output_type, input_types, cr_func, params=[theta])


# If you're in a Jupyter notebook, run this at the bottom of a cell instead of
# calling `print()` on it to get neatly-rendered HTML output.
# This function shows you a description of the scalar and form invariants of `cr`
# in the order they are placed in the arrays
print(cr.invariant_descriptions())

# set the default covering params for crikit.covering so we can automatically
# generate covering maps between spaces of FEniCS Functions and JAX arrays
# Let's just pretend that degree 3 is sufficient quadrature for whatever problem
# we're solving
quad_params = {'quadrature_degree' : 3}
set_default_covering_params(domain=mesh.ufl_domain(), quad_params=quad_params)

# create_ufl_standins() returns a tuple of objects that can act as standins
# for the output of a CR. You can't directly call the CR on the inputs because
# the CR expects JAX arrays as an input, not a FEniCS Function. You'll instead have
# to assembly the variational form F using assemble_with_cr(), which will generate
# a covering map from the space of FEniCS Functions to the space of JAX arrays
# using crikit.covering (and likewise from the output JAX array space to a space of
# `crikit.fe.Function`s), use it to get appropriate arguments, call the CR, and project the result
# back into a Function
target_shape = tuple(i for i in cr.target.shape() if i != -1)

standin_sigma, = create_ufl_standins((target_shape,))

# create your form as if standin_sigma were (cr(sym(grad(u)))
v = TestFunction(V)
# external force
f = Constant((0,-1e-3), name='force')
F = inner(standin_sigma, sym(grad(v))) * dx - inner(f, v) * dx

# define a new sub-tape that records the actions of this equation
with push_tape():
     # a function that we can assemble the variational form into
     # using the `tensor` kwarg of `crikit.assemble()`, which
     # is directly passed on to `crikit.fe.backend.assemble()`
     # (e.g. `fenics.assemble()`)
     residual = Function(V)

     # input to the CR is sym(grad(u))
     assemble_with_cr(F, cr, sym(grad(u)), standin_sigma, tensor=residual,
     		      quad_params=quad_params)
     ucontrol = Control(u)
     # a ReducedFunction to represent the residual as a function of `u`
     res_rf = ReducedFunction(residual, ucontrol)

# an object to represent the equation defined above
red_eq = ReducedEquation(res_rf, bcs, homogenize_bcs(bcs))

# and an object to solve it. Make sure your .petscrc is set appropriately!
# if you want to pass an assembled Jacobian, use 'jmat_type' : 'assembled',
# but if you want the solver to instead use the matrix-free Jacobian action,
# pass 'jmat_type' : 'action'
solver = SNESSolver(red_eq, {'jmat_type' : 'assembled'})
pred_u = solver.solve(ucontrol)

# define a loss function and an observer

num_slices = 100
seed = 0
# sliced quadratic Wasserstein distance
loss = SlicedWassersteinDistance(V, num_slices, jax.random.PRNGKey(seed), p=2)

class ObservedSubDomain(SubDomain):
      def inside(self, x, on_boundary):
      	  ... # return appropriate True/False if x is in the observed subdomain or not

# observe only on a given SubDomain
observer = SubdomainObserver(mesh, ObservedSubDomain())

# get your observations from somewhere as a Function in V
obs = ...

err = loss(observer(obs), observer(pred_u))


Jhat = ReducedFunctional(err, Control(theta))

#check the derivative
h = np.random.randn(*theta.shape)
v = array(1.0) # test the adjoint
assert taylor_test(Jhat, theta, h, v=v) >= 1.9

# choose an optimization method
opt_method = 'L-BFGS-B'
optimal_params = minimize(Jhat, method=opt_method)

Installation

First, install FEniCS. Then you can install the latest development version of this package by running

pip install .

or, to install in editable mode (useful for devs),

pip install -e .

There are four optional sets of dependencies that can be installed by listing any of them (with no spaces) in square brackets. Or if you want to install all of them, you can use the key all, so the two lines below are equivalent.

pip install -e .[test,visualization,tensorflow,doc]
pip install -e .[all]

If you would rather install the latest release version of CRIKit, you can instead run

pip install crikit

Make sure you have install CRIKit into an environment with a working FEniCS installation, or the build might fail. In particular, if you encounter errors building petsc4py, ensure that the FEniCS installation in your environment works.

Setting Up a Conda Environment

FEniCS provides a conda package, so installation into a conda environment is simple.

conda create --name fenics2019 python=3.7 --no-default-packages -y -q
conda activate fenics2019

conda install -c conda-forge fenics=2019.1.0 -y -q
pip install -e .[all]

Whenever you want to enter this environment, run conda activate fenics2019.

Documentation

Documentation is done with Sphinx.

Documentation can be built by running make in the docs folder. By default, that will create HTML documentation in docs/build/html, and you can view it by opening up docs/build/html/index.html in your favorite browser.

Run make todo=true to include Todo blocks in the output. Otherwise, they won't show up.

You can also run make help to see a list of other formats that can be built. For instance,

  • make coverage creates a file showing what classes/functions are missing documentation.
  • make doctest tests the example code in the documentation.

Examples

Example programs are in the examples folder. Run with the --help argument to see command-line parameters. For example,

cd examples/p-stokes
python p-stokes.py --help

Tests

You can run the main tests with the command below.

python3 -m pytest tests

You can run a specific test by running python3 -m pytest tests -k test_name, where test_name is all or part of the test name. For example,

python3 -m pytest tests/crikit/test_assemble_with_cr.py -k test_assemble_with_cr_scalar

or

python3 -m pytest tests/crikit/test_assemble_with_cr.py -k scalar

Some implementation files and documentation files have doctests. Those can be run like so:

python -m pytest --doctest-modules --rootdir tests crikit
cd docs && make doctest

Developer style guidelines

CRIKit uses the auto-formatter black to ensure the code has a consistent style. To automatically run it before each git commit, use the following commands.

pip install -e .[dev]
pre-commit install

Support

This material is based upon work supported by the National Science Foundation under Grant No. 1835825 and 1835792. Any opinions, findings, and conclusions or recommendations expressed in this material are those of the author(s) and do not necessarily reflect the views of the National Science Foundation.
