A virtual keyboard for CustomTkinter, making it easy to enter text on a Raspberry Pi with a touch display.

Project description

CTkKeyboard

A virtual keyboard for CustomTkinter, making it easy to enter text on a Raspberry Pi with a touch display.

Features

  • QWERTZ and QWERTY Layouts: Supports both QWERTZ and QWERTY keyboard layouts for different user preferences.
  • Enhanced Focus: Ensures improved focus with a dedicated entry for better text input.
  • Touch-Friendly: Designed specifically for touch displays, perfect for Raspberry Pi projects.
  • Special keys: Ensure easy entry of numbers and special characters.
  • Open Source: Free to use and modify.

Installation

pip install CTkKeyboard

Example

import customtkinter as ctk
from CTk_Keyboard import keyboard

#Setup Ctk window
app = ctk.CTk()

app.title("CTkKeyboard_example")

ctk.set_appearance_mode("Dark")
ctk.set_default_color_theme("blue")

screen_width = app.winfo_screenwidth()
screen_height = app.winfo_screenheight()

#configure window size
window_width = screen_width // 2
window_height = screen_height // 2
app.geometry(f"{window_width}x{window_height}+{screen_width//4}+{screen_height//4}")

#Create entry to bind keyboard
entry = ctk.CTkEntry(app, placeholder_text="Entry",justify="center", font=("Arial", 32, "bold"))
entry.grid(row=3, column=3, padx=10, pady=10, sticky="nsew")

#Bind Keyboard on FocusIn event
entry.bind("<FocusIn>", lambda e: keyboard(app,entry,"qwerty"))

app.mainloop()

Options

Option Description
Master CustomTkinter main window
Widget Entry widget to bind keyboard
Layout Layout to choose "QWERTZ" or "QWERTY"

Usage

To use CTkKeyboard in your project, follow these steps:

  • Bind the Keyboard: Bind the keyboard to the entry widget, and it should appear automatically when the entry widget is focused.

  • Run your code: Execute your code.

  • Focus entry: Tap into the entry and the Keyboard will appear.

  • Type your text: Type the word you want to insert. If you need to input special characters, press the "func" button.

  • Confirm entry: Hit the "ok" button to confirm the entry, and the keyboard should disappear.

Preview

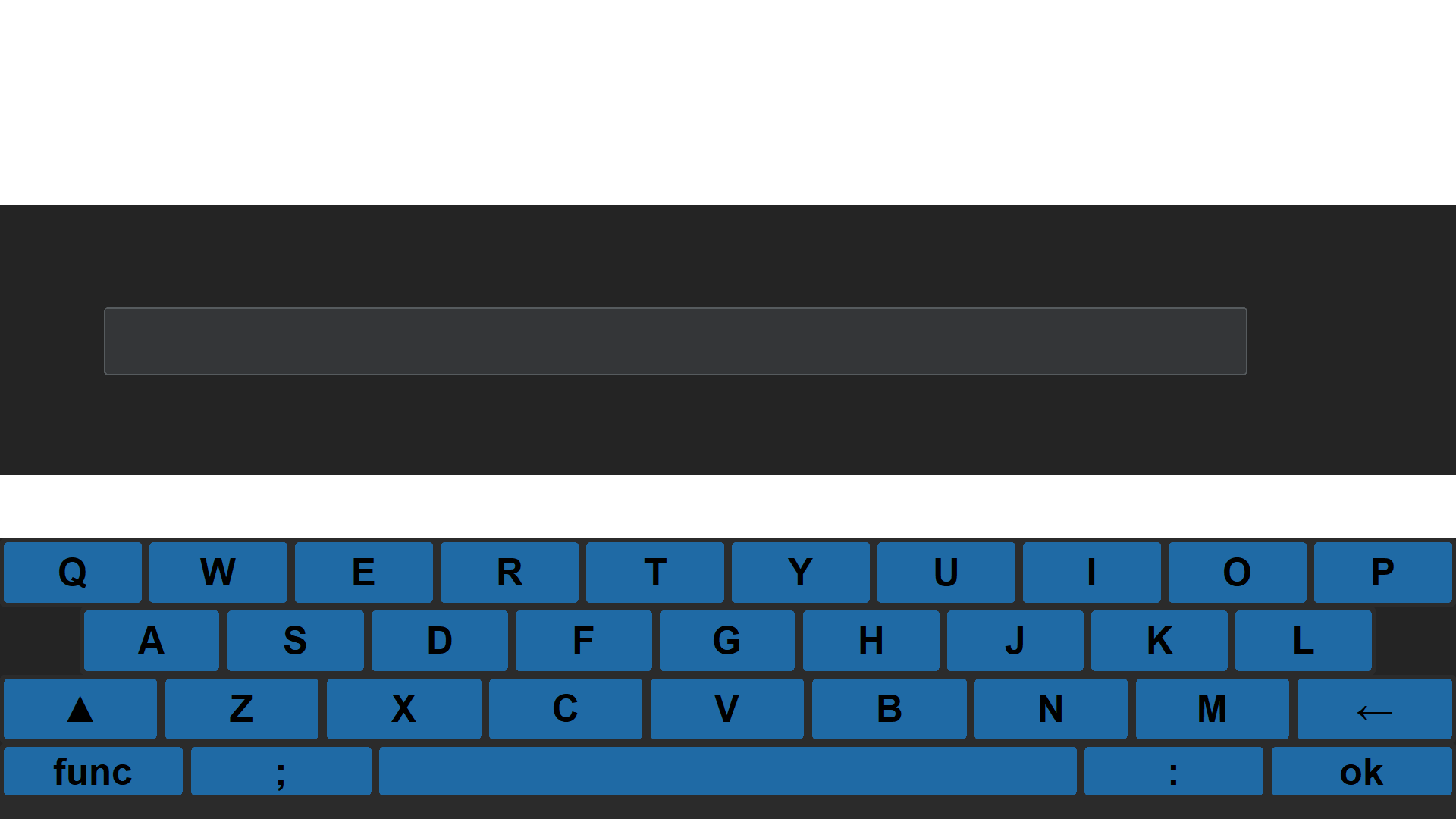

Qwerty Upper-Case

Example_img

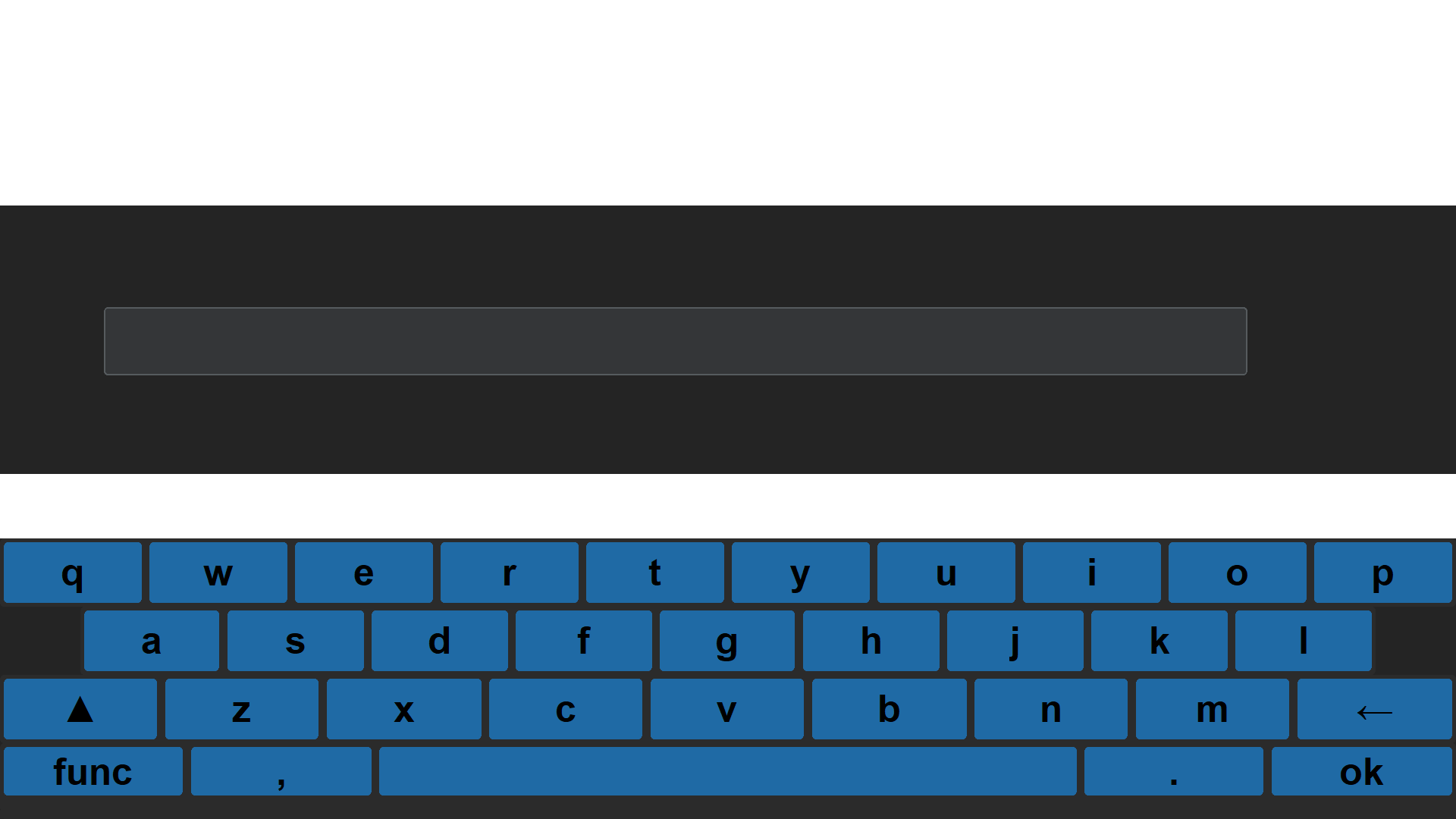

Qwerty Lower-case

Example_img_2

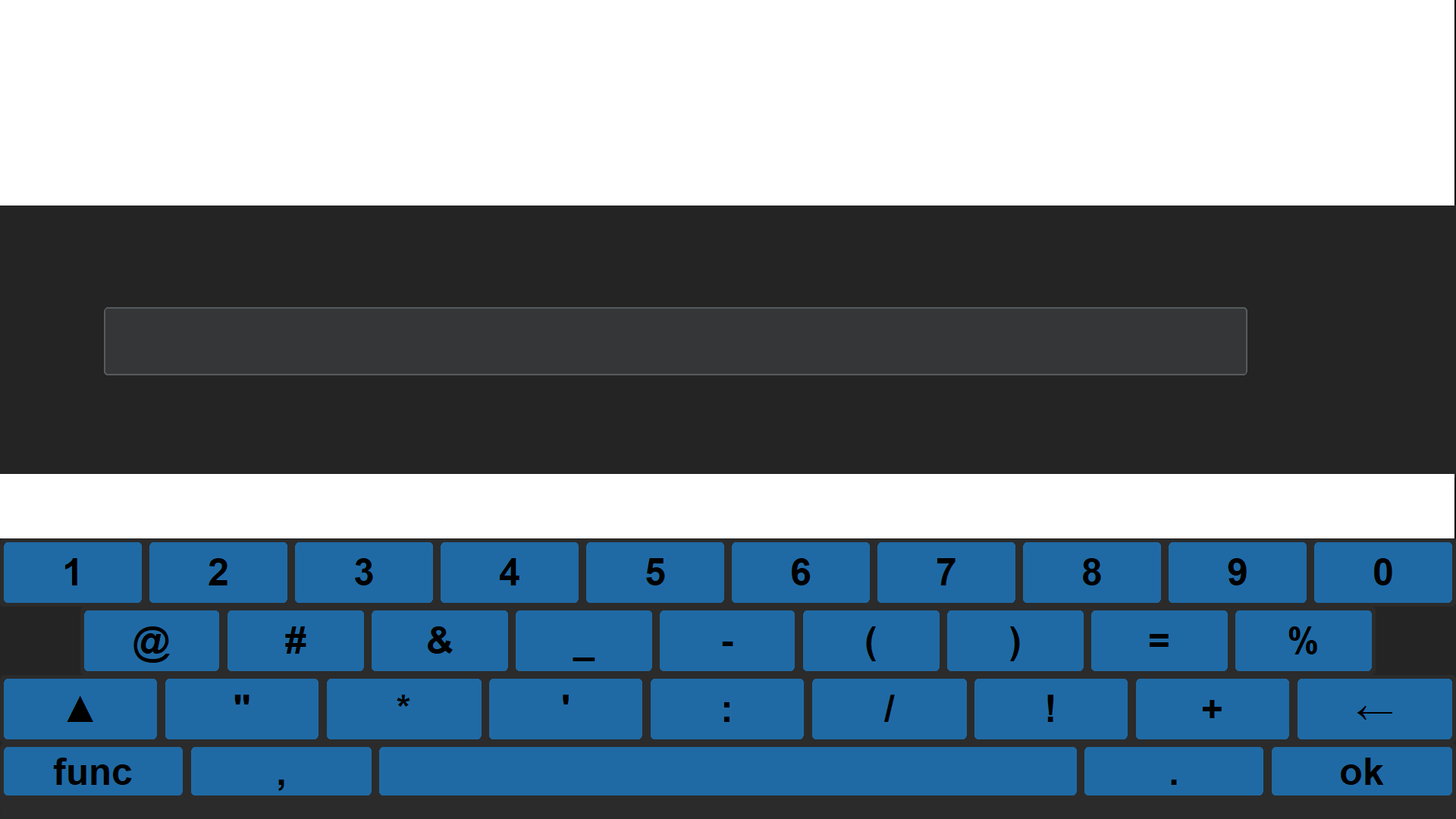

Special Keys

Example_img_3

Credits

Note: Parts of the code in this example are from CustomTkinter

If you find my code helpful and would like to support me, feel free to buy me a Ko-fi. However, if you don't want to, that's okay too!

I'm always open to feedback to improve this project further!
