cvlab 1.3.0

CV Lab - Computer Vision Laboratory - a rapid prototyping tool for computer vision algorithms

CV Lab - Computer Vision Laboratory - a rapid prototyping tool for computer vision algorithms

• INSTALLATION
• DESCRIPTION
• USAGE
• FAQ
• KNOWN ISSUES
• COPYRIGHT

INSTALLATION

Installation using pip:

pip3 install --upgrade cvlab

This command will install CV Lab (or update if you have already installed it). See the PyPI page for more information.

Alternatively you can clone entire git repository:

git clone https://github.com/cvlab-ai/cvlab.git

CV Lab requires: PyQt5, OpenCV, numpy, scipy, pygments, tinycss2, matplotlib.

DESCRIPTION

CV Lab enables convenient development of computer vision algorithms by means of graphical designing of the processing flow. Writing code with OpenCV might be a time-consuming process. It is often required to compile and run the code multiple times in order to see the results of the modifications of the algorithm. Especially when some parameters are to be tuned for establishing the optimal values. Some code also has to be added to provide presentation of the intermediate or final results of the algorithm.

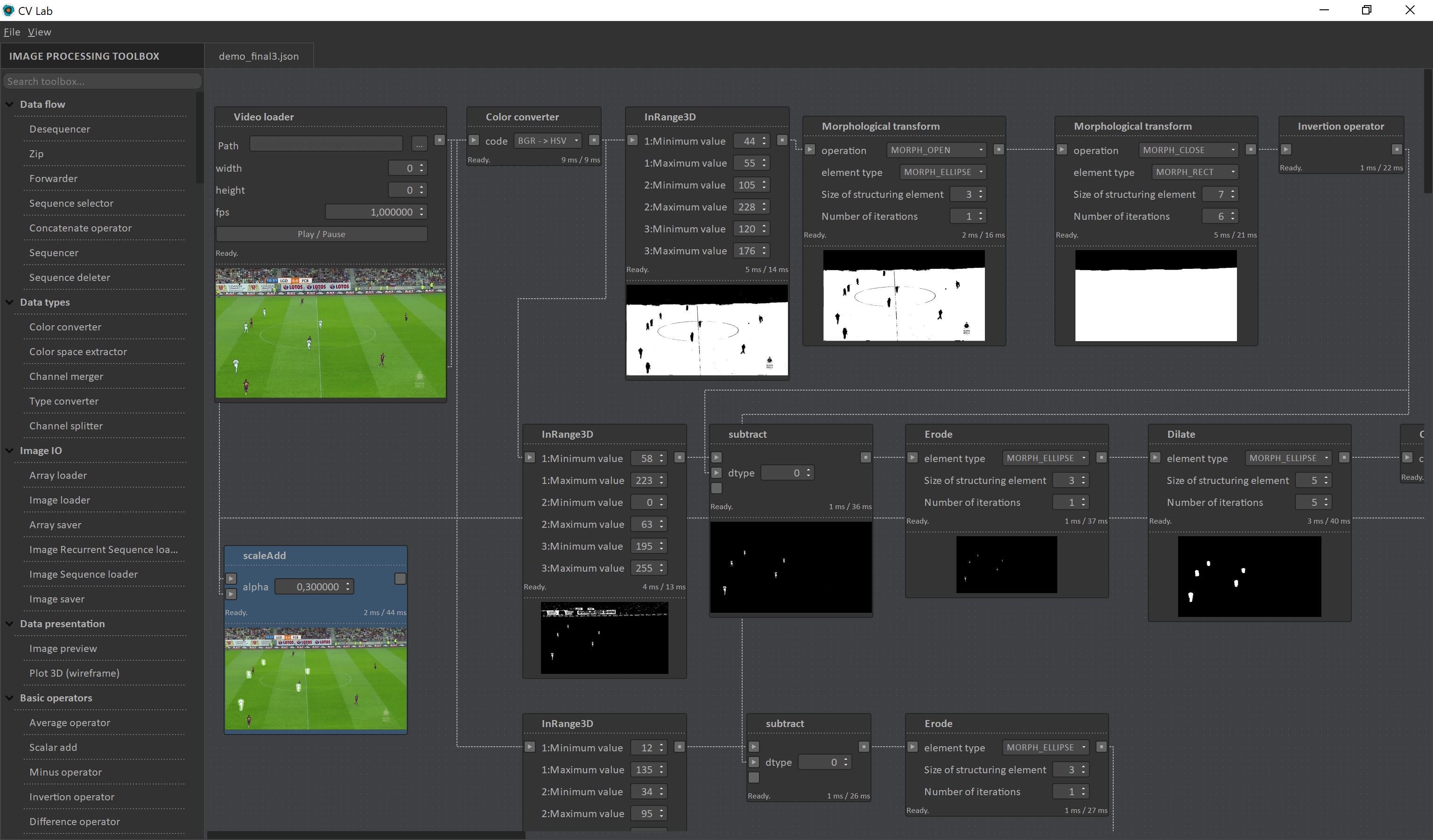

Instead, CV Lab offers interactive construction of the algorithms. OpenCV functions are available in a form of a palette of image processing blocks. They can be drag'n'dropped into a diagram and connected to each other for defining the data flow. Outputs of the functions in the diagram can be previewed. Parameters are available as convenient widgets like sliders or spinners. Therefore, any change in the diagram or parameter values can be instantly observed in the selected previews.

Homepage on GitHub: https://github.com/cvlab-ai/cvlab
PyPI package: https://pypi.python.org/pypi/cvlab

PLUGINS

CV Lab is equipped with simple plugin system. All available Python modules with name starting with cvlab_ are automatically loaded at the startup of CV Lab.

Currently, few plugins are available:

• cvlab_samples - few sample diagrams, demonstrating CV Lab functionality
• cvlab_experimental - 100+ additional image processing elements, including: OpenCV functions, Hugin, GPhoto and more
• cvlab_medical - toolbox for medical image processing and a bunch of examples
• cvlab_aug - wrapper for image augmentation library aug

USAGE

To run CV Lab just write in console:

cvlab

or:

python3 -m cvlab

or:

python3 -O cvlab/__main__.py

Creating image processing diagram

1. Drag&drop processing elements from the palette to diagram area
2. Connect elements by drag&dropping their connectors
3. Open output previews by double-clicking elements
4. Adjust parameters and see the outputs

Moving around the diagram

1. Use middle mouse button or mouse wheel to scroll the diagram
2. Select single element by clicking on it
3. Select multiple elements by clicking and dragging on the diagram area
4. Move elements with drag&drop

Displaying output images or data

1. Double-click on the element to open data previews
2. Use mouse wheel on the previews to zoom in/out
3. Double-click on the preview to open external window with additional preview

Writing python code using CV Lab

1. Put Code element on the diagram and connect its inputs/outputs, open previews
2. Open Edit code dialog
3. Write whatever python code you like :)
4. See the results in real-time
5. Be careful about infinite loops...
6. In long loops use intpoint() - it will allow the code to be interrupted when it's needed
7. To store state of the code element, you can use memory (a dict which survives recalculations)

Generating python code from the diagram

1. Right-click on last element of the diagram
2. Select generate code. The code will be copied to system clipboard.
3. Paste the code to empty python file
4. You can use the code as a library or as a script

Note: code generation is experimental. It may not work correctly with diagrams utilizing Sequences or some sophisticated elements.

Creating your own elements

Adding elements to CV Lab is really simple. See: cvlab_experimental/sample.py

KNOWN ISSUES

Random crashes

Due to a bug in old versions of OpenCV Python binding (<3.1), some OpenCV functions may cause random crashes of the entire application. Please use latest version of OpenCV available on the official OpenCV website.

Alternatively, you can install latest unofficial build of OpenCV using pip:

pip3 install --upgrade opencv-python

Note that most Linux OS packages often use outdated version of OpenCV. Before using above command you should uninstall them.

Broken python generated code

Automatic code generation is experimental. Only experienced users shall use it.

Some elements cannot be easily translated to python script code. Also, code generated from diagrams utilizing sequences may not work correctly.

Please, forgive us.

COPYRIGHT

                             CV Lab

       Copyright (c) 2013-2019 Adam Brzeski, Jan Cychnerski

      This software is distributed under 'AGPL-3.0+' license,
       excluding cvlab/diagram/elements and cvlab/thirdparty

          Files in directory cvlab/diagram/elements are
                 distributed under 'MIT License'.

       Files in directory cvlab_experimental/thirdparty are
             distributed under their specific licenses.
