A reactive stream cycle implementation in python

Project description

A functional and reactive framework for RxPY. Documentation Status

With Cyclotron, you can structure your RxPY code as many reusable components. Moreover it naturally encourages to separate pure code and side effects. So a Cyclotron application is easier to test, maintain, and extend.

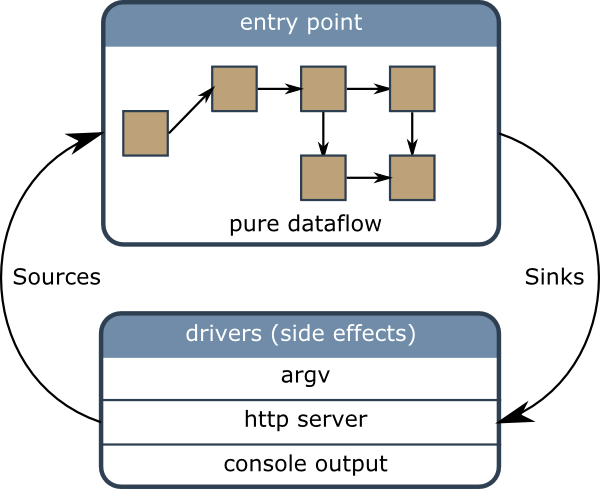

Here is the structure of a cyclotron application:

How to use it

The following example is an http echo server:

from collections import namedtuple

from cyclotron import Component
from cyclotron.asyncio.runner import run
import cyclotron_aiohttp.httpd as httpd
import rx
import rx.operators as ops

EchoSource = namedtuple('EchoSource', ['httpd'])
EchoSink = namedtuple('EchoSink', ['httpd'])
EchoDrivers = namedtuple('EchoDrivers', ['httpd'])

def echo_server(source):
    init = rx.from_([
        httpd.AddRoute(methods=['GET'], path='/echo/{what}', id='echo'),
        httpd.StartServer(host='localhost', port=8080),

    echo = source.httpd.route.pipe(
        ops.filter(lambda i: == 'echo'),
        ops.flat_map(lambda i: i.request), i: httpd.Response(

    control = rx.merge(init, echo)
    return EchoSink(httpd=httpd.Sink(control=control))

def main():
    run(Component(call=echo_server, input=EchoSource),

if __name__ == '__main__':

In this application, the echo_server function is a pure function, while the http server is implemented as a driver.

pip install cyclotron-aiohttp

you can then test it with an http client like curl:

$ curl http://localhost:8080/echo/hello


Cyclotron is available on PyPi and can be installed with pip:

pip install cyclotron

Cyclotron automatically uses uvloop if it is available.

This project is composed of several python packages. Install also the ones that you use in your application:

Package Version
cyclotron pypi-cyclotron
cyclotron-std pypi-cyclotron-std
cyclotron-aiohttp pypi-cyclotron-aiohttp
cyclotron-aiokafka pypi-cyclotron-aiokafka
cyclotron-consul pypi-cyclotron-consul


This project is licensed under the MIT License - see the License file for details
