cztile 0.1.2

A set of tiling utilities

cztile - Python package to simplify the process of tiling arrays

This project provides simple-to-use tiling functionality for arrays. It is not linked directly to the CZI file format, but can be of use to process such images in an efficient and tile-wise manner, which is especially important when dealing with larger images.

Samples

The basic usage can be inferred from this sample notebook:

System setup

The current version of this toolbox only requires a fresh Python 3.x installation. Being a pure Python wheel, it was tested with Python 3.9 on Windows.

Supported Tiling Strategies

This package features the following tiling strategies:

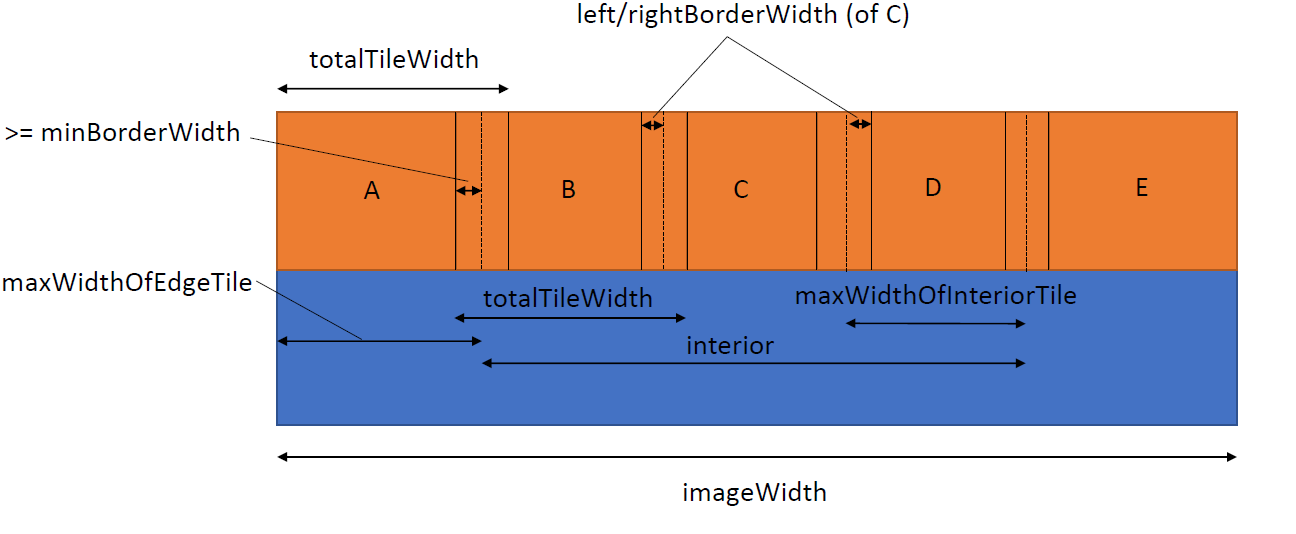

AlmostEqualBorderFixedTotalAreaStrategy2D

This covers a total area with a minimal number of tiles of constant total area such that:

• the image area is completely covered by tiles and is filled up with as few tiles as possible
• the overlap/border between tiles is as small as possible, but it is ensured that at least a minimum border size is used
• all interior tiles have the same size
• a possible excess border is split among tiles and can lead to slightly different tile and border sizes at the edge
• all interior tiles have at least a minimum border width/height on all sides
• the edge tiles have zero border at the edge and at least the minimum border width on their inner sides.
• The sizes of all non-zero borders differ at most by one pixel.

The core functionality is of course also available for 1D.

The AlmostEqualBorderFixedTotalAreaStrategy2D is based on the following algorithm:

Inputs

Image width:
Minimum interior border width (left or right):
Fixed total tile width:

Calculation of tile positions and borders

Case 1:
There is no solution. Fail!

Case 2:
Use a single tile with no borders.

Case 3:
Maximum inner tile width of edge tiles:
Maximum inner tile width of interior tiles:
Total interior tile width:
Number of tiles:
Excess border:
Total number of non-zero left and right borders:
Fractional excess border:
The first non-zero border has index , the last has index . Tile is surrounded by the borders with index and .
Cumulative excess border for all borders up to border : for
Cumulative border for all borders up to border : for
Tile boundaries:
Tile for :

• Left-most pixel of inner tile:
• Right-most pixel of inner tile:
• Inner tile width:
• Total border width:
• Left border width:
• Right border width:
• Left-most border pixel:
• Right-most-border pixel:
