DAMON user-space tool
Project description
DAMO: Data Access Monitoring Operator
damo
is a user space tool for DAMON. Using
this, you can monitor the data access patterns of your system or workloads and
make data access-aware memory management optimizations.
Demo Video
Please click below thumbnail to show the short demo video.
Getting Started
Follow below instructions and commands to monitor and visualize the access pattern of your workload.
$ # ensure your kernel is built with CONFIG_DAMON_*=y
$ sudo mount -t debugfs none /sys/kernel/debug/
$ sudo pip3 install damo
$ sudo damo record $(pidof <your workload>)
$ damo report heats --heatmap stdout --stdout_heatmap_color emotion

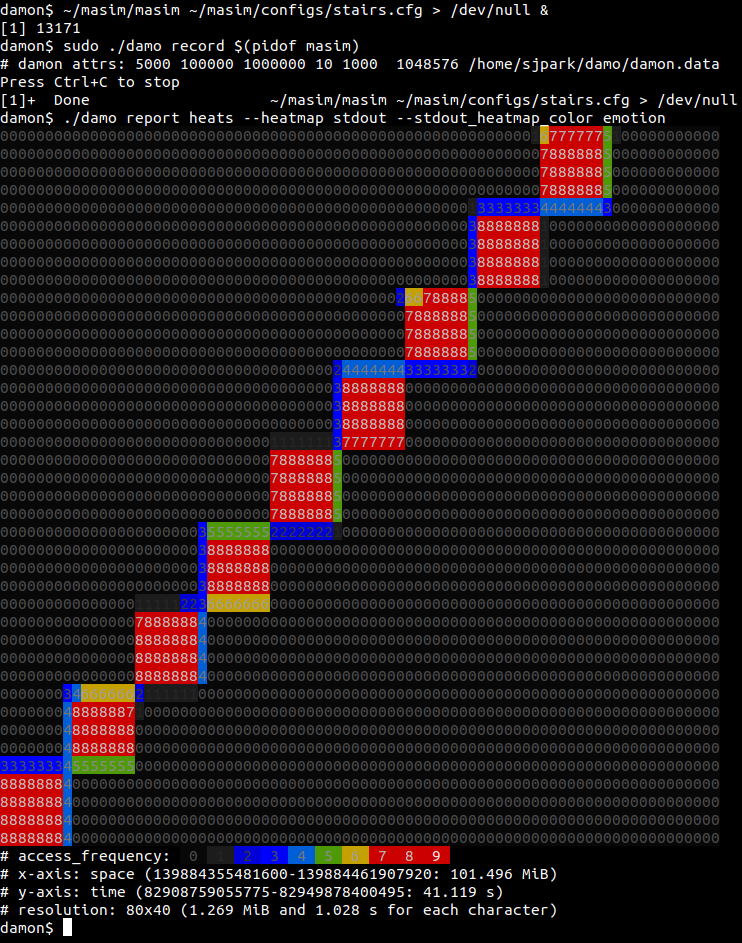

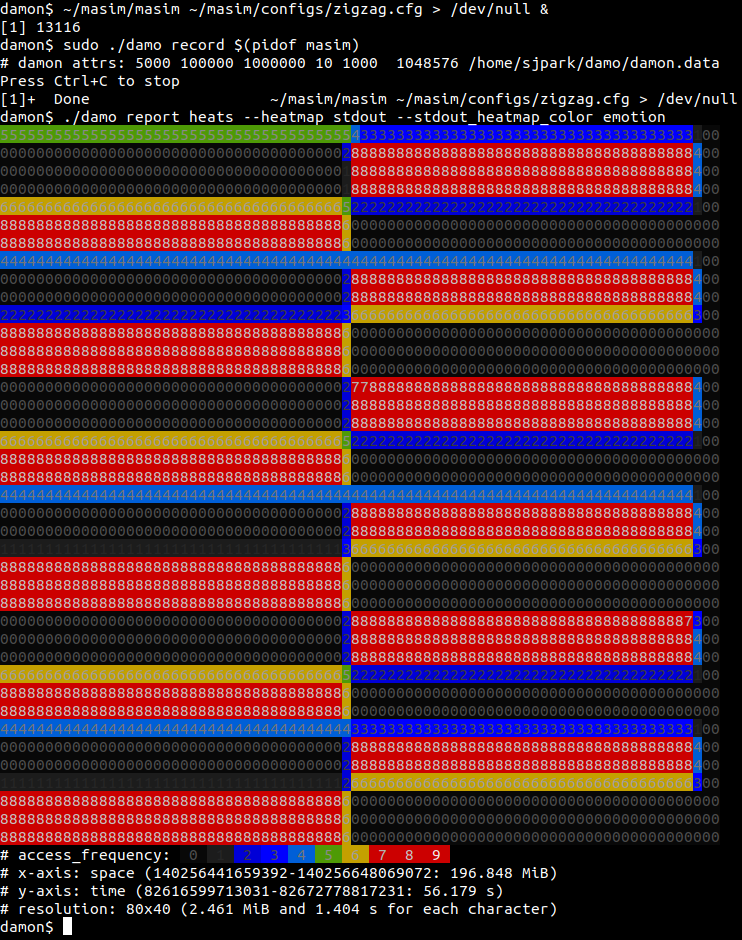

The last command will show the access pattern of your workload, like below:
FAQs
How can I install a kernel that built with CONFIG_DAMON_*=y
?
Please refer to 'Install' section of https://damonitor.github.io/.
Where can I get more detailed usage?
Below sections provide quick introductions for damo
's major features. For
more detailed usage, please refer to USAGE.md file.
What does the version number means?
Nothing at all but indicate which version is more fresh. Higher version number means it is more recently released.
Will pip3 install damo
install latest version of damo
?
It will install the latest stable version of damo
. If you want, you can
also install less stable but more fresh damo
from source code. For that,
fetch the next
branch of the source tree and use damo
executable file in
the tree.
$ git clone https://github.com/awslabs/damo -b next
$ sudo ./damo/damo record $(pidof <your workload>)
How can I participate in the development of damo
?
Please refer to CONTRIBUTING file.
Recording Data Access Patterns
Below commands record memory access patterns of a program and save the
monitoring results in damon.data
file.
$ git clone https://github.com/sjp38/masim
$ cd masim; make; ./masim ./configs/zigzag.cfg &
$ sudo damo record -o damon.data $(pidof masim)
The first two lines of the commands get an artificial memory access generator
program and runs it in the background. It will repeatedly access two 100 MiB
sized memory regions one by one. You can substitute this with your real
workload. The last line asks damo
to record the access pattern in
damon.data
file.
Visualizing Recorded Patterns
Below three commands visualize the recorded access patterns into three image files.
$ damo report heats --heatmap access_pattern_heatmap.png
$ damo report wss --range 0 101 1 --plot wss_dist.png
$ damo report wss --range 0 101 1 --sortby time --plot wss_chron_change.png
will show the data access pattern in a heatmap, which shows when (x-axis) what memory region (y-axis) is how frequently accessed (color).wss_dist.png
will show the distribution of the working set size.wss_chron_change.png
will show how the working set size has chronologically changed.
You can show the images in a web page [1]. Those made with other realistic workloads are also available [2,3,4].
[1] https://damonitor.github.io/doc/html/latest/admin-guide/mm/damon/start.html#visualizing-recorded-patterns
[2] https://damonitor.github.io/test/result/visual/latest/rec.heatmap.1.png.html
[3] https://damonitor.github.io/test/result/visual/latest/rec.wss_sz.png.html
[4] https://damonitor.github.io/test/result/visual/latest/rec.wss_time.png.html
Data Access Pattern Aware Memory Management
Below three commands make every memory region of size >=4K that doesn't accessed for >=60 seconds in your workload to be swapped out. By doing this, you can make your workload more memory efficient with near-zero performance overhead.
$ echo "#min-size max-size min-acc max-acc min-age max-age action" > my_scheme
$ echo "4K max 0 0 60s max pageout" >> my_scheme
$ sudo damo schemes -c my_scheme <pid of your workload>
