DAMON user-space tool
Project description
DAMO: Data Access Monitoring Operator
damo
is a user space tool for DAMON. Using
this, you can monitor the data access patterns of your system or workloads and
make data access-aware memory management optimizations.
Demo Video
Please click the below thumbnail to show the short demo video.
Getting Started
Follow below instructions and commands to monitor and visualize the access pattern of your workload.
$ # ensure DAMON is enabled on your kernel
$ # install damo using packaging systems listed above,
$ # or cloning the source repo and updating $PATH.
$ sudo damo start $(pidof <your workload>)
$ sudo damo show
$ sudo damo record ongoing
$ sudo damo report heats --heatmap stdout --stdout_heatmap_color emotion

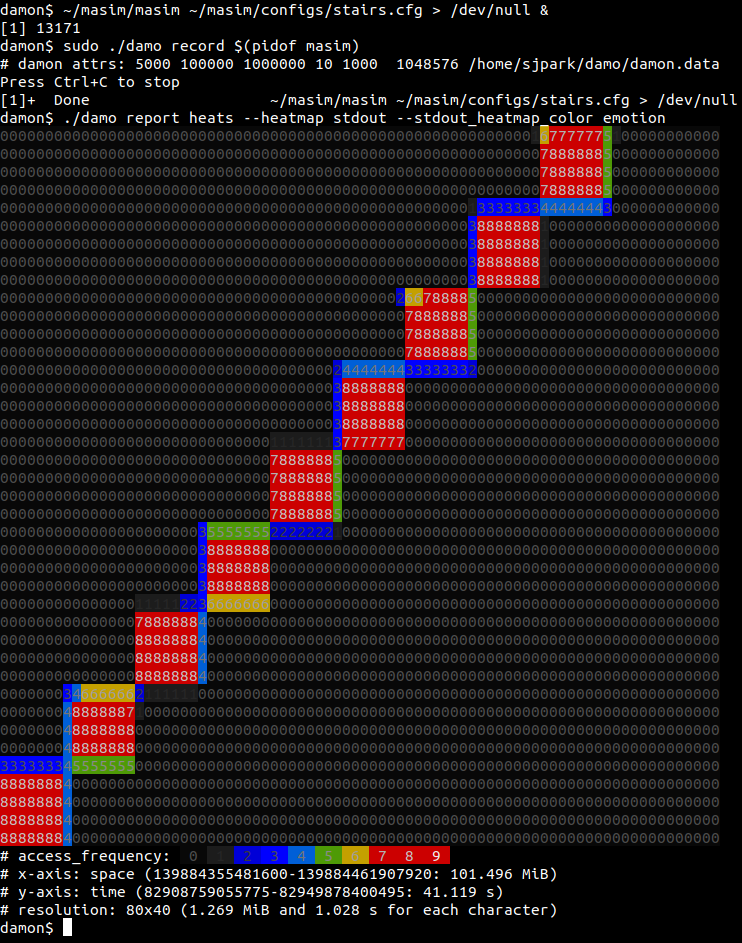

The second and last commands will show the access pattern of your workload, like below:
FAQs
How can I ensure DAMON is enabled on my kernel?
Please refer to 'Install' section of the project webpage.
Where can I get more detailed usage?
The below sections provide quick introductions for damo
's major features.
For more detailed usage, please refer to USAGE.md file.
What does the version numbers mean?
Nothing at all but indicate which version is more fresh. A higher version number means it is more recently released.
Will pip3 install damo
install the latest version of damo
?
It will install the latest stable version of damo
. If you want, you can
also install less stable but more fresh damo
from source code. For that,
fetch the next
branch of the source tree and use damo
executable file in
the tree.
$ git clone https://github.com/awslabs/damo -b next
How can I participate in the development of damo
?
Please refer to CONTRIBUTING file.
Why some features are not documented on USAGE.md file?
Because those are not yet stabilized. In other words, such features are in their experimental stages, and therefore could be deprecated and removed without notice and grace periods. The documented features could also be deprecated, but those will provide some notifications and grace periods. If there are some features you're relying on but not documented, please report your usecase to the community.
How can I know deprecation schedule and alternatives of specific features?
The list of features that will be, or already deprecated, the deprecation schedule, and their alternatives are summarized in FEATURES_DEPRECATION_SCHEDULE.md file.
Quick Intro for Major Features
Below are quick introductions for damo
's major features.
For more detailed usage, please refer to USAGE.md file.
Snapshot Data Access Pattern
Below commands repeatedly get a snapshot of the access pattern of a program for every second.
$ git clone https://github.com/sjp38/masim
$ cd masim; make; ./masim ./configs/zigzag.cfg --silent &
$ sudo damo start --target_pid $(pidof masim)
$ while :; do sudo damo show; sleep 1; done
The first two lines of the commands get an artificial memory access generator program and run it in the background. It will repeatedly access two 100 MiB-sized memory regions one by one. You can substitute this with your real workload.
The third line asks damo
to start monitoring the access pattern of the
process. Finally, the last line retries a snapshot of the monitoring results
every second and show on terminal.
Recording Data Access Patterns
Below commands record memory access patterns of a program and save the
monitoring results in damon.data
file.
$ git clone https://github.com/sjp38/masim
$ cd masim; make; ./masim ./configs/zigzag.cfg --silent &
$ sudo damo record -o damon.data $(pidof masim)
The first two lines of the commands get an artificial memory access generator
program and run it in the background. It will repeatedly access two 100
MiB-sized memory regions one by one. You can substitute this with your real
workload. The last line asks damo
to record the access pattern in
damon.data
file.
Visualizing Recorded Patterns
Below three commands visualize the recorded access patterns into three image files.
$ damo report heats --heatmap stdout
$ damo report wss --range 0 101 1
$ damo report wss --range 0 101 1 --sortby time --plot
will show the data access pattern in a heatmap, which shows when (x-axis) what memory region (y-axis) is how frequently accessed (color).wss_dist.png
will show the distribution of the working set size.wss_chron_change.png
will show how the working set size has chronologically changed.
You can show the images on a web page [1]. Those made with other realistic workloads are also available [2,3,4].
[1] https://damonitor.github.io/doc/html/latest/admin-guide/mm/damon/start.html#visualizing-recorded-patterns
[2] https://damonitor.github.io/test/result/visual/latest/rec.heatmap.1.png.html
[3] https://damonitor.github.io/test/result/visual/latest/rec.wss_sz.png.html
[4] https://damonitor.github.io/test/result/visual/latest/rec.wss_time.png.html
Data Access Pattern Aware Memory Management
Below command makes every memory region of size >=4K that hasn't accessed for
=60 seconds in your workload to be swapped out. By doing this, you can make your workload more memory efficient with only modest performance overhead.
$ sudo damo start --damos_access_rate 0 0 --damos_sz_region 4K max \
--damos_age 60s max --damos_action pageout \
<pid of your workload>
Holistic Memory Usage Monitoring
You can also show access pattern heatmap, memory footprints, and hotspot functions of the system and/or workloads all at once in live, like below.
