An efficient space physics data client for python

Project description

das2py

Das2 servers typically provide data relevant to space plasma and magnetospheric physics research. To retrieve data, an HTTP GET request is posted to a das2 server by a client program and a self-describing stream of data values covering the requested time range, at the requested time resolution, is provided in the response body. This package, das2py provides an efficient space physics data client for python. Streams are parsed and stored as NumPy arrays using a C extension, avoiding data copies and conversions.

Anaconda Package

Anaconda Package

Pre-build versions of das2py are available from Anaconda. If you're working in an Anoconda or Miniconda python 3 environment these are easier to install as no C compiler is required. To install the conda package run the command:

(base) $ conda install -c dasdevelopers das2py

The anaconda package automatically pulls in das2C, pycdf, and pthreads4w as needed.

If this works then test using:

(base) $ wget https://raw.githubusercontent.com/das-developers/das2py/master/examples/ex05_mex_marsis_query_by_angle.py
(base) $ python ex02_galileo_pws_spectra.py

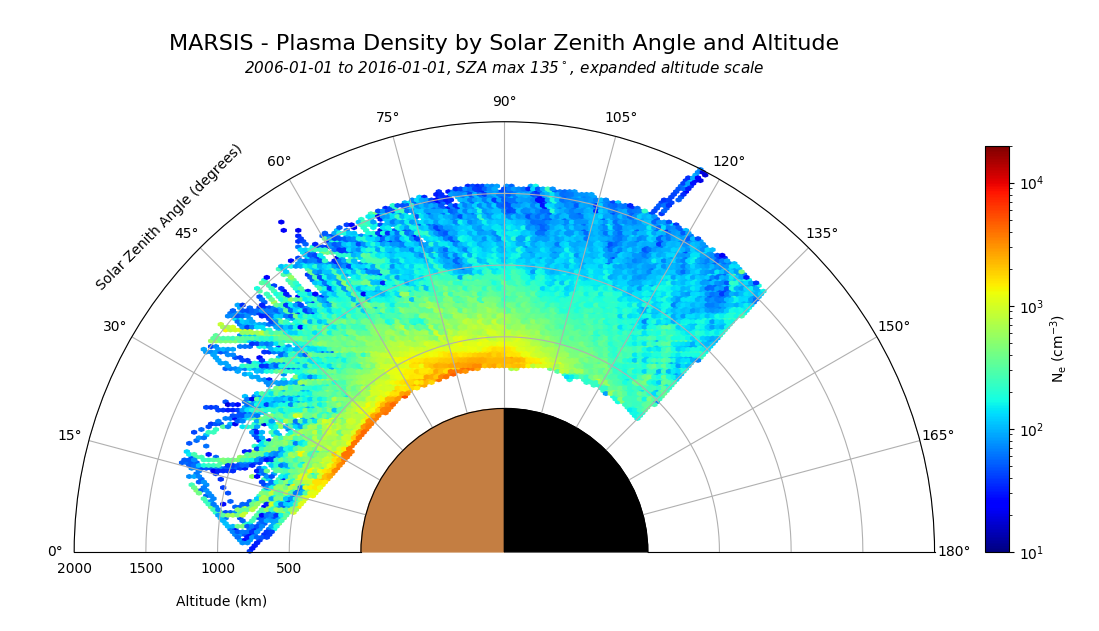

If this command produces a plot similar to the following...

...then das2py is installed, and you can skip building the software and head straight the example program below.

Prerequisite

Compilation and installation of das2py has been tested on Linux, Windows, MacOS using both Python 2 and Python 3. The following packages are required to build das2py:

  • Das2C - Version 2.3 or above. Need not be installed, but must be built
  • NumPy - Version 1.10.1 or above
  • MatplotLib++ - For plotting data (optional, recommended)
  • CDF - For writing CDF files (optional)

Pre-requisite package install commands are give below.

$ sudo apt install python3-setuptools python3-dev python3-numpy # debian

New build instructions (wheel)

In this version, almost no environment variables are needed Below, das2C is built adjacent to das2py so that it can be included in das2py.

# (Works on Linux, more steps needed on Windows & MacOS.
#  See buildfiles/pypi/ReadMe.md for details)

# First build and test das2C, installation is not necessary
git clone git@github.com:das-developers/das2C.git
cd das2C
env N_ARCH=/ make
env N_ARCH=/ make test
cd ../

# Now build das2py using the PIP of your choice in an adjacent directory
git clone git@github.com:das-developers/das2py.git
cd das2py
env DAS2C_LIBDIR=$PWD/../das2C/build. DAS2C_INCDIR=$PWD/../das2C python3.9 -m build

That's it! Now you have a wheel file that can be installed where ever you like. The included setup.py instructs the python setuptools module to staticlly link das2C. So the wheel is self contained.

To install your new wheel into the user-local area:

pip3.9 install ./dist/das2py-2.3.0-cp310-cp310-linux_x86_64.whl
ls .local/bin/das_verify
ls .local/lib/python3.9/site-packages/das2
ls .local/lib/python3.9/site-packages/_das2*

To test it by validating one of the example files...

das_verify das2py/test/ex96_yscan_multispec.d2t

and to generate a plot of Cassini electron cyclotron frequencies.

python3.9 das2py/examples/ex09_cassini_fce_ephem_ticks.py 2017-09-14
okular cas_mag_fce_2017-09-14.png # Or whatever PNG viewer you like

Old Build and Install

The old makefile based build and install wrapper is still supported. It's based on distutils, and it works for Python 2.7 and up. For newer versions of python the pip-wheel build is recommended, for Python2 support read on...

Decide where you want to install das2py. In the example below I've selected /usr/local/lib/python3.9/site-packages but any location is fine so long as it is on the PYTHONPATH or you are willing to add it to your PYTHONPATH.

# Where to find the das2C static library
$ export DAS2C_INCDIR=$HOME/git/das2C
$ export DAS2C_LIBDIR=$HOME/git/das2C/build.  #last dot is not a typo

# Which python version to use
$ export PYVER=3.9

# Where you want to install the files
$ export INST_HOST_LIB=/usr/local/lib/python3.9
$ export INST_EXT_LIB=/usr/local/lib/python3.9

# Build and test
$ make           # <-- If only using system packages
$ make local     # <-- If using numpy or others from $HOME/.local
                 #     Do not use for RPM/DEB builds
$ make test

# Check install location, then install
$ make -n install
$ make install

First program

The following small program demonstrates how to query for data and generate a plot using das2py.

Query a URI for reduced resolution data

import das2
src = das2.get_source( 'tag:das2.org,2012:site:/uiowa/galileo/pws/survey_electric/das2' )
dataset = src.get( {'time' : ('1997-05-07T15:00', '1997-05-07T17:00', 4.0)} )[0]
  • Servers come and go. The federated catalog provides stability for application code by maping URIs to data sources.
  • Browse for URIs using a das2 catalog browser, or using das2py to get the root node (see example 11).

Access quantities by physical dimensions

print(dataset)

vX = dataset['time']['center']
vY = dataset['frequency']['center']
vZ = dataset['electric']['center']
  • Datasets contain dimensions. Dimensions contain variables. Each variable in a dimension serves a purpose, the most common is to define the center point of a coordinate or measurement.
  • Array dimensions are not confused with physical dimensions. Dataset meaning is not tied to any particular array morphology.

Use Matplotlib to generate an image.

import matplotlib.pyplot as pyplot
import matplotlib.colors as colors

fig, ax = pyplot.subplots()
scaleZ = colors.LogNorm(vmin=vZ.array.min(), vmax=vZ.array.max())
ax.pcolormesh(vX.array, vY.array, vZ.array, norm=scaleZ, cmap='jet')
pyplot.show()

Reporting bugs

Please use the github.com issue tracker report any problems with the library. If you've fixed a bug, 1) thanks!, 2) please send a pull request so that your updates can be merged into the main project.
