Dash wrapper for Plotly's react-chart-editor
Project description
Dash Chart Editor
Dash Chart Editor is a Dash component wrapper for the Plotly React Chart Editor package, enabling you to use an editor panel for Plotly charts in your Dash app.
Installation
pip install dash-chart-editor
To build locally see the Contributing Guide

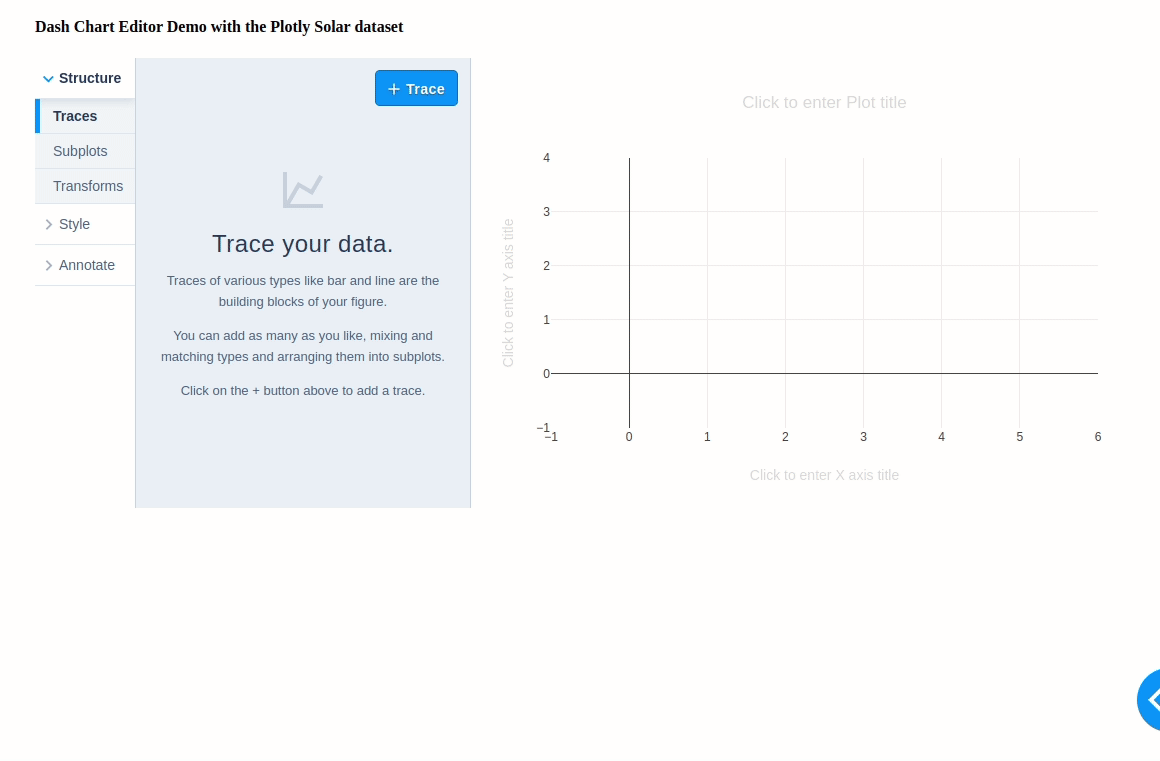

Demo and Quickstart
import dash_chart_editor as dce
from dash import Dash, html
import pandas as pd
df = pd.read_csv('https://raw.githubusercontent.com/plotly/datasets/master/solar.csv')
app = Dash(__name__, external_scripts=["https://cdn.plot.ly/plotly-2.18.2.min.js"])
app.layout = html.Div([
html.H4("Dash Chart Editor Demo with the Plotly Solar dataset"),
dce.DashChartEditor(dataSources=df.to_dict("list")),
])
if __name__ == "__main__":
app.run_server(debug=True)
Examples
See more demo apps in the /examples
folder
-
quickstart.py The quickstart app shown above.
-
figure_templates.py - A demo on how to use plotly figure templates with the chart editor.
-
figure_templates_dbc.py - A demo of Bootstrap themed figure templates from the Dash Bootstrap Templates library.
-
customize.py - Example of ways to customize DashChartEditor
- add a logo with
logoSrc
- only allow certain figure types with
traceOptions
- set graph mode bar menu with
config
. See all the options https://github.com/plotly/plotly.js/blob/master/src/plot_api/plot_config.js.
- add a logo with
-
default_figure.py - Shows how to add a default figure to use when the app starts.
-
change_datasets.py - An example showing loading different datasets in a dropdown
-
display_dce_figure_in_dccGraph.py - This app shows how to save a figure edited in
dash-chart-editor
and using it in a different part of a dashboard - in this case it's displayed in adcc.Graph()
. -
three_figure_demo.py - This demos how to use a dash-chart-editor in a model to update three different figures in an app.
Contributing
We welcome contributions to dash-chart-editor. If you find a bug or something is unclear please submit a bug report, if you have ideas for new features please feel free to make a feature request.
If you would like to submit a pull request, please read our contributing guide, which contains instructions on how to build and install dash-chart-editor locally, and how to submit the pull request itself.
Dash Chart Editor Reference
Access this documentation in your Python terminal with:
>>> import dash_chart_editor
>>> help(dash_chart_editor.DashChartEditor)
- id (string; optional):
Dash prop to be registered for use with callbacks.
- annotateOptions (dict; default True):
Options that drive the available options under the "Annotate"
tree.
`annotateOptions` is a boolean | dict with keys:
- images (boolean; optional)
- shapes (boolean; optional)
- text (boolean; optional)
- config (dict; default {editable: True}):
Plotly config options, listed here:
https://github.com/plotly/plotly.js/blob/master/src/plot_api/plot_config.js.
- controlOptions (dict; default True):
Options that drive the available options under the "Control"
tree.
`controlOptions` is a boolean | dict with keys:
- menus (boolean; optional)
- sliders (boolean; optional)
- data (boolean | number | string | dict | list; optional):
Output data of the chart editor.
- dataSources (dict with strings as keys and values of type list; optional):
Input dataSources for driving the chart editors selections.
- figure (dict; optional):
Output figure of the chart editor (dcc.Graph esk output).
- frames (boolean | number | string | dict | list; optional):
Output frames of the chart editor.
- layout (boolean | number | string | dict | list; optional):
Output layout of the chart editor.
- loadFigure (dict with strings as keys and values of type boolean | number | string | dict | list; optional):
{data, layout, frames} given to the chart, used to populate
selections and chart when loading.
- logoSrc (string; optional):
Logo that will be displayed in the chart editor.
- logoStyle (dict; optional):
Style object of the Logo.
- saveState (boolean; default True):
When passed True, this will save the current state of the grid to `figure`.
- structureOptions (dict; default True):
Options that drive the available options under the "Structure"
tree.
`structureOptions` is a boolean | dict with keys:
- subplots (boolean; optional)
- traces (boolean; optional)
- transforms (boolean; optional)
- style (dict; default {width: '100%', height: '100%'}):
style of the whole editing element, including charting area.
- styleOptions (dict; default True):
Options that drive the available options under the "Style" tree.
`styleOptions` is a boolean | dict with keys:
- axes (boolean; optional)
- colorBars (boolean; optional)
- general (boolean; optional)
- legend (boolean; optional)
- maps (boolean; optional)
- traces (boolean; optional)
- traceOptions (boolean | number | string | dict | list; optional):
List of trace options to display.
